2019 SCM Olimpic K 560 Edgebander Active

SCM Edgebander Auction - Haltom City, TX

Haltom City, TX


Days

Hours

Min

Sec

Lot Closes:

6/12/2025 11:30:00 AM PT
254 Watching

Minimum Bid:

$350.00 USD

Number of Bids:

4

Current Bid:

$325.00 USD ( ) No Reserve
Your Maximum Bid Is $0.00 USD
$USD
Or
Or
  • Current Price : $325.00 USD ( ) No Reserve
  • 4 Bid(s)
  • High Bidder: j****n
Documents
No documents available
Bidding Info
This auction uses Proxy Bidding.
Bids placed within the final 5 minutes will extend the auction closing time by 5 minutes.
Additional Fees
Additional Fees will be applied to the final price:
15.00% Buyer's Premium
0.00% Sales Tax

SCM "Olimpic K 560R HP" Edgebander (2019) ( Active #72789322 )

A cabinet maker for commercial contractors and the healthcare industry is auctioning a 2019 SCM Olimpic K 560 Edgebander. Please call me directly with any questions.

  • Pick Up Location

    4100 Garland Dr, Haltom City, TX 76117

  • Make

    SCM

  • Model

    Olimpic K 560R HP

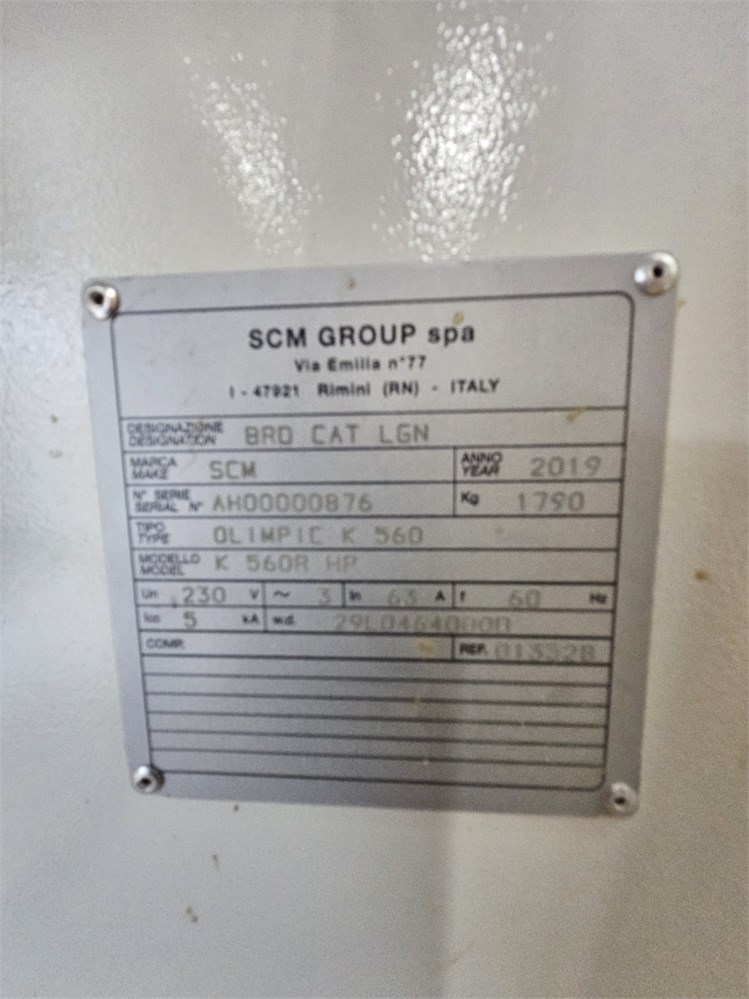

  • Serial Number

    AH00000876

  • Year

    2019

  • Phase

    3 PHASE

  • Voltage

    230 VOLT

  • Buyer Inspection Period

    May 30th - June 12th, 2025 By appointment only

  • Load Out Period

    June 12th - June 19th, 2025 By appointment only

  • Estimated Dimensions

    15' x 48" x 67"

  • Estimated Weight

    4,000 Pounds

  • Seller Comment

    Seller can load onto buyer's flatbed truck/trailer for non-negotiable loading fee. Palletizing, crating or other services may be available at an additional cost

  • Load Fee

    250

  • Lot Notes

  • page views

    38

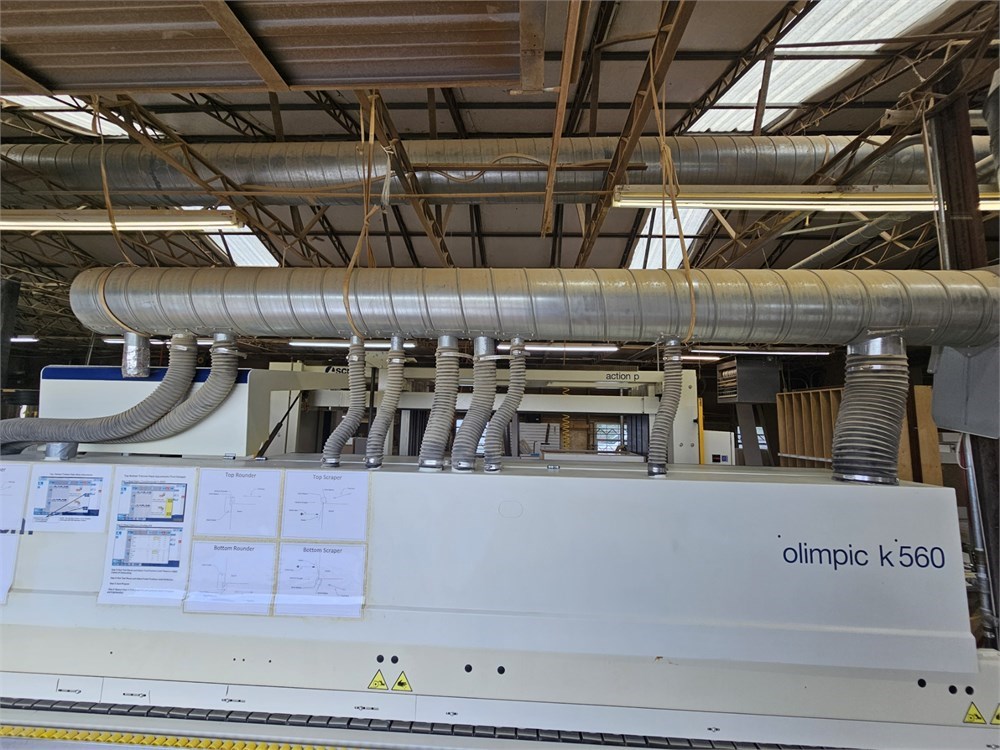

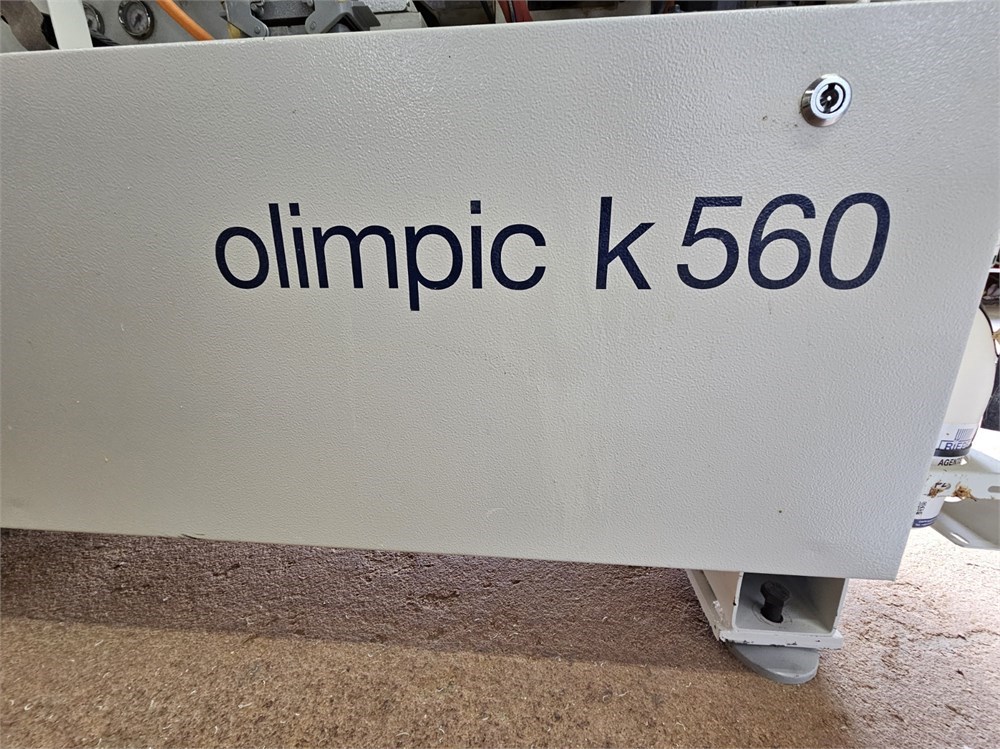

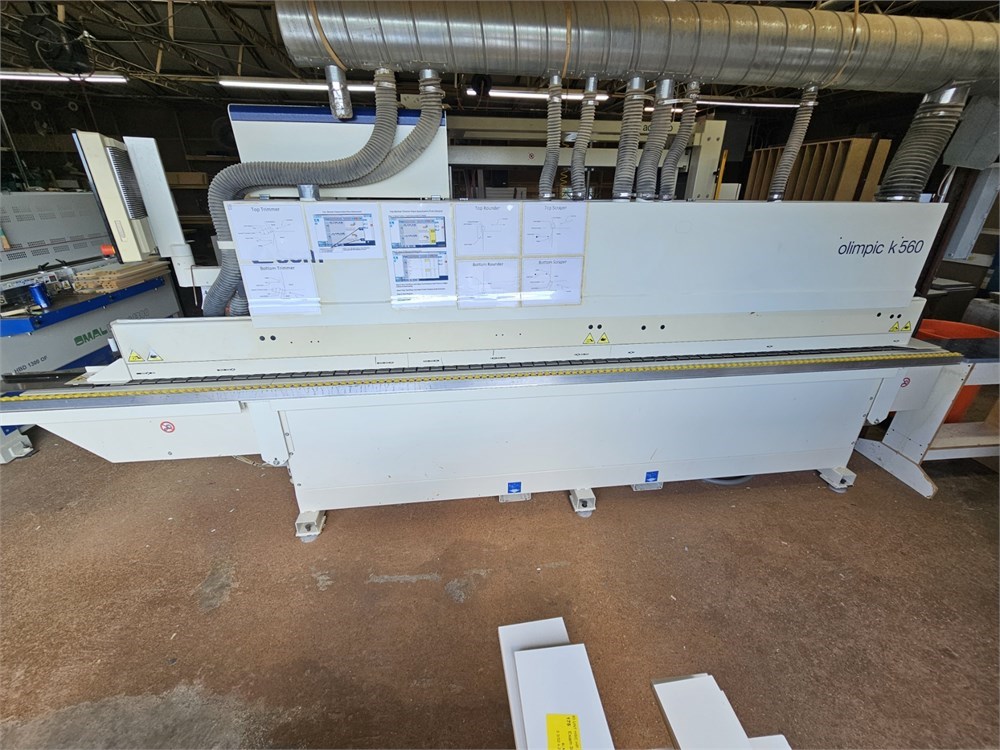

SCM "Olimpic K 560R HP" Edgebander (2019)

SEE VIDEO OF MACHINE

Edge Capacity, 0.4 to 6 mm (0.016 to 0.25")for strip feeding.

Min. Panel width 60 mm(2.375"); Min Panel length 140 mm(5.5").  Min./max. Panel thickness 8 -54 mm (0.375" - 2.125"); Minimum distance between panels600 mm (24").

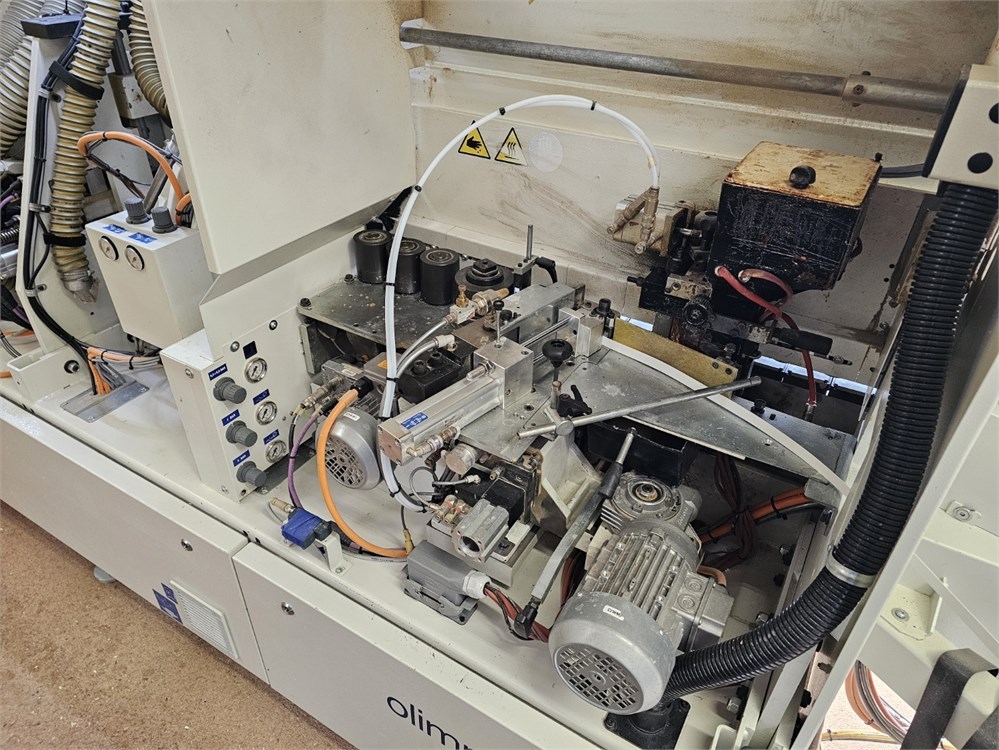

Pre-milling station:(2) 2.0 HP (1.5 kW) motors, to rectify/clean panels already sized.

Adjustable In-feed Fence: Manually pre-set with digital indicator, pneumatic in/out positioning.

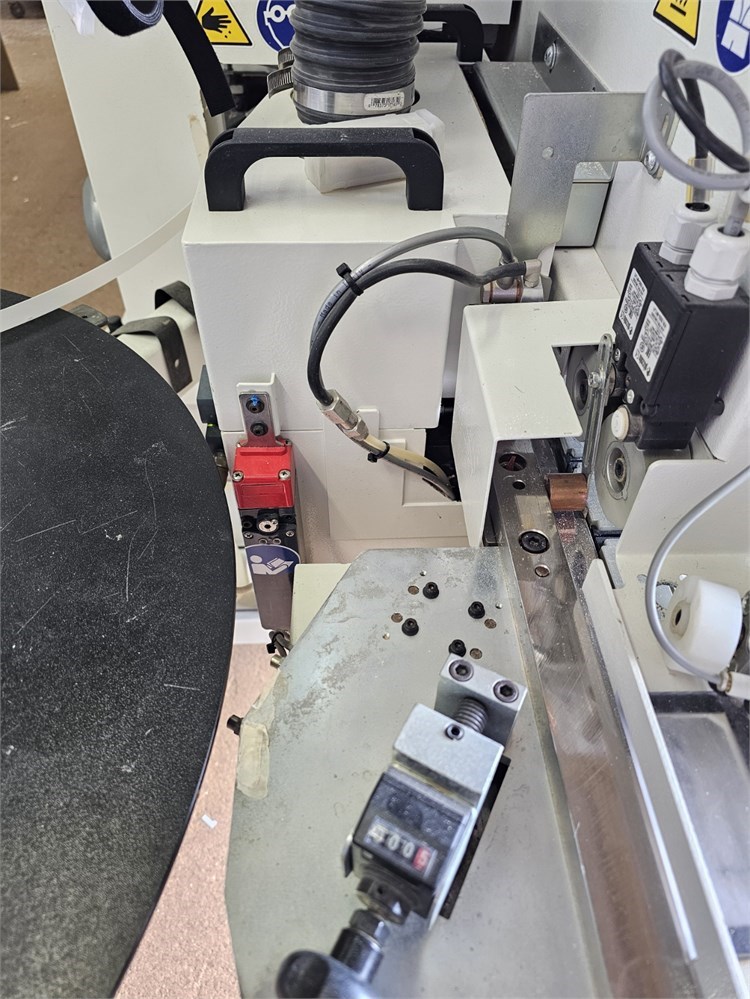

Automatic Strip & Coil Feed Magazine: For straight edges and 3 mm guillotine for coils.

Gluing Station: For EVA (Hot Melt) with Quick change/disconnect Teflon glue pot for fastglue tanks changeif needed.Heat-up time approx. 10 Min.

Pressure Section: Manual digital positioning;Teflon coatedpneumatic driven roller &(2) spring loaded idle rollers.

End Trimming Station:Front & rear 2 x 0.5 HP, 12,000RPMmotors mounted on THK guides, swivels 0° - 15° for straight & angle cutting.

Top & Bottom Trimming Unit: 2 x0.7 HP - 12.000 RPM motors, capable of tilting &pneumatic positioning for (3) settings,flush/bevel/radius trimming for quick setup.

Corner Rounding Unit"Round 2M": corner rounding unit with (2) 0.80 HP independent motors that slide on THK guides.

Top & Bottom Profile Scraping Unit with digital indicators. Large dia. copy wheels for max. accuracy and pneumatic in/out positioning.

Glue scraping Unit: Eliminates any excess glue.

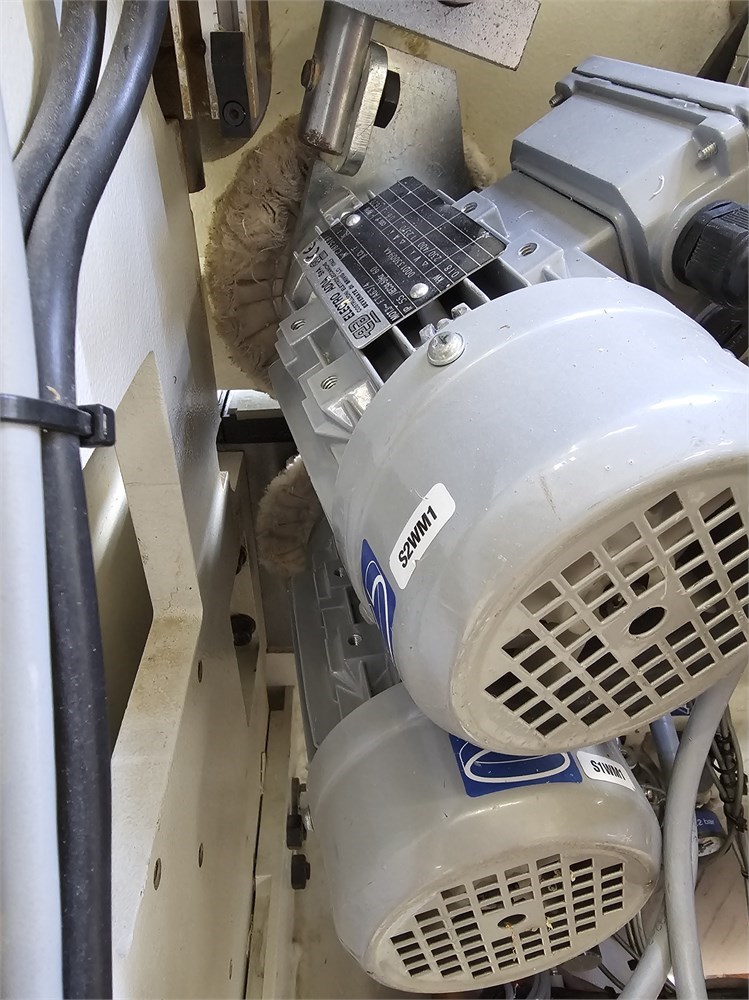

Buffing Unit: Top/bottom, 2 x 0.25 HP - 2,800 RPM motors, tilting up to 12°.

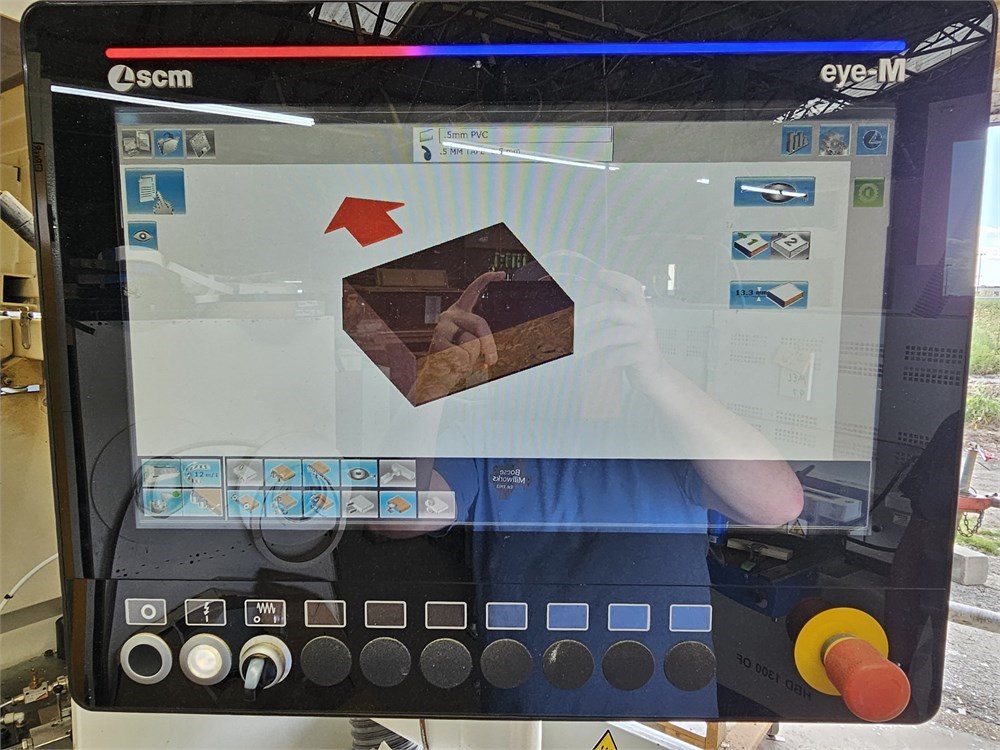

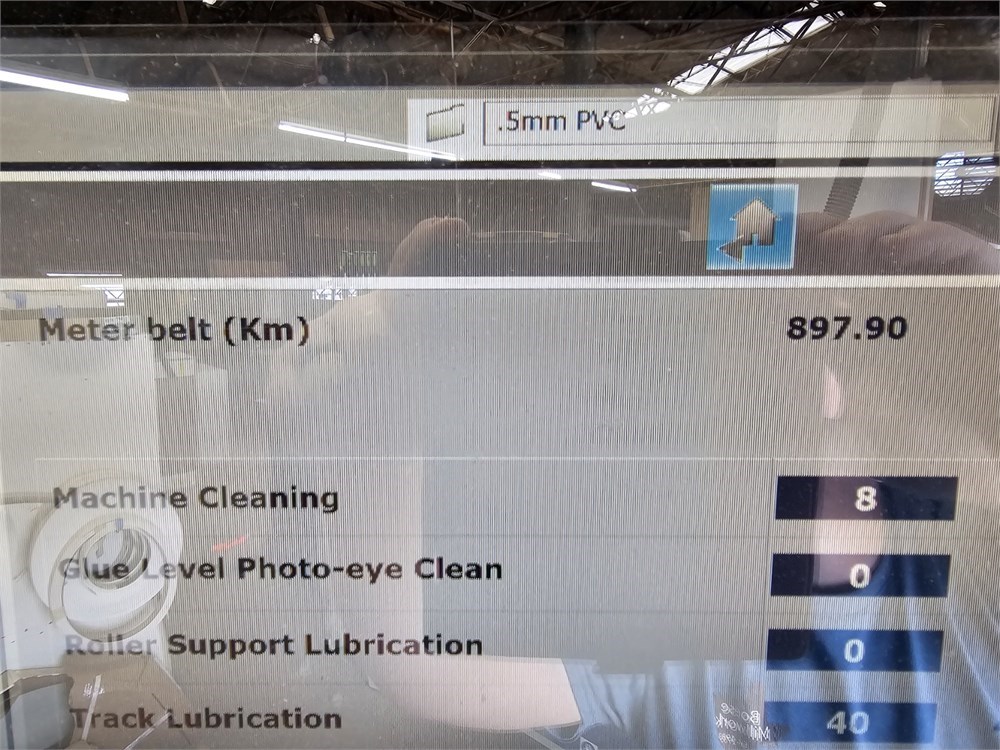

"STARTOUCH" Controller with 12" touchscreen display, capable of storing (100) programs.

2-Speedfeed-speed of 40 & 60 FPM (12 & 18 MPM); 1 x 2.5 HP feed drive motor;

Full sound enclosure cover and outboard panel support.

The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.

The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
