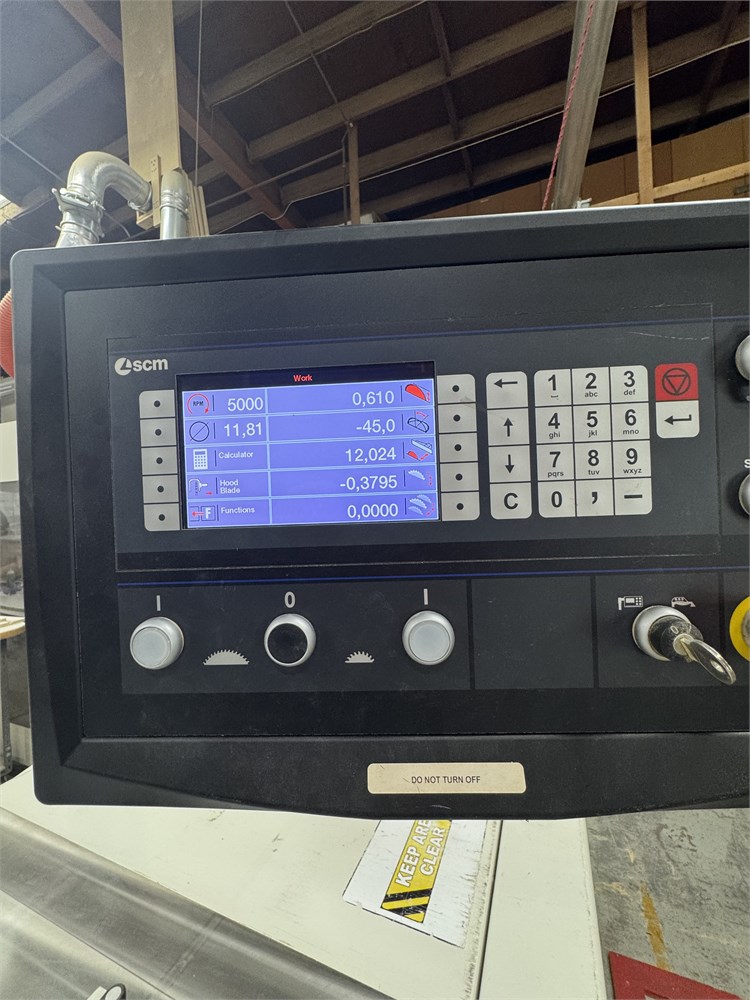

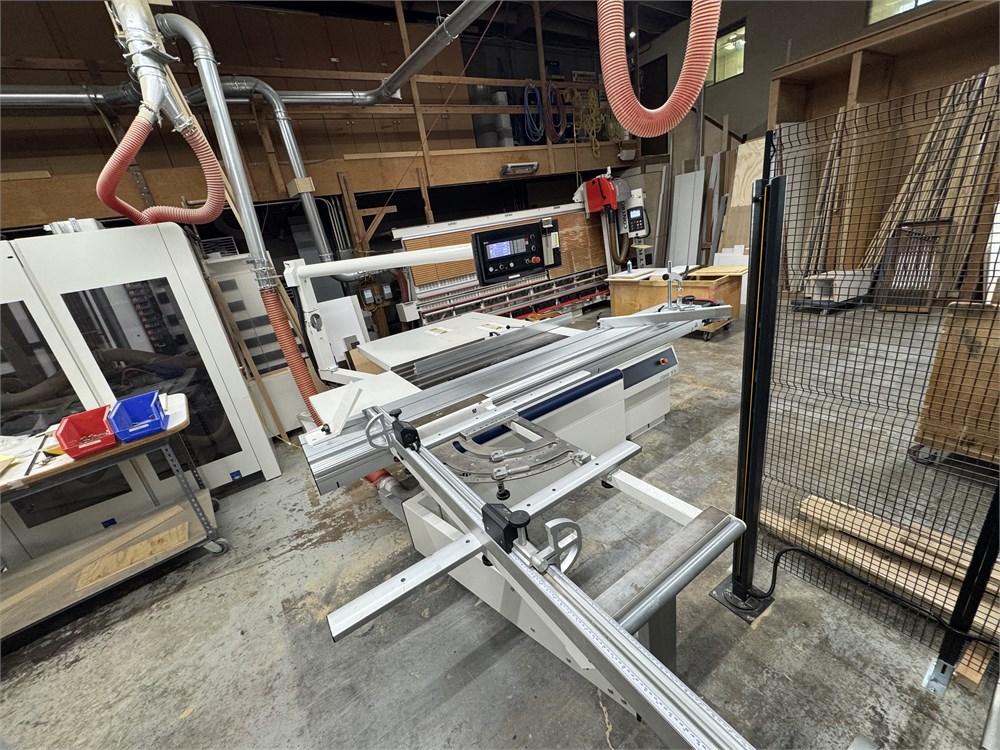

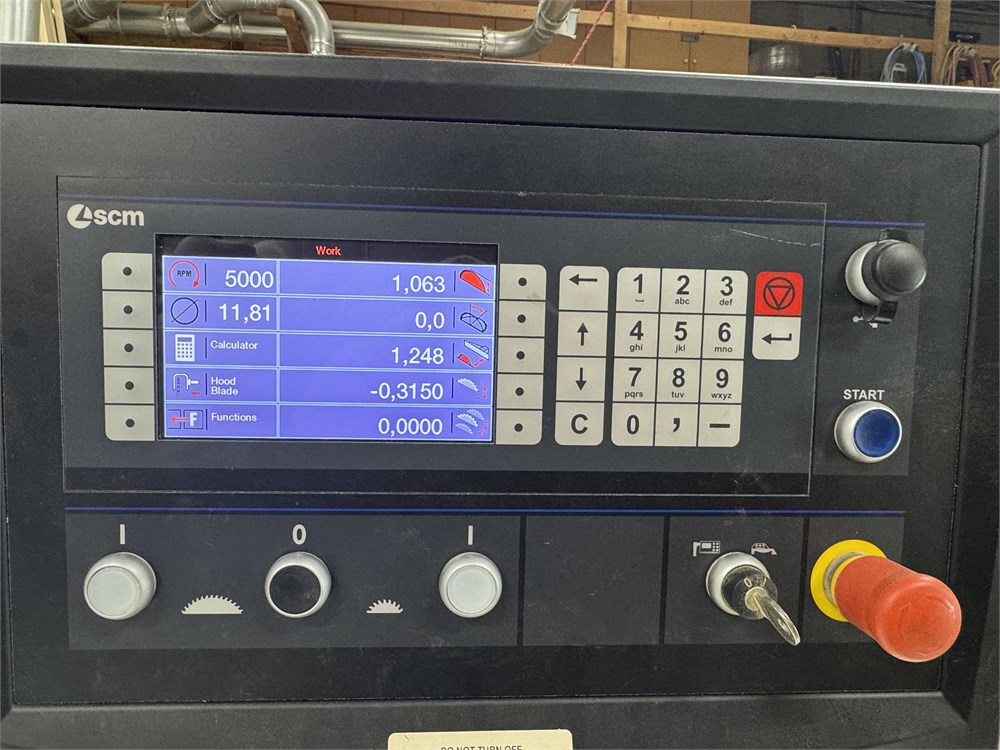

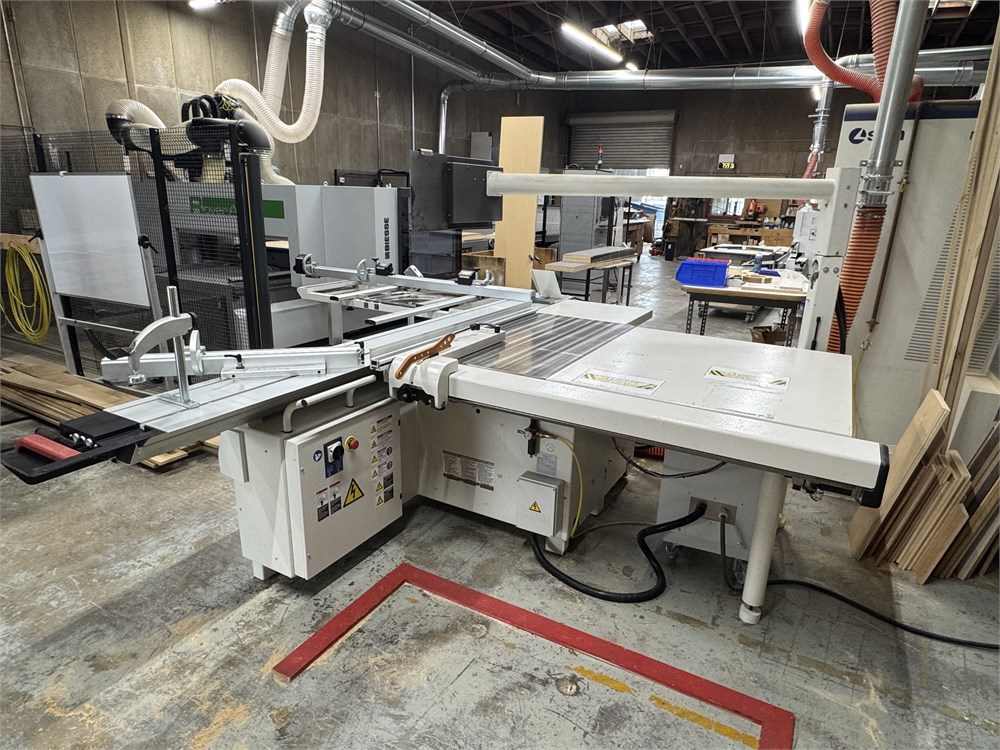

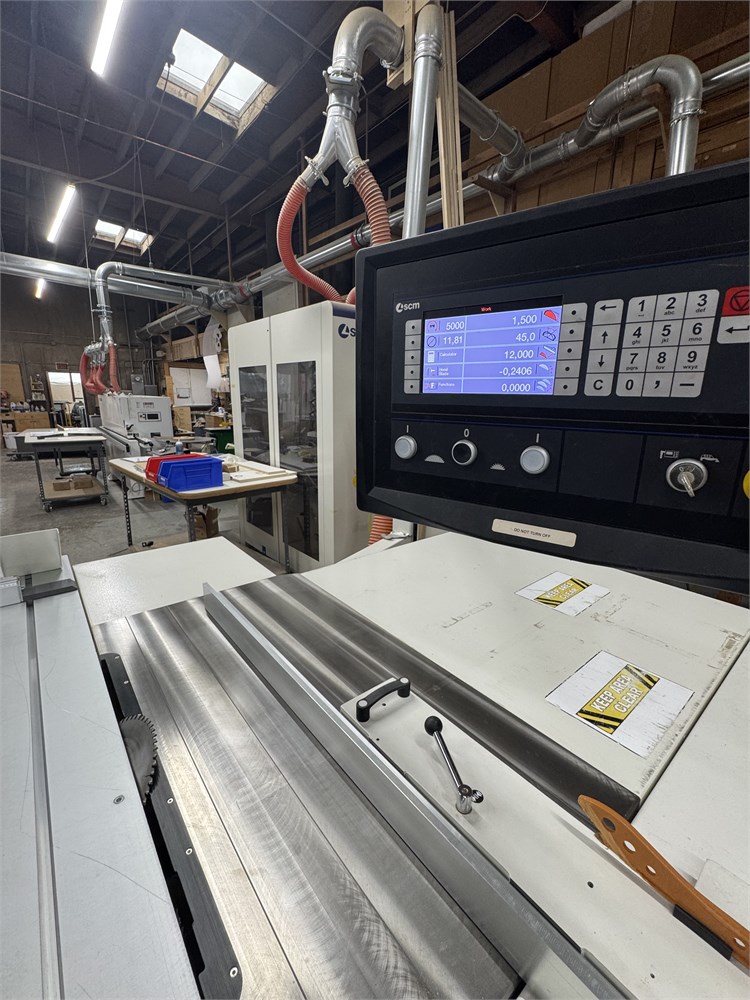

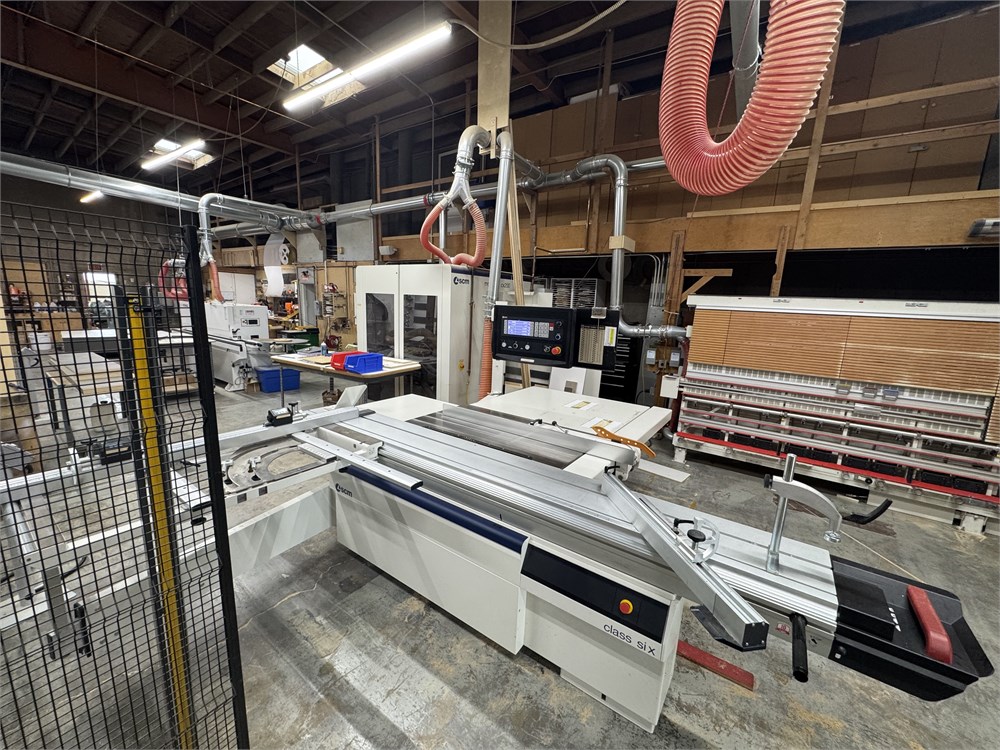

The Class SiX is capable of simultaneously using a 550 mm saw blade and 160 mm scoring blade, for both 90° and ± 46° inclined cuts, providing the best performance on veneered panels and solid wood components. Featuring a 10.5’ sliding table saw with 15 horsepower, independent powered scoring unit with overhead EASY 3 UP PLUS control panel, squaring frame with complex device and stop position LCD readouts.

The double trunnion assembly for the blade tilting is part of the blade group casting. This eliminates the possibility of misalignment which exists when these parts are bolted in the place as some manufacturers do. Others use a small pivot pin to hold up the saw group. Direct shaft drive coupled with rack and pinion gearing allow smooth, angular adjustment of the saw blade.

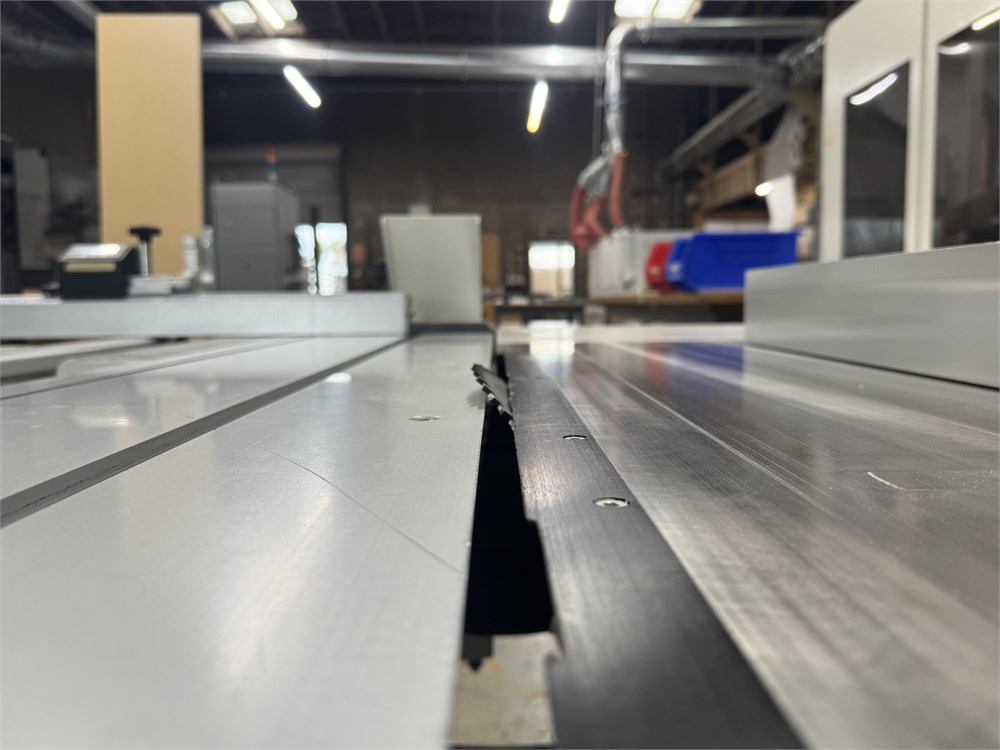

Guideways are ground to tolerance allowing for perfectly precise and permanent fitting of the wagon assembly. The radius is ground into the steel guides increases contact area along the bearing surface which eliminates pre-mature wearing of the bearing and guides. The steel guides are mechanically dovetailed into place, (not glued). With this system, it is 4 times higher with respect to any other system. All classical SCM sliders come with a 10 year warranty on table guideway tolerances.

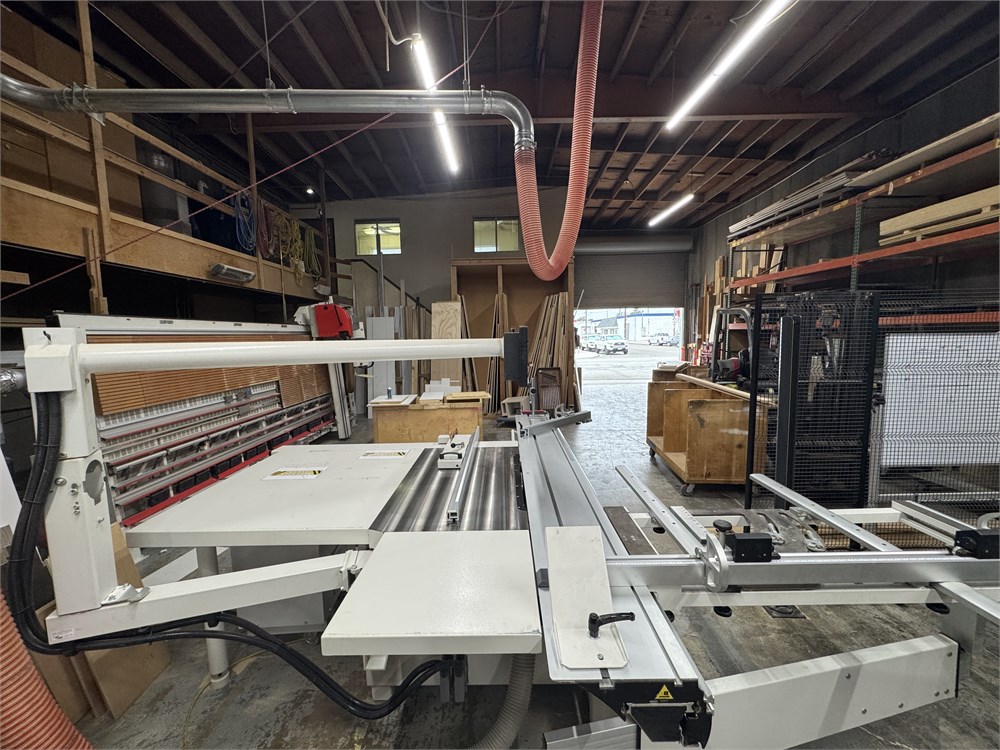

The squaring frame has a heavy-duty articulating arm to provide maximum support for heavy panels. There are preset positions on the outrigger to facilitate angle cuts. The Class Si X comes with three LCD flip stops that can be positioned to be within 1" of each other.

The crosscut fence can be easily removed by accessing a spring-loaded locking pin. By pulling down, the crosscut fence easily comes out to either re-position it or remove completely. When it is needed again, it quickly locks into the exact position it was in previously. This memory lock system is not only accurate, it is repeatable as well!

CompeX (SCM patent), the self-adjustment system, automatically mechanically moves the squaring rule, when it is angled, to maintain the distance between the stops and the cutting line.

• Anodized aluminum alloy sliding carriage on high precision arch-formed hardened steel guides
• 10 year guarantee for the carriage sliding system
• Squaring fence with 3 LCD readouts for stop positions (each stop is equipped with electronic digital readout)
• Manual parallel fence with position readout on metric rule
• Outfeed table extensions
• Inverter for electronic speed change from 3,000 to 5,000 RPM
• Overhead saw guard with incorporated dust extraction (100 mm outlet diameter)
• Overload protection
• Emergency push button located on the front machine side
• Automatic brake on main sawblade
• Padlock main switch

Main motor horsepower: 15hp
Scoring motor horsepower: 1hp
Diameters to be used simultaneously: 550 mm x 160 mm
Blade Tilting: -46°/+46°
Fixed table size: 49” x 27”
Sliding table width: 14.25”
Height of worktable: 35.5”
Cutting width on parallel/rip fence: 59” (1,500 mm)
Max. length of crosscut with scoring: 125.9” (3,200 mm)
Main blade diameter/arbor: 550 mm/30 mm
Scoring blade diameter/ arbor: (Up to) 160 mm/20 mm (120 mm Standard)
Arbor speeds –main/scoring: 2,350 –5,200 with inverter / 6,000 RPM
Dust outlets –main/overarm guard: 5”/4” (120 mm/100 mm)
Depth of cut –90 degrees: 8” (205 mm)
Depth of cut at -45 degrees: 4.13” (105 mm)
Depth of cut at +45 degrees: 5.11” (130 mm)
Overall dimensions: 286” x 166” x 36”
Net Weight: 2,590 lbs.
Voltage: 230V 3 PH
Dust Extraction: 1100 CFM
