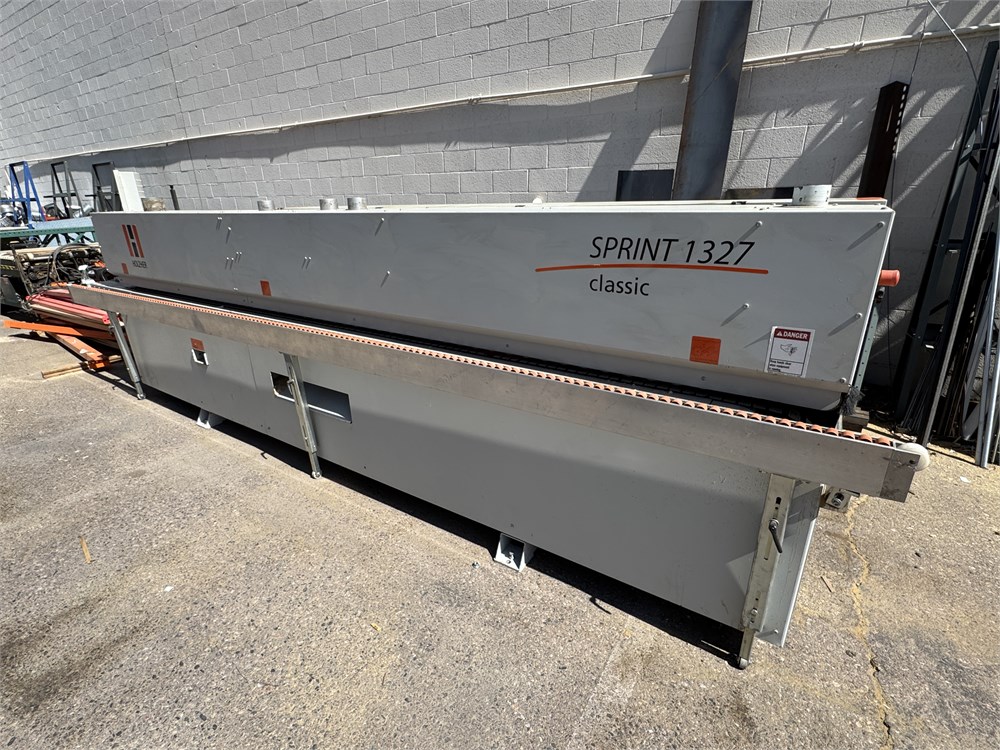

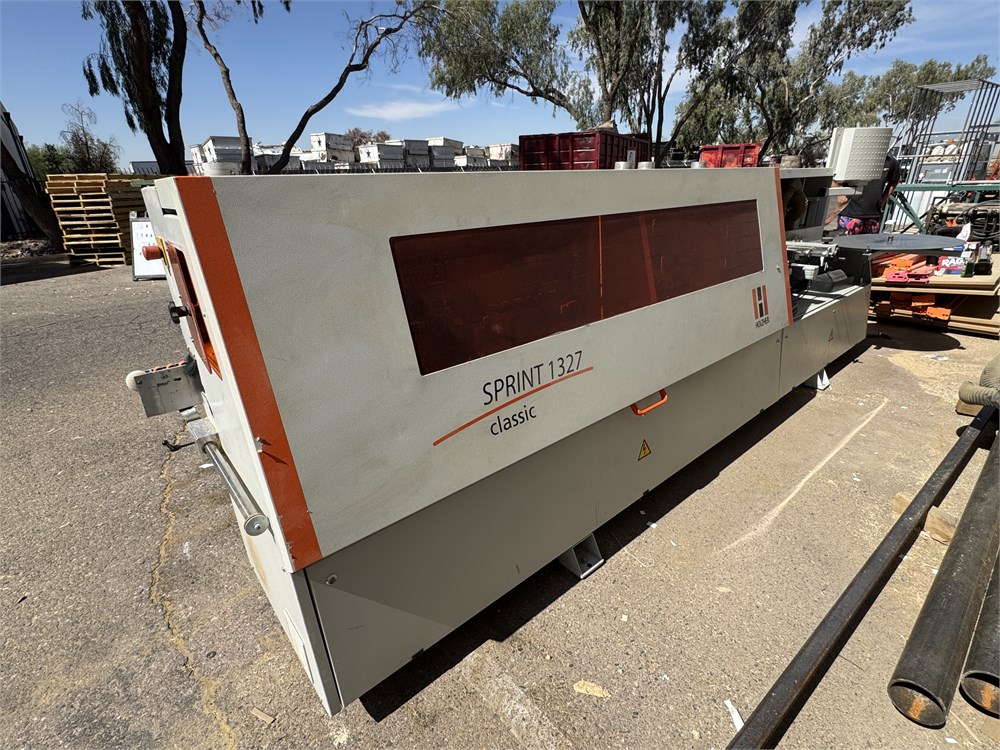

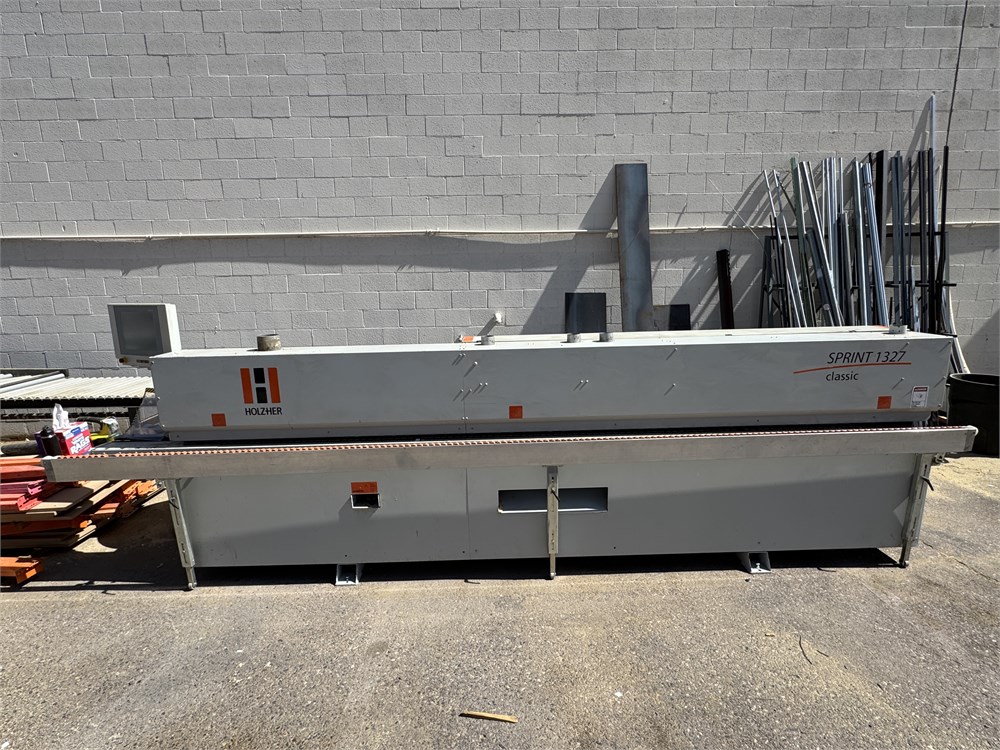

Holz-Her "Sprint 1327" Edgebander

Edge thickness min./max. 0.4 - 8 mm (0.016 - 0.315"), coiled material 0.4 - 3 mm (0.016 - 0.157"); Panel thickness 6 - 60 mm (0.236 - 2.362"), workpiece width min. of 65 mm (2.559"); workpiece length min. 160 mm (6.299"); Feed speed 10 - 18 MPM (33 - 59 FPM).

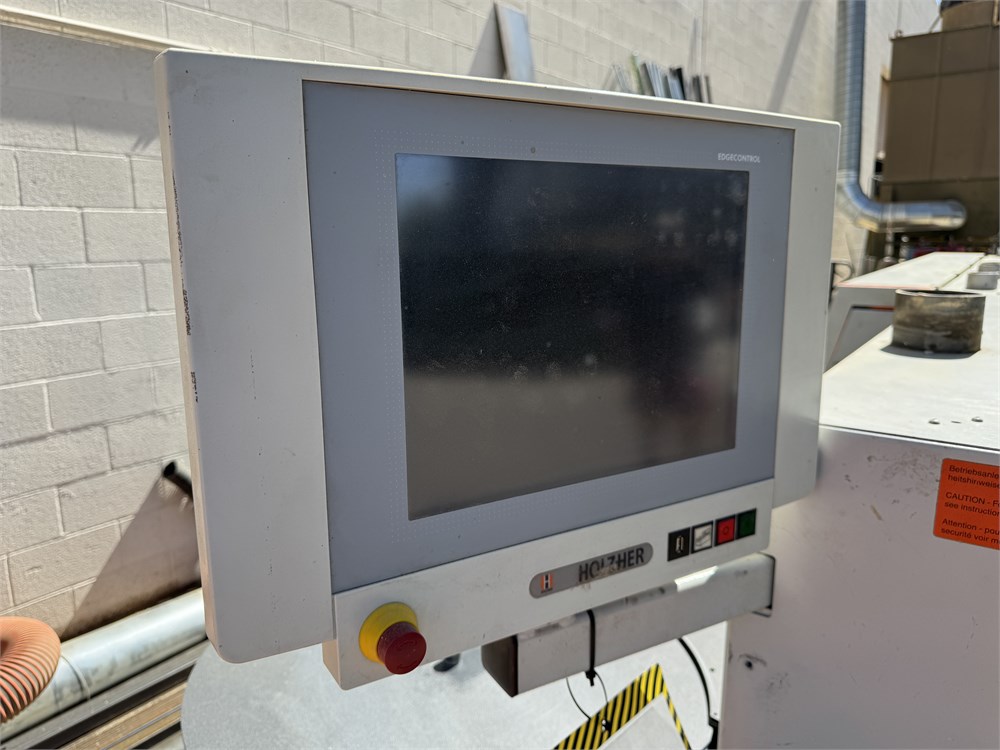

Programmable Logic Control (PLC); Flat Screen with color graphics interphase, programs can be easily created and recalled at will; Graphic interface makes programming easy, icon of each unit may be brought up on the screen to show the operator the status of the unit and the parameters which can be programmed; Edgebander can be operated manually when required, without necessity to write a program.

Servo Adj. Fence

Pre-Milling Station "1802": (2) 2.0 KW (2.68 HP) - 12,000 RPM motors;

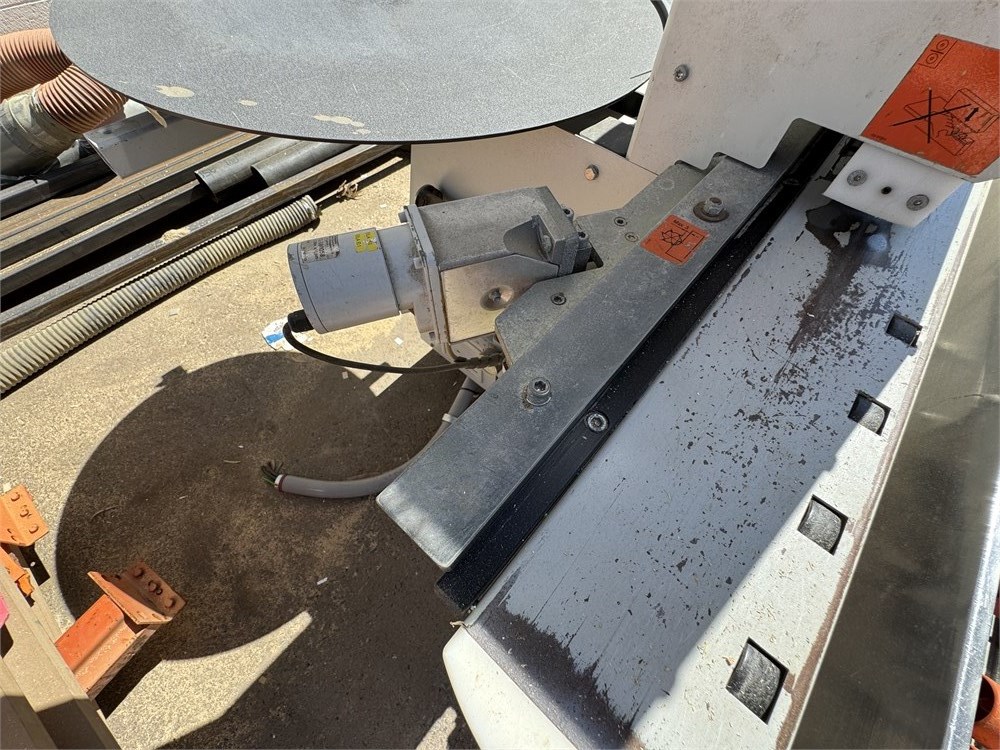

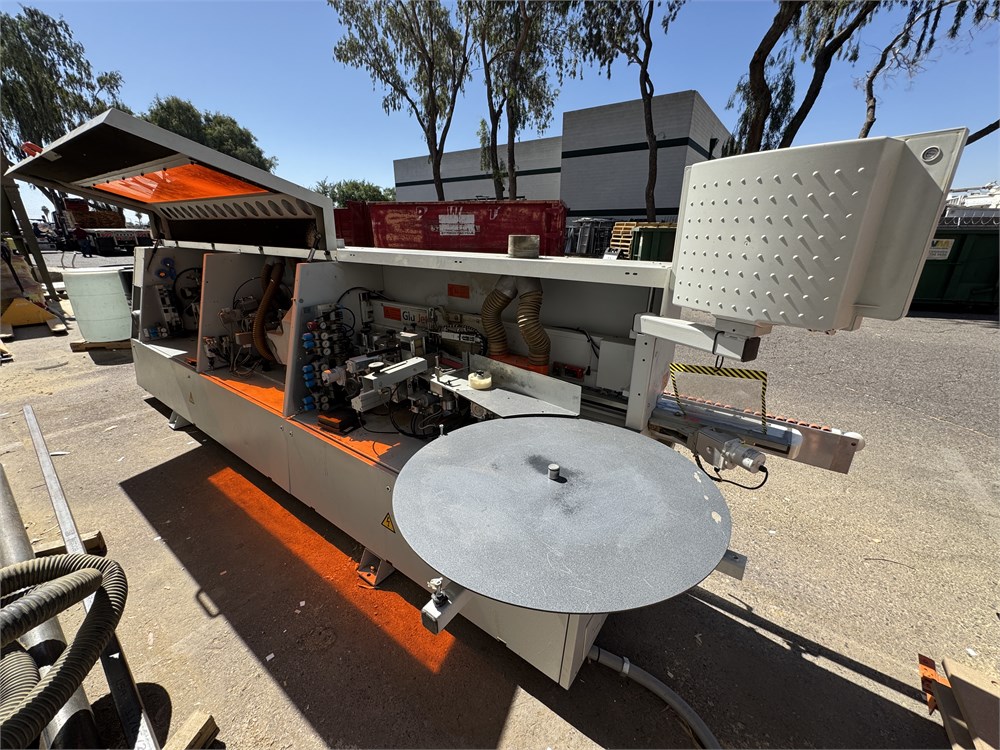

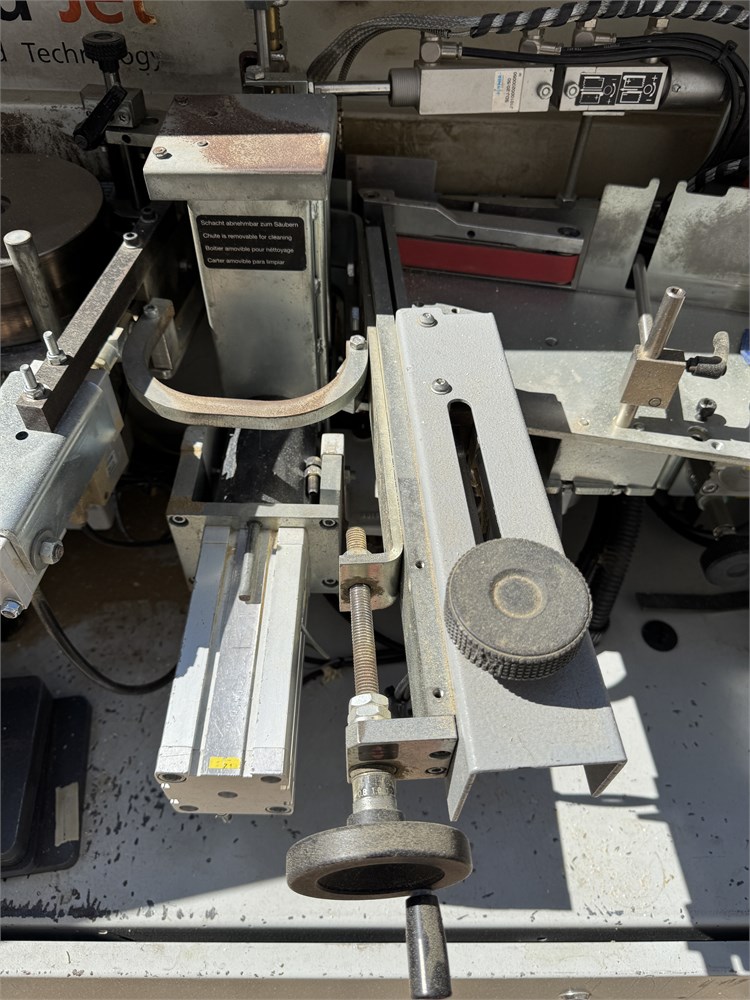

Edge Magazine "1903": for coil and strip processing, utilizing motion detector to ensure accurate, trouble-free positioning of edge material; exclusive "Tractor-Belt feed System", edge guide equipped with automatic guillotine lock-out for safety, 3° approach angle allows easy feeding of solid wood edges.

Glu Jet glue system

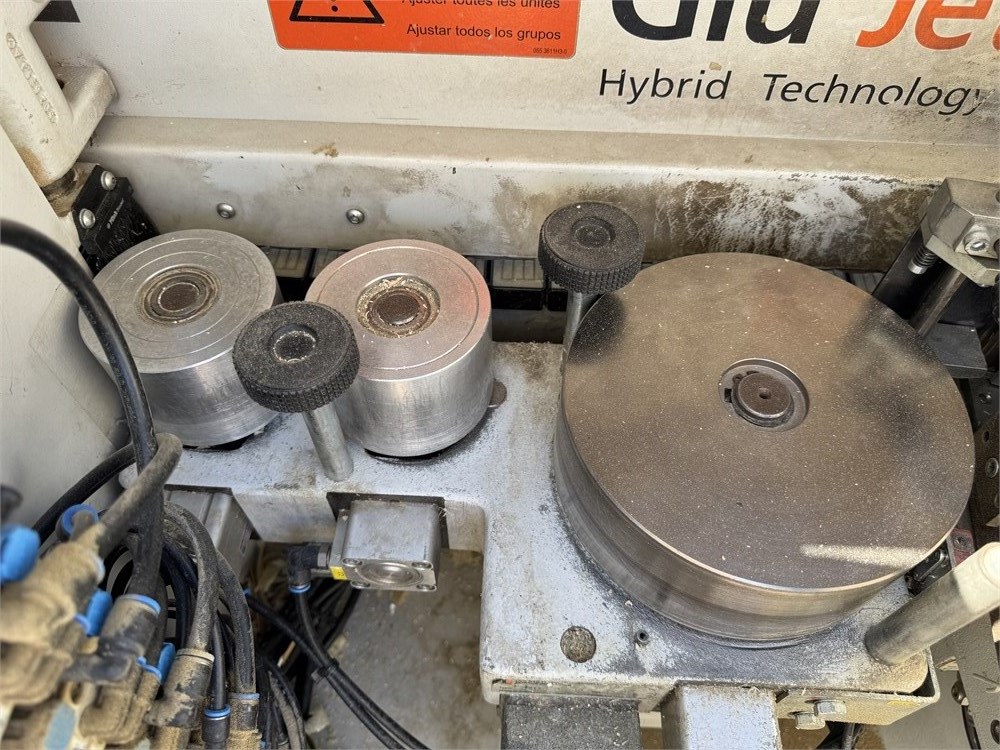

Pressure Section "1913": Servo controlled pressure section with (1) large driven roller and (2) cantered idle rollers.

End Trimming Unit "1918 HF": Front & rear 2 x 0.35 KW (0.5 HP) - 9,000 RPM motor each, uni-point swivel-axis for no re-indexing when changing from flush to bevel end trim (0° - 10° bevel),"PCS" programmable pneumatic change-over from flush to bevel.

Flush/Bevel/Radius Combination Trimming Unit "1827-M": Servo controlled, 2 @ servo motors (1) for horizontal copy wheel & (1) for tool spindle position) top & bottom unit 2 x 0.65 KW (0.87 HP) - 9,000 RPM each motor.

Corner Rounding Unit "1832": (1) Motor 0.22 KW (0.30 HP) - 9000 RPM for up to 3 mm edge thickness and work-piece thickness min./max. 12 - 45 mm (0.473 - 1.772"), max. feed speed 10 MPM (33 FMP).

Profile Scraping Unit "1929": Top/Bottom servo motor controlled, programmable knife position for PVC edges, reversible insert carbide knives, equipped with air-jet blowers and chip collector box.

Glue Scraping Unit "1964": Flat, top/bottom, ball bearing guided and pneumatic controlled.

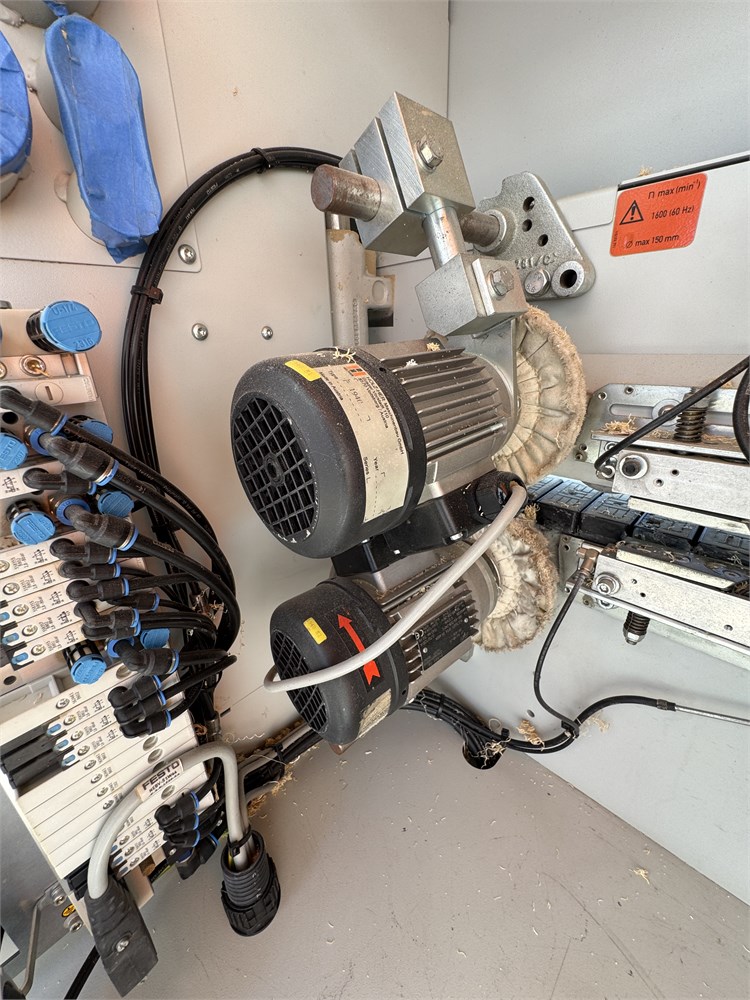

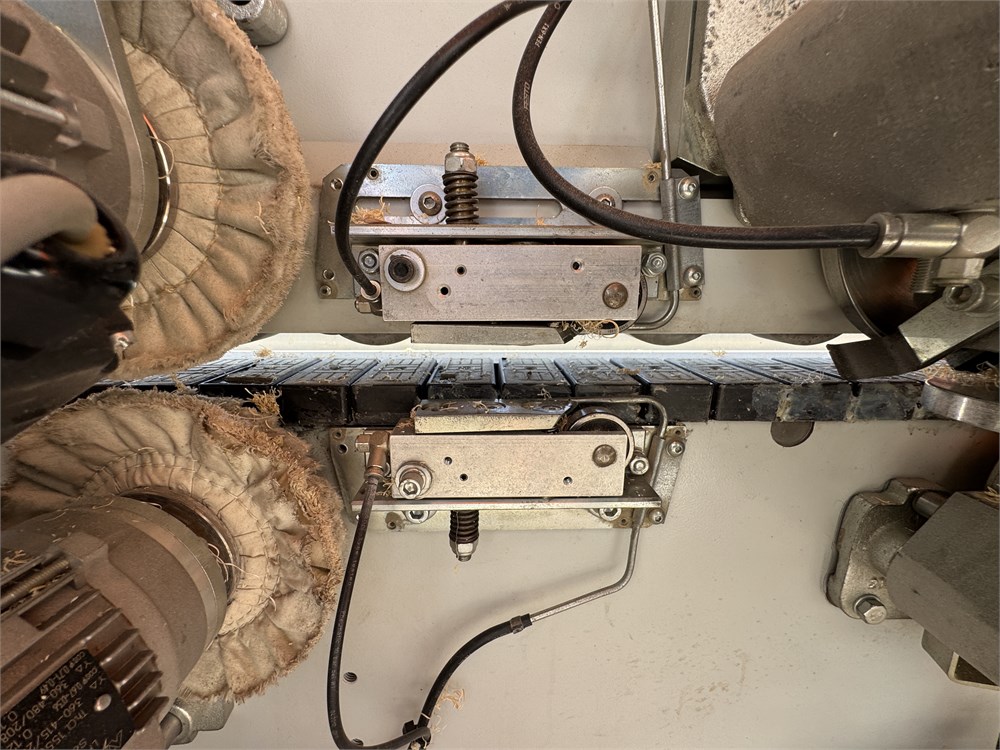

Buffing Station "1940": Top & bottom buffing motors with 150 mm ( 6.0") cloth buffing wheel diameter, adjusts in any direction (vertical tilt is 0° - 5°, horizontal swivel is 0° - 20°); 1,440 RPM wheel rotation.

Sound enclosure

Outboard roller support

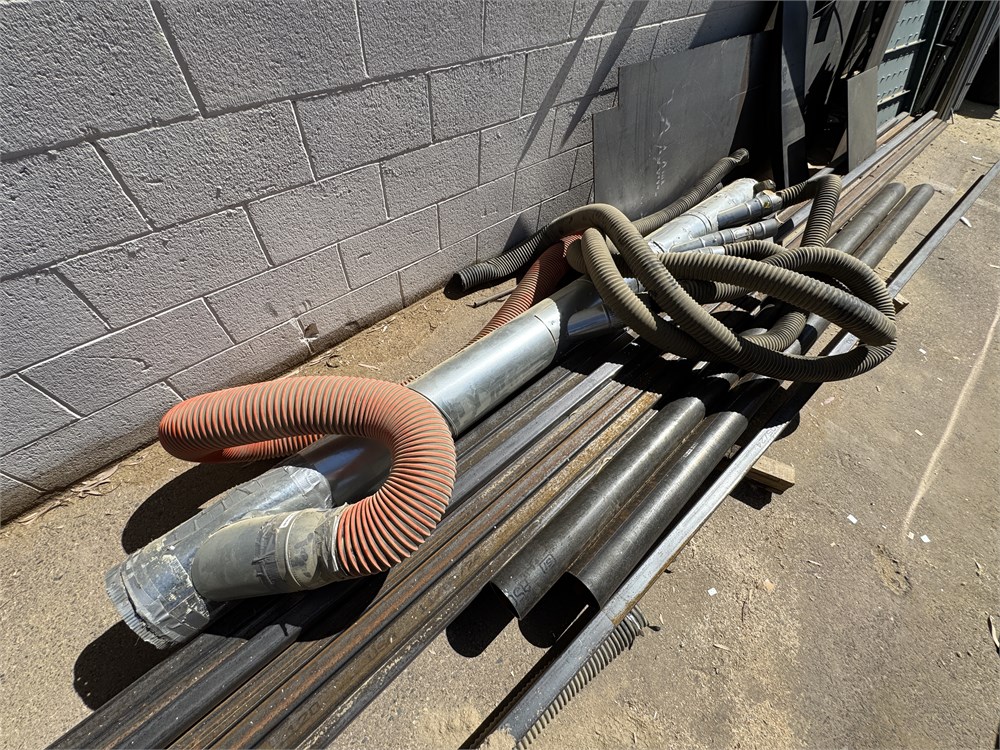

Dust manifold

Return conveyor NOT included, offered in lot 002B
