Weeke "BHC 350" CNC Router
Active
Weeke CNC Router and Holz-Her Edgebander - Peoria and Phoenix, AZ
Peoria, AZ
- Starting Bid : $1,000.00 USD ( ) No Reserve
- 0 Bid(s)
Weeke CNC Router and Holz-Her Edgebander - Peoria and Phoenix, AZ ( Active #72710037 )
Residential cabinet manufacturer in the Phoenix, AZ metro area is auctioning two machines no longer required for continuing operations.
-
Pick Up Location
1250 E. Hadley St., Suite 4 Phoenix, AZ 85034
-

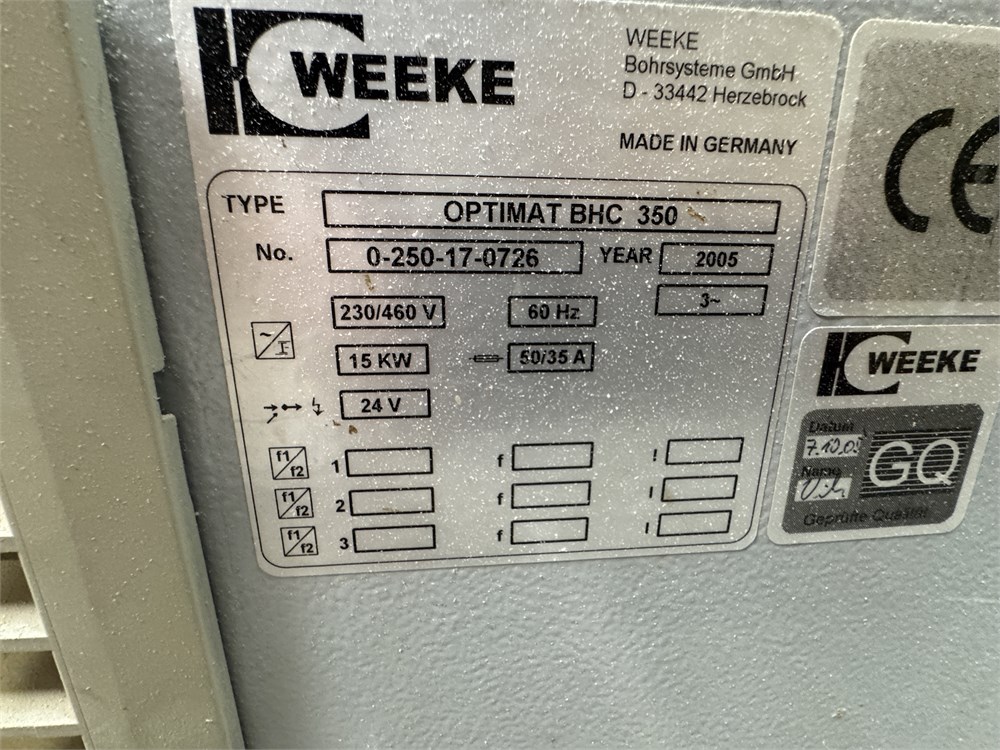

Make
Weeke
-
Model
BHC 350
-
Serial Number
0-250-17-0726
-
Year
2005
-
Phase
3 PHASE
-
Voltage
230/460
-
Buyer Inspection Period
By appointment only, contact Jack Ragan, [email protected], 503-806-4611
-
Load Out Period
June 12 - June 20, 2025 (by appointment)
-
Estimated Dimensions
25' L x 15' W x 8' H (as setup in photos, shipping dimensions TBD)
-
Estimated Weight
7,000 Pounds
-
Seller Comment
Seller will disconnect and load onto buyer's flatbed truck/trailer for non-negotiable loading fee. Palletizing, crating or other services may be available at an additional cost.
-
Load Fee
6825.00
-
Lot Notes
-
page views
36

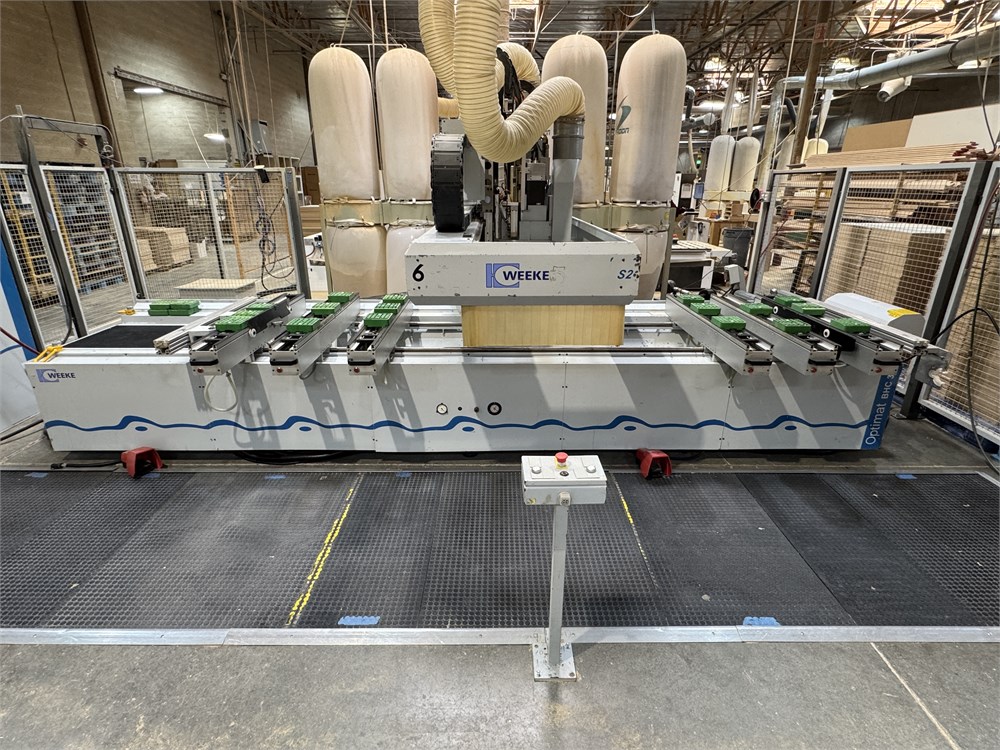

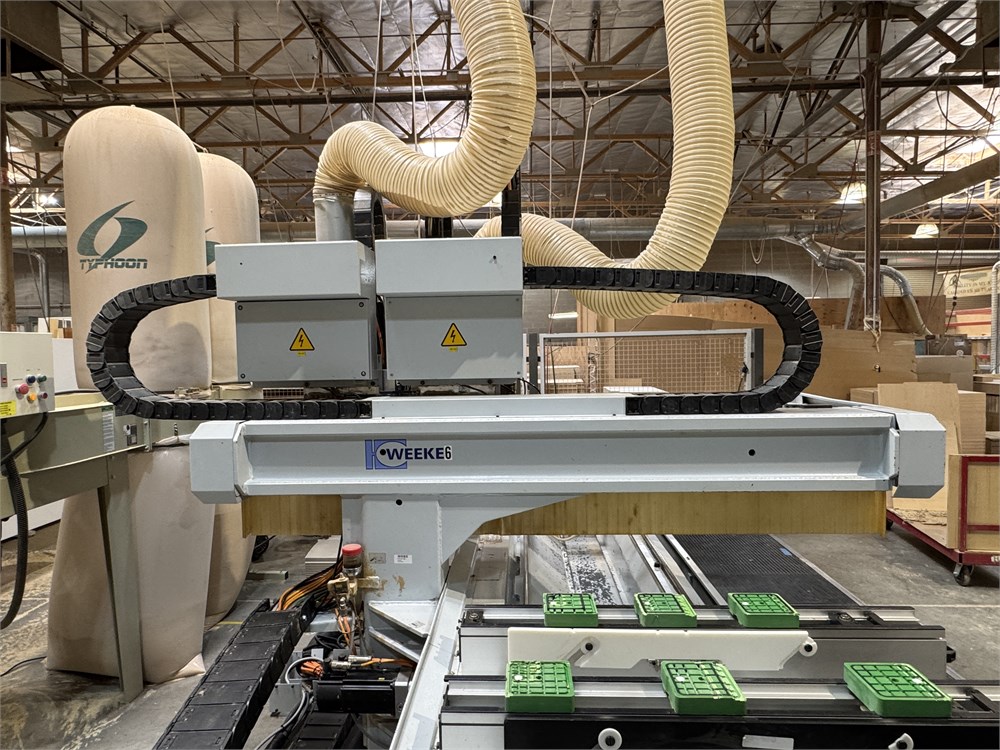

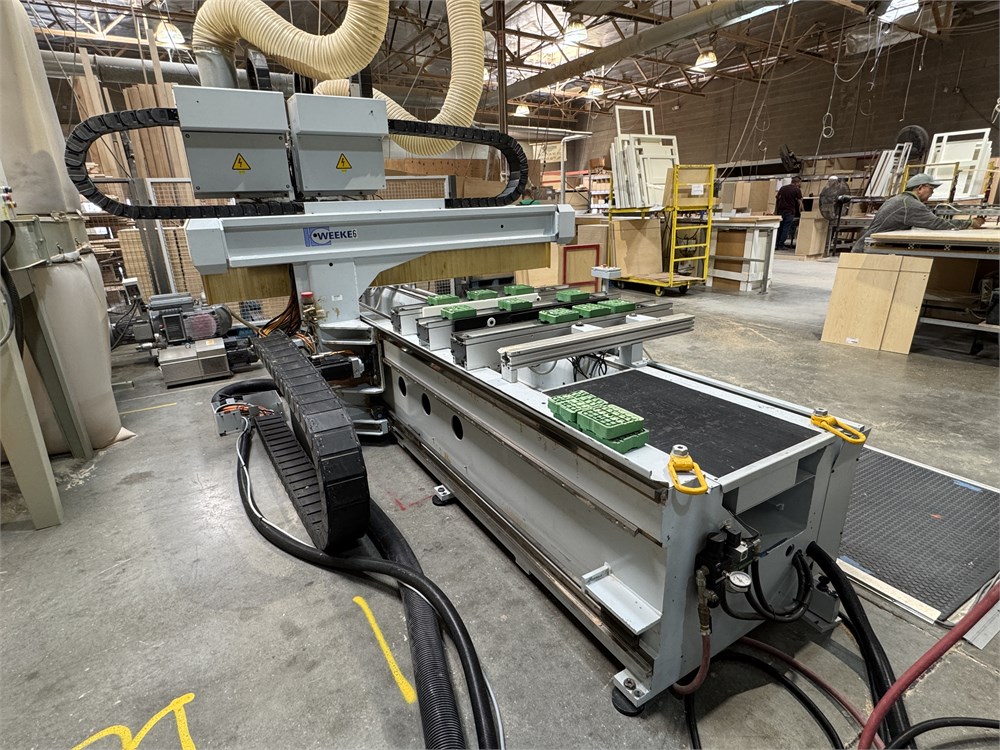

Weeke "BHC 350" CNC Router
49" x 147" approximate work area
Max. Panel Thickness: 3.2″
X-axis Stroke/Positioning Speed: 4310 mm/ 60 M/min
Y-axis Stroke/Positioning Speed: 1675 mm/ 50 M/ min
Z-Axis Stroke/Positioning Speed: 135 mm/ 20 M/ min

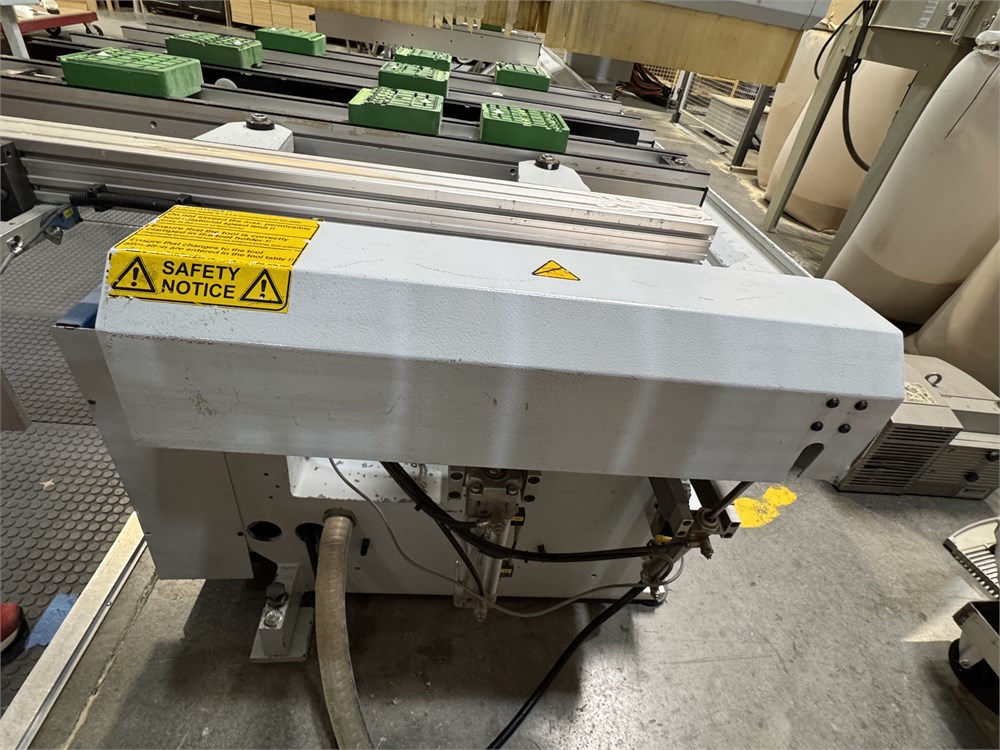

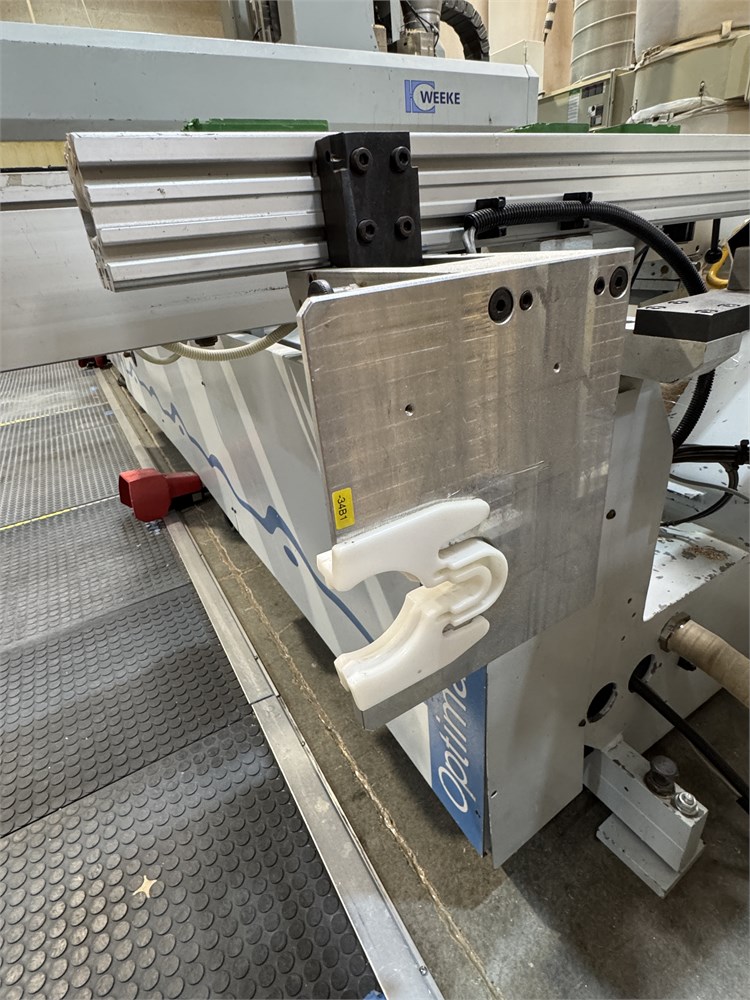

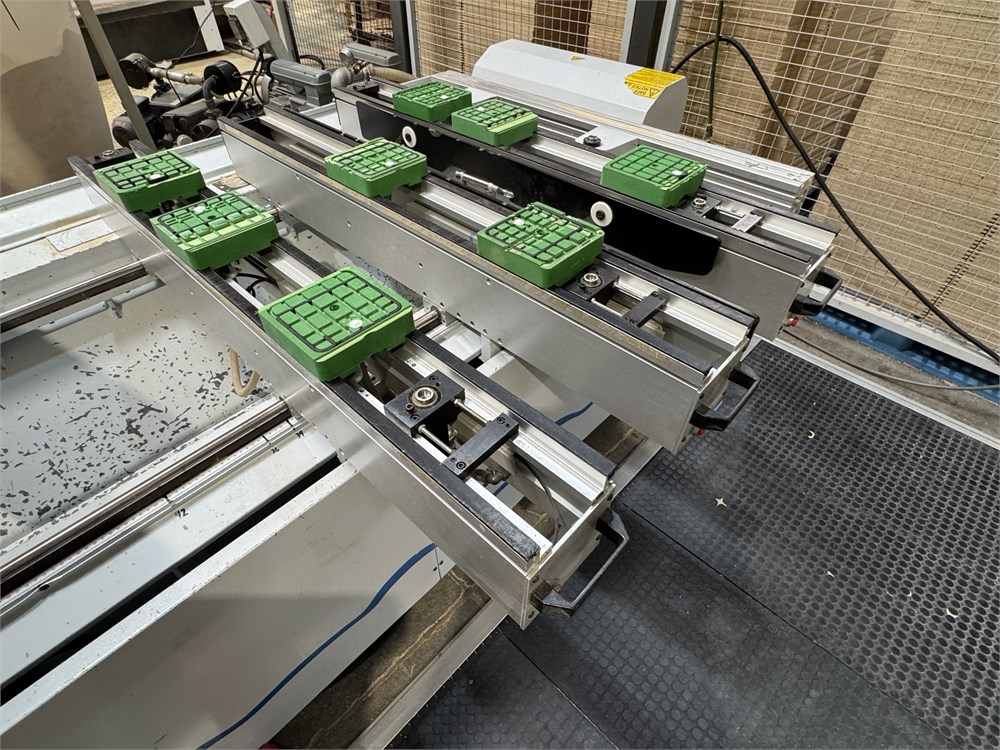

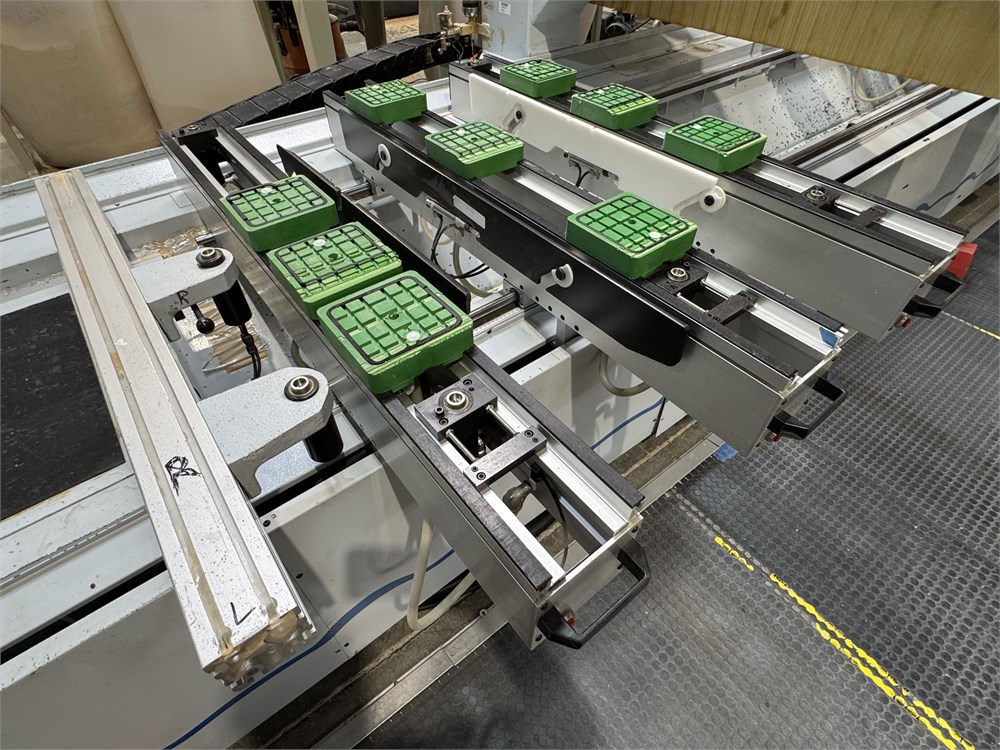

Six (6) panel supports with pneumatic reference stops
Assorted vacuum cups
Panel lifting rails
Foot pedal operation

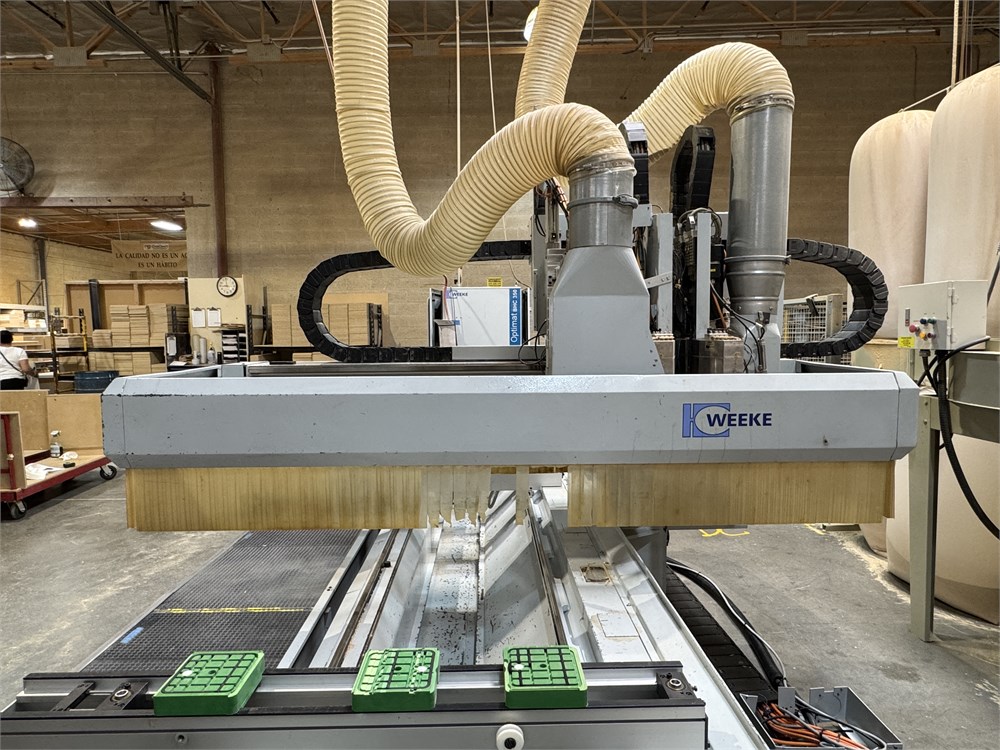

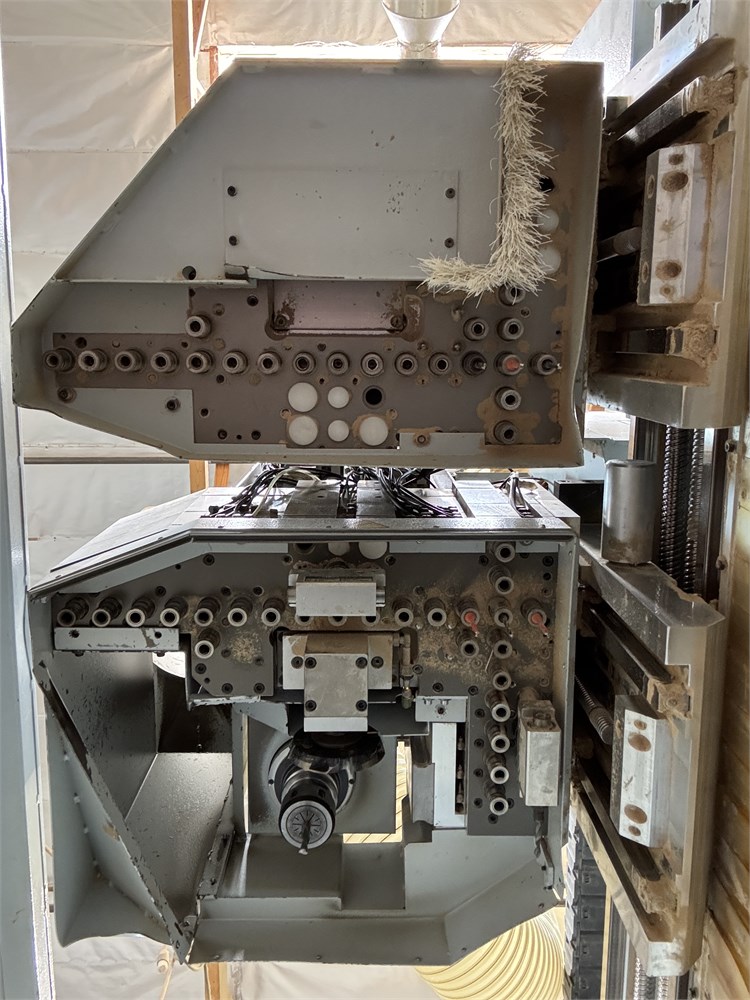

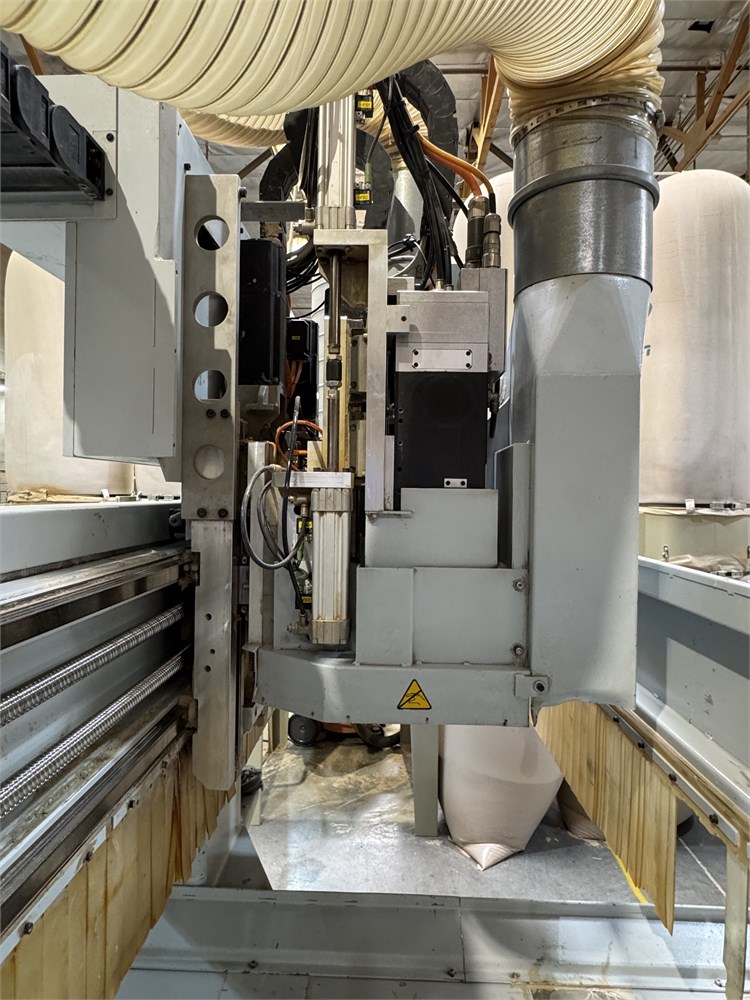

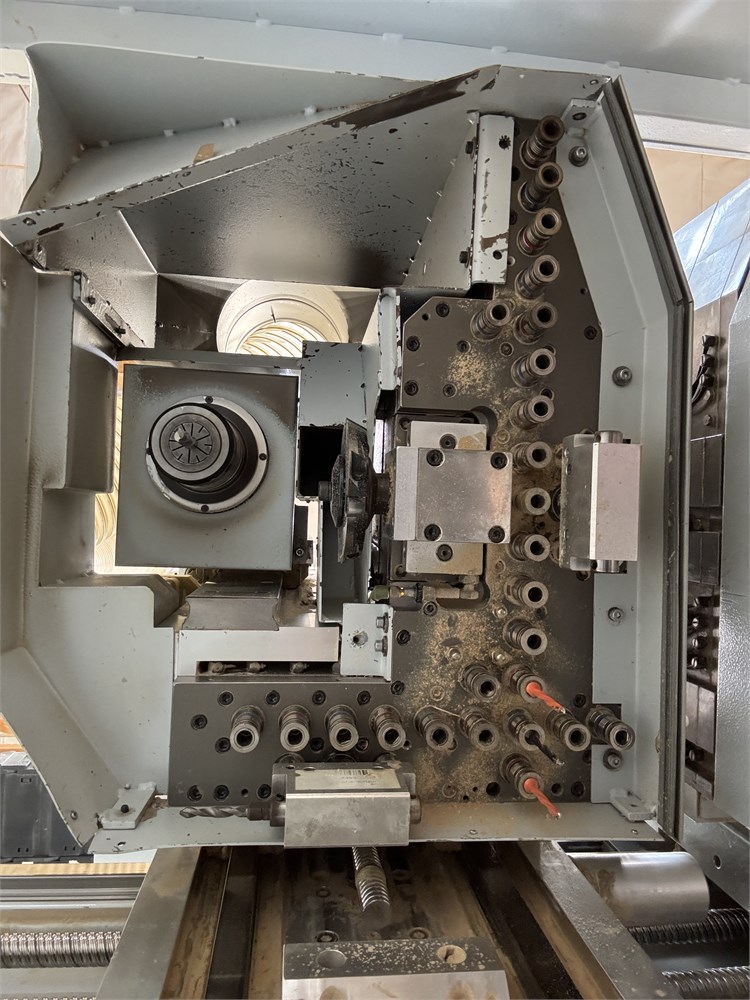

Two (2) machining heads each with independent Y axis control

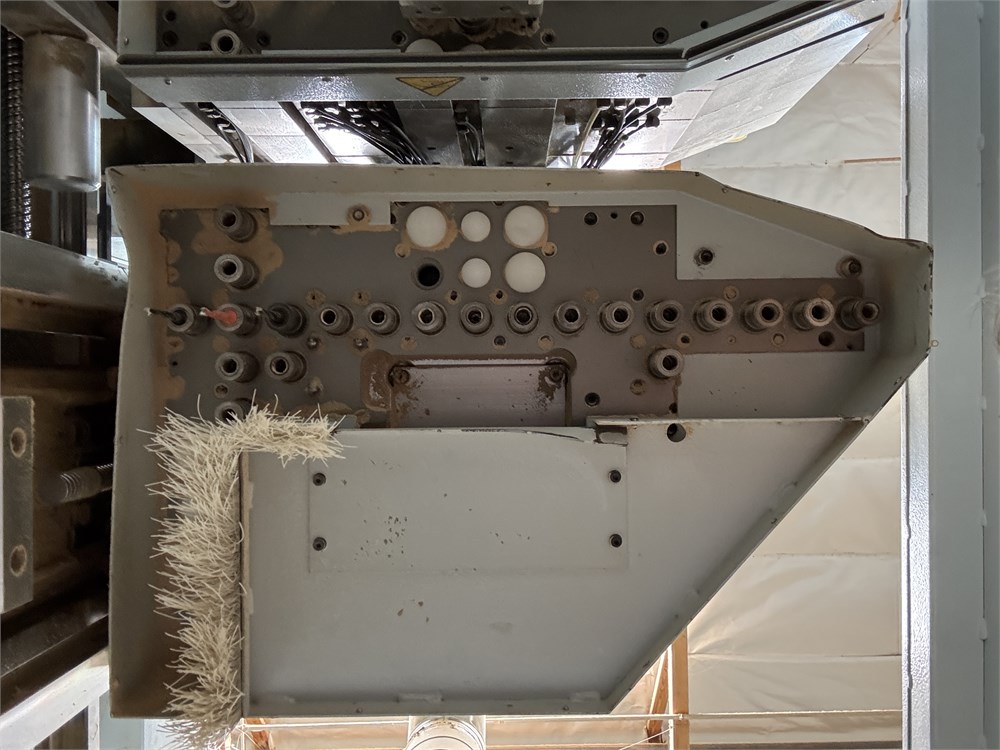

- Head one - vertical (25 spindles) and horizontal drilling (2 in x and 2 in y), grooving saw and router (HSK, quick-change)
- Head two - vertical drilling (25 spindles)
- 2 HP drill motors
- 8 HP router motor
RH side-mounted tool changer
Front-mounted tool change position for large tools or aggregates
Front safety mats
Safety fencing

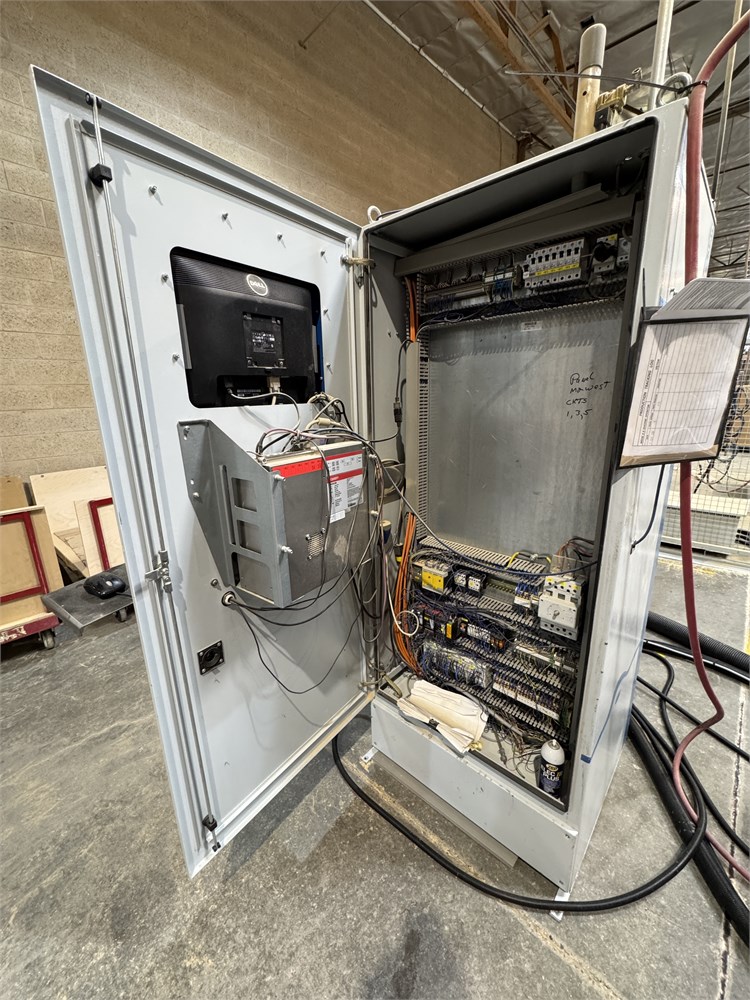

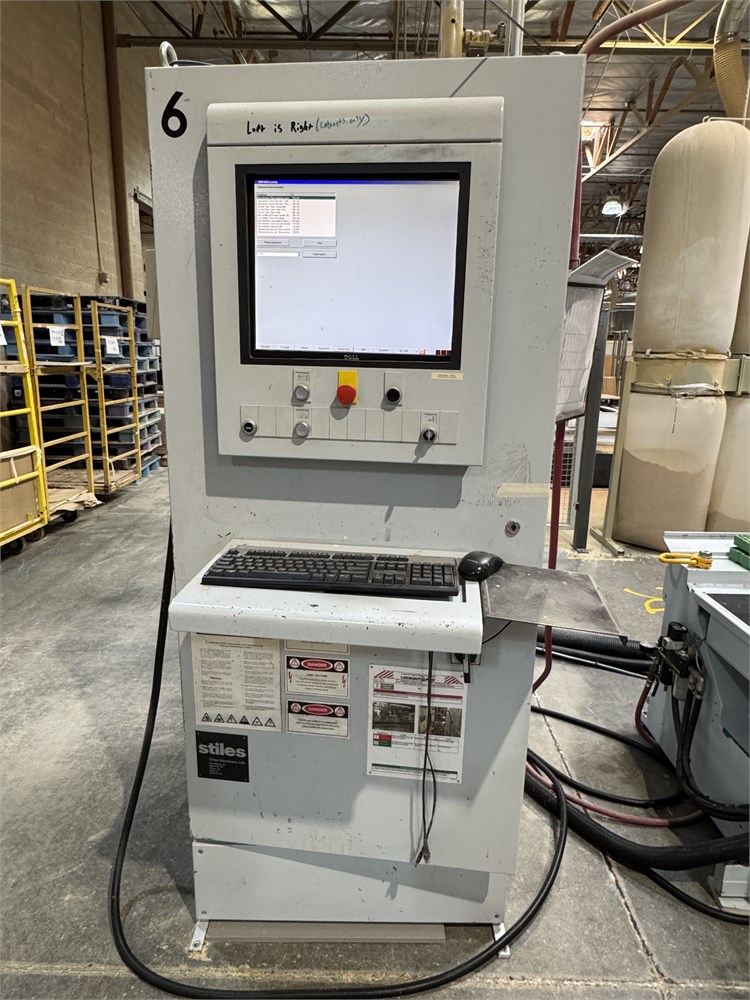

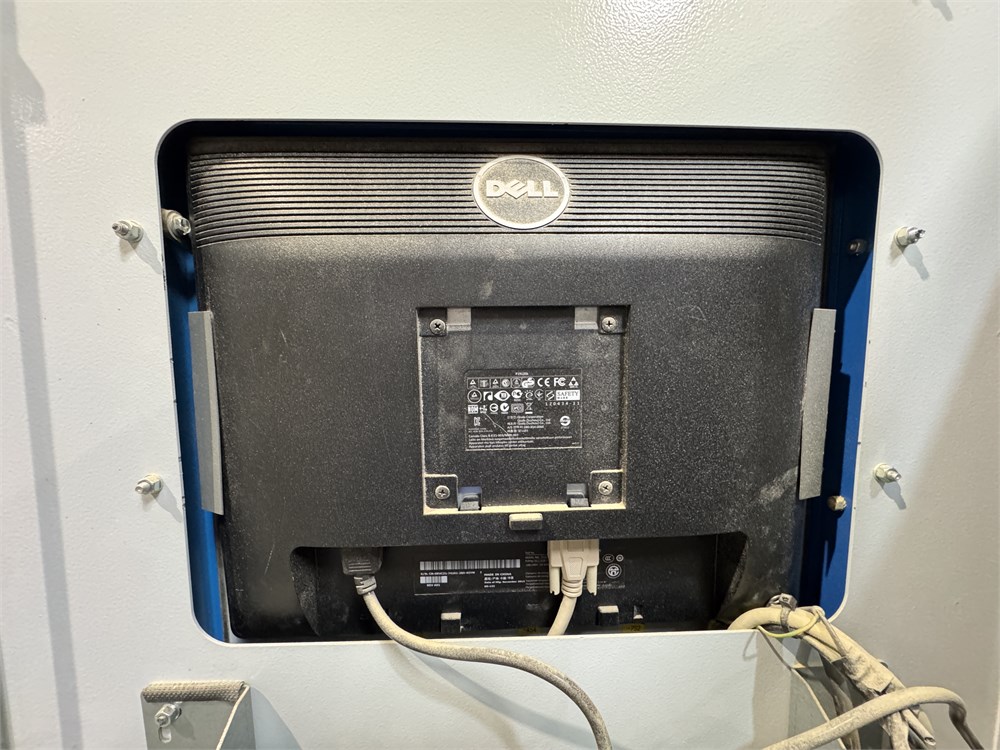

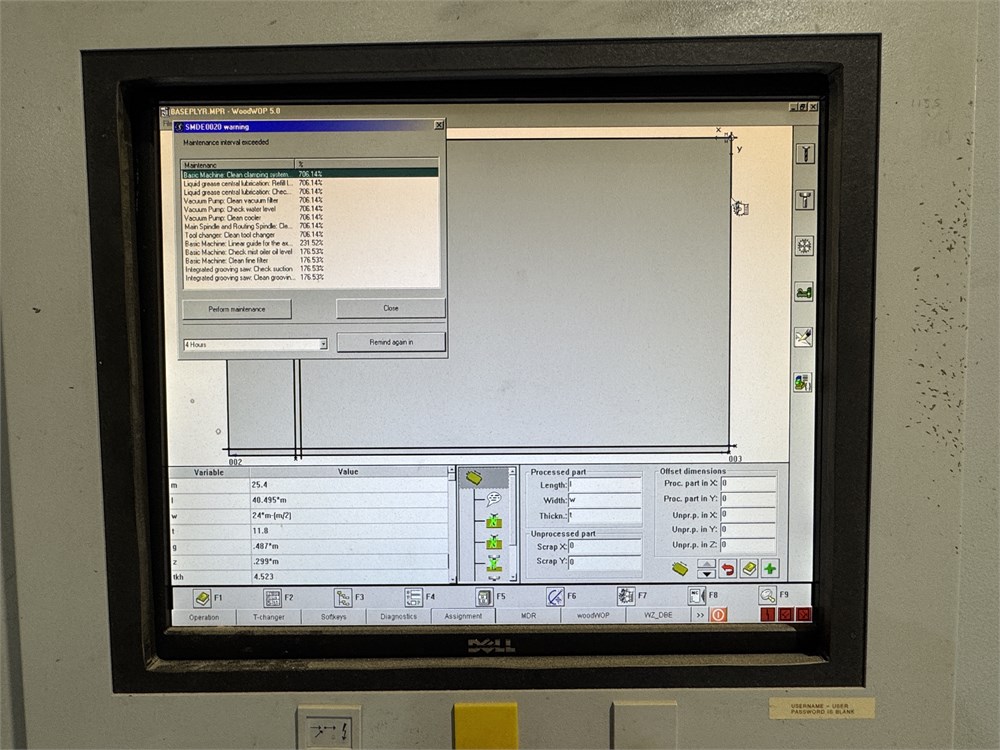

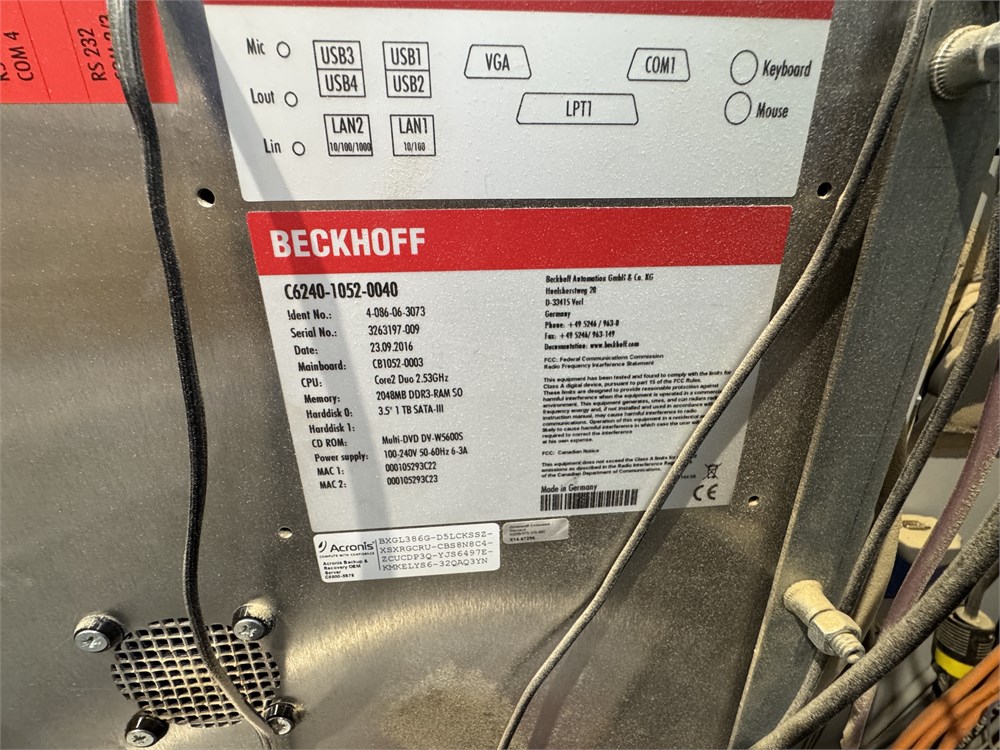

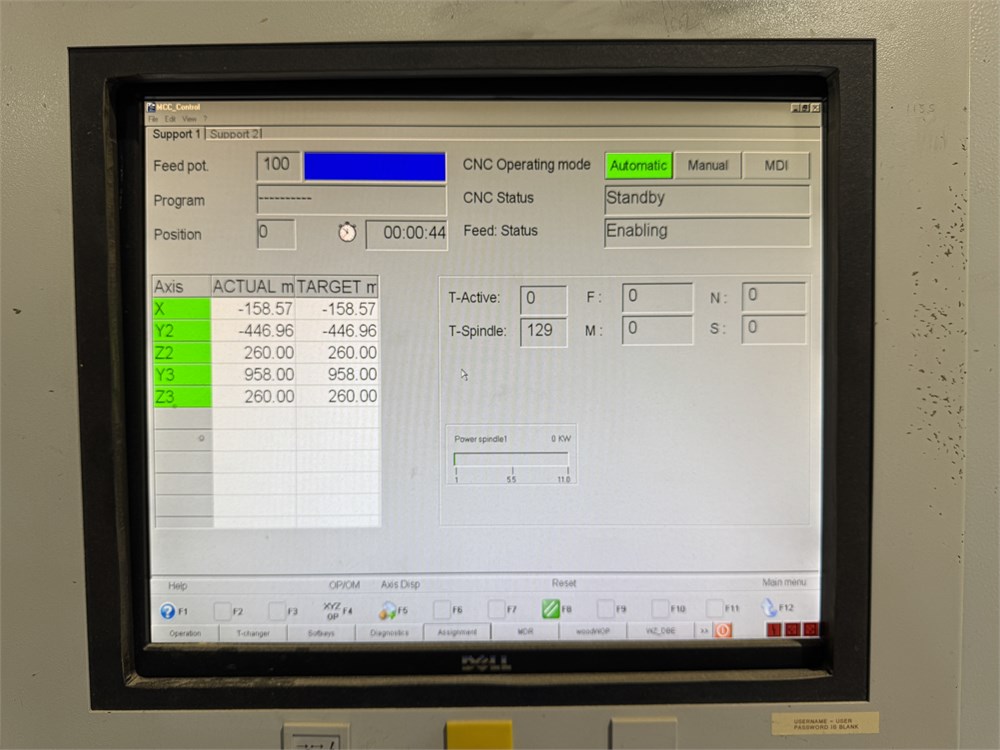

Control console

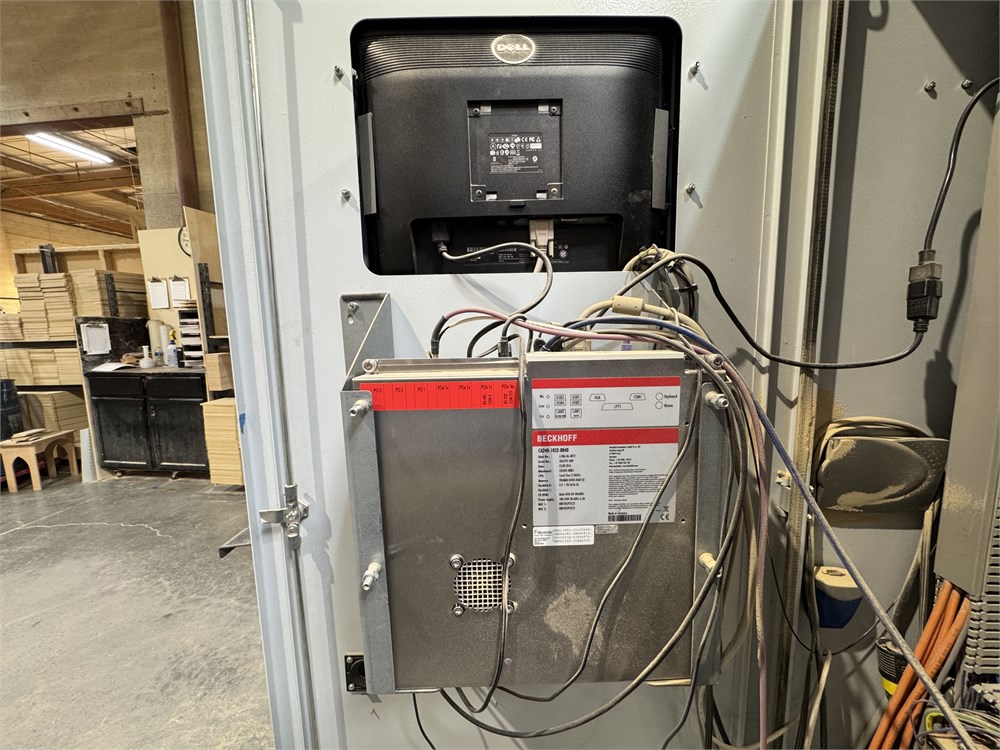

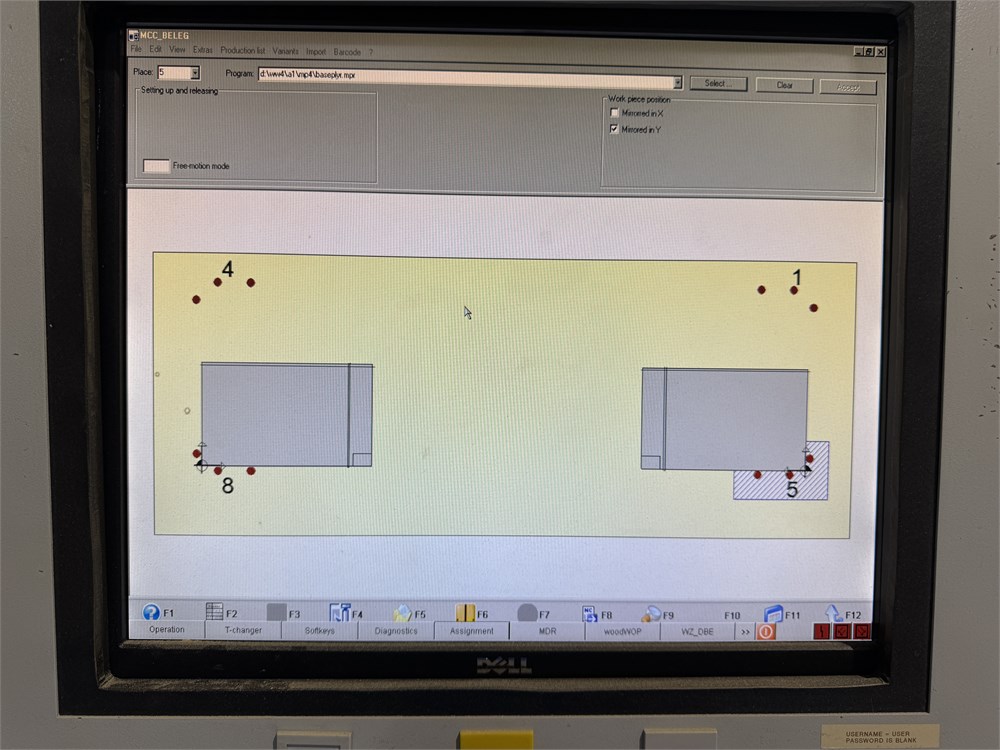

- PC operating in Windows
- Standard keyboard and mouse
This machine has been dismantled and stored at rigger's secure warehouse.
Vacuum pumps NOT included, offered in lots 001B and 001C
Tooling and tool holders NOT included
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
