Almex "TL5-4-8" Thermolaminator
Active
Almex Thrmolaminator Auction - East Bernard, TX
East Bernard, TX
- Starting Bid : $750.00 USD ( ) No Reserve
- 0 Bid(s)
Almex "T5-4-8" Thermolaminator Auction ( Active #72692815 )
A Family owned European style cabinetry manuafacturer in the greater Houston, TX area is auctioning a Almex "T5-4-8" Thermolaminator no longer required for continuing operations. Please call me with any questions.
-
Pick Up Location
16856 Cabinet Road, East Bernard, TX 77435
-

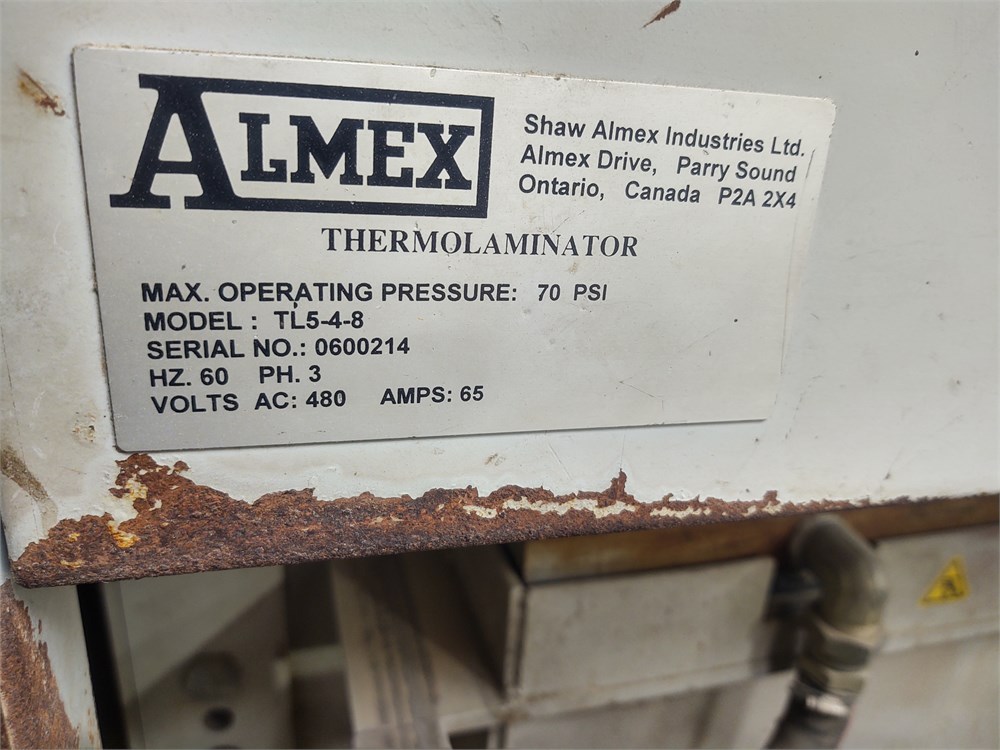

Make
Almex
-
Model
TL5-4-8
-
Serial Number
0600214
-
Year
2006
-
Phase
3 PHASE
-
Voltage
480 VOLT
-
Buyer Inspection Period
May 28th - June 11th, 2025 By appointment only
-
Load Out Period
June 11th - June 18th, 2025 By appointment only
-
Estimated Dimensions
25' L x 10' W x 9' H
-
Estimated Weight
10,000 Pounds
-
Seller Comment
A Rigger is required for load out See homepage for details
-
Load Fee
-
Lot Notes
-
page views
19

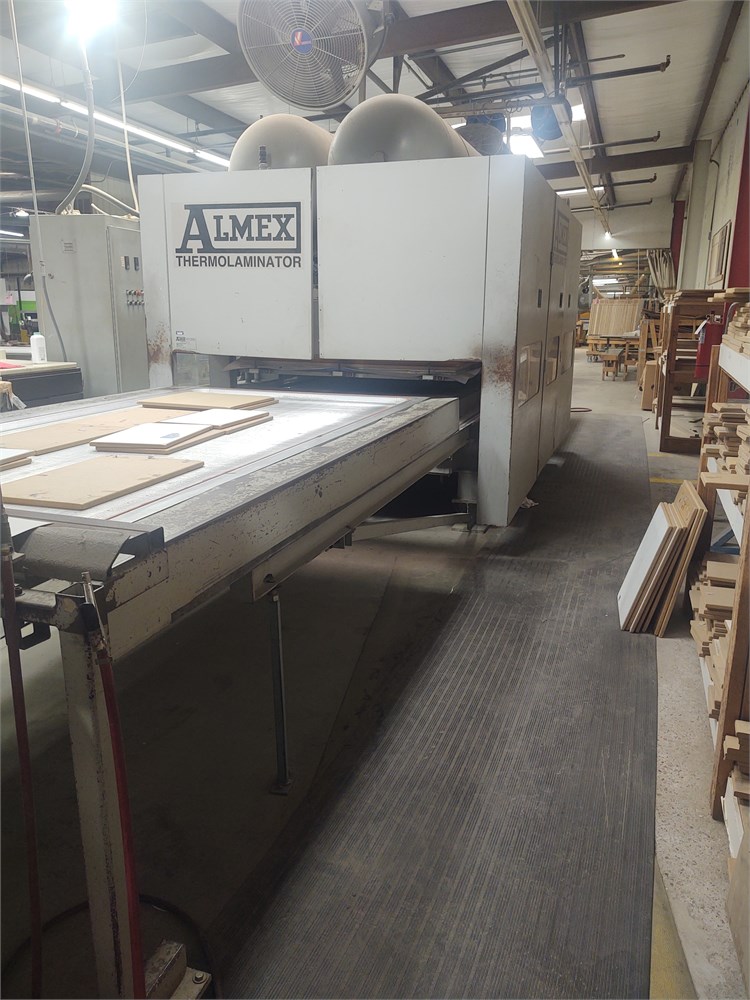

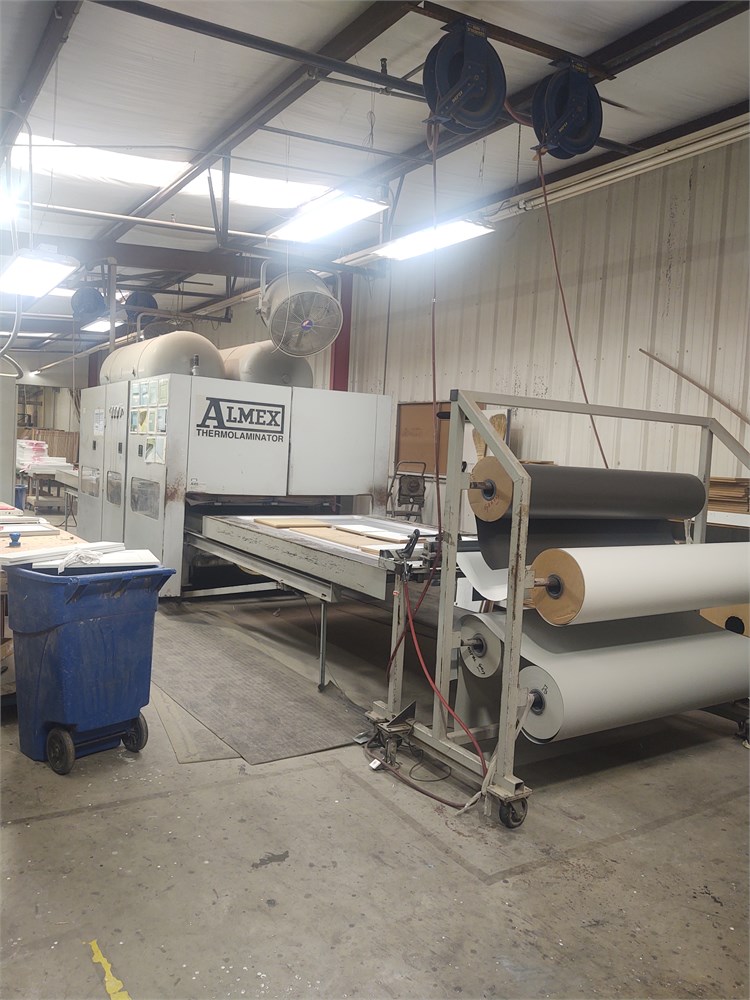

Almex "TL5-4-8" Thermolaminator
SEE VIDEO OF MACHINE

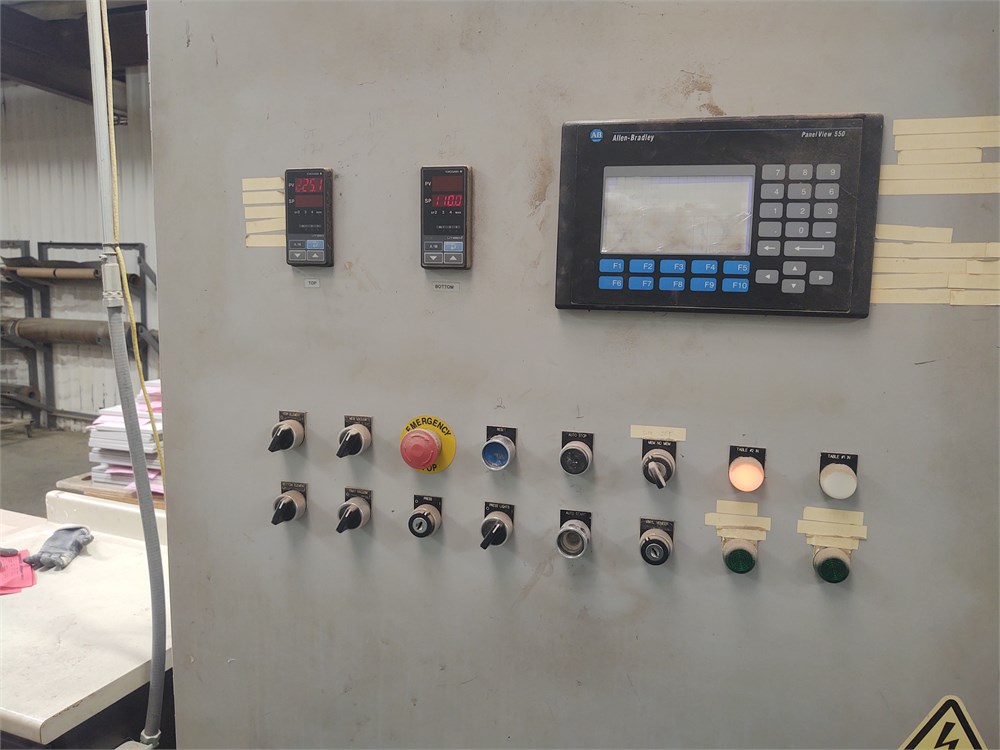

Thermo-Laminating Press, membrane or "membraneless" operation for vinyl, heat transfer foils & veneer products; by the flip of a switch at the control console it changes from membrane to membraneless pressing. It uses "high volume" air pressure and a powerful instant vacuum creating suction and pressure at the same time.

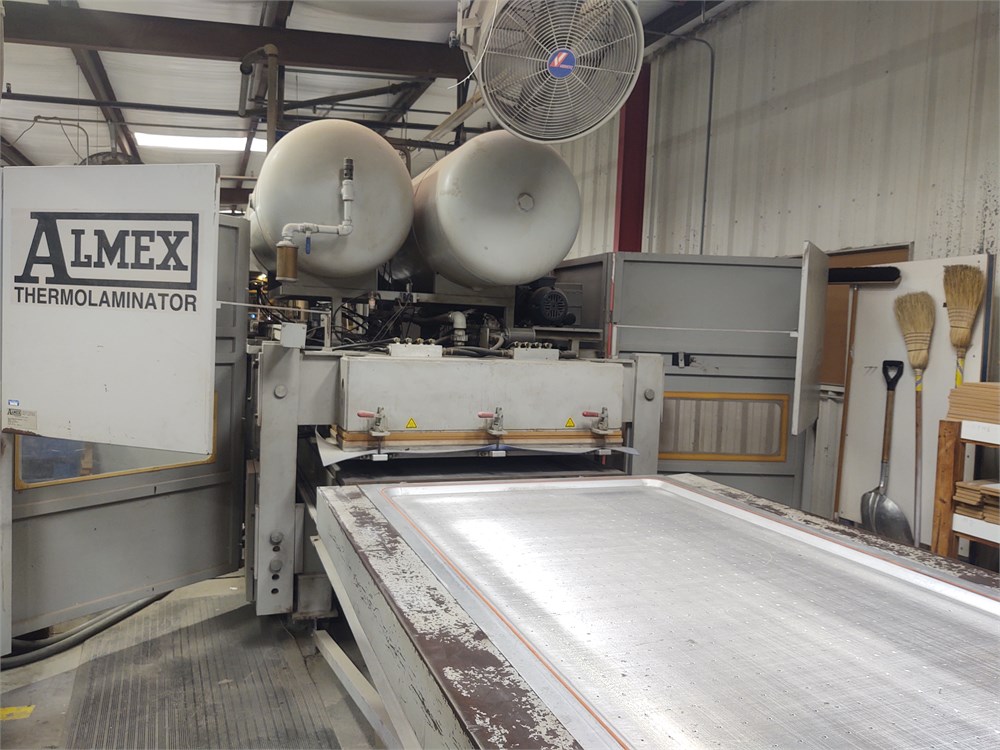

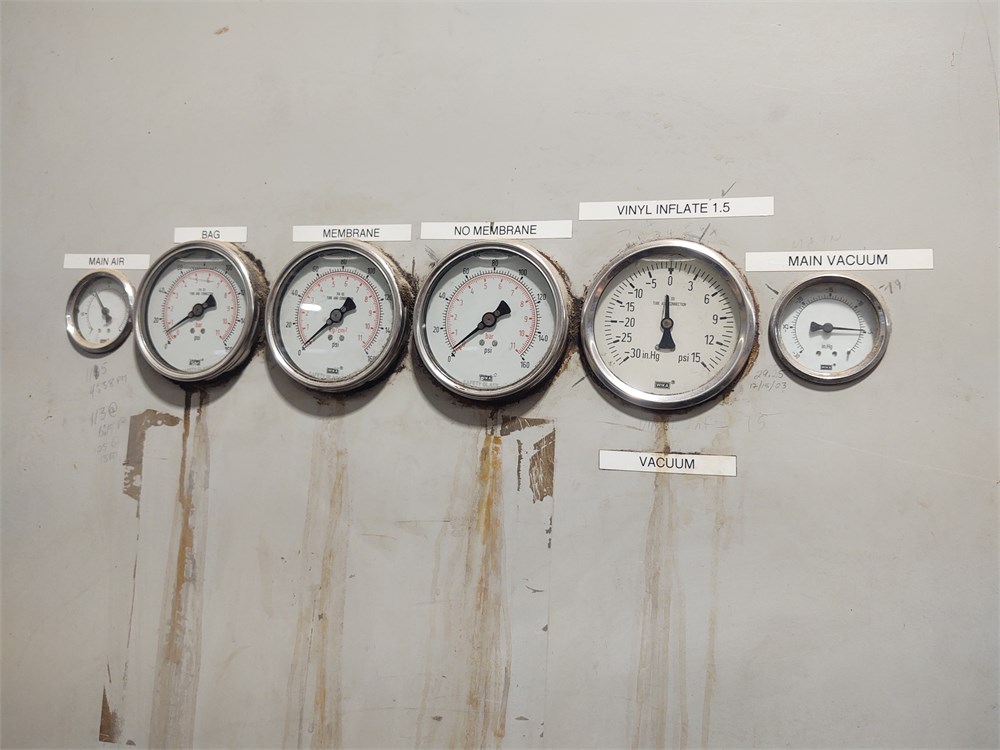

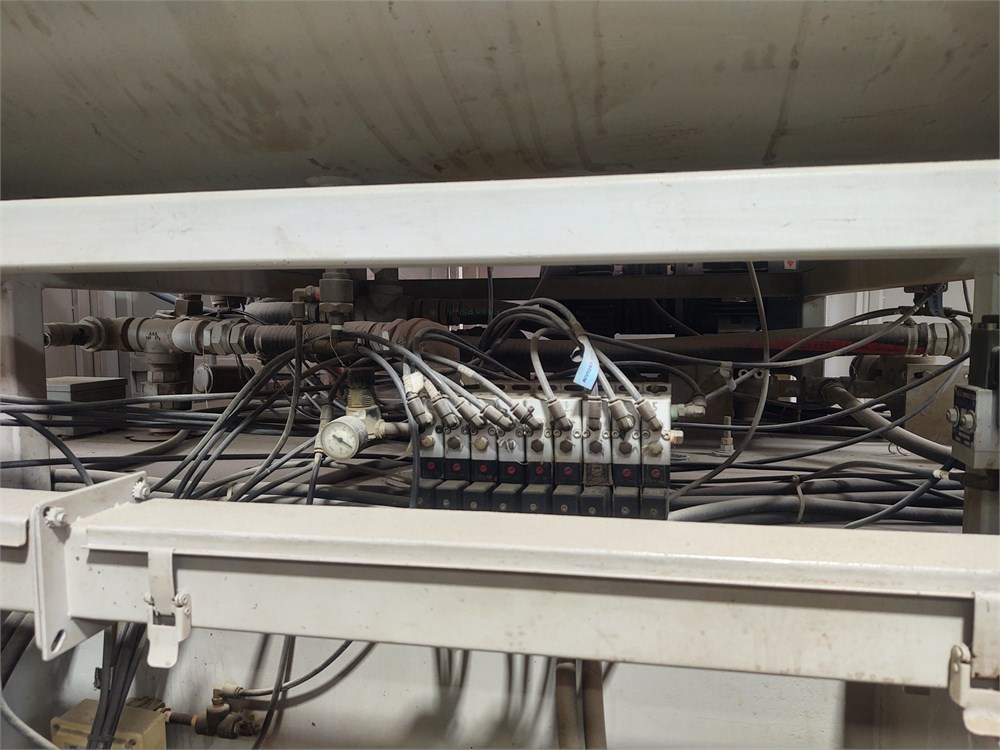

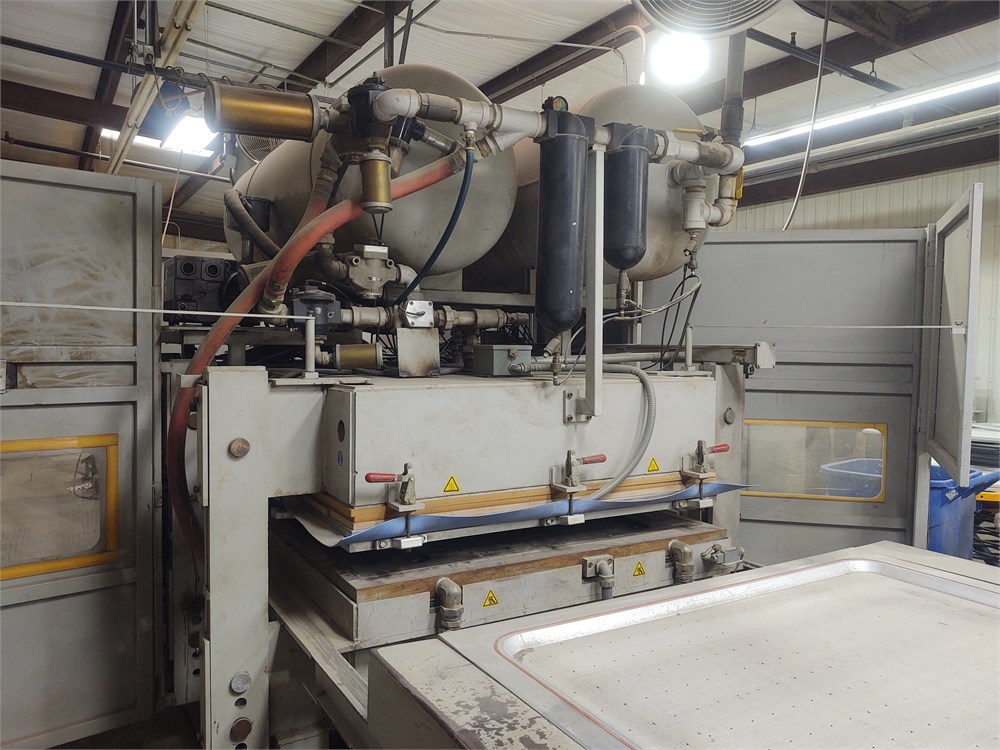

Works without hydraulic cylinders: A platen size rubber pressure air bag under the lower platen (bolster) inflates and can withstand pressure up to 200 PSI; by in- & deflating it opens-and-closes the Press; a 240-gal. air tank supports the in/out high volume air movement.

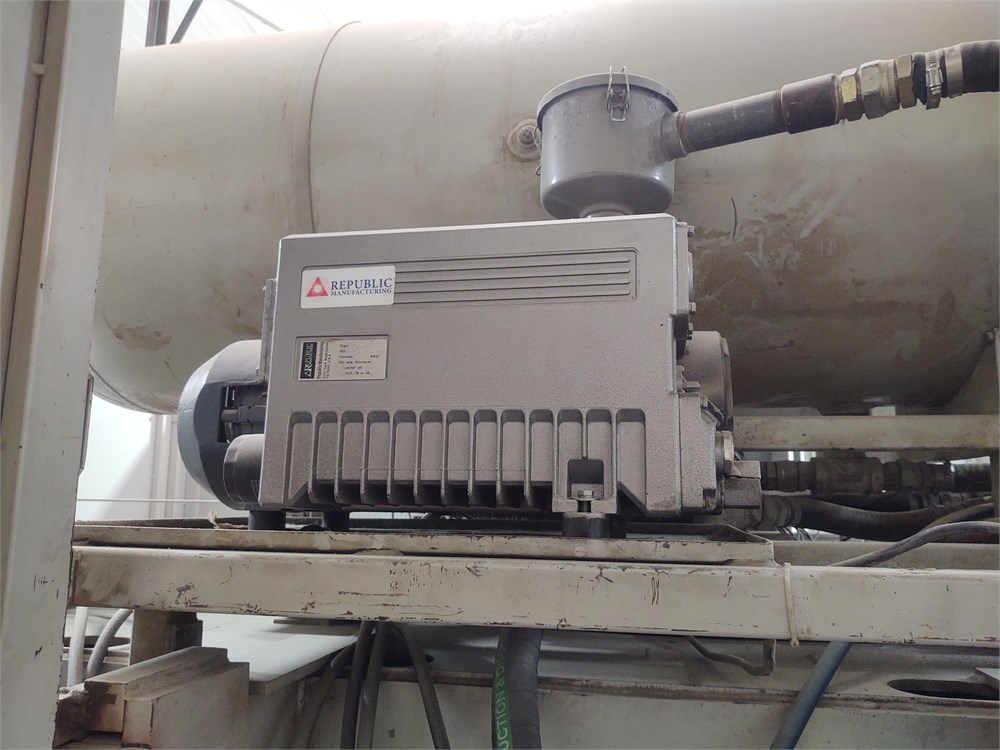

The vacuum (Included) that sucks down the overlay to the substrate is generated by a 5 HP vacuum pump and supported by 240-gal. vacuum tank for instant vacuum power.

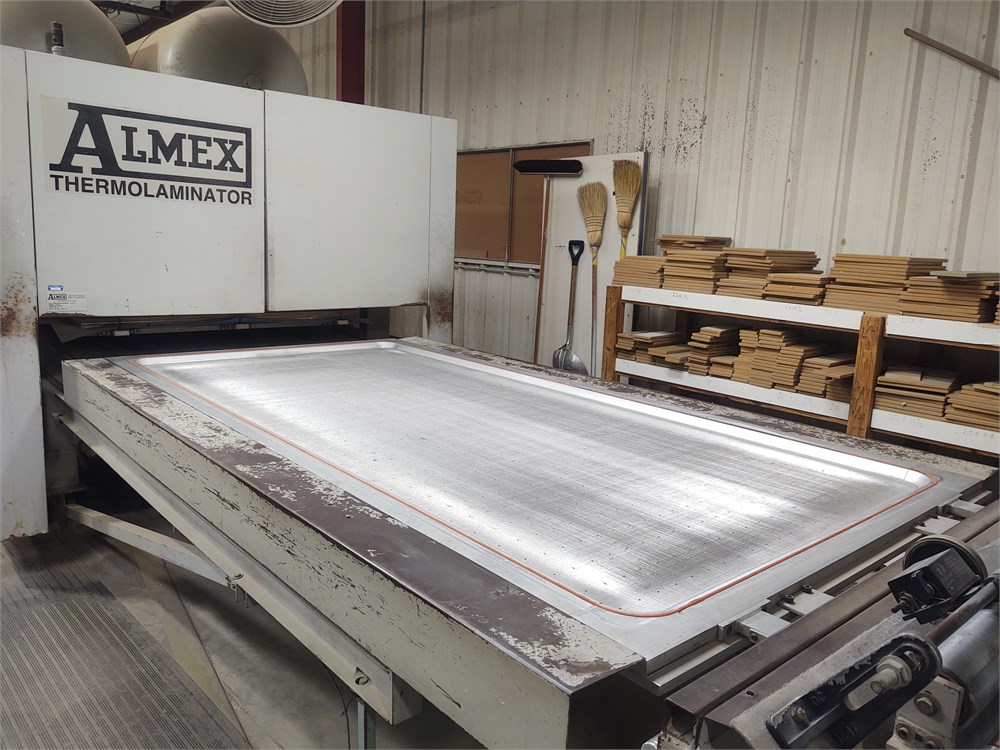

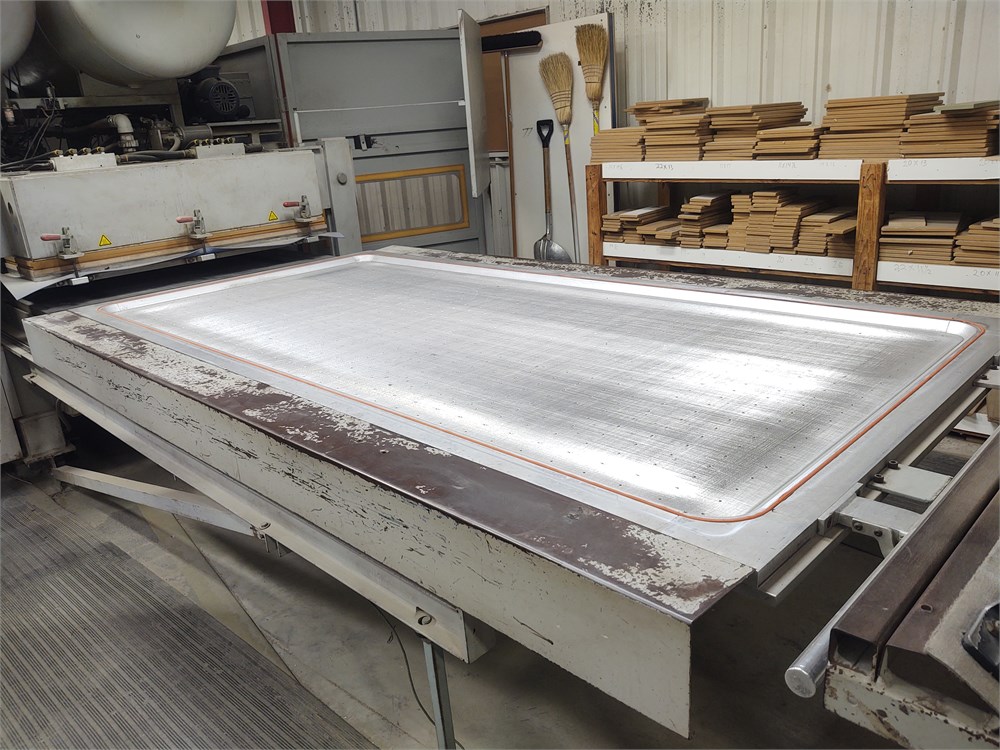

Double shuttle tray system, each tray 46" x 100" x 1-1/4" deep, they shuttle in-and-out of press on track guided casters for loading-and-unloading.

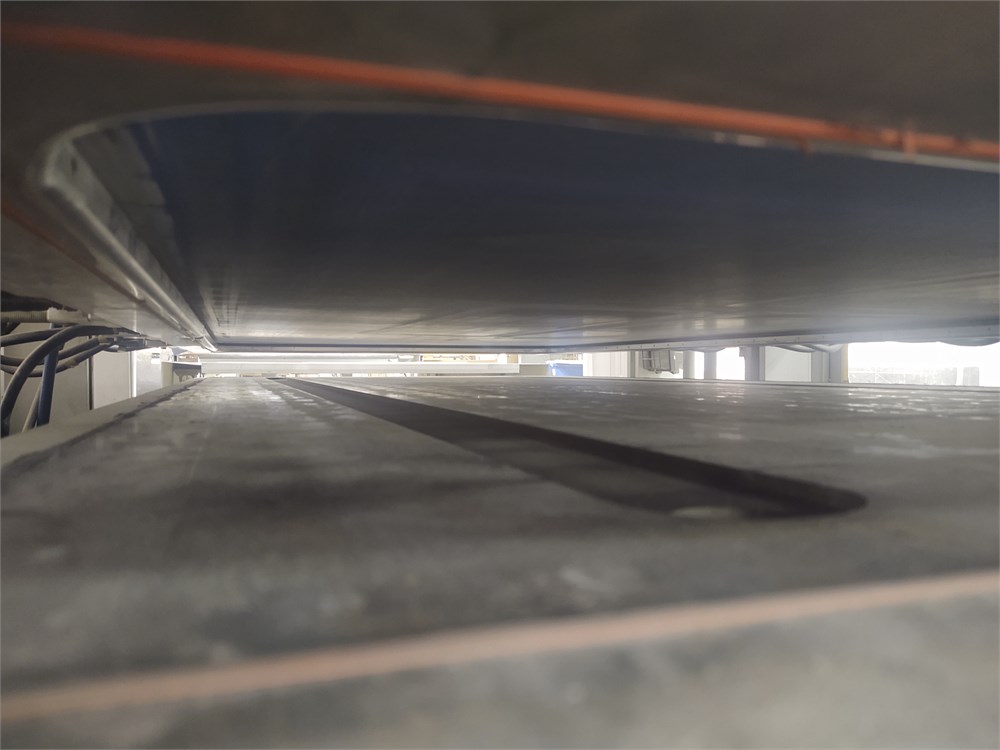

54" x 108" Aluminum top platen with a standard 3 mm thick silicone membrane (currently not being used); a small vacuum is used to draw the membrane up against the upper heated platten.
46" x 100" Max. part size for full wrap, 2" max. part thickness and a 2-1/4" max. chamber height; 84 PSI max. laminating pressure.
Top platen & infeed lower tray (platen): Both with resistance silicone heater elements, 150° - 350° F max. temperature with infinite control, 28 HP heating elements in each platen.
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
