Gabbiani "Galaxy 140T" Beam Saw
Active
Complete Shop Liquidation - Jacksonville, AR
Jacksonville, AR
- Starting Bid : $100.00 USD ( ) No Reserve
- 0 Bid(s)
Complete Shop Liquidation - Jacksonville, AR ( Active #72609222 )
A metal manufacturer in the Little Rock, AR metro area purchased the building of a closed cabinet shop and is auctioning all woodworking and finishing equipment.
-
Pick Up Location
2600 Cory Dr, Jacksonville, AR 72076
-
Make
Gabbiani
-
Model
Galaxy 140T
-

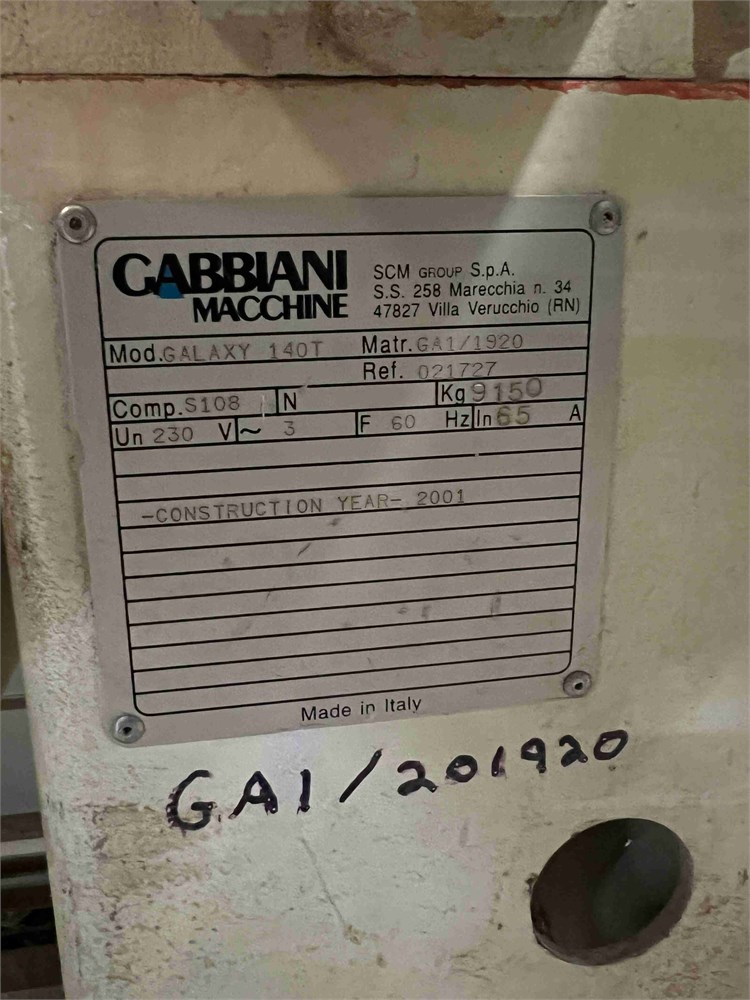

Serial Number
021727
-
Year
2001
-
Phase
3 PHASE
-
Voltage
230 VOLT
-
Buyer Inspection Period
Upon request, contact Mike Arnott - 913-333-8396
-
Load Out Period
June 16 - June 27, 2025 (by appointment)
-
Estimated Dimensions
25' x 30' x 8'
-
Estimated Weight
10,000 pounds
-
Seller Comment
Buyer responsible for prep, loading, and shipping or hiring a rigger to do so.
-
Load Fee
-
Lot Notes
-
page views
309

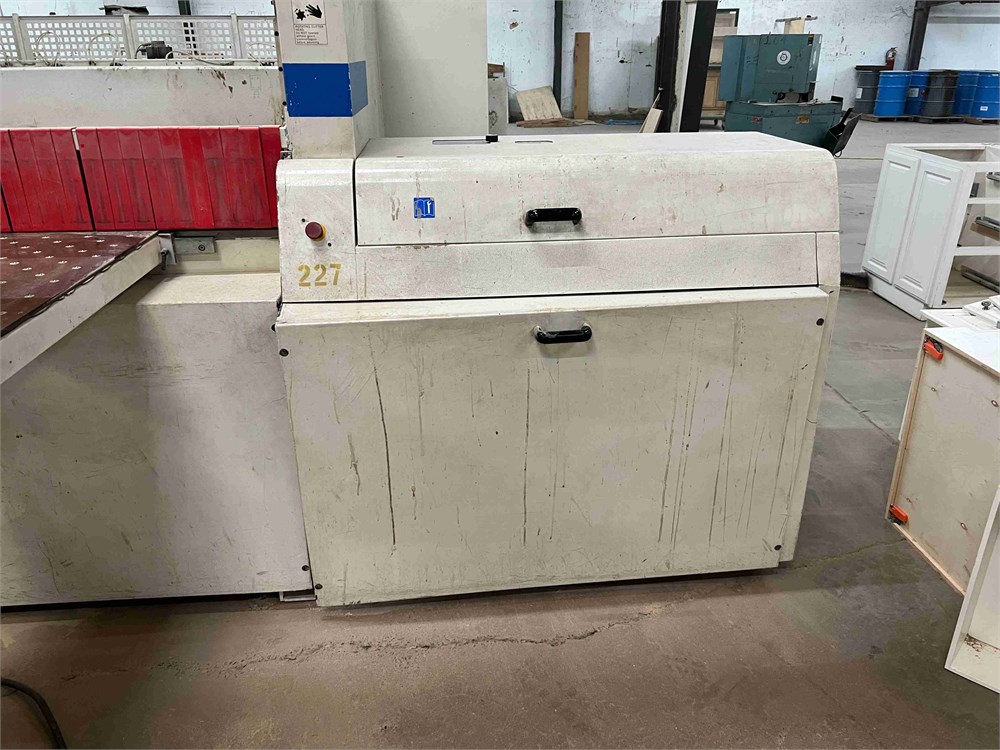

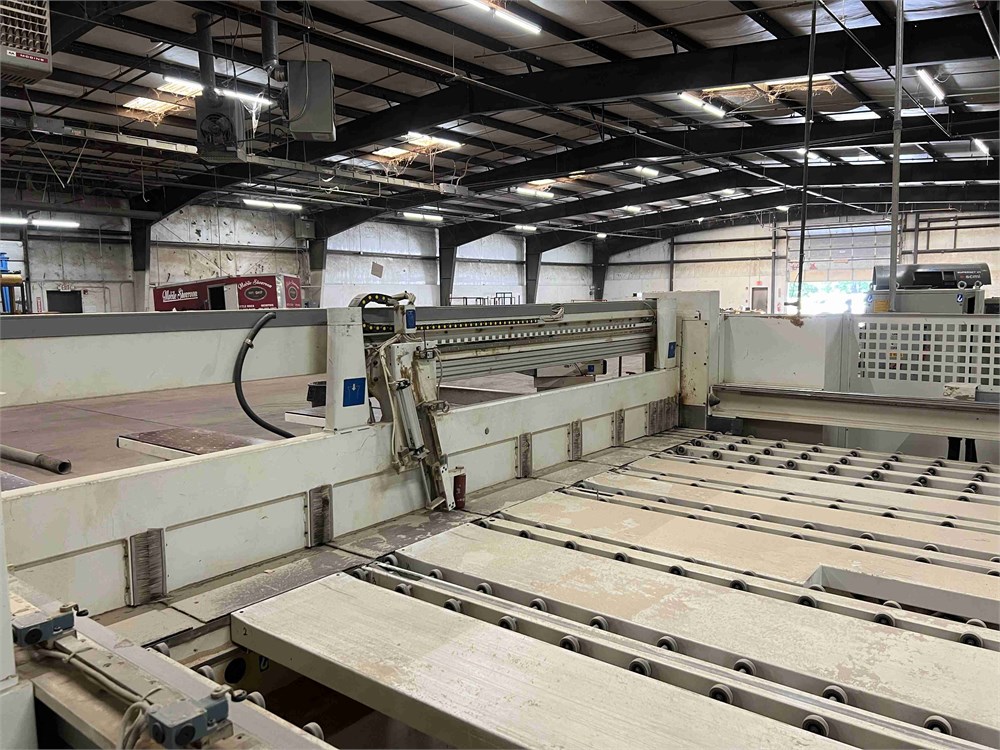

Gabbiani "Galaxy 140" Beam Saw
Working condition unknown
**SPECS. AS PULLED FROM MANUFACTURER WEBSITE, PLEASE DO OWN DUE DILIGENCE AS TO EXACT SPECS. OF THIS MACHINE:

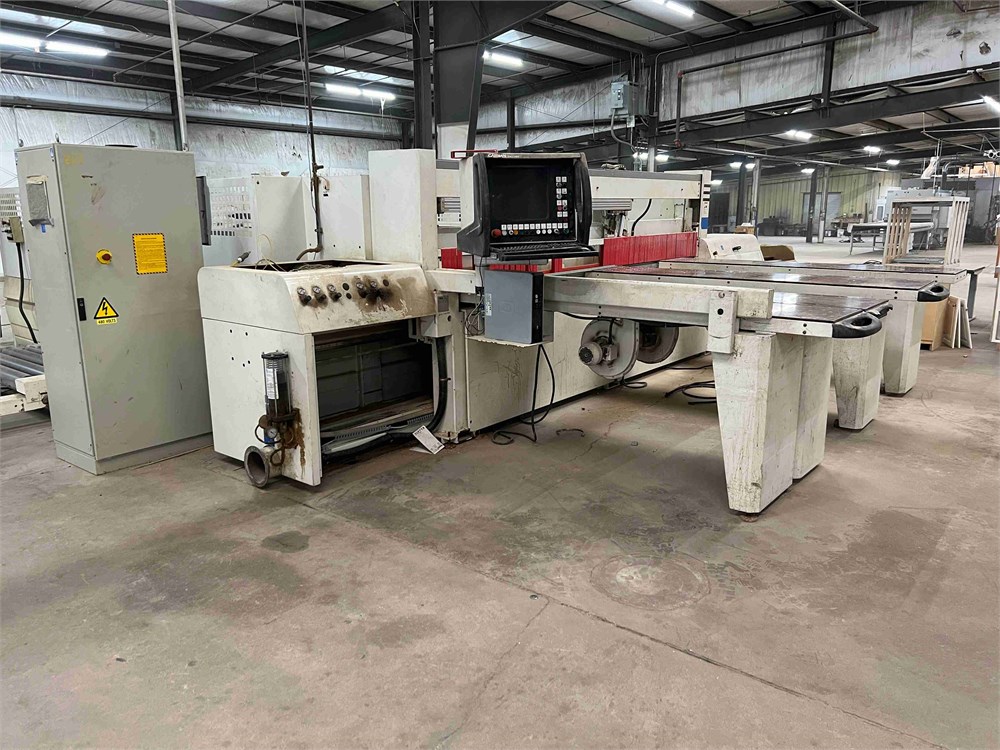

GABBIANI GALAXY 140 Rear Load Automatic Panel Saw

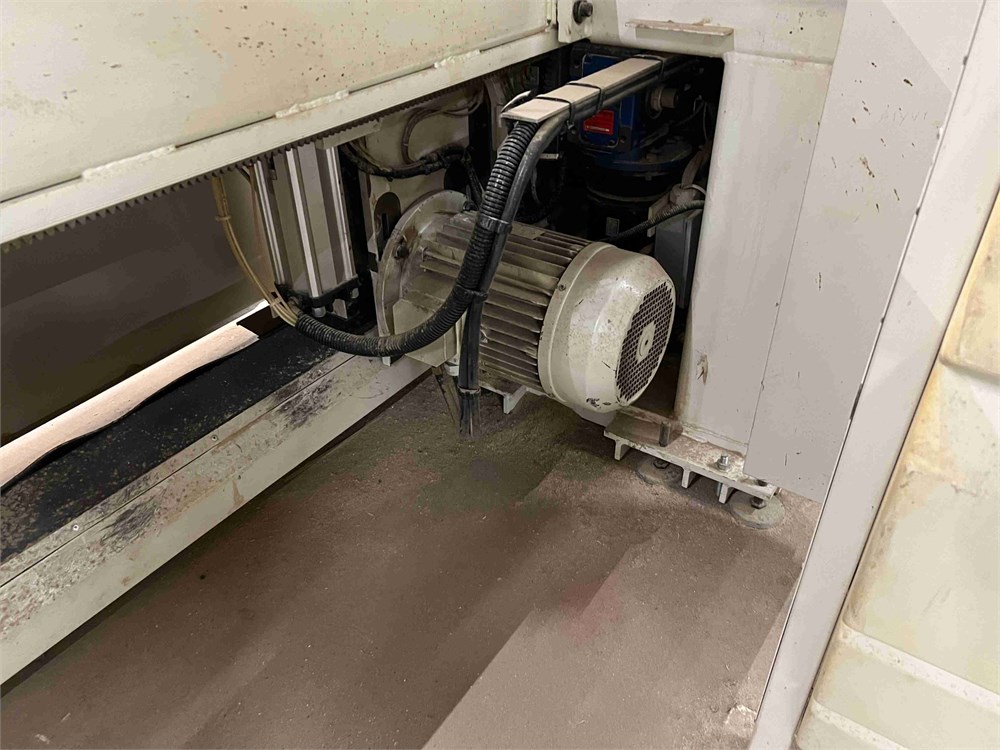

Specifications & Features: 177" (4,500 mm) Overall cutting length, 5.5" (140 mm) max. saw blade projection; 25 HP main motor w/pneumatic saw blade "quick change" system, 3 HP separate scoring motor, 13.7" dia. - 4,500 RPM main & 7.8" dia. - 7,200 RPM scoring blade externally adjustable.
Equipped with: Saw carriage travel speed 0 - 492 FPM hydraulically drive

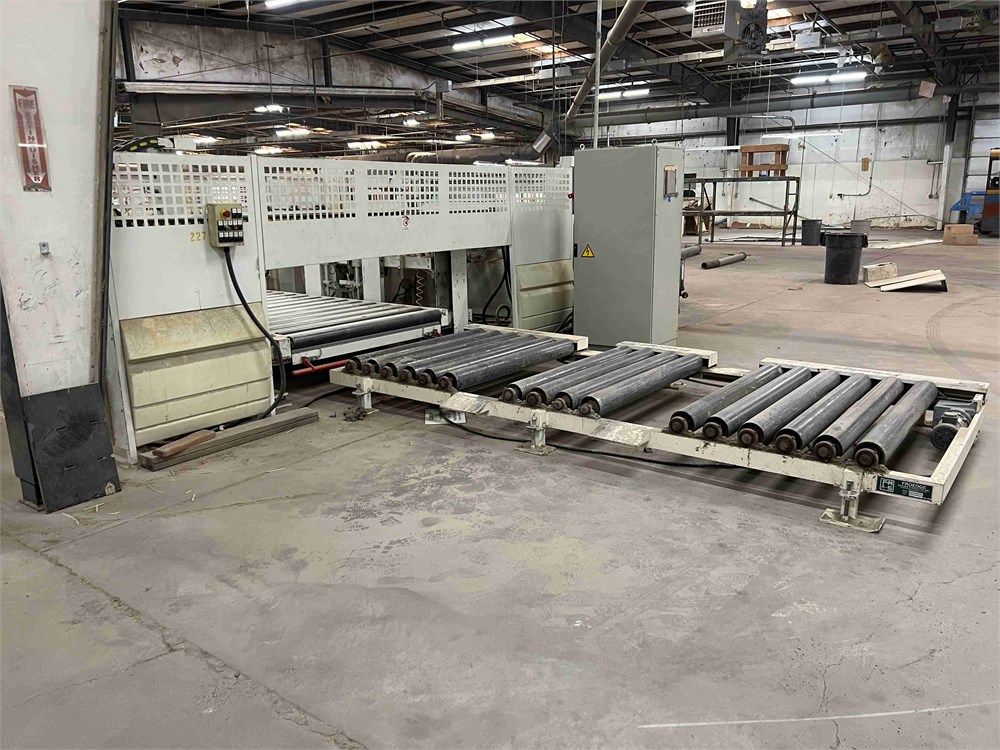

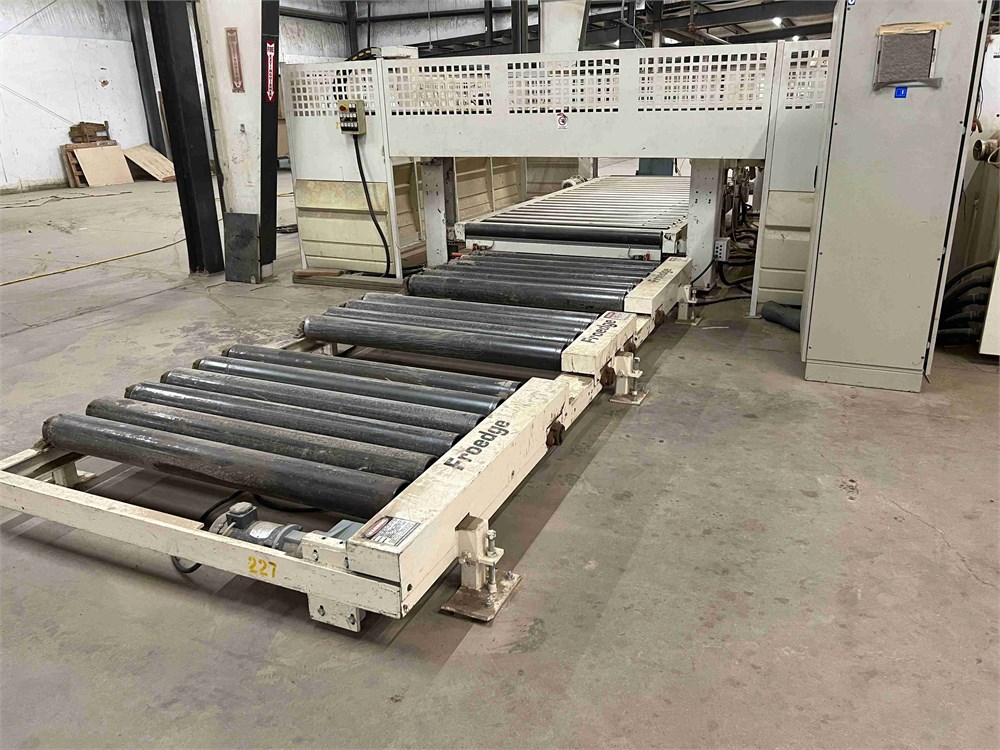

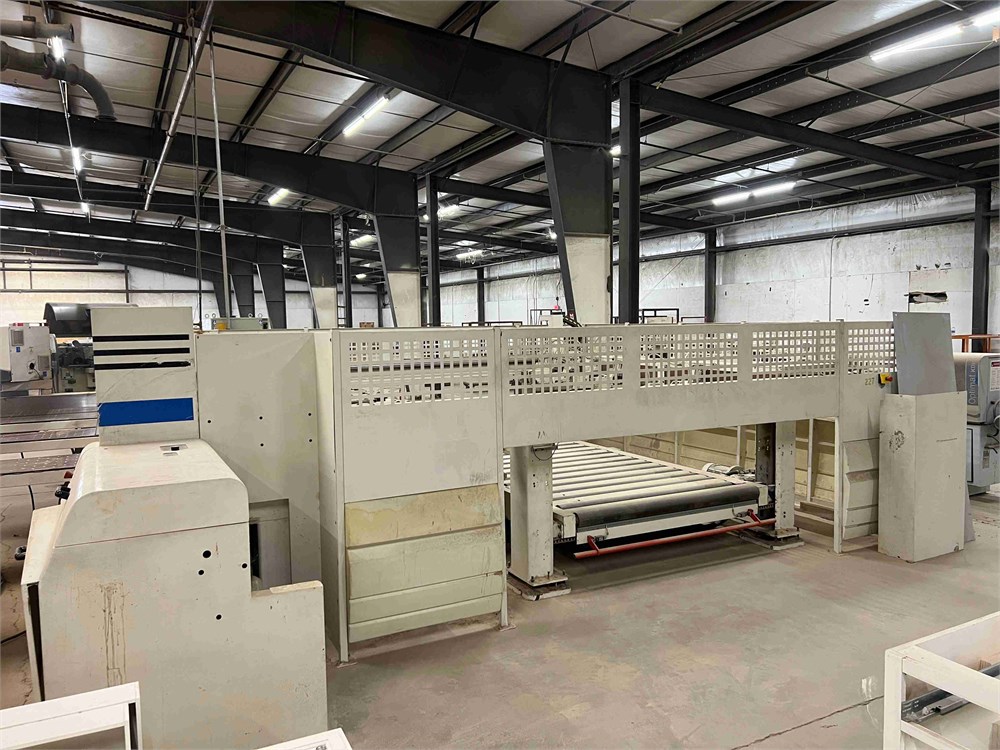

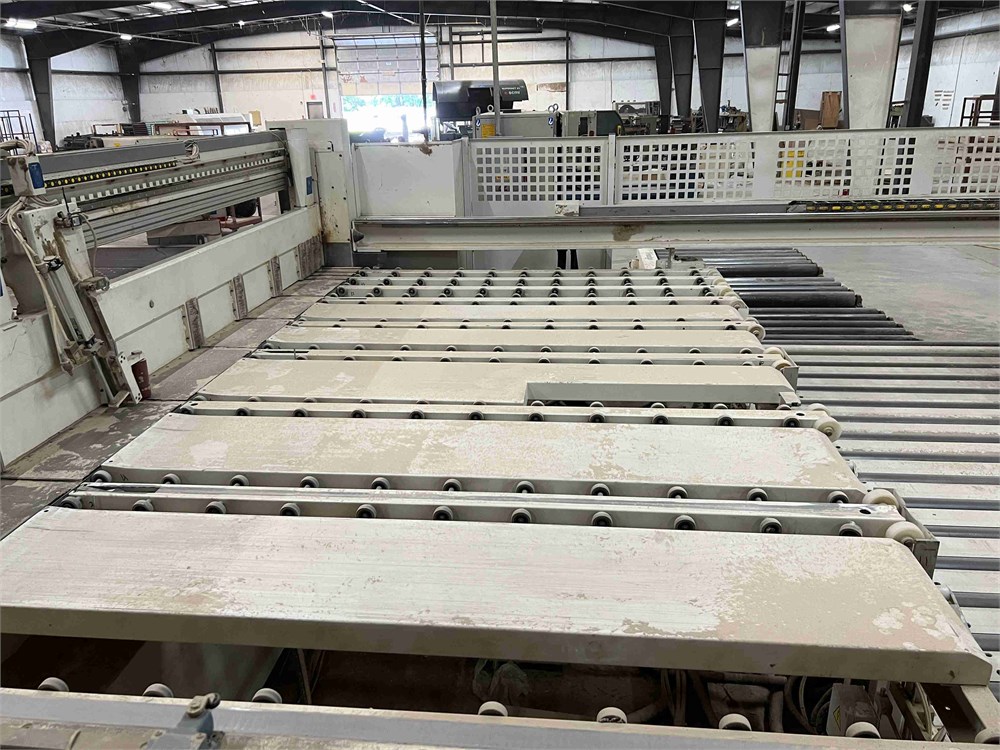

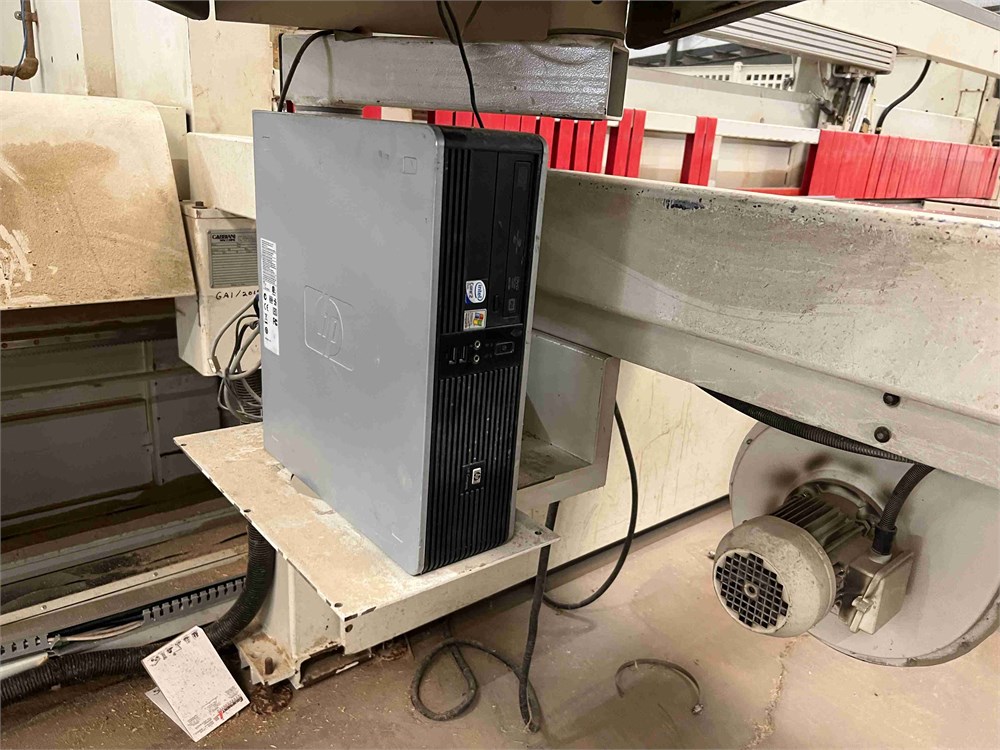

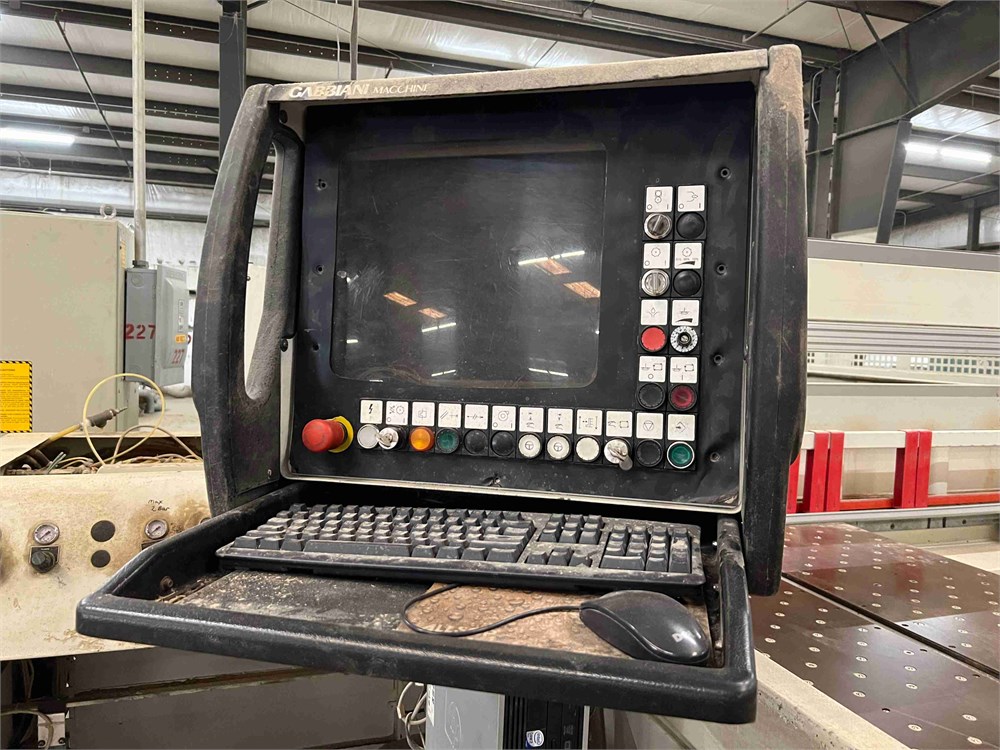

177 in. (4,500 mm) Overall cutting length, 5-1/2 in. (140 mm) max. saw blade projection; 25 HP main motor w/pneumatic saw blade quick-change system. ~ 3 HP Separate scoring motor, 13.7 in. dia. - 4,500 RPM main & 7.8 in. dia. - 7,200 RPM scoring blade externally adjustable. ~ Saw carriage travel speed from 0 - 492 FPM, hydraulically driven; 492 FPM constant return, powered by SIEMENS AC brushless motor. ~ Back fence with: (9) Material clamps, fence/pusher speed from 0 - 230 FPM, return of 230 FPM; powered by SIEMENS AC brushless motor on rack & pinion system. ~ Alternate pressure beam for final trim cut, pneumatic side alignment with dual rollers. ~ PC Front-end controller with: Windows operating system, 14 in. color monitor, virtually infinite program storage capacity, data input keyboard & ASCII keyboard for data entry. ~ 3-1/2 in. Floppy disk drive & CD-ROM for data transfer, (2) RS-232 port capability for downloading from the office is possible, GABBIANI OTTIMO software with EASY CUT. ~ Complete with: (4) Air float tables 118 in. x 19-5/8in.; 4-post electronically controlled screw-type lift table, 24 in. (600 mm) stack height without pit (1,300 mm/51 in. with pit), max. board size 12` x 6`, powered infeed roller conveyor located on the LH side.
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
