Doucet "WHR-36-5-24-D-12-PT" Return Conveyor (2023) Ended

Demo & New Machinery - Statesville, NC

Statesville, NC

  • Winning Bid : $17,850.00 USD Sold
  • 68 Bid(s)
  • High Bidder: n****e
Bidding Info
This auction uses Proxy Bidding.
Bids placed within the final 5 minutes will extend the auction closing time by 5 minutes.

Statesville, NC Demo & New Machinery Sale ( Closed #72531005 )

Shoda "NC263" Roll Top CNC Machining Center (2023), Doucet "WHR-36-5" Return Conveyor (2023) - Qty (3) & Doucet "WHRC-24" Return Conveyor (2023)

  • Pick Up Location

    246 Barkley Rd. Statesville, NC 28667

  • Make

    Doucet

  • Model

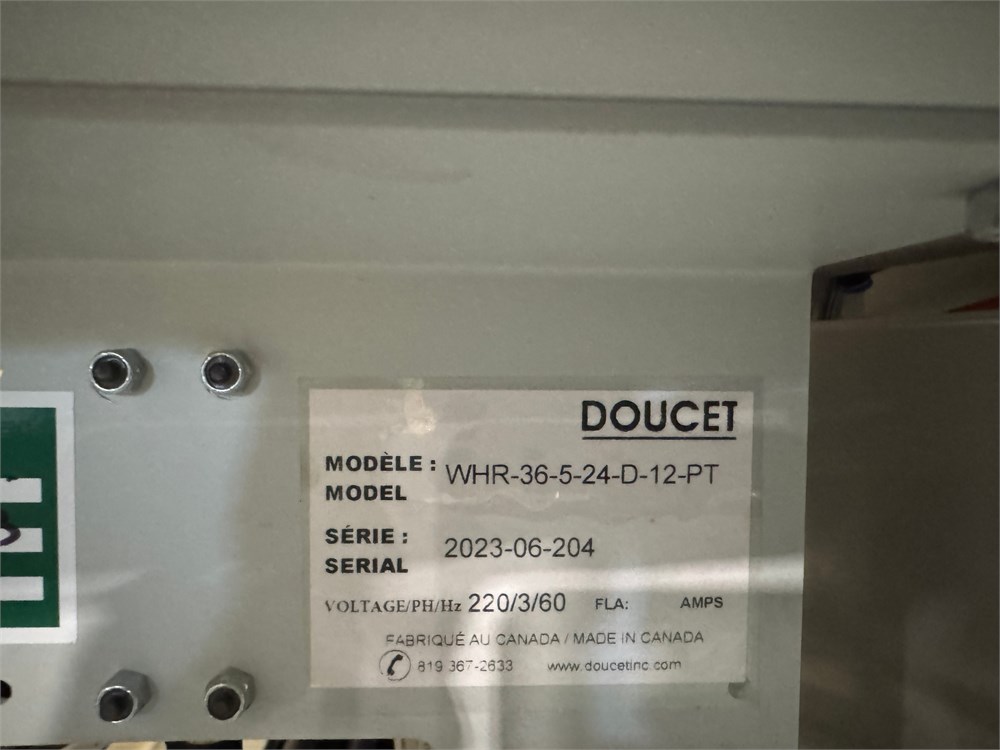

    "WHR-36-5-24-D-12-PT"

  • Serial Number

    2023-06-204

  • Year

    2023

  • Phase

    3 PHASE

  • Voltage

    220 VOLT

  • Buyer Inspection Period

    By appointment. Please contact: Eric Beach - [email protected] - 704-608-9830 (text preferred)

  • Load Out Period

    June 12 - 27

  • Estimated Dimensions

    97" x 108" x 96"

  • Estimated Weight

    3,500 Lbs

  • Seller Comment

    A non-negotionable loading fee has been established. This includes loading onto a flat bed trailer.

  • Load Fee

    295.00

  • Lot Notes

    For specific details please see attached quote in the Documents Above.

  • page views

    2636

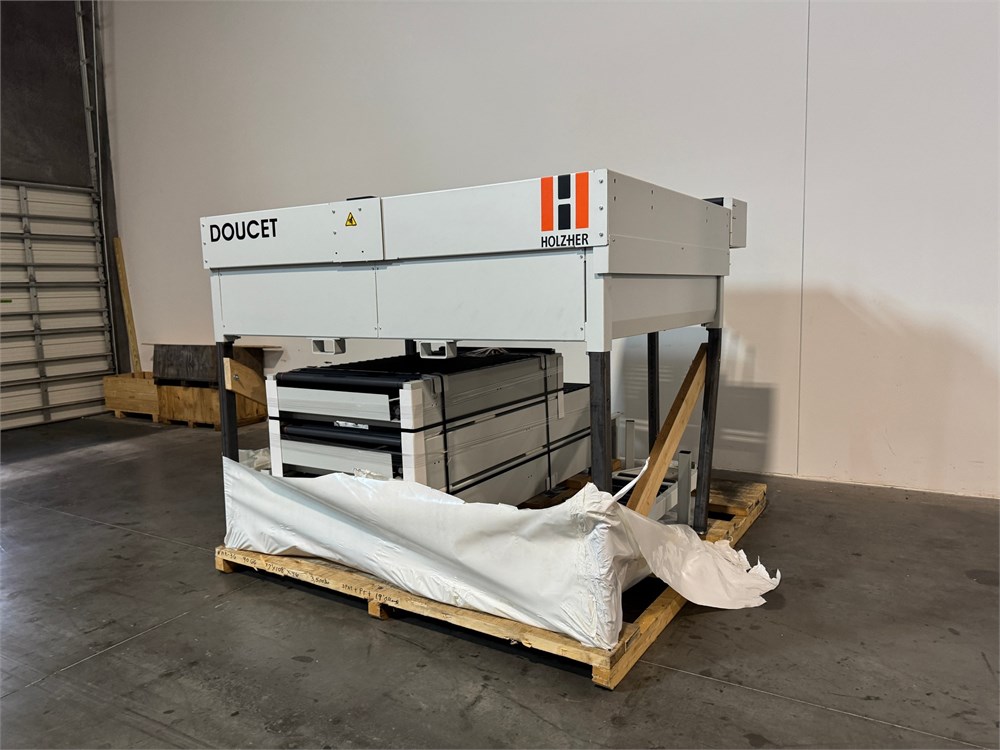

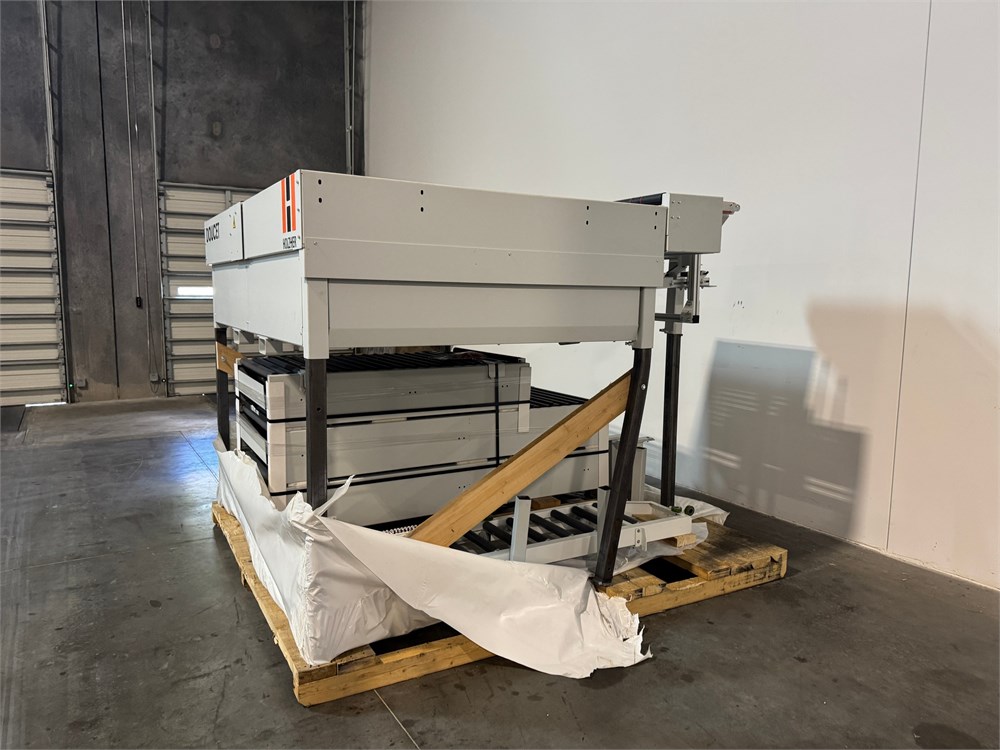

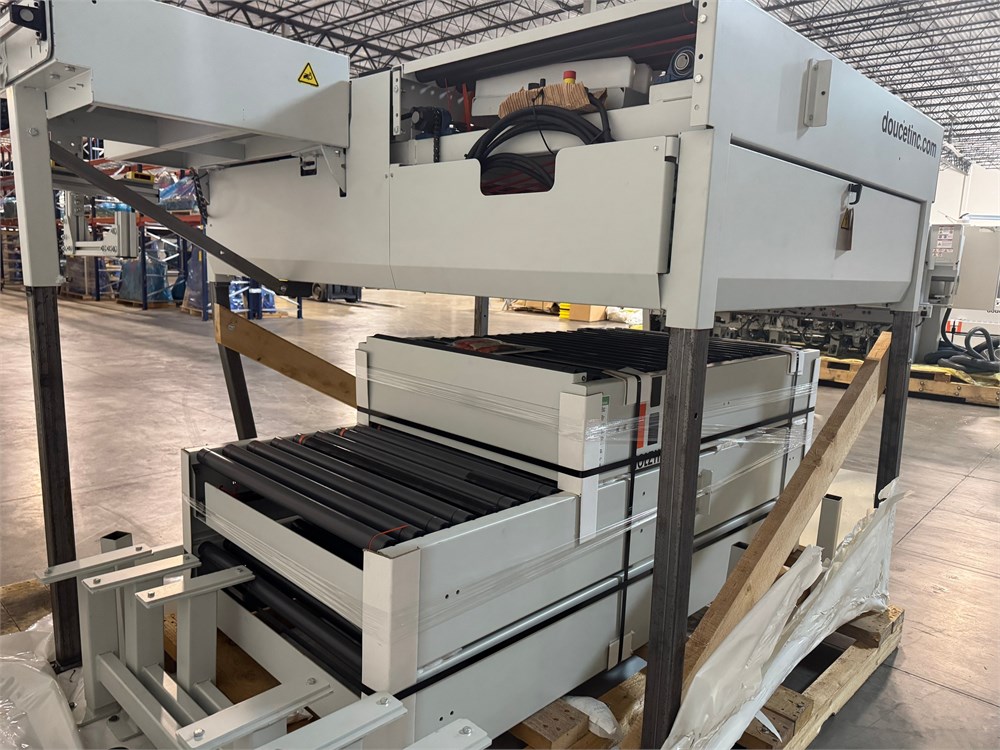

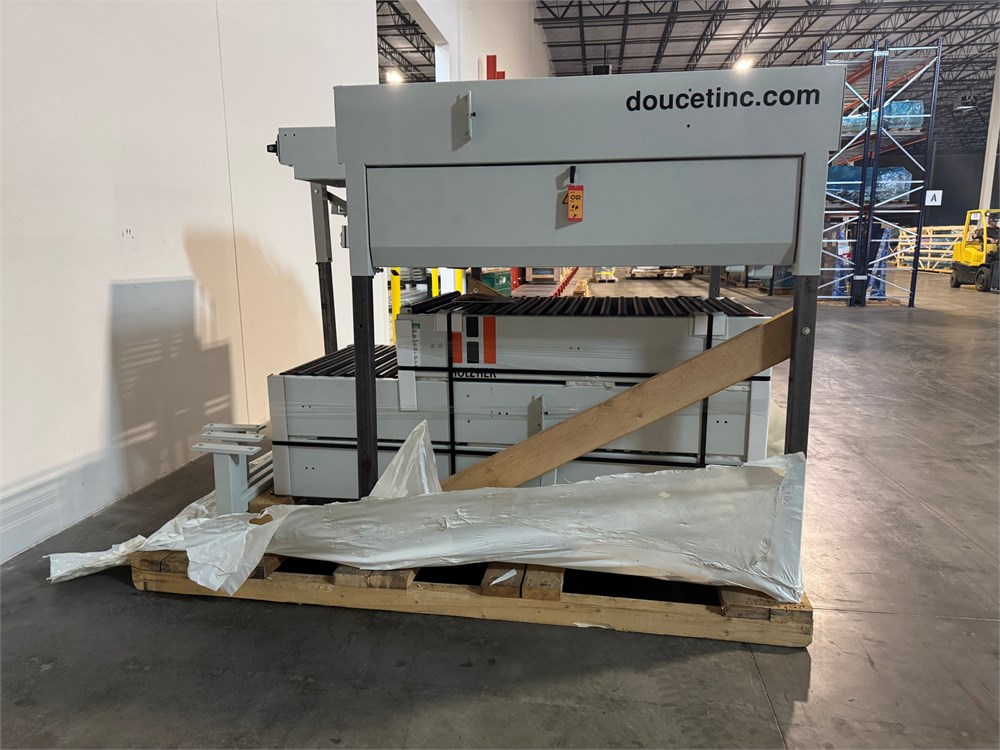

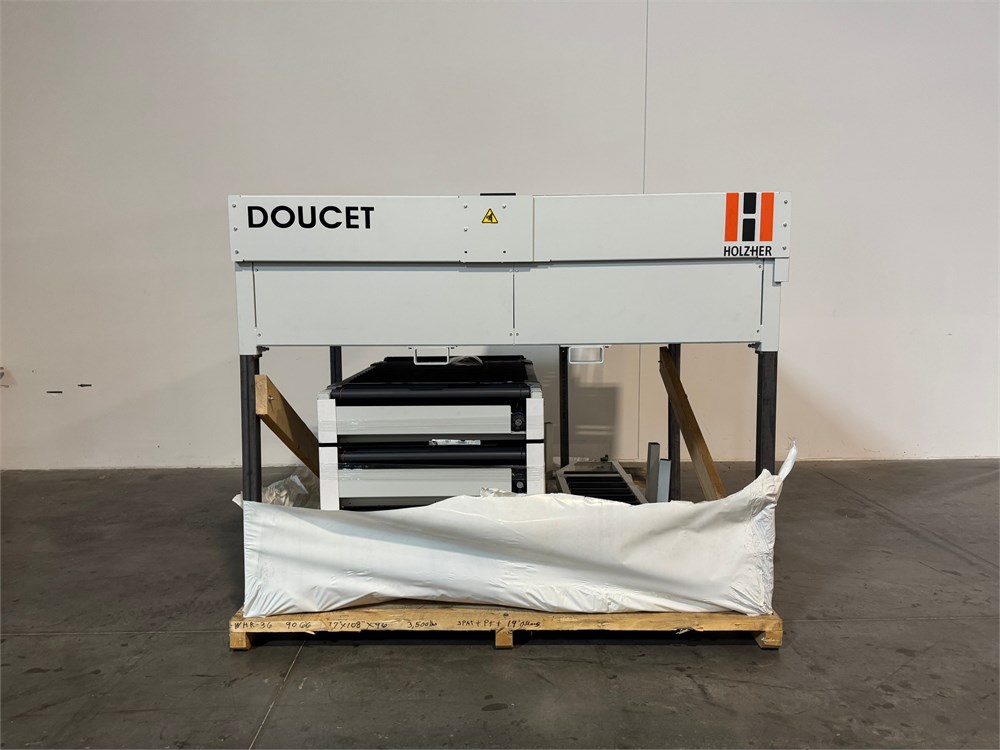

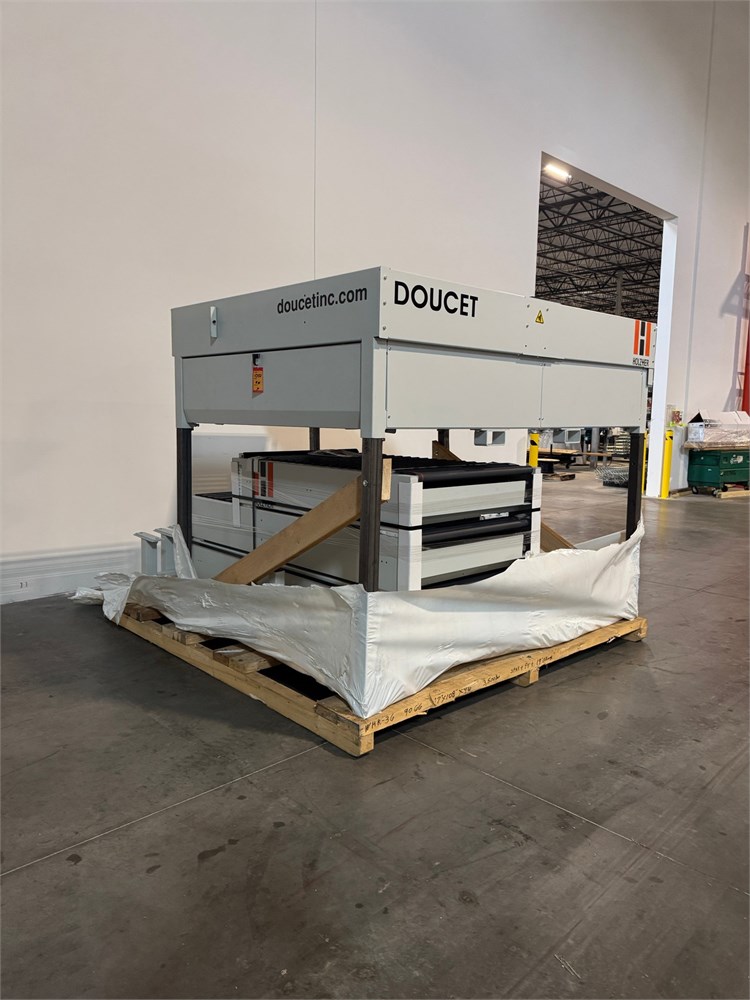

Doucet "WHR-36-5-24-D-12-PT" Return Conveyor (2023)

For specific details please see attached quote in the Documents Above.

Minimum part sizes on conveyors: 12" x 12"
- Minimum part sizes on conveyors if equipped with panel deviator: 4" x 12"
- Maximum panel sizes feeding all 4 sides: 52" x 52"
- Maximum panel sizes feeding long sides: 52" x 96"
- Maximum panel sizes feeding short sides with PT-90: 36" x 96"
- Maximum panel weight capacity: 80 lb
- Thin and lower density panels may reduce the maximum size capacities of the
return conveyor.

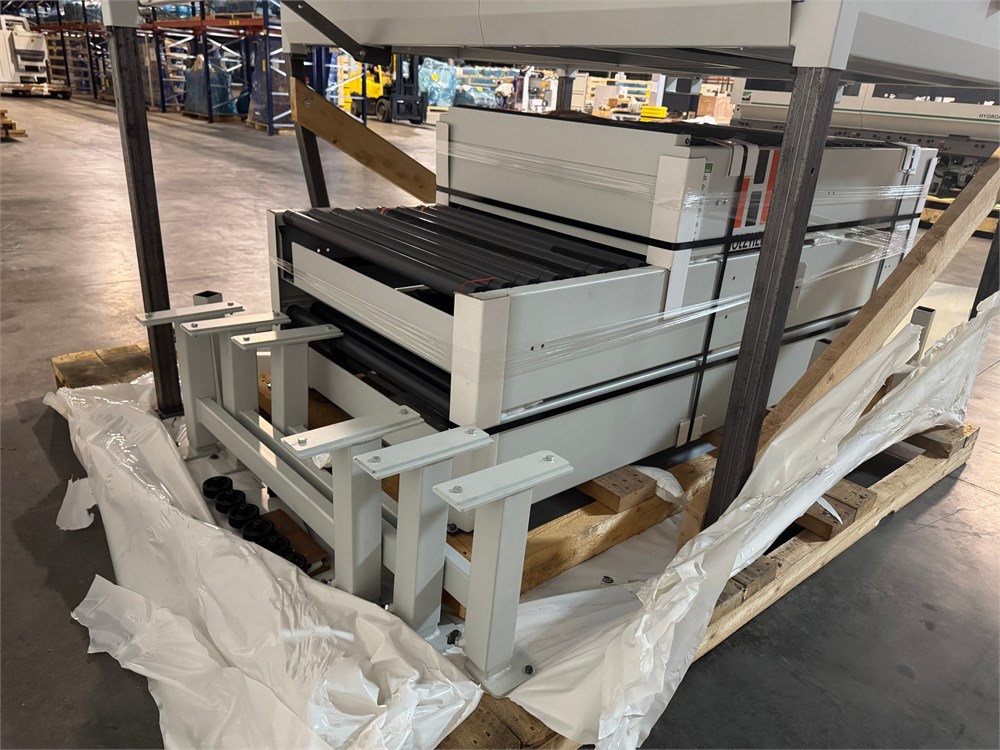

The proposed Return Conveyor Model WHR-36 will be configured as follows:

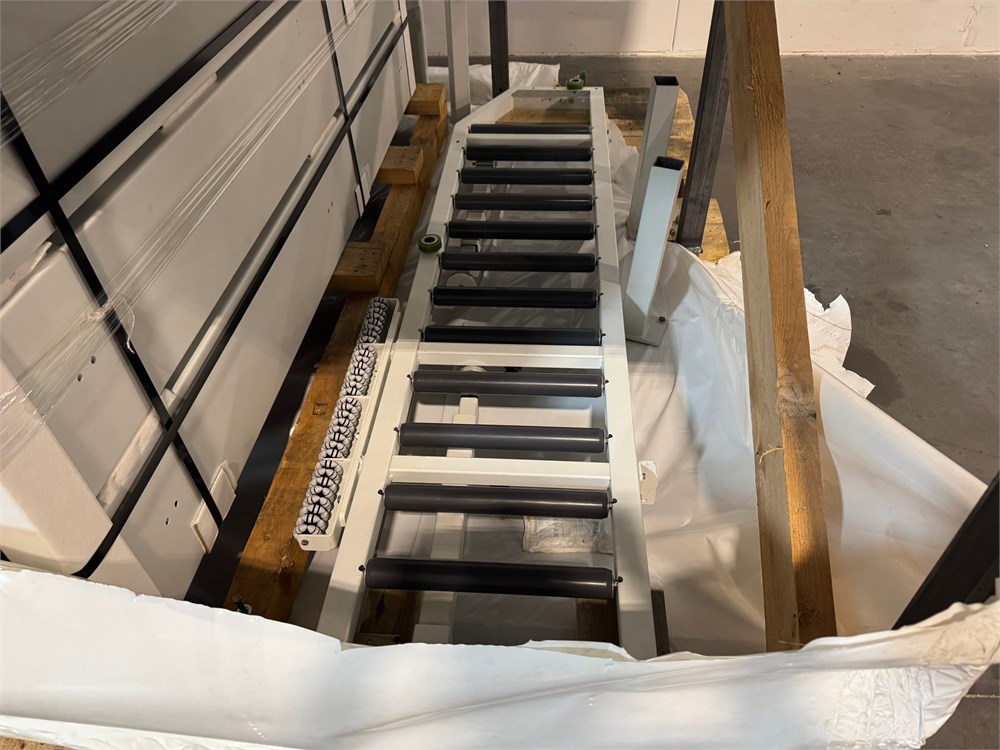

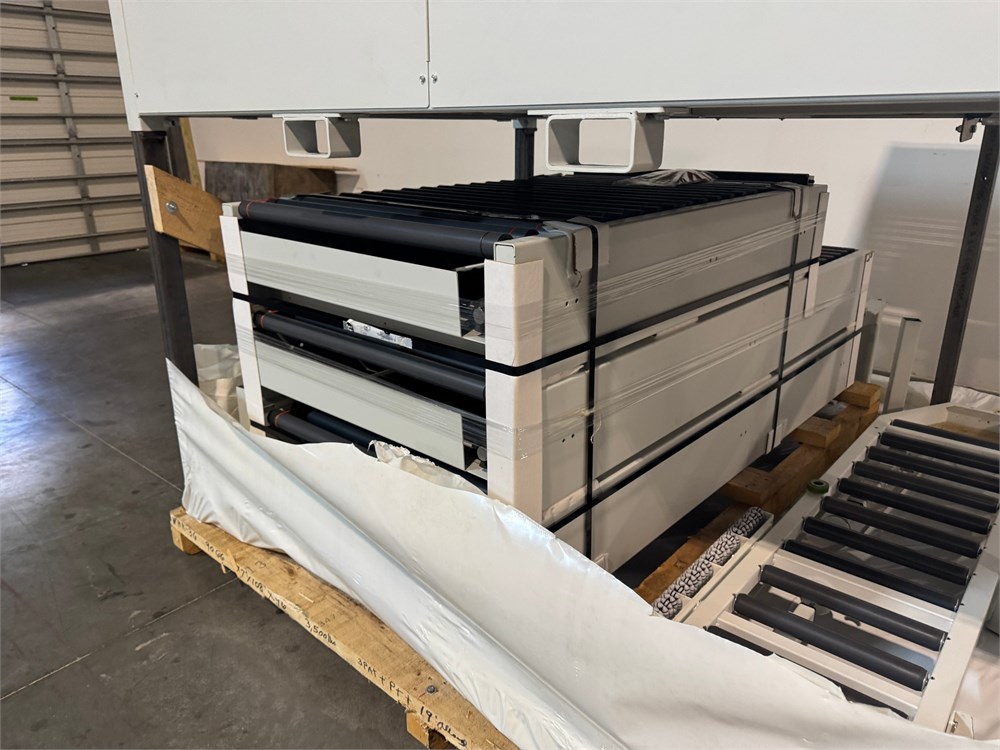

- A 36" wide x 5' long receiving conveyor with 2" Ø PVC rollers on 3" centers
- A 36" wide x 24' long return conveyor with 2" Ø PVC rollers on 3" centers
- A belt transfer device 12" wide featuring 9 transfer belts
- A transfer by-pass switch
- Variable speed switch located on operator console
- A panel deviator to redeploy narrow parts over several rollers
- A PT-90 panel turner to return long rectangular panels lengthwise after
finishing of their narrow side
o With extended capacity
- Voltage: 220 / 3 / 60, 8 amps
- Pass height: 30" to 42"
- Compressed air requirement: 10 cfm @ 90 psi
- A right hand return

The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.

The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
