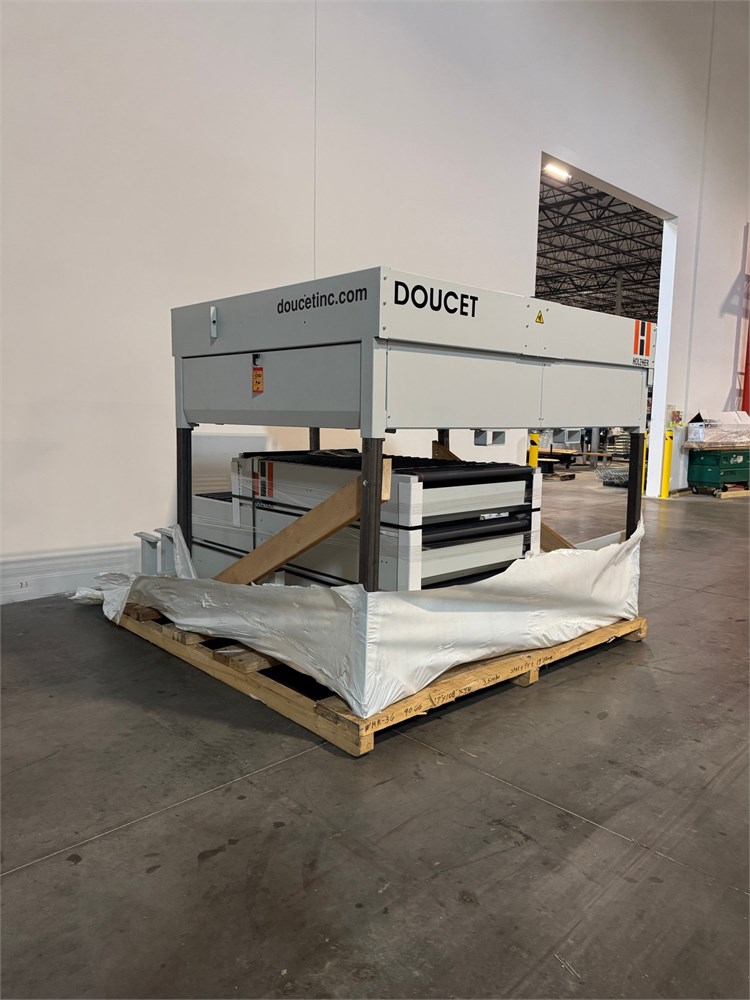

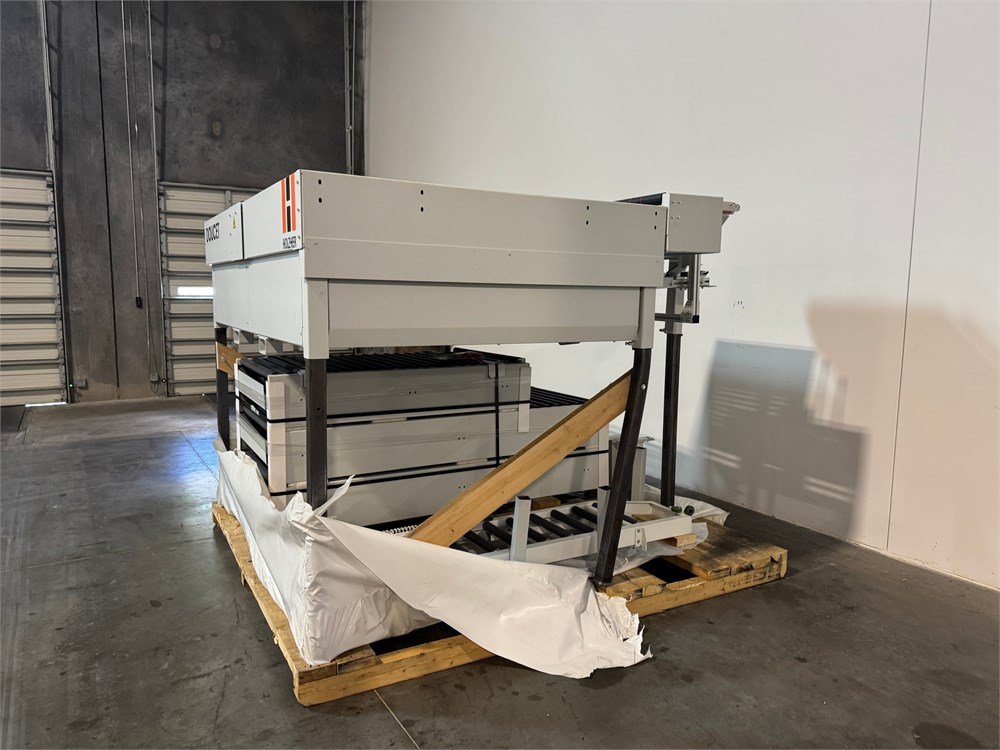

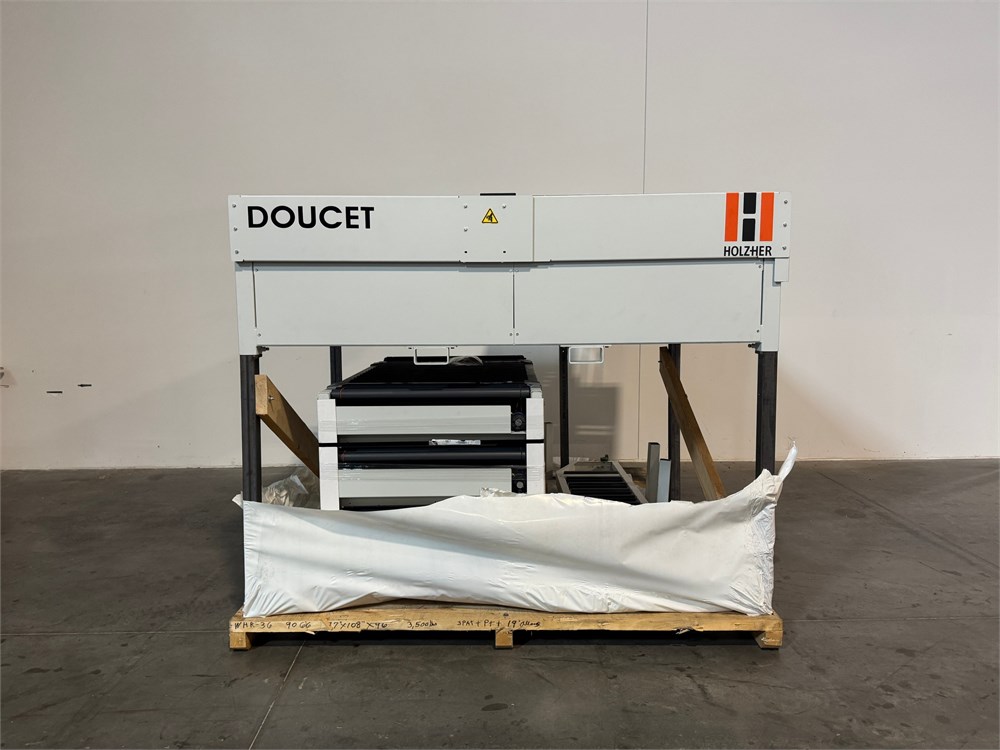

Doucet "WHR-36-5-24-D-12-PT" Return Conveyor (2023)
Ended
Demo & New Machinery - Statesville, NC
Statesville, NC
- Winning Bid : $19,600.00 USD Sold
- 84 Bid(s)
- High Bidder: D****C
Statesville, NC Demo & New Machinery Sale ( Closed #72531005 )
Shoda "NC263" Roll Top CNC Machining Center (2023), Doucet "WHR-36-5" Return Conveyor (2023) - Qty (3) & Doucet "WHRC-24" Return Conveyor (2023)
-
Pick Up Location
246 Barkley Rd. Statesville, NC 28667
-

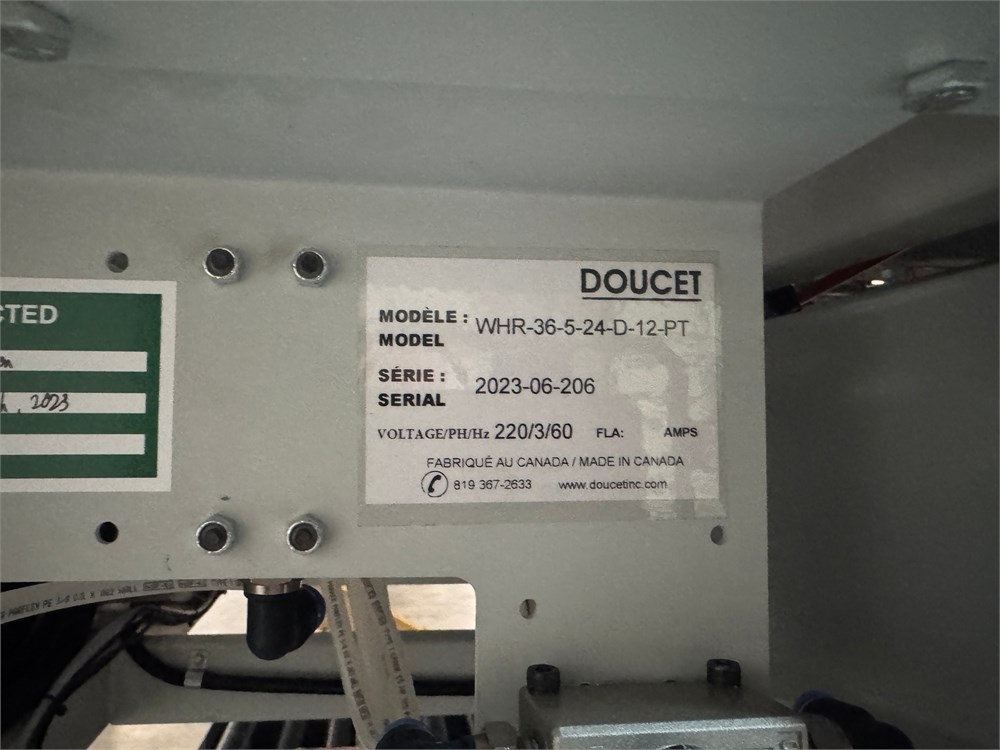

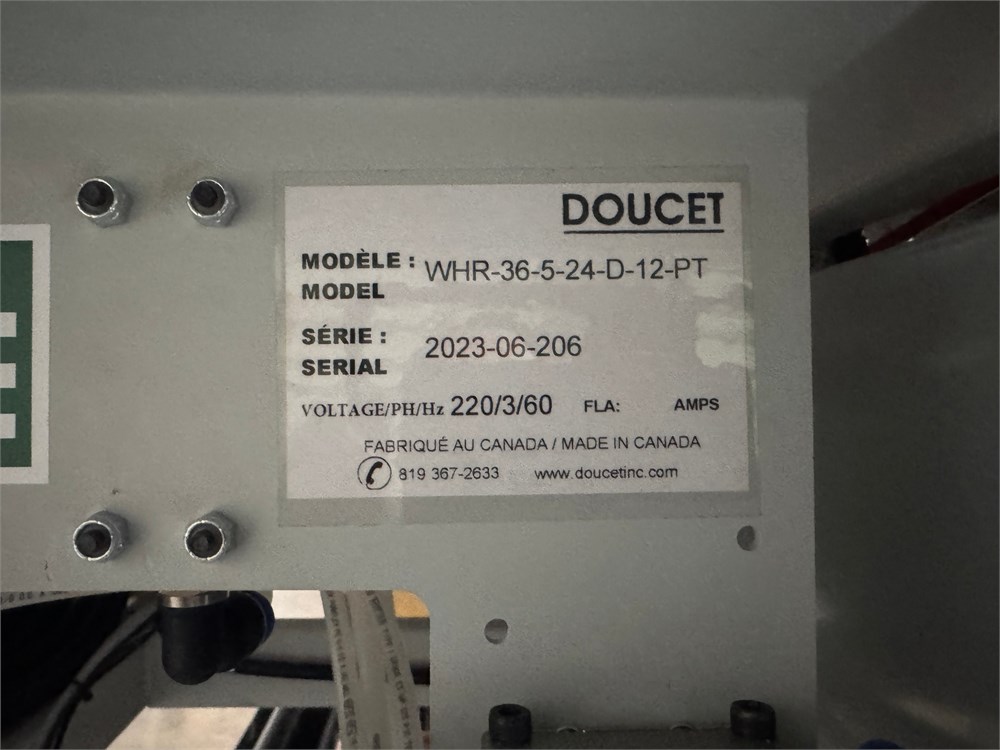

Make
Doucet
-
Model
"WHR-36-5-24-D-12-PT"
-
Serial Number
2023-06-206
-
Year
2023
-
Phase
3 PHASE
-
Voltage
220 VOLT
-
Buyer Inspection Period
By appointment. Please contact: Eric Beach - [email protected] - 704-608-9830 (text preferred)
-
Load Out Period
June 12 - 27
-
Estimated Dimensions
97" x 108" x 96"
-
Estimated Weight
3,500 Lbs
-
Seller Comment
A non-negotionable loading fee has been established. This includes loading onto a flat bed trailer.
-
Load Fee
295.00
-
Lot Notes
For specific details please see attached quote in the Documents Above.
-
page views
2697

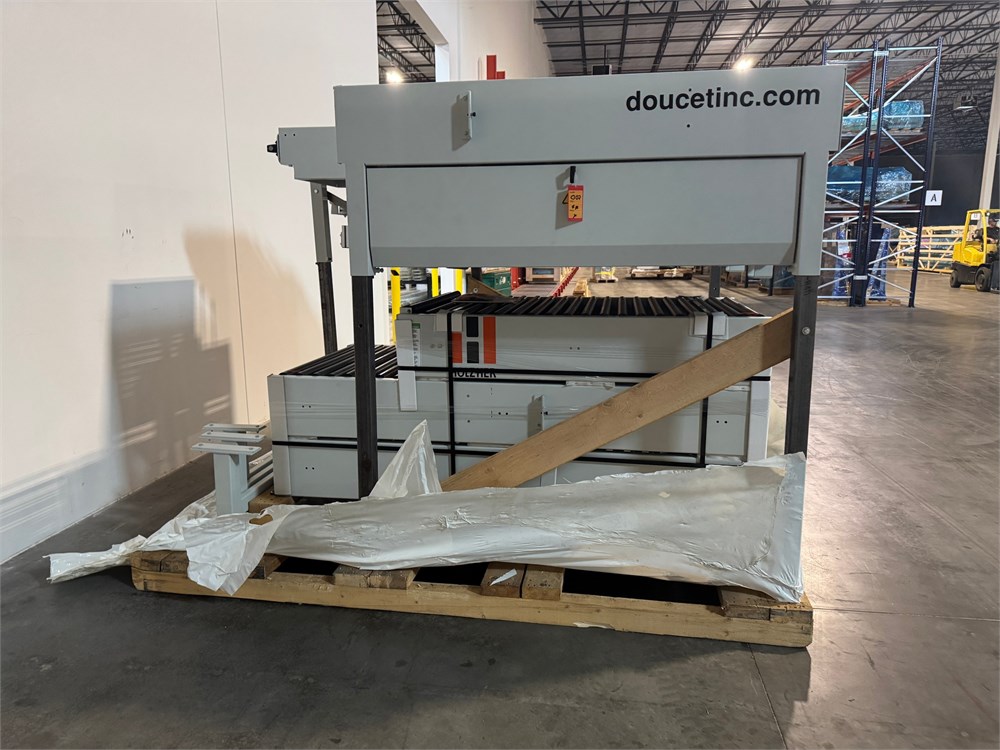

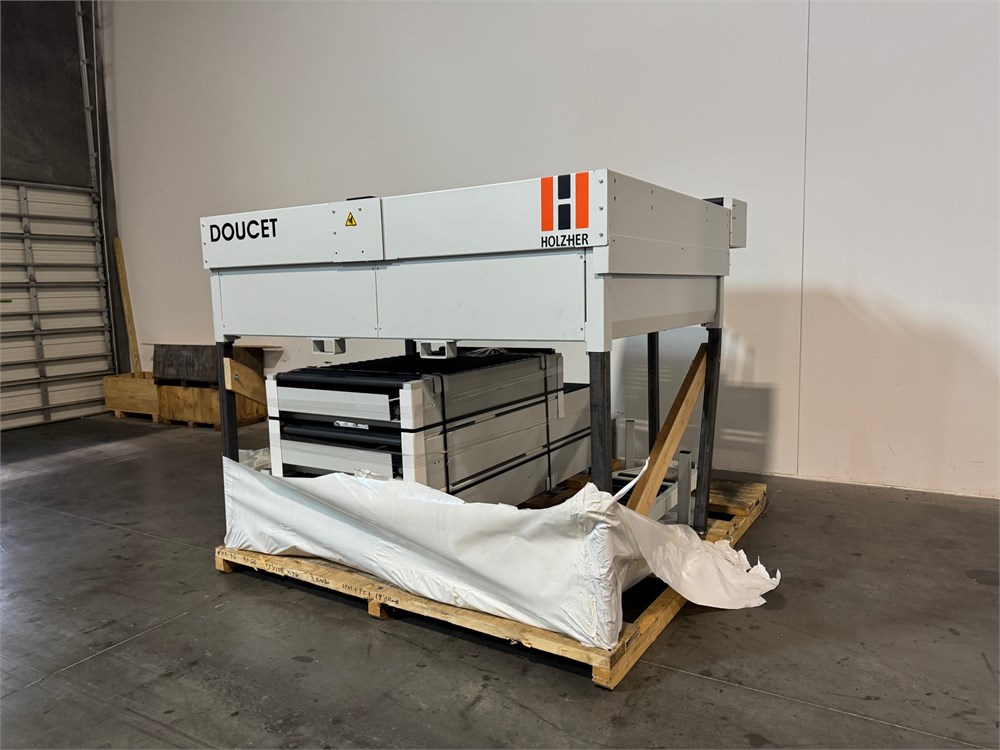

Doucet "WHR-36-5-24-D-12-PT" Return Conveyor (2023)
For specific details please see attached quote in the Documents Above.
Minimum part sizes on conveyors: 12" x 12"
- Minimum part sizes on conveyors if equipped with panel deviator: 4" x 12"
- Maximum panel sizes feeding all 4 sides: 52" x 52"
- Maximum panel sizes feeding long sides: 52" x 96"
- Maximum panel sizes feeding short sides with PT-90: 36" x 96"
- Maximum panel weight capacity: 80 lb
- Thin and lower density panels may reduce the maximum size capacities of the
return conveyor.

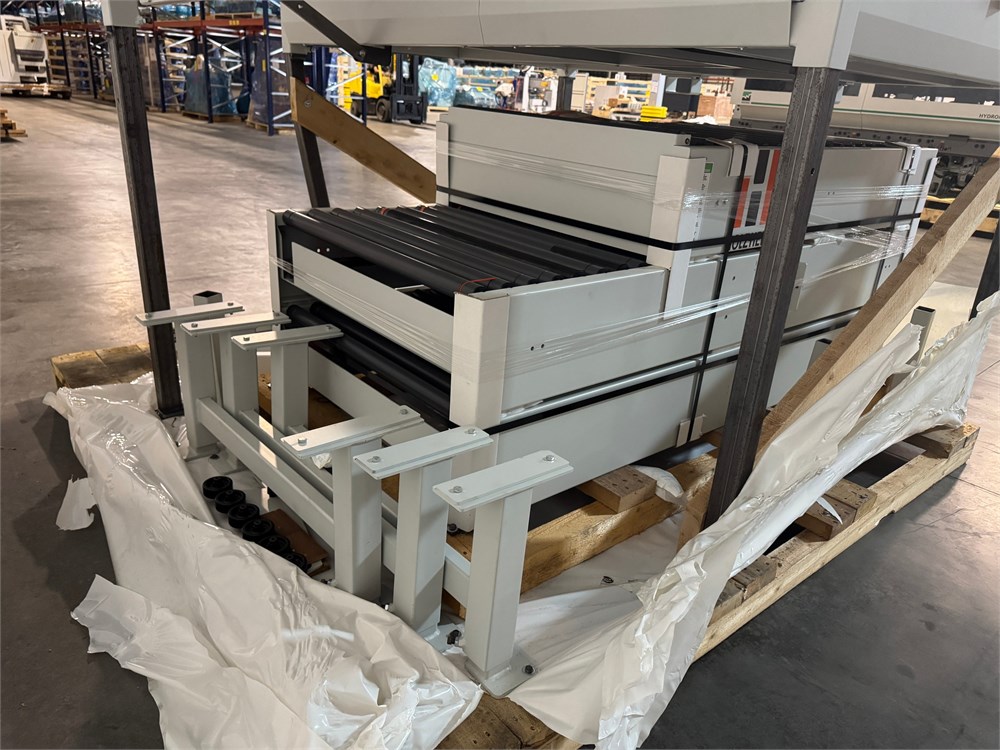

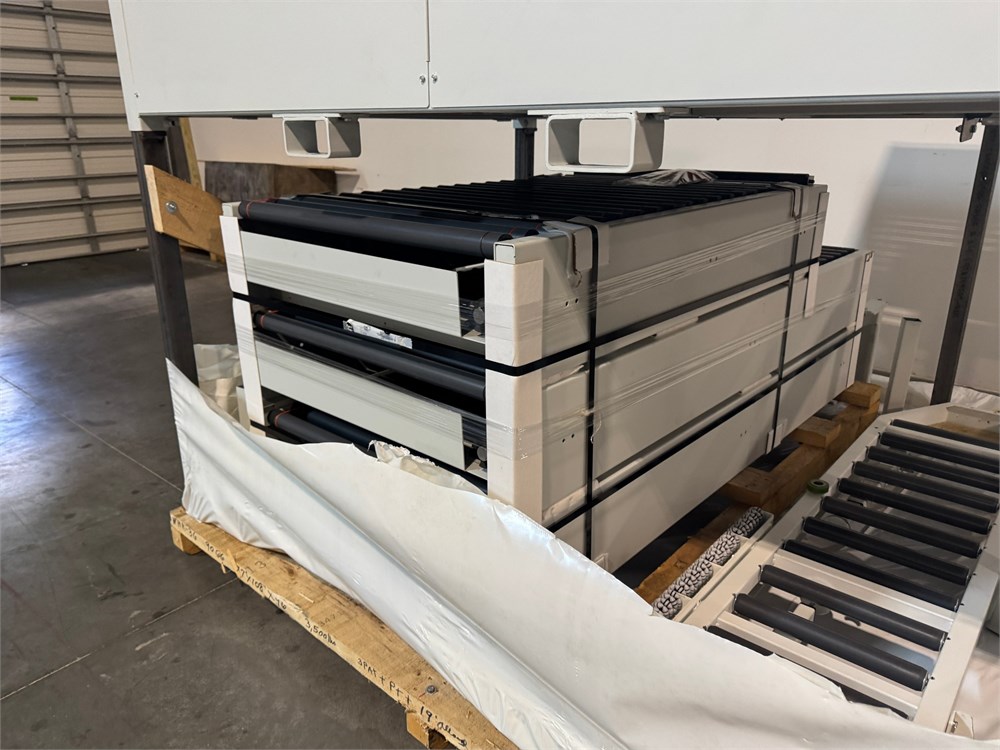

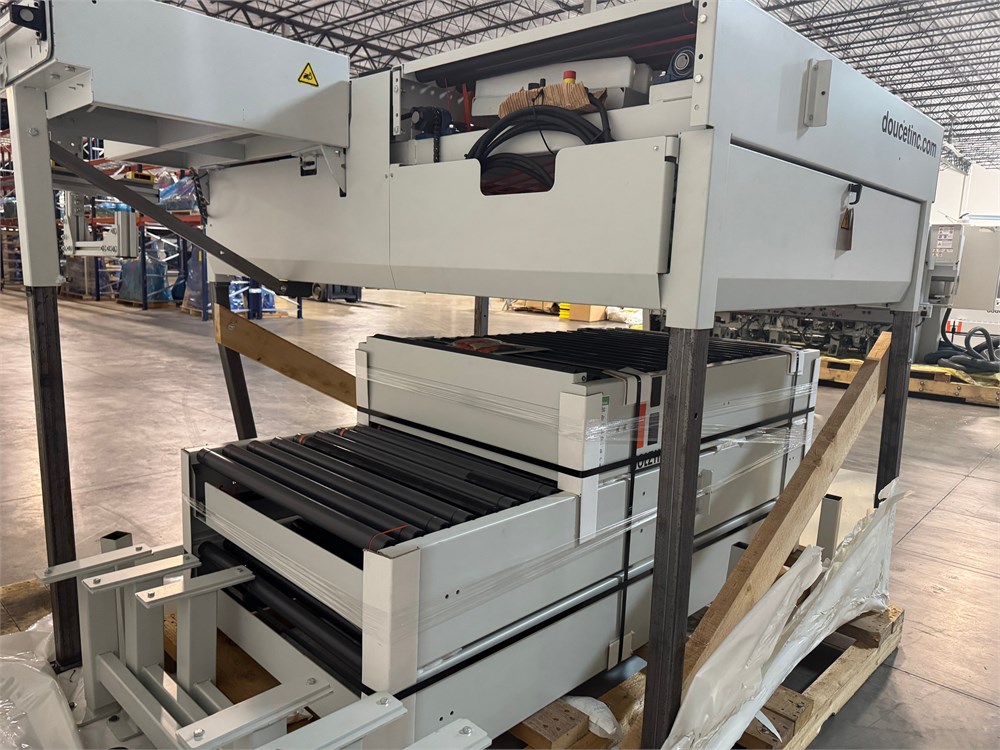

The proposed Return Conveyor Model WHR-36 will be configured as follows:

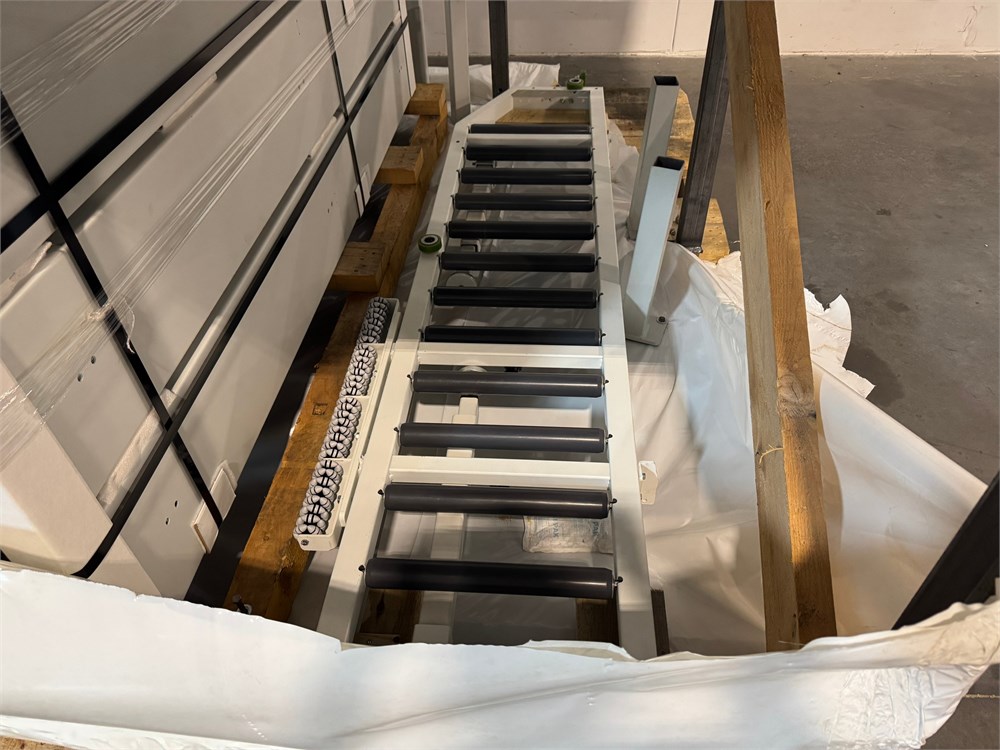

- A 36" wide x 5' long receiving conveyor with 2" Ø PVC rollers on 3" centers
- A 36" wide x 24' long return conveyor with 2" Ø PVC rollers on 3" centers
- A belt transfer device 12" wide featuring 9 transfer belts
- A transfer by-pass switch
- Variable speed switch located on operator console
- A panel deviator to redeploy narrow parts over several rollers
- A PT-90 panel turner to return long rectangular panels lengthwise after
finishing of their narrow side
o With extended capacity

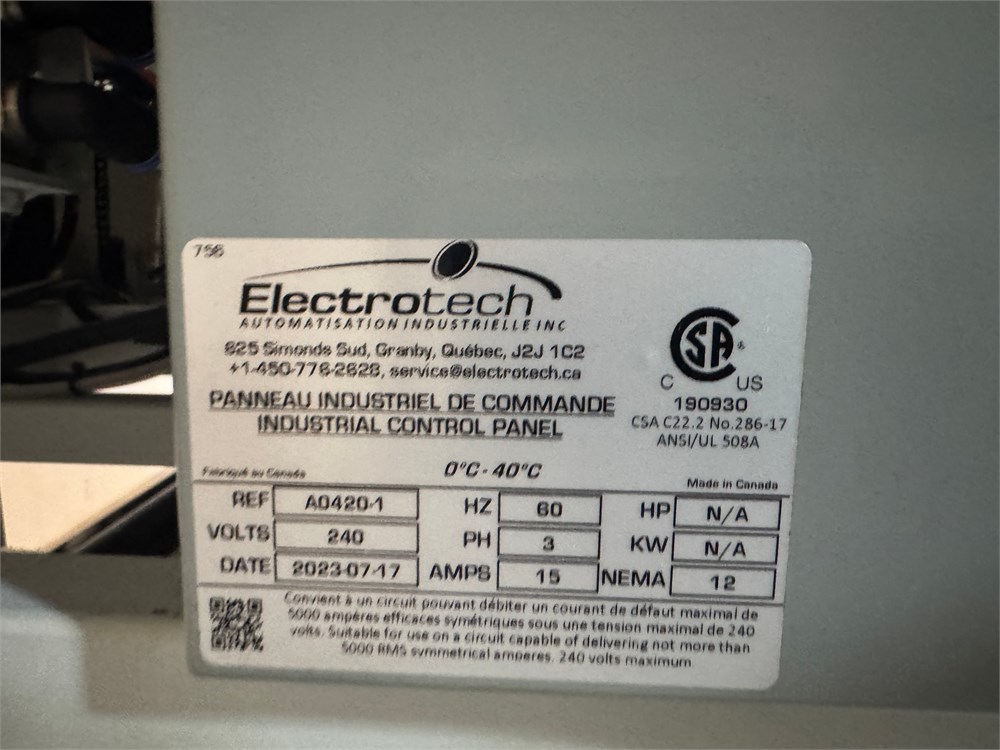

- Voltage: 220 / 3 / 60, 8 amps
- Pass height: 30" to 42"
- Compressed air requirement: 10 cfm @ 90 psi
- A right hand return
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
