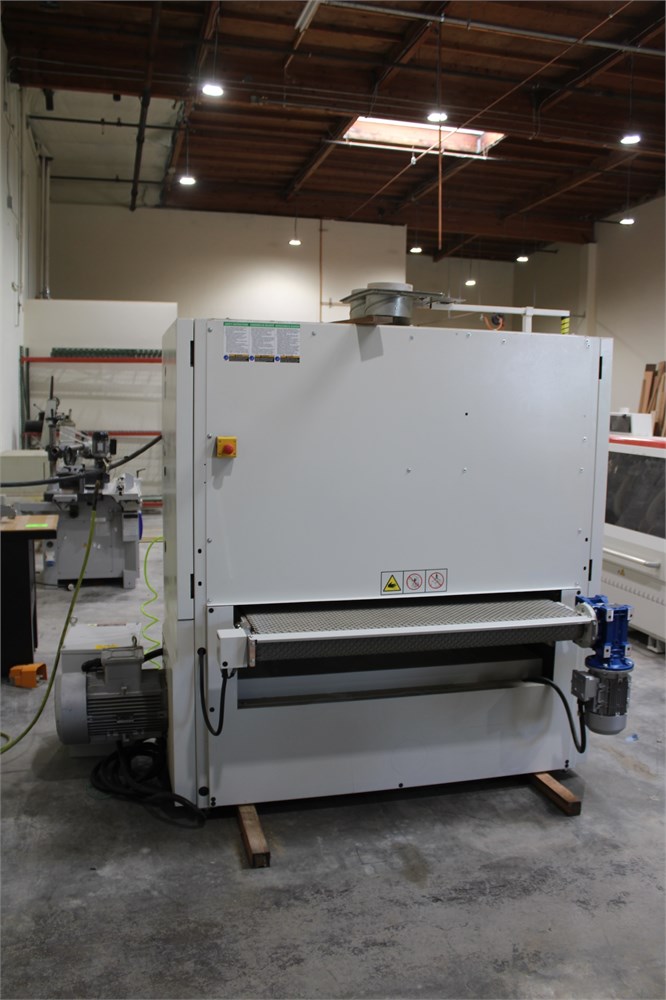

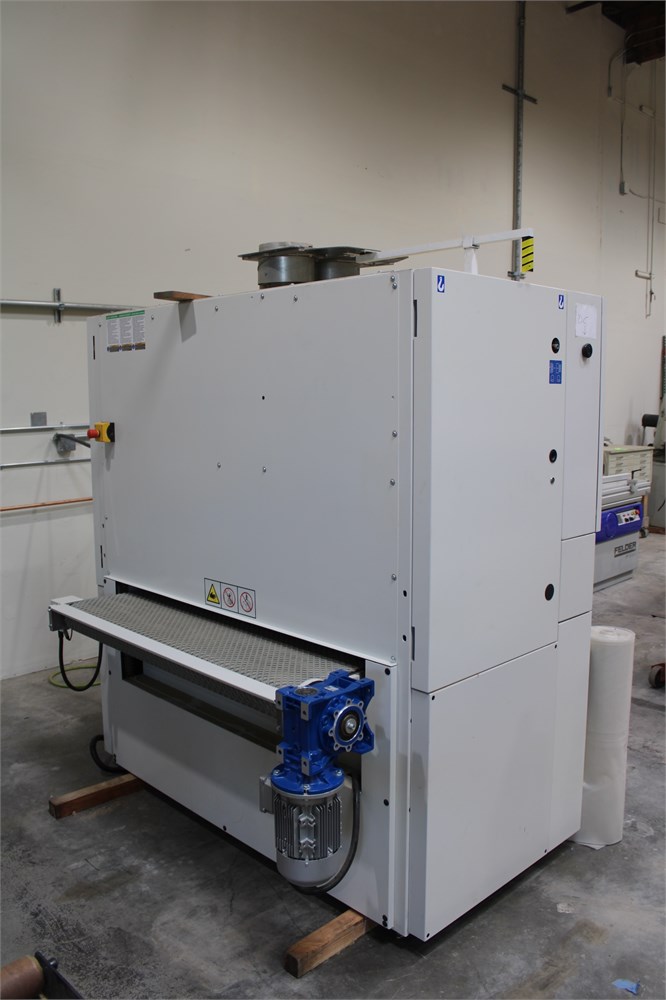

The DMC SD 60 RCS 135 is a new SCM compact wide belt sander that is extremely versatile and allows the calibrating of MDF, chipboard. etc, the calibrating and sanding of solid wood, the pre-sanding and sanding of veneered panels and the finishing of painted surfaces.

Features

• “Mesar” sectional pad: The best finish with any material. Higher quality results due to the special shape of the sectors that allows the operator to intervene “softly” but also in an “aggressive” way, simply by varying the working pressure. The setting of the pad position and the possibility of using foils of different thickness increases its versality.

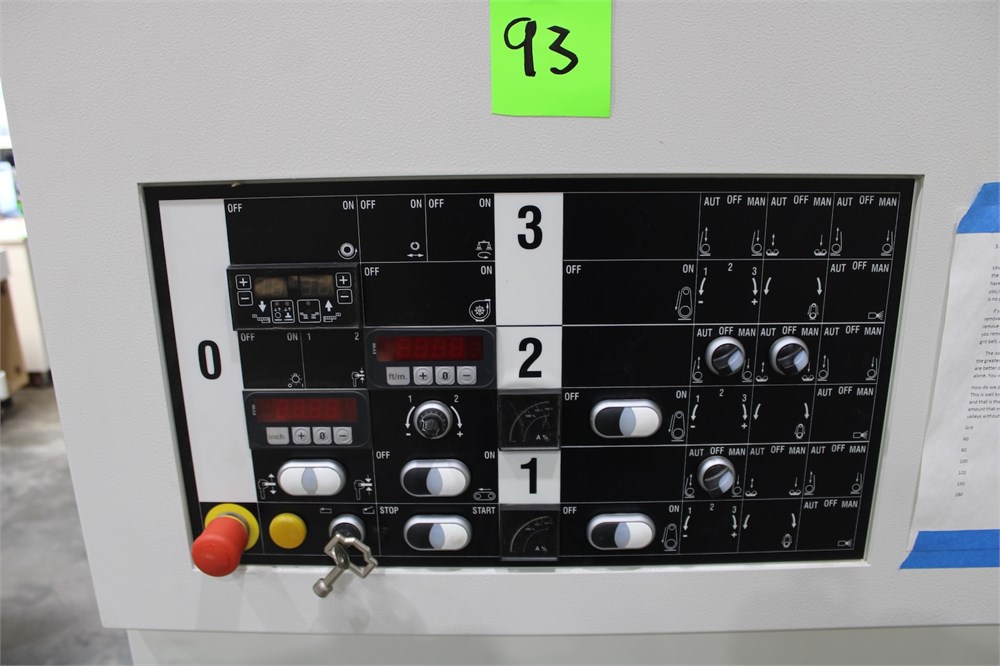

• “Logic SC” electronic programmer: Easily avoid mistakes. Simple and intuitive, allowing the operator to set all processing parameters in sequence and then launch them with the touch of a button. The possibility to store various work programs to retrieve the machine settings most commonly used makes it ideal.
• Diamond-shaped belt: No slipping of the work pieces. The special geometry of the diamond-shaped profile of the transport belt provides the best traction surface for the work piece and with the increased support area also ensures maximum stability.
• Led indicator for panel introduction: Simple and intuitive, communicating to the operator where and when the panel has to be introduced into the machine and optimizing the standard wear of the sanding belt; this ensures a better-quality finish and reduced machine costs.
• RCS Version: Higher flexibility and productivity for a top-quality finishing in a single passage. Ideal for all “typical” requirements of woodworking and veneering companies: solid wood calibrating/sanding and sanding veneered panels (internal doors, windows and customized furniture). The combination of using only the roller groups gives optimum results when sanding against the grain.

Standard Features

• Grooved rubber coated pressing rollers before and after working unit
• 2HP variable speed feed motor 3.5-18 m/min (12-60 FPM)
• Y-Delta two-stage reduced voltage starter on main motor
• Automatic Electronic Table Positioning Device
• In-feed / Out-feed extended tables for easier part feeding
• Pneumatic On/Off selector of both rollers and pad
• Adjustable sanding drum and pad position for micro precision adjustment
• Electronic digital thickness readout of work table position
• Powered table lifting by means of four heavy duty motor and lifting columns double fastened at both top and bottom of the lifting columns to provide exceptional table stability
• Electronic tracking of abrasive belt

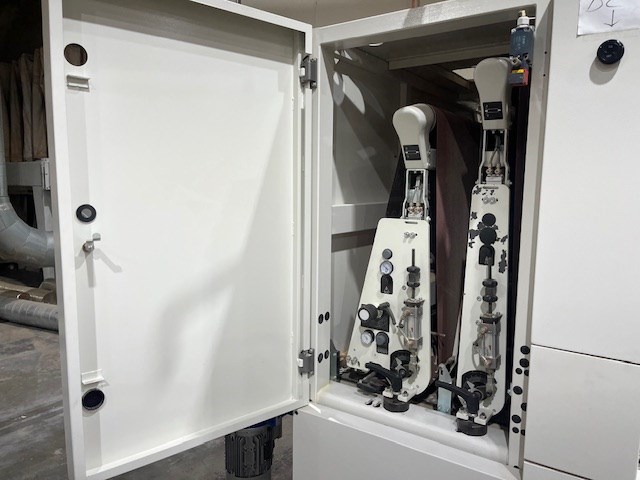

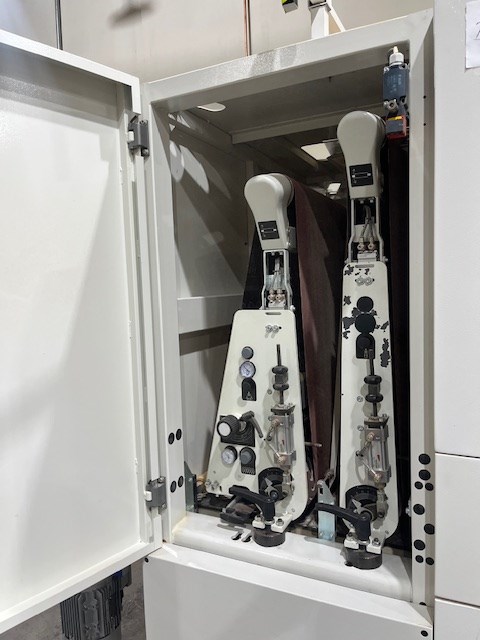

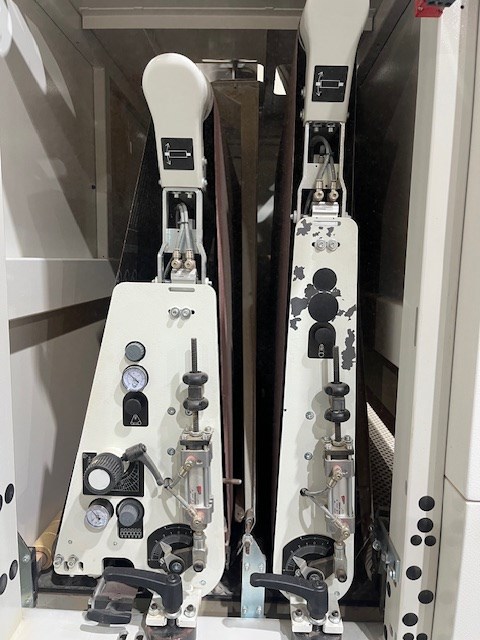

• Pneumatic belt tensioning with center fulcrum to compensate for tapering of abrasive belt
• Front and rear emergency stop button
• Amperage meter for main motors allows maximum utilization of available horsepower
• Main disconnect switch with the ability to be locked out by padlock
• In feed flexible steel hold down, and anti-kickback plate
• 50 shore, negative profile (waffle style) rubber feed mat
• LOGIC 50 K Electronic Programmer for timing/anti-dubbing of the pad

Specifications

• 1st Working Unit
  • Motor Hp: 30 HP
  • Motor Type: Single Speed
  • Abrasive Belt Speed: 18 mps
  • Drum Size: 140 mm (5.5”)
  • Drum Type: Steel
  • Abrasive Belt Length: 85”
• 2nd Working Unit
  • Motor Hp: 18 HP
  • Motor Type: Single Speed
  • Abrasive Belt Speed: 18 mps
  • Drum Size: 160 mm (6.25”)
  • Drum Type: 45 Sh Rubber
  • Platen Size: 60 mm (2.36”)
  • Platens Included: Two
  • Abrasive Belt Length: 85”
• Other Specs
  • Working Width: 1,350 mm (53”)
  • Number of Heads Available: 2
  • Feed Motor: 2 HP with inverter
  • Feed Speed: 12 to 60 fpm
  • Maximum Work piece Thickness: 170 mm (6.69”)
  • Minimum Work piece Length: 12.5 inches
  • Abrasive Belt Size: 53” X 85”
  • Compressed Air Requirements: 6 Bar (88 PSI.)
  • Dust Outlets: 2 outlets @ 195 mm (7.75”)
  • Exhaust Requirements: 3,544 CFM

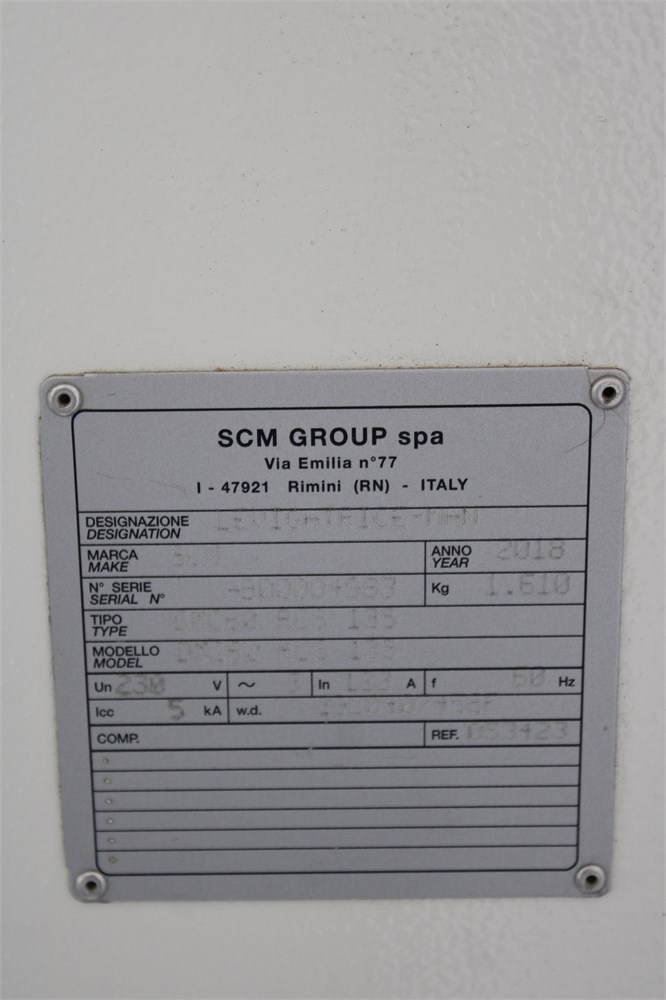

  • Power Requirements: 150 amps @ 230 Volts/3 phase
