Ritter "R150" Line Boring Machine
Preview
Woodworking Machinery Auction - Milwaukie, OR
Milwaukie, OR
Starts In remaining
Woodworking Machinery Auction - Milwaukie, OR ( Preview #72207369 )
Custom woodworking shop in the Portland, OR metro area is auctioning a selection of machinery. Techno CNC Router, Becker vacuum pump, Ritter line boring machine and much more!
-
Pick Up Location
2300 SE Beta St., Suite D Milwaukie, OR 97222
-

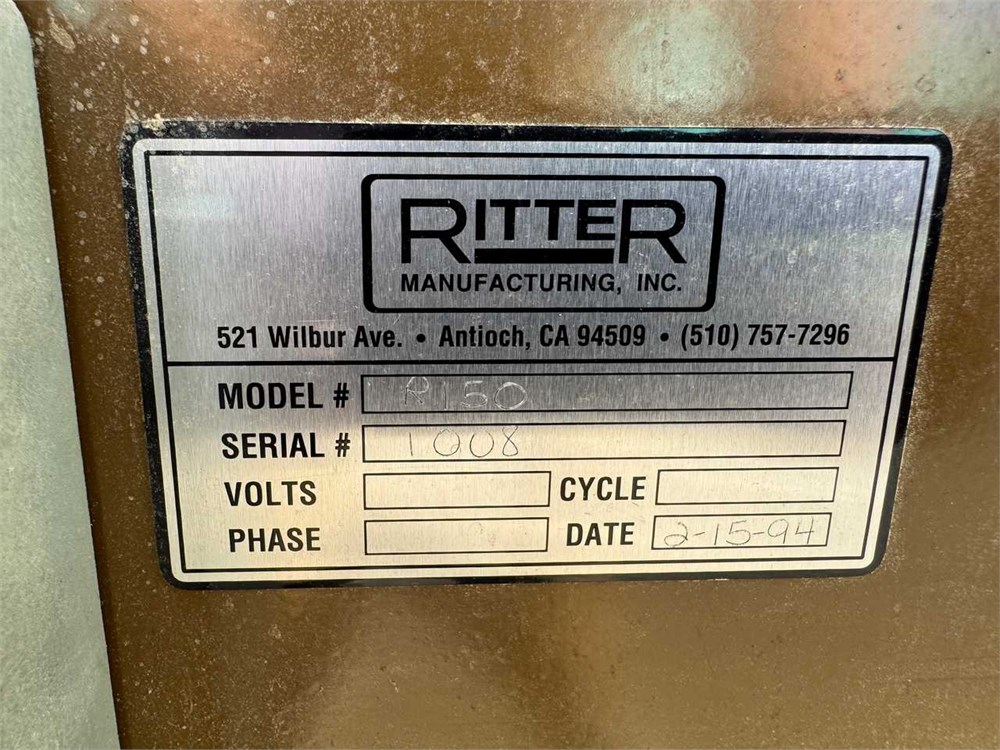

Make
Ritter
-
Model
R150
-
Serial Number
1008
-
Year
1994
-
Phase
3 PHASE
-
Voltage
230/460
-
Buyer Inspection Period
By appointment only, contact Jack Ragan, [email protected], 503-806-4611
-
Load Out Period
May 28 - June 6, 2025 (by appointment)
-
Estimated Dimensions
64"x60"x66"
-
Estimated Weight
-
Seller Comment
Seller will disconnect and load onto buyer's flatbed truck/trailer for non-negotiable loading fee. Palletizing, crating or other services may be available at an additional cost.
-
Load Fee
-
Lot Notes
-
page views
7
See Photos

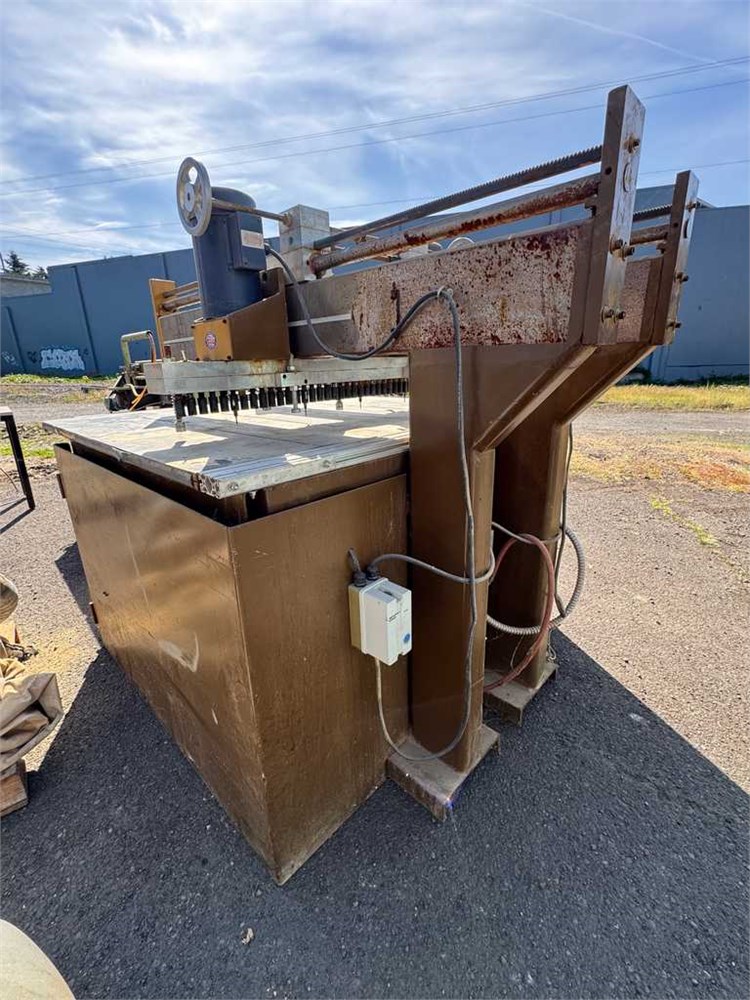

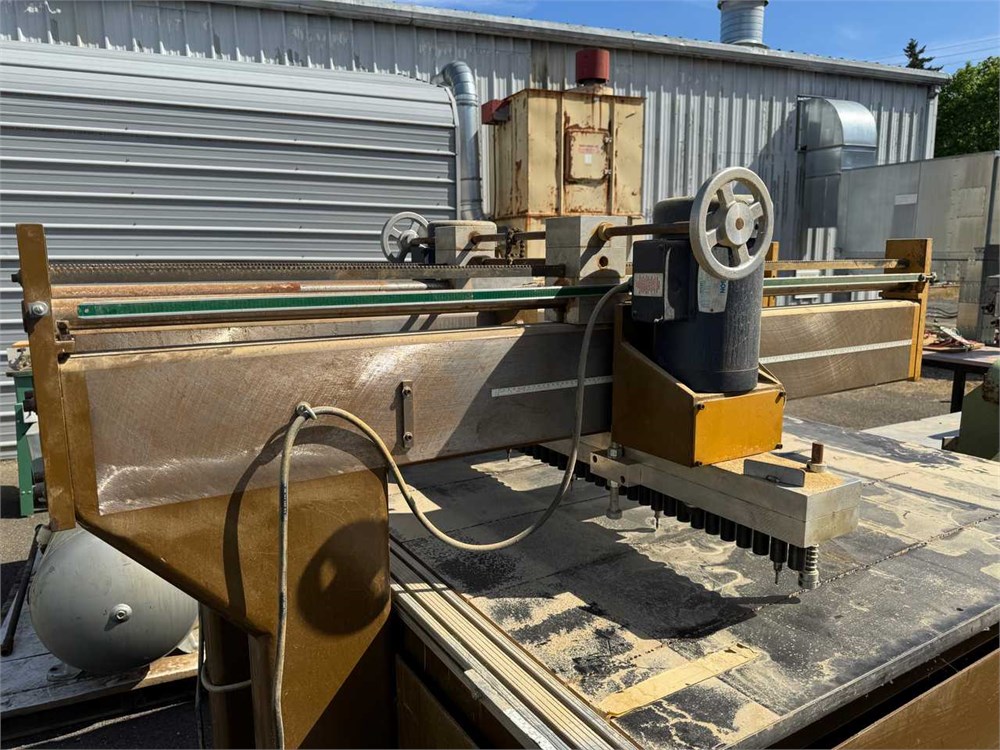

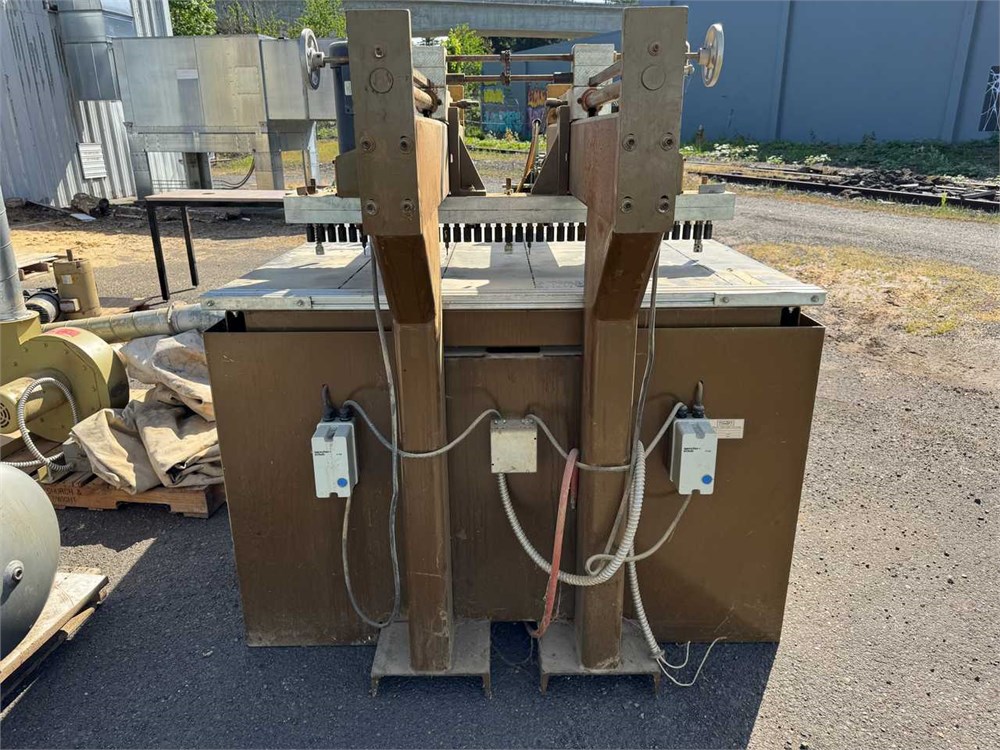

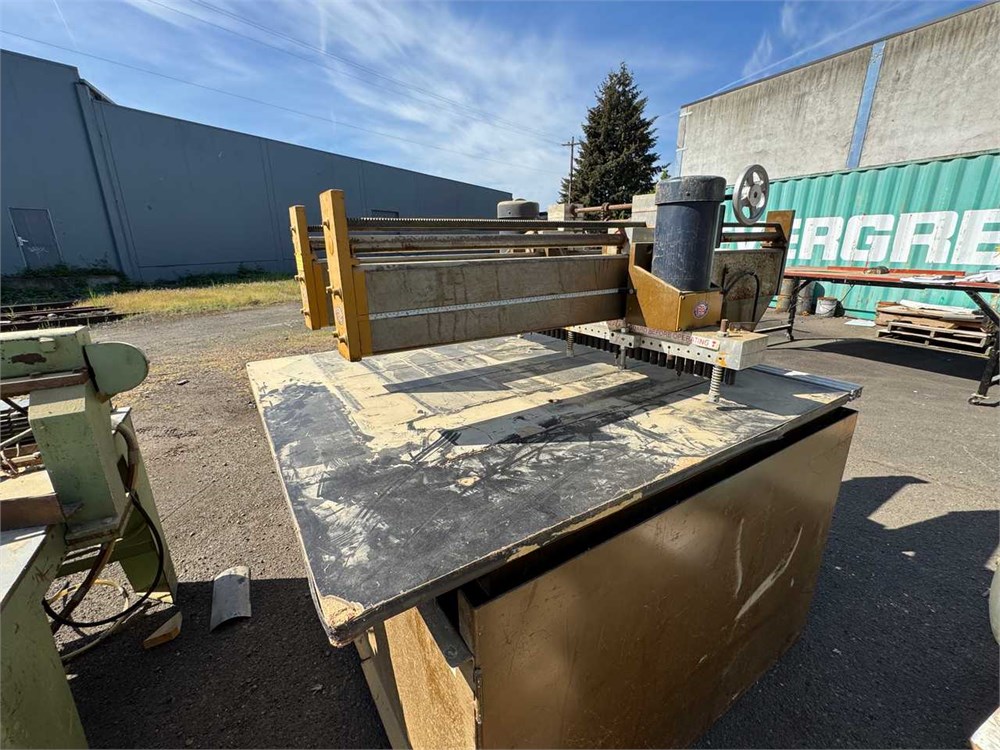

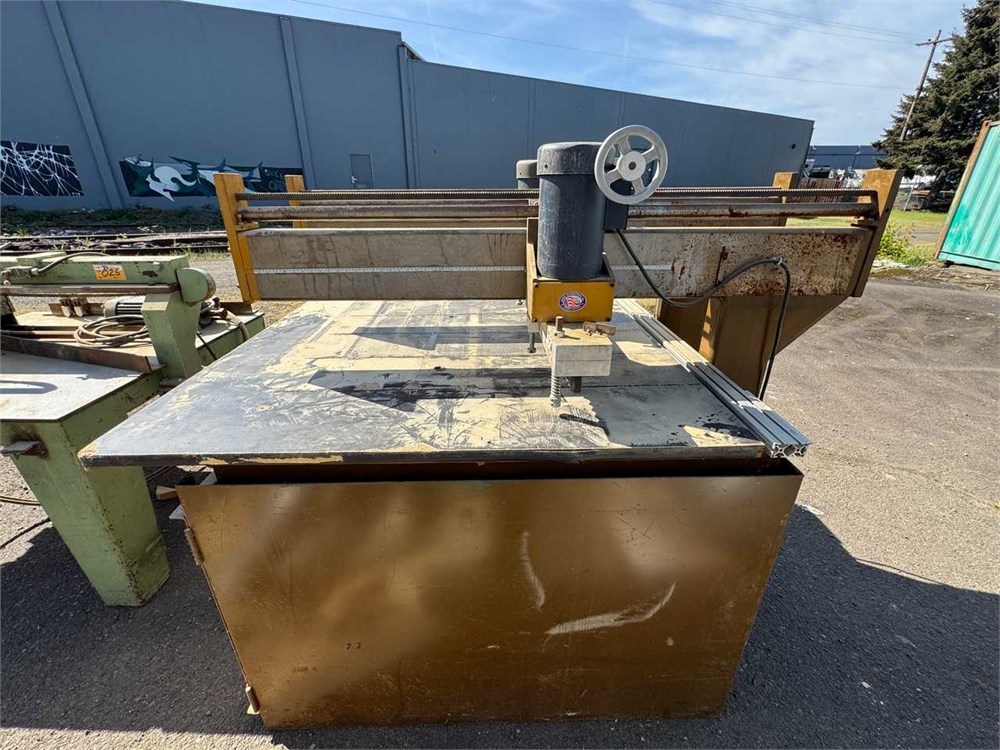

Ritter "R150" Line Boring Machine

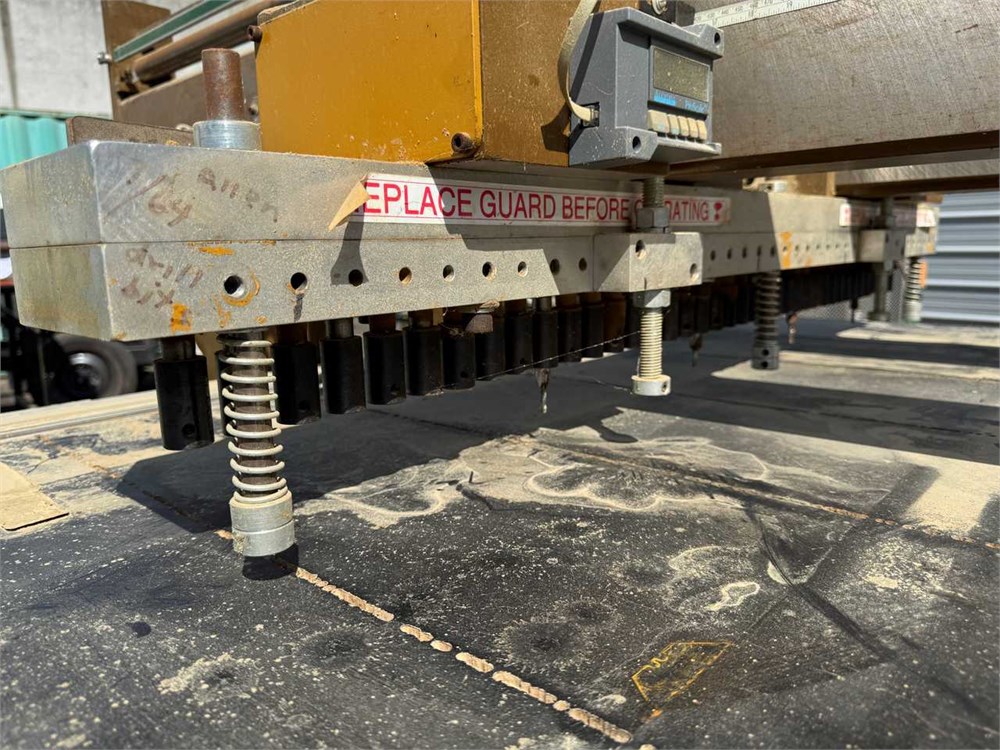

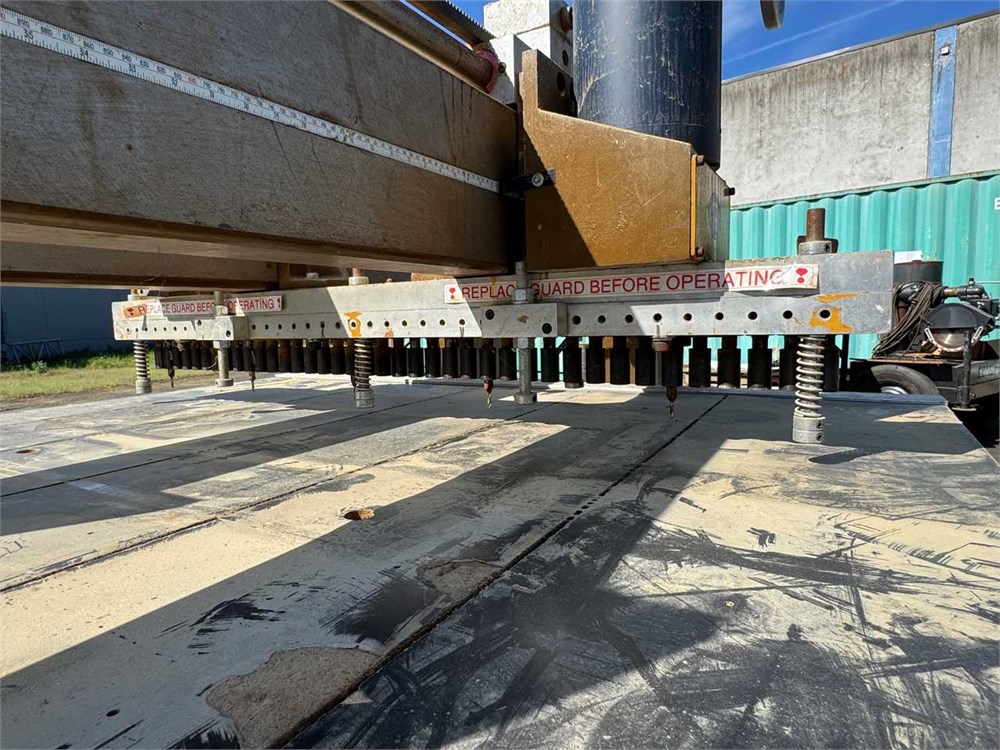

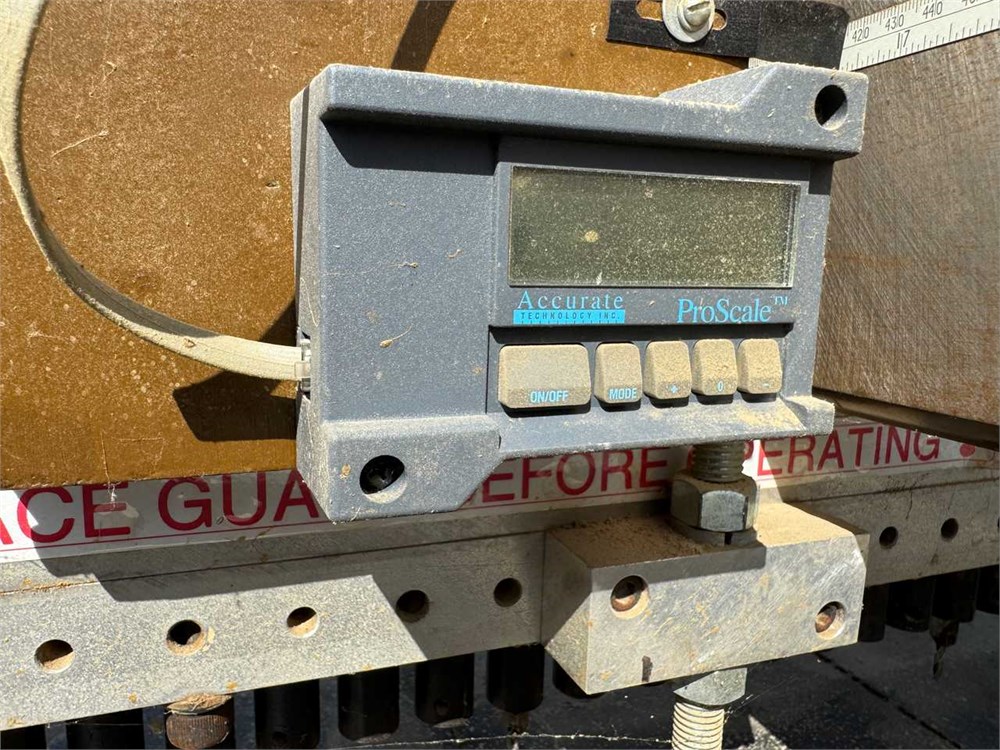

Two (2) Rows of drill heads, each with (75) gear-driven spindles on 32 mm centers, center distance adjustable from 5" - 22" with digital display; designed for single-pass shelf hole boring of wall units

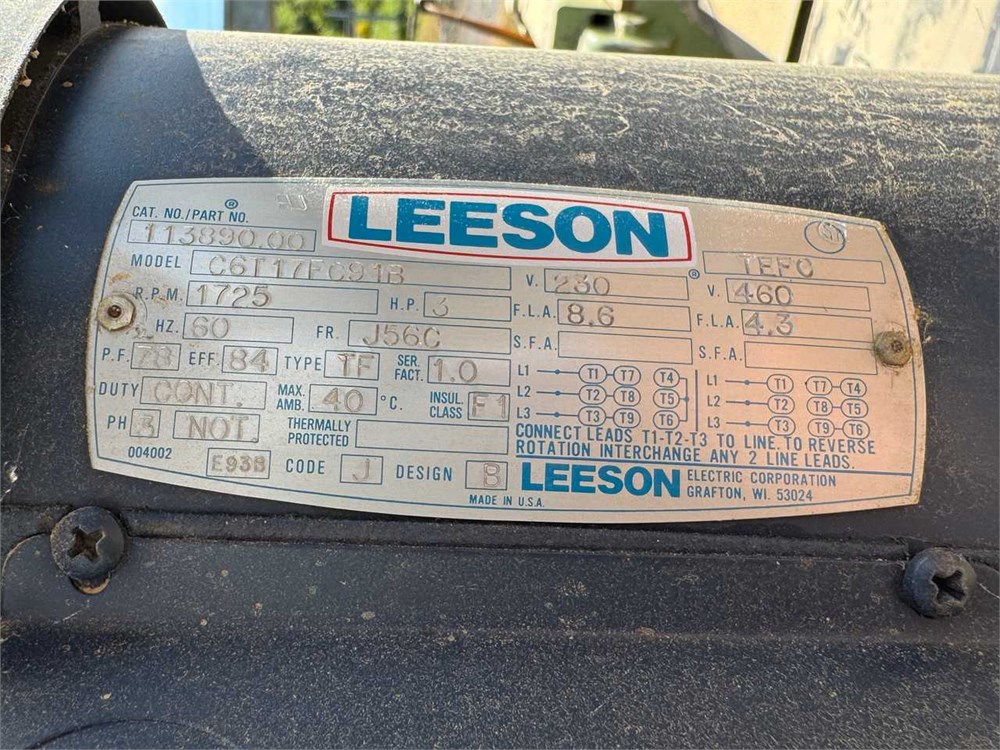

Equipped with: (6) 3 HP Induction motors, each motor drives one of the (6) 25-spindle boring heads (13-RH & 12-LH spindles each head), 1,725 RPM spindle speed
2 HP DC Feed motor raises-and-lowers table via (2) 5,000 Lbs. ball screw jacks, table feed stroke adjustable from 0" - 3"

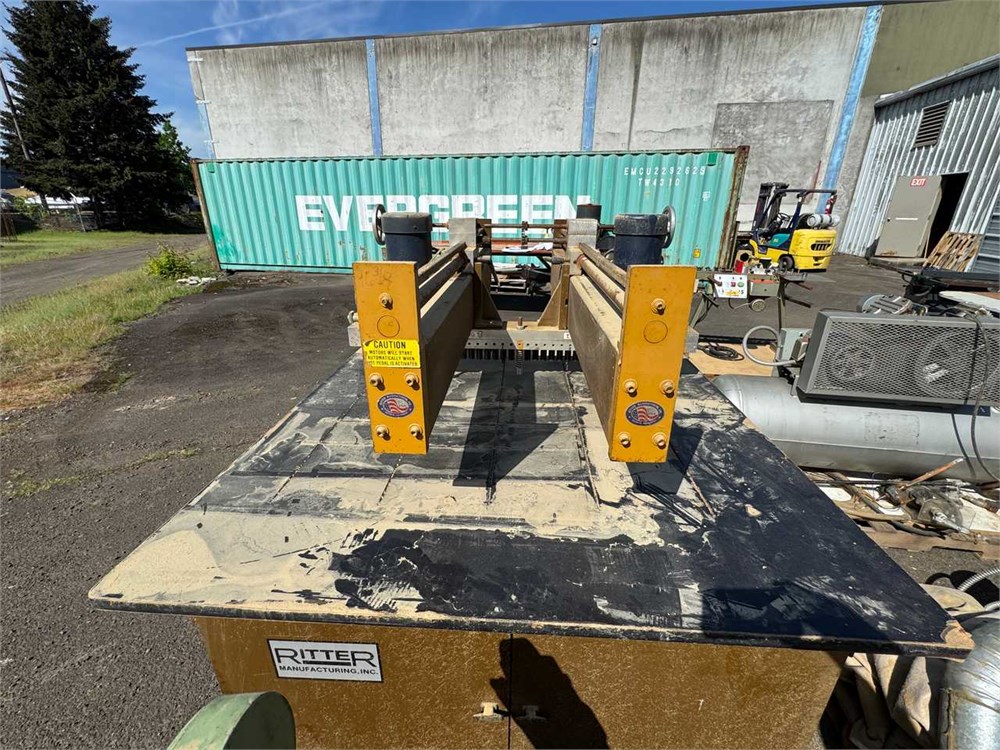

Complete with: (8) Spring hold-downs and 108" long back fence with (4) adjustable stops; 108" long x 30" wide table, proximity switch drill depth adjustment, triple linear bearing head adjustment.
Foot pedal activated 10-sec drill cycle; microprocessor-based electronic control system and magnetic motor starter
Manual
Listed specifications were taken from manufacturer's published information and is assumed to be correct but not guaranteed. Bidder is encouraged to inspect the machine, call with questions or contact the manufacturer for more information.
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
