Ligmatech "MPP-100/10/L1/LA" Case Clamp Preview

Woodworking Machinery Auction - Emmaus, PA

Emmaus, PA

0 Watching
Add to Watchlist

Minimum Bid:

$1,000.00 USD

Number of Bids:

0

Current Bid:

$1,000.00 USD ( ) No Reserve
Your Maximum Bid Is $0.00 USD
$USD
Quick Bid $1,000.00 USD
Or
Or
0 Watching
Add to Watchlist
Current Price : $1,000.00 USD ( ) No Reserve

Starts In remaining

Documents
No documents available
Bidding Info
This auction uses Proxy Bidding.
Bids placed within the final 5 minutes will extend the auction closing time by 5 minutes.
Additional Fees
Additional Fees will be applied to the final price:
15.00% Buyer's Premium
0.00% Sales Tax

Woodworking Machinery Auction - Emmaus, PA ( Preview #71652394 )

Commercial cabinet manufacturer in Pennsylvania is auctioning machinery no longer required for continuing operations. Homag CNC bore/dowel machine, Ligmatech feedthrough case clamp, Accu-Systems, Powermatic and Delta machines.

VIEW EVENT
Image 1

Description & Information
Image 2

Bid History
Image 3

Value Added Services
Image 4

Terms & Conditions

  • Pick Up Location

    840 Broad St. Emmaus, PA 18049

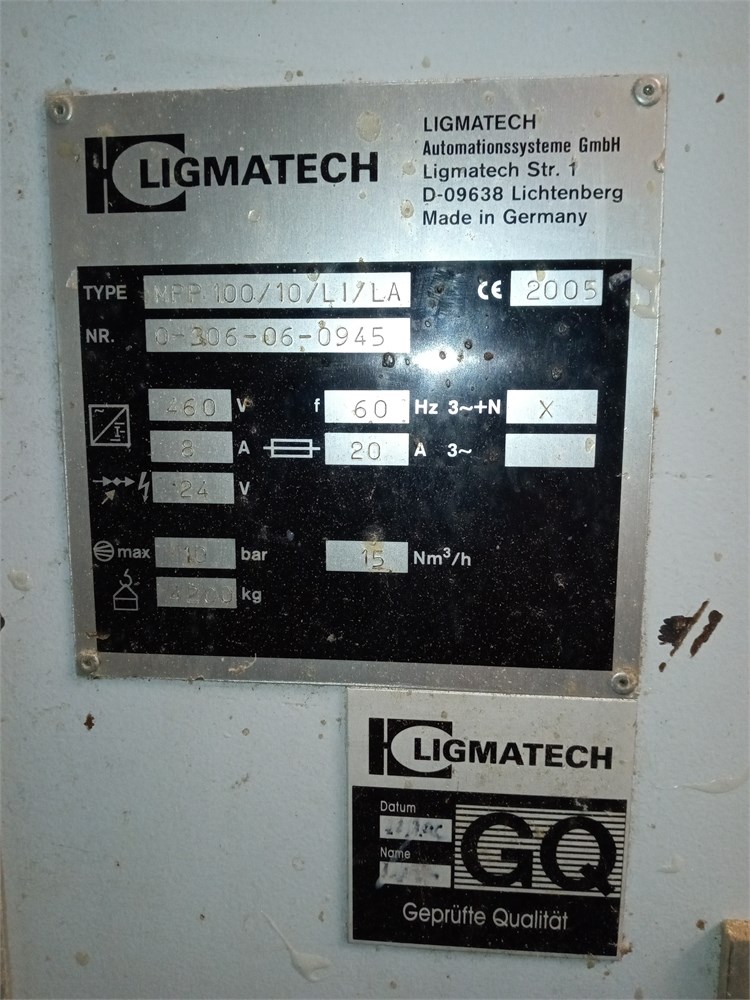

  • Make

    Ligmatech

  • Model

    MPP-100/10/L1/LA

  • Serial Number

    0-306-06-0945

  • Year

    2005

  • Phase

    3 PHASE

  • Voltage

    460 VOLT

  • Buyer Inspection Period

    By appointment only, contact Jack Ragan, [email protected], 503-806-4611

  • Load Out Period

    May 15 - May 23, 2025 (by appointment)

  • Estimated Dimensions

    See photos and description

  • Estimated Weight

    See photos and description

  • Seller Comment

    Seller will disconnect and load onto buyer's flatbed truck/trailer for non-negotiable loading fee. Palletizing, crating or other services may be available at an additional cost.

  • Load Fee

    1000.00

  • Lot Notes

  • page views

    16

Ligmatech "MPP-100/10/L1/LA" Case Clamp

Operates with pneumatic clamping pressure & electronic self-setting of clamping units according to cabinet size; cabinets can be processed lying horizontally or standing vertically. The clamping cycle can be timed to interlink with a production line. Working direction is left-to-right; approx. (2) cycles/Min.

Working Capacity:

  • Case Dimensions: Length min. 300 mm (11.8"), max. 2,500 mm (98.4"); case height min. 300 mm (11.8"), max. 1,220 mm (48"); case depth min. 300 mm (11.8"), max. 1,000 mm (39.3')

Clamp & through feed conveyor belt dimensions:

  • Assembly/infeed belt length 2,700 mm (106.3"), clamp length 4,300 mm (169.3", clamp height 4,100 mm (161.4"); working height off the floor is 500 mm (19.7"); feed speed from 8 -40 MPM (26 - 130 FPM).

Clamping System:

  • Horizontal clamping with (3) units; vertical clamping has (1) solid plate operated by (3) pneumatic (double-acting) cylinders from the top.
  • Vertical clamping pressure 17 kN (3,820 lbs.), horizontal clamping pressure 16 kN (3,597 lbs.)force.

 Control System:

  • Built-in operating control console with LCD display. PLC system for programming of cycle time and pressure control.

The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.

The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
