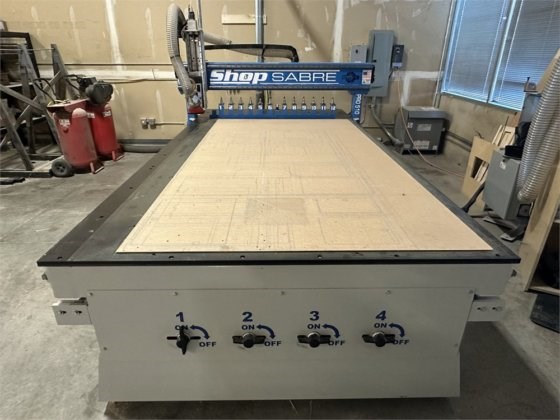

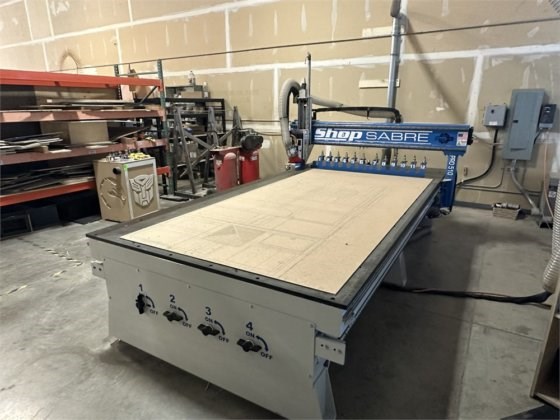

ShopSabre PRO-510 Production Router System 5 x10 Working Area 1 • Fully Assembled Precision Milled Large Steel Tube Frame, Large Tube Steel Gantry,
Tube Steel Gantry Uprights, Industrial Designed.
• Limit Switches on X,Y,Z Axis with Auto Squaring and Boundary Alarms.

• Emergency Stop Switch.
• X, Dual Drive Y, and Z Axis Driven with Industrial Precision Anti-Backlash Ball Screw Drives.
• Digital Brushless A/C Digital Servo Motors with Amplifiers ( X, Y1,Y2, and Z Axis).
• Industrial 25MM Precision Linear Guide Rails & Bearings on All Axis - Y Axis Hidden Design - All Mating Surfaces Machined for Precision.
• ShopSabre WINCNC Industrial Controller Hardware & Software.

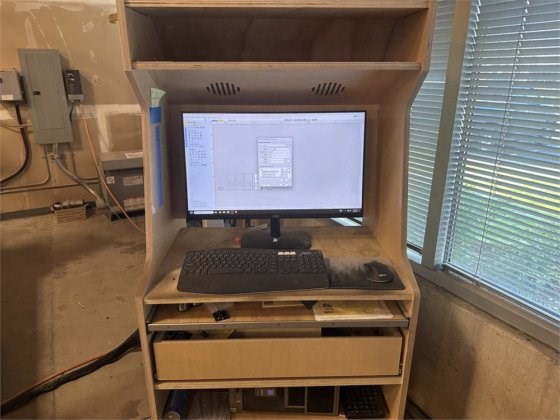

• ShopSabre Computer System - Full Size Desktop System with Solid State Hard Drive , 8GB Memory, 19" Flat Screen Monitor, Keyboard, Mouse.
• Vectric Vcarve Pro CAD/CAM Software.
• ShopSabre Auto Stabilization Steel Machine Operator Control Stand.
• Tool Measure Switch - Measures Tooling Height without Changing Z Height for Fast Tool Change.
• Quick Release Dust Skirt - 4" Outlet for Connecting to Dust Collector.

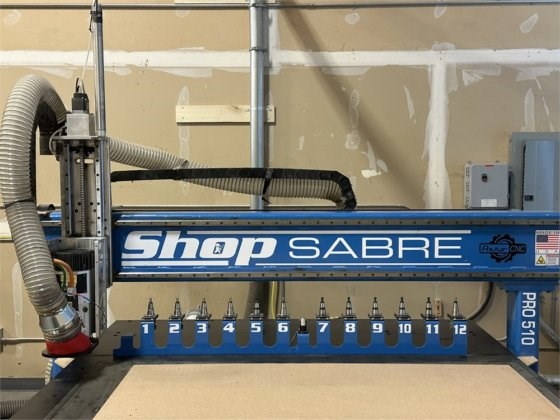

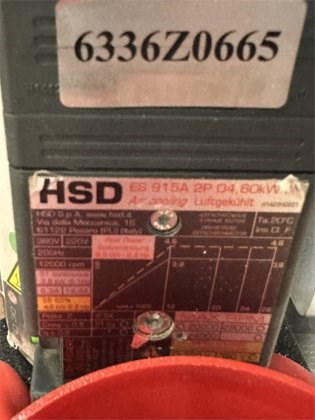

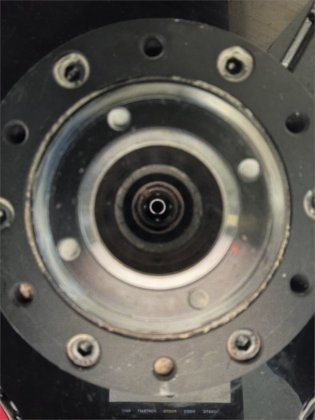

3.8KW 5HP HSD Auto Tool Changer Package - 12 Position (24,000RPM) 1 Italian Built Industrial Electric Fan Cooled Auto Tool Changer Spindle Package - 3.8KW
5HP HSD ISO30 Package Includes 12 Position with Max Spindle RPM of 24,000RPM

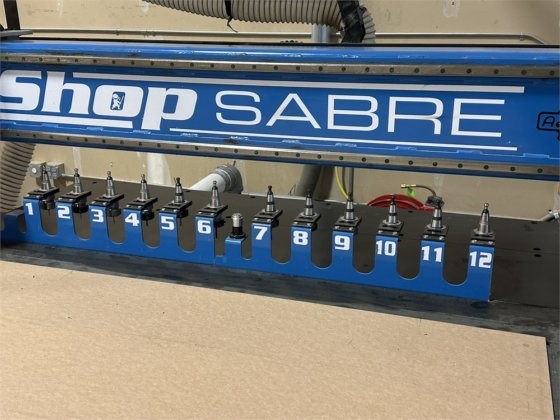

Linear Rack Style Tool Changer Package Includes: 12Qty - ER32 Collets, ISO30 Tool

Holders (Cones), Compatible Tool Forks, Precision Mounted Fixed Linear Style Steel Tool Rack on rear of machine frame, Set of collet wrenches, Tool holder vice, Auto Spindle On/Off & Auto Spindle RPM control via G-Code or Manual over-ride, ShopSabre exclusive Super Z Technology with Air Balancer for Z Axis

Industrial Pop-Up Table Reference Pins 1 ShopSabre Industrial Pop-Up Table Reference Pins (3 on Left Side 2 along Front) allow
for quick and effortless sheet alignment or jig /fixture alignment.

Phenolic Table Top for 408 & 510 Size 1 Phenolic Table Top for 408 & 510 - These table tops are specifically engineered by ShopSabre using a high quality resin based material to be moisture resistant, humdity/temperature resistant, all while increasing machine performance, appearance,and functionality. Every ShopSabre Phenolic table is machines to the frame of the machine for added machine top accuracy.

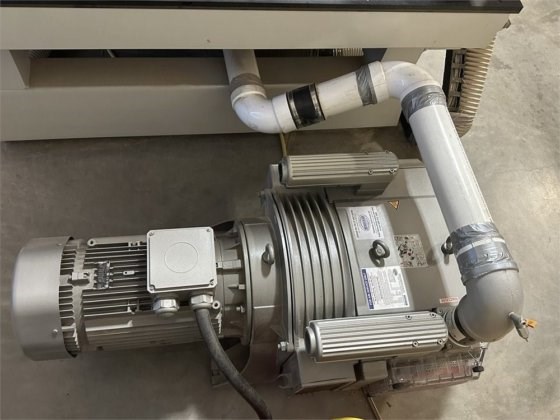

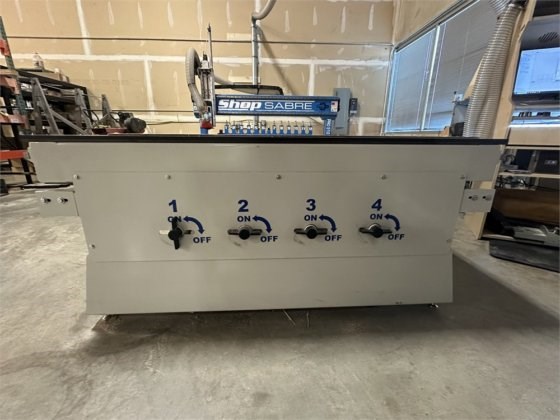

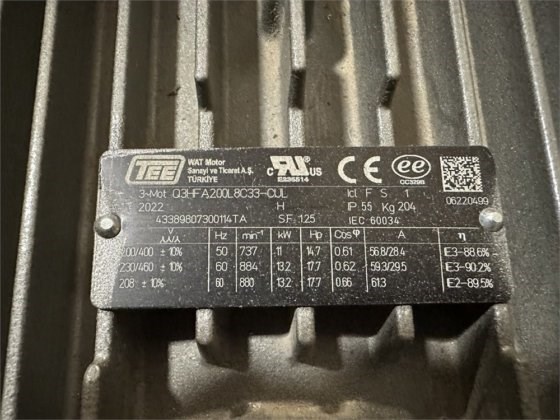

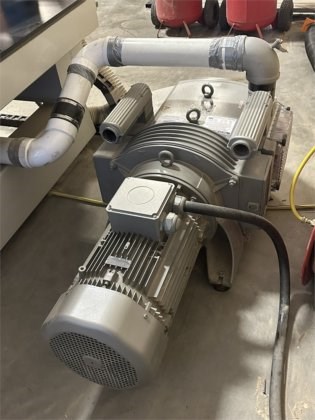

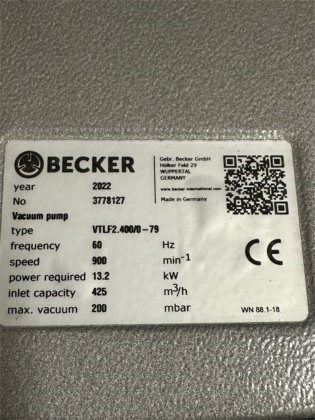

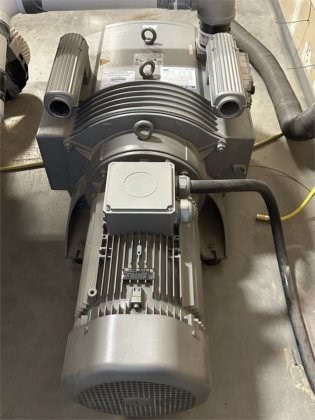

17.7HP Becker Model VTLF 2.400 Rotary Vane Vacuum Pump with 4 Zone Vacuum Manifold
German engineered 17.7HP Becker VTLF 2.400 Rotary Vane Vacuum System with 4 Zone ShopSabre Vacuum Manifold - Requires 3 Phase 208/230/460 Volt

Material Height Touch Pad - Electronic Z Setter

Material Height Touch Pad allows independent Z Axis Zero by using a integrated double touch for a calculated Z Zero independent from your tool length calibration. This device makes setting Z Zero easy, quick, and reliable.

Upgrade to Dust Dock Dust Skirt with Containment Design

This system lowers the surface area you need to cover with dust collection focusing the air flow to the cutter directly to remove nearly 100% of the airborne dust and significantly increase dust control in your shop. Available in many configurations to fit both Tool Changers and Non-Tool Changers.

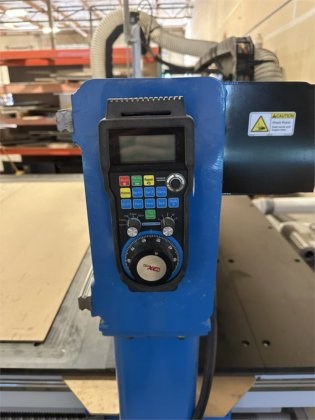

ShopSabre Wireless Hand-Held Controller Pendant with Jog Wheel

ShopSabre Wireless Hand-Held Controller Pendant with Jog Wheel gives you the freedom of a remote with the professionalism of your CNC control. These Controller pendants have built in magnets so you can stick them to your machine or control stand without losing them. These controllers communicate directly to the provided dongle so you don't have to worry about interference with other controllers in your shop and they come with custom programmable buttons to give you all the function you need for your machine!
