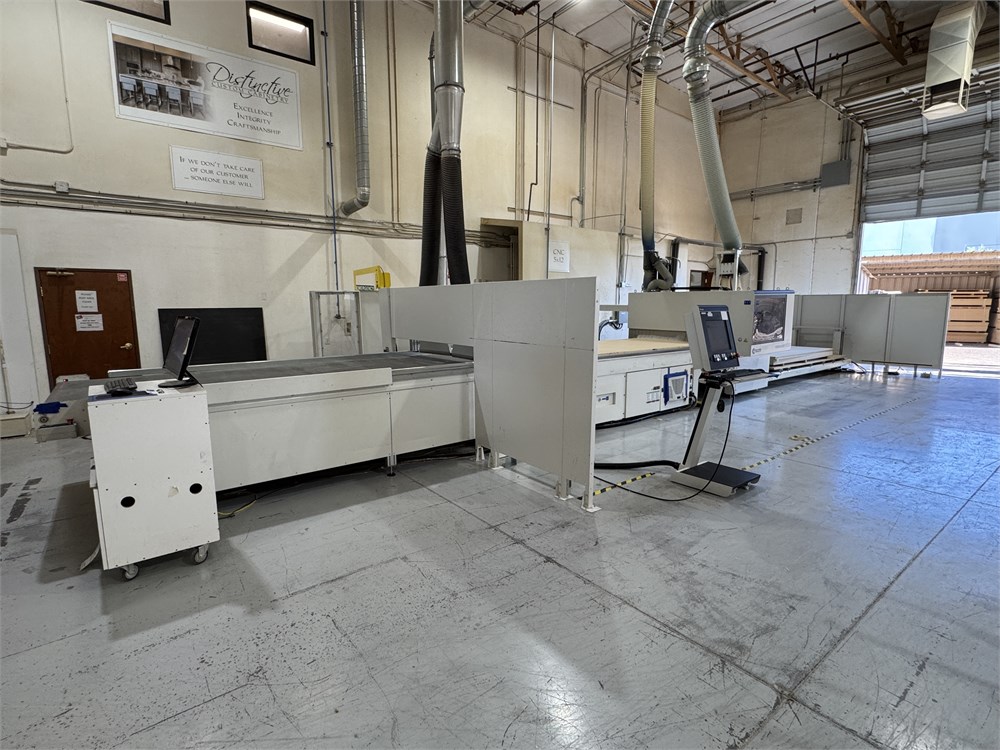

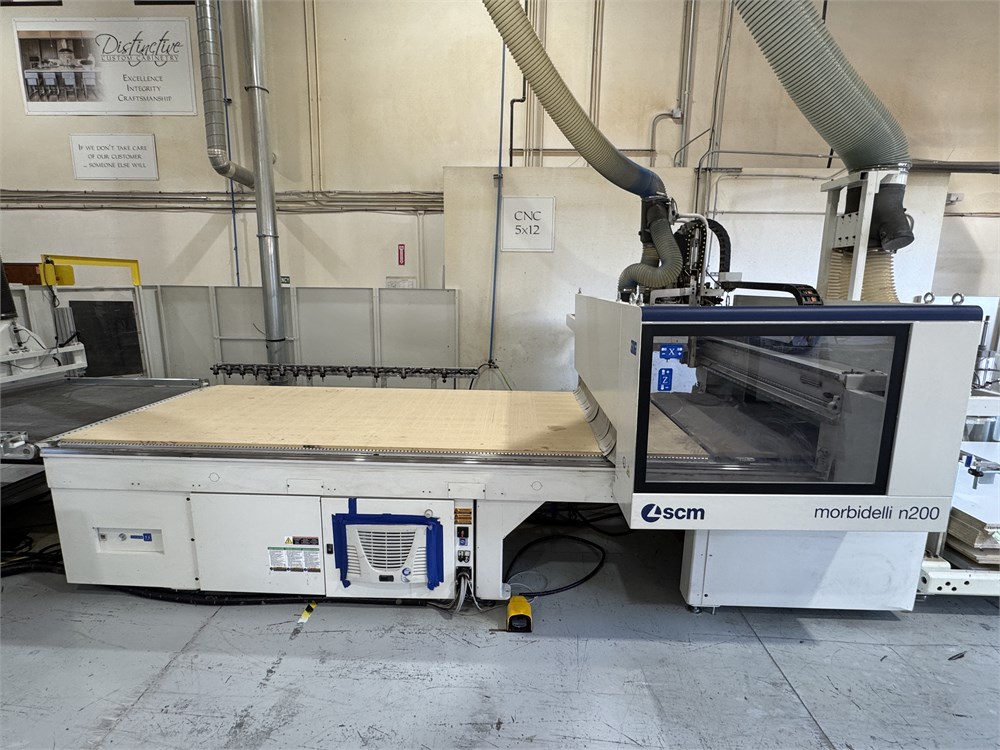

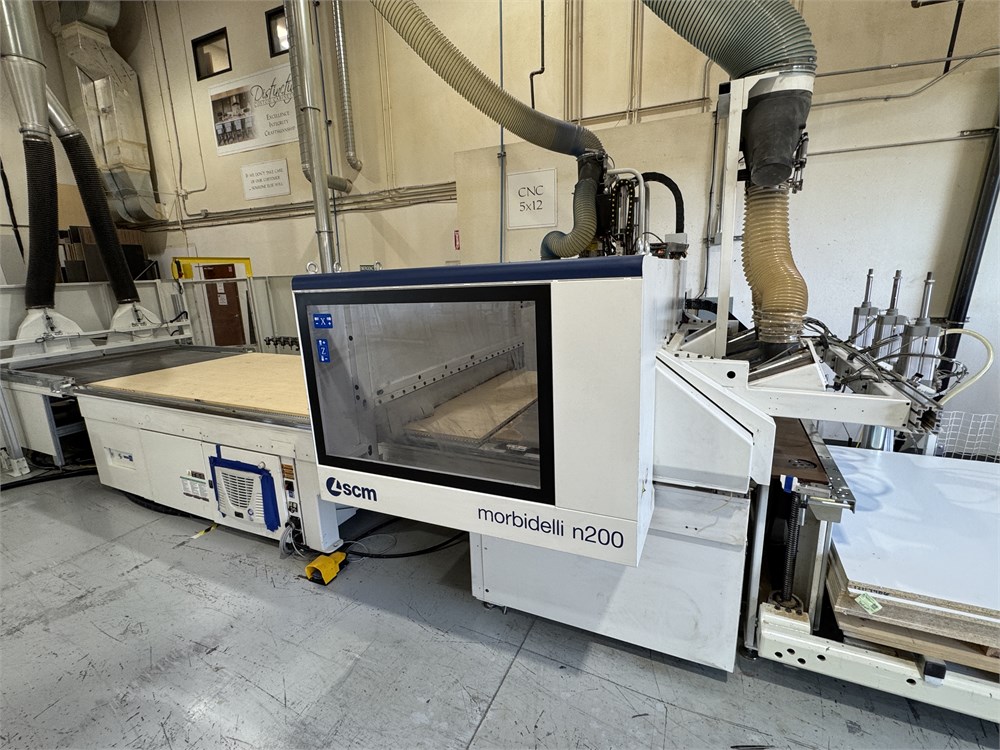

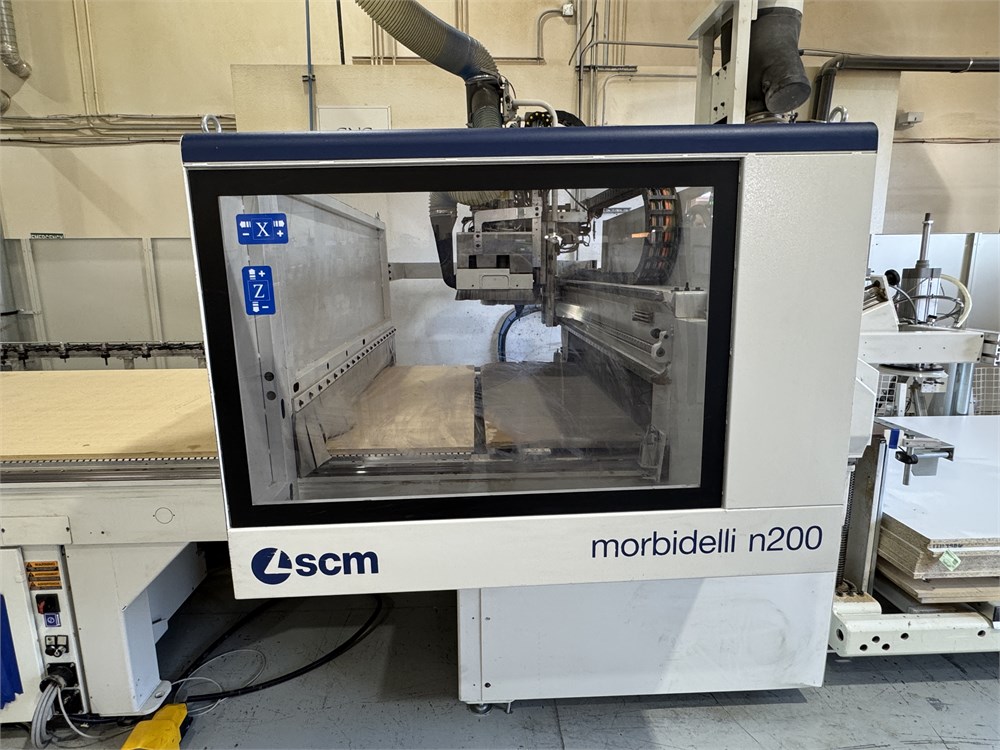

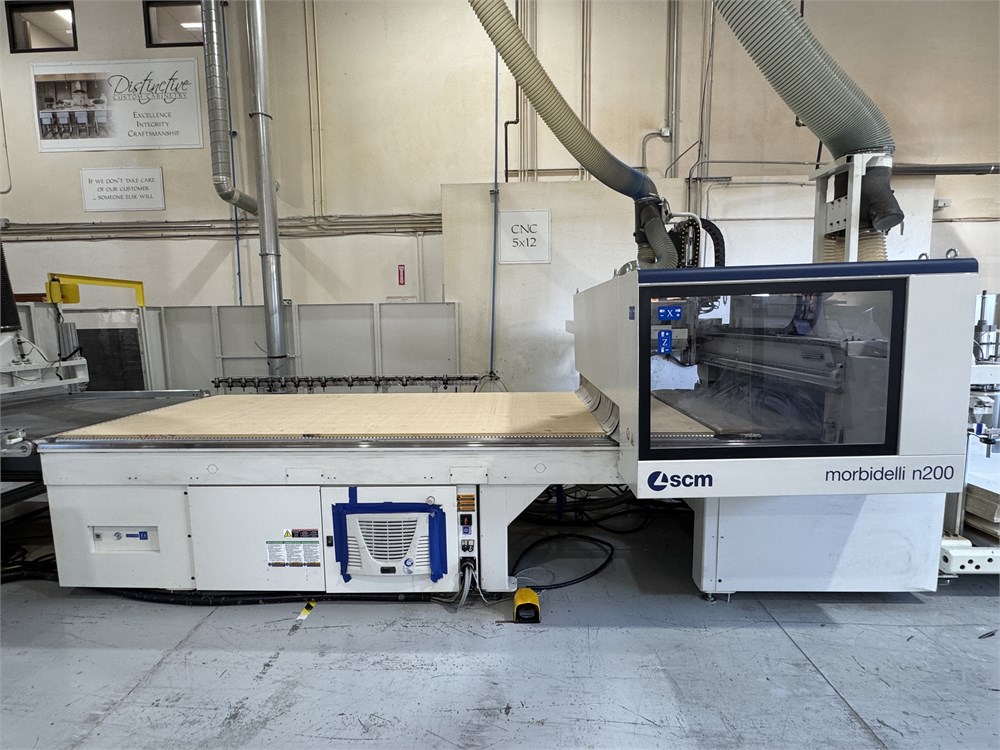

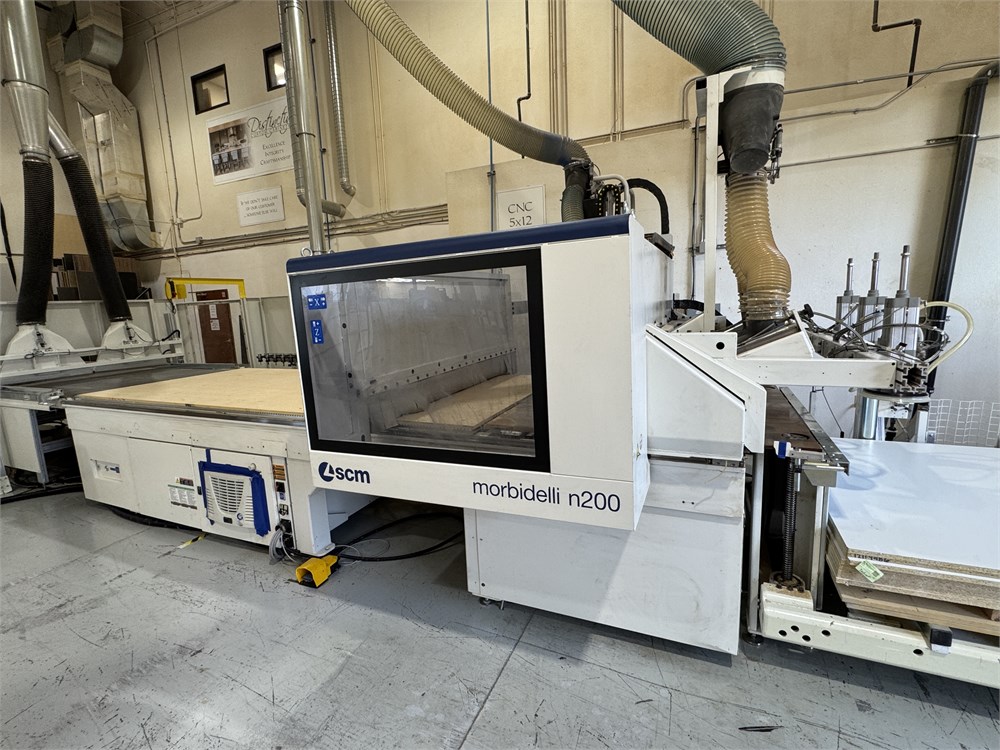

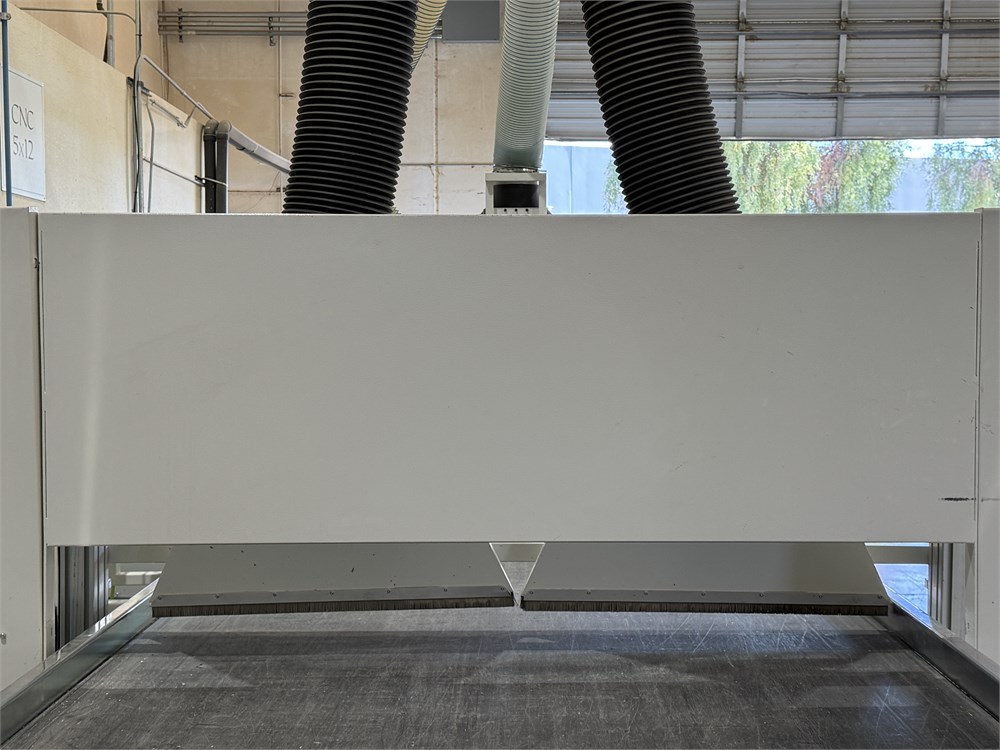

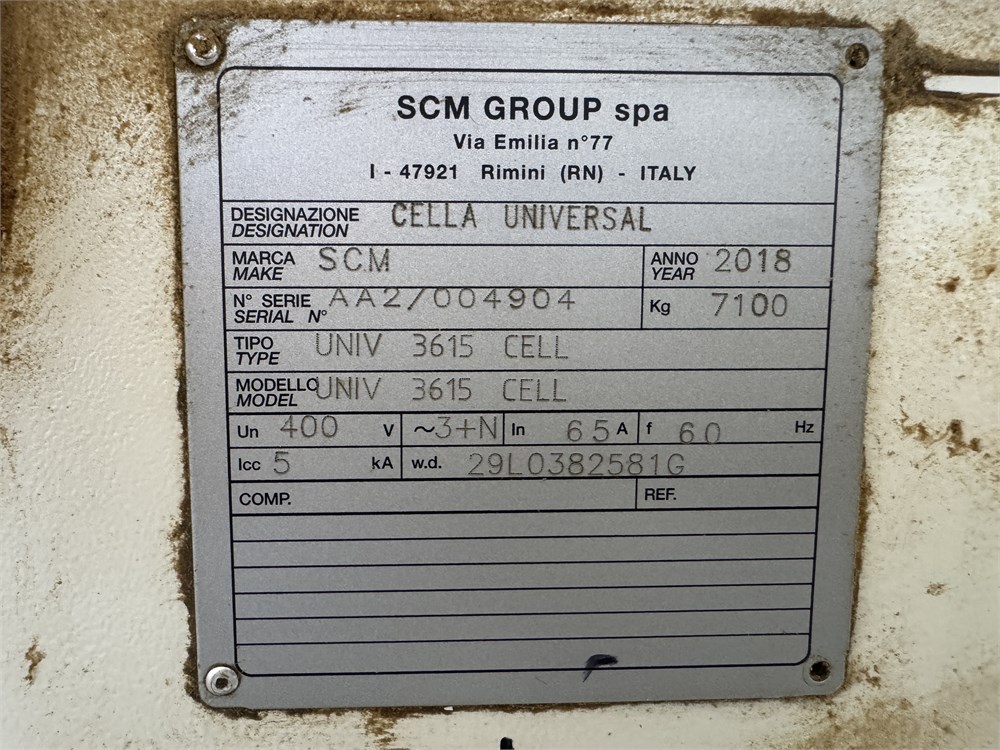

Morbidelli "N200-3615 Cell" CNC Machining Center with Auto Load/Unload

See video of machine in operation

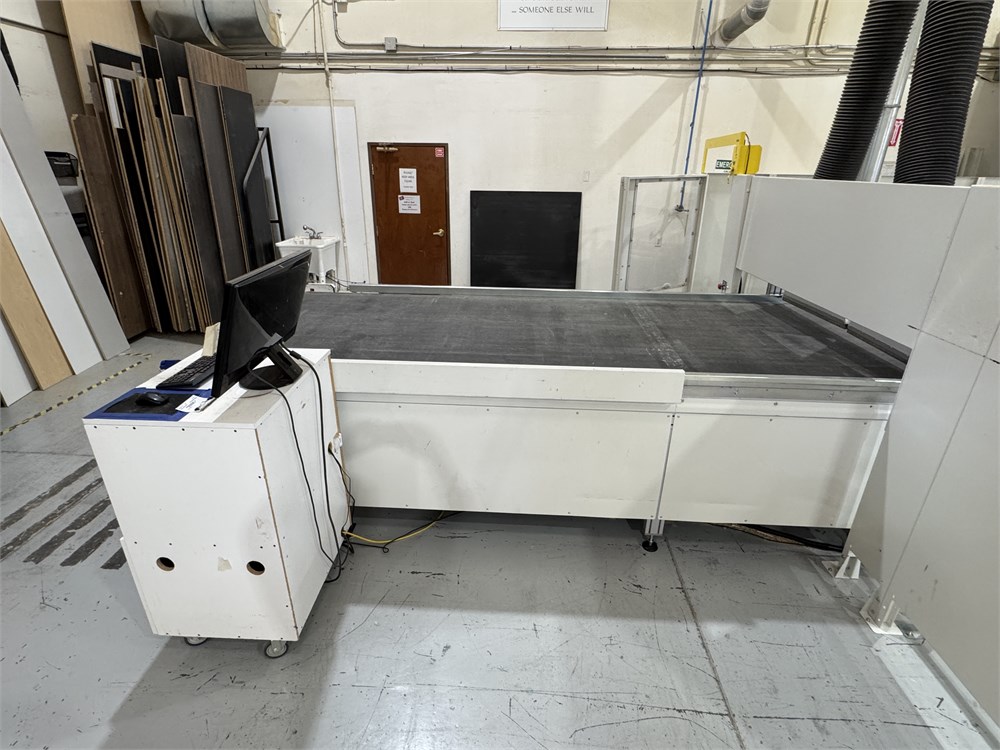

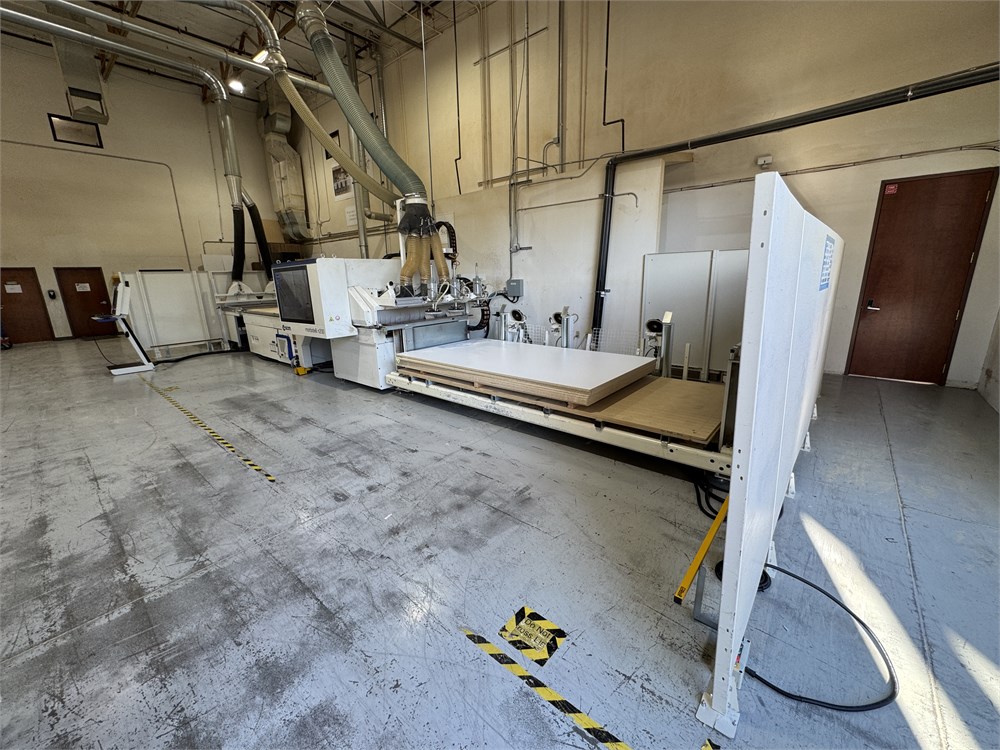

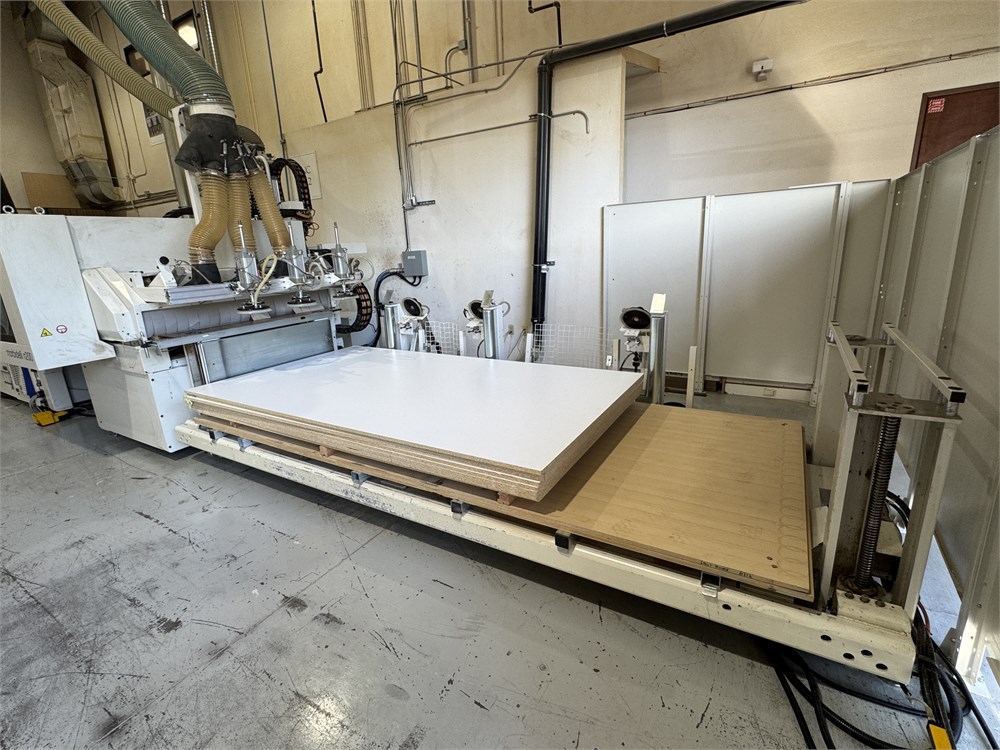

5' x 12' Traveling "Bridge Gantry", stationary aluminum grid "MATRIX" table with square grid pattern for fixturing parts; (8) vacuum zones controlled by electronic switches.  216" L x 96" W x 106" H overall dimensions.

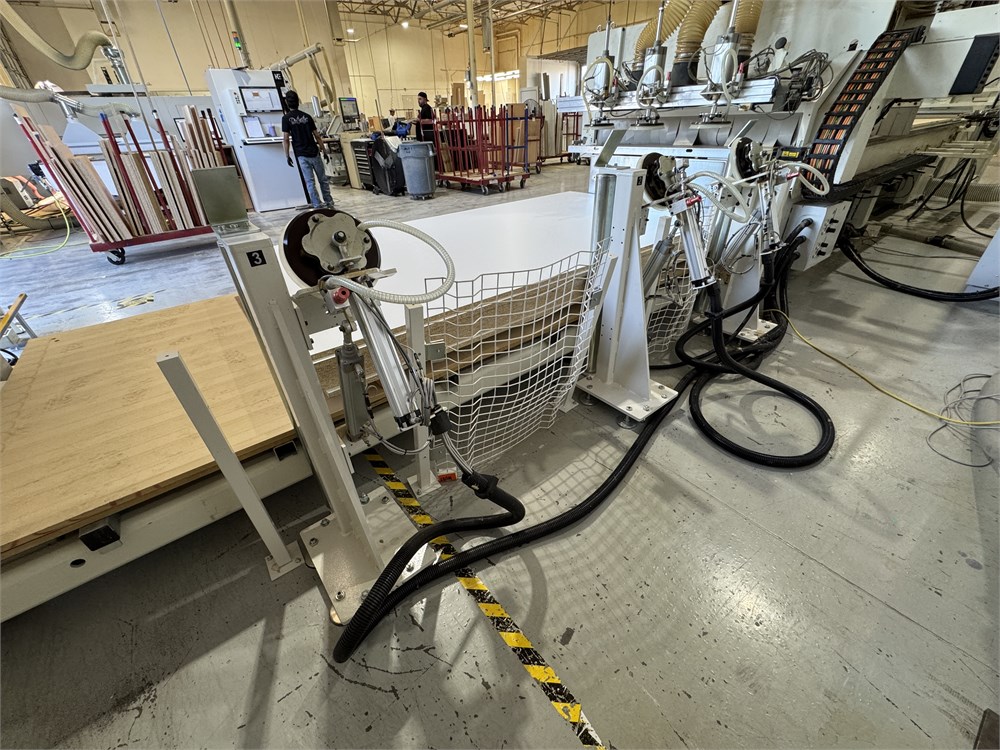

Grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoilboards for "nested base machining", part location pop-up pins mounted on the table perimeter.

"X" axis is 143.7" (3,686 mm); "Y" axis is 61.2" (1,555 mm); "Z" axis stroke is 9.4" (240 mm); max. material thickness 5.9" (150 mm) (5.1" / 130 mm when using off-loading system).

"X" axis 229 FPM (70 MPM), "Y" axis 197 FPM (60 MPM) ,"Z" axis at 49 FPM (15 MPM); closed loop AC servo drive system.

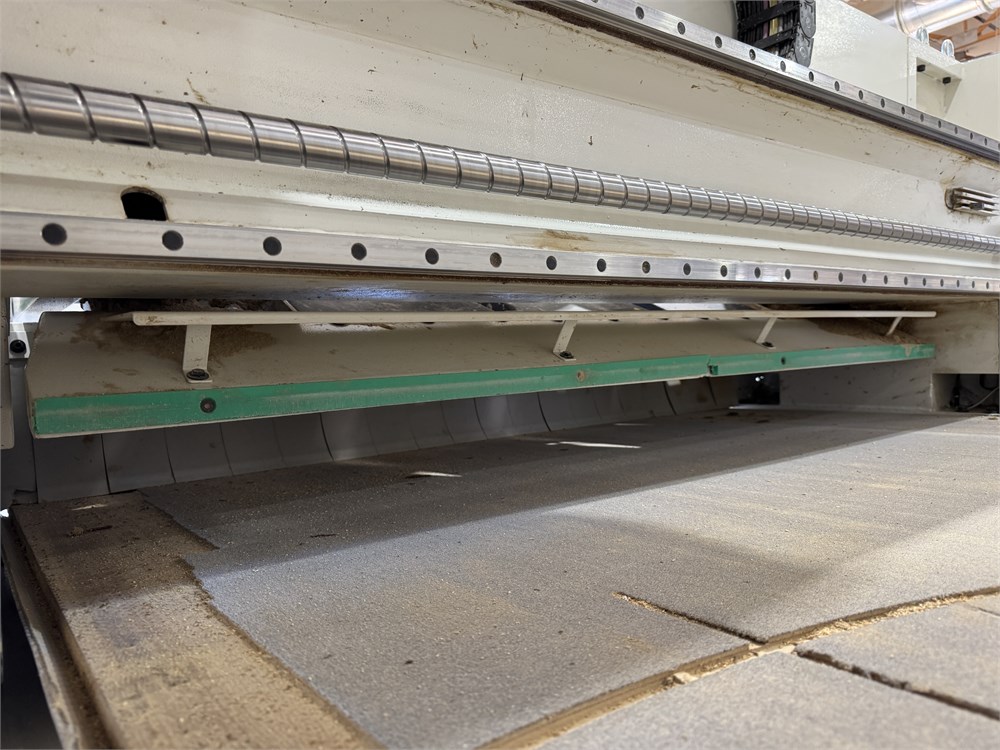

High precision "Rack & Pinion" system in "X" axis & ground ball screws in "Y" and "Z" axes; all axes ride on extra large precision profile linear guide-ways.

Foot pedal operation

Drill unit

     3 HP motor, variable speed from 1,000 - 6,000 RPM; (18) independent vertical spindles on 32 mm centers

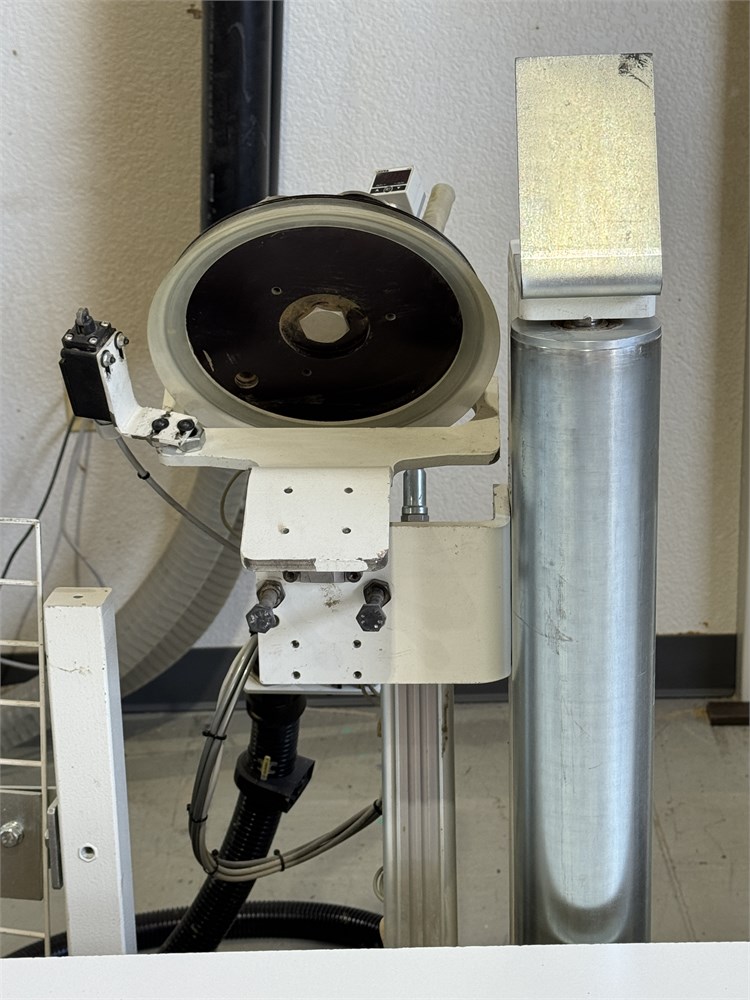

     (4) Horizontal spindles with (2+2) in "X" axis; (4) Horizontal spindles with (2+2) in "Y" axis; "X" axis grooving saw for max 120 mm dia blade.

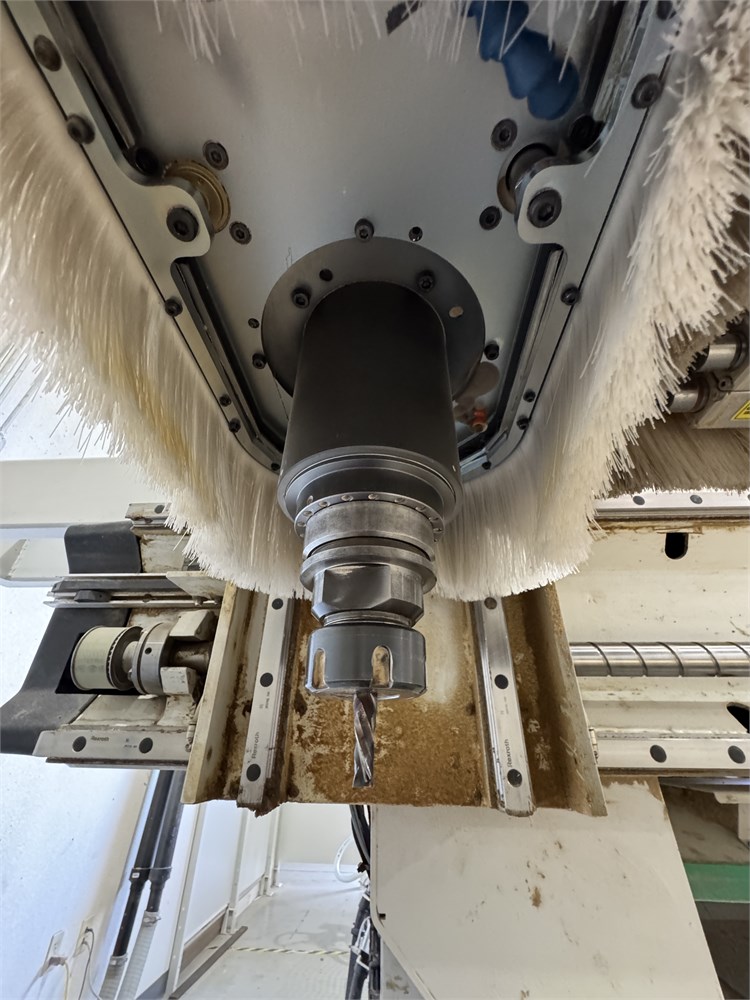

One (1) 15 HP air-cooled electro spindle with HSK F63 adaptor; variable spindle speeds from 1,500 - 24,000 RPM;

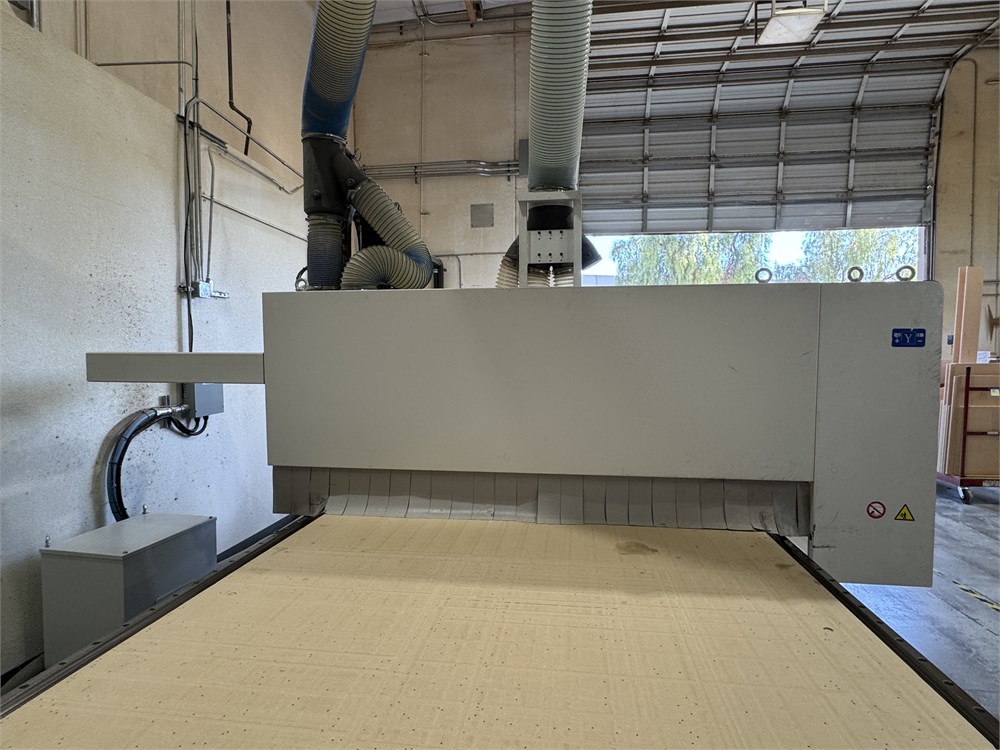

Sound enclosure

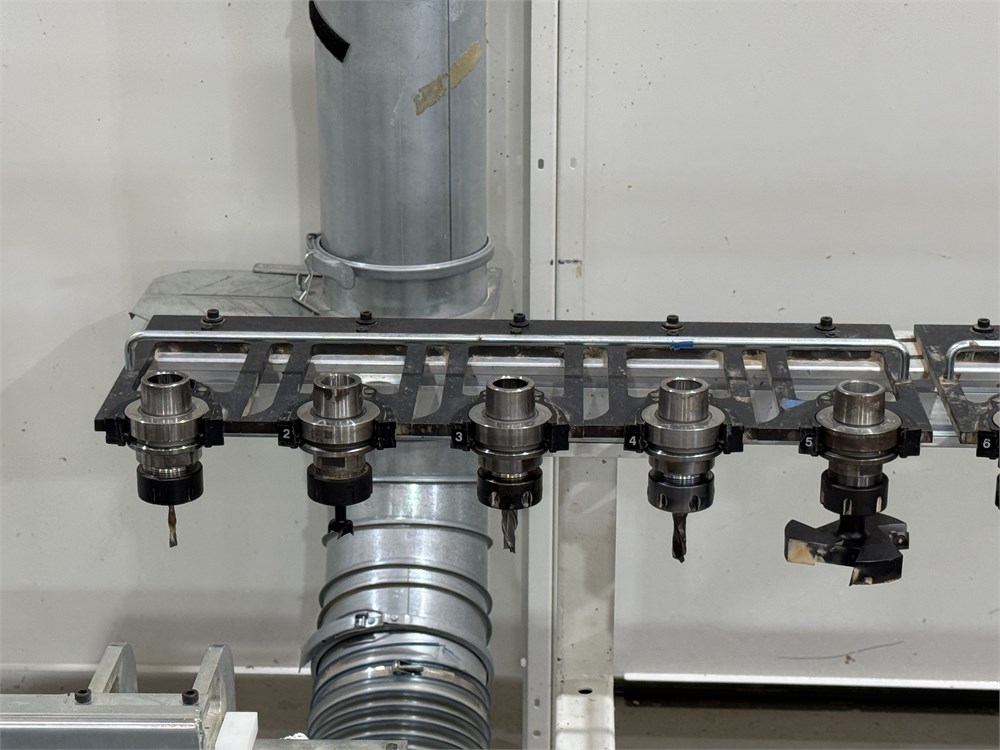

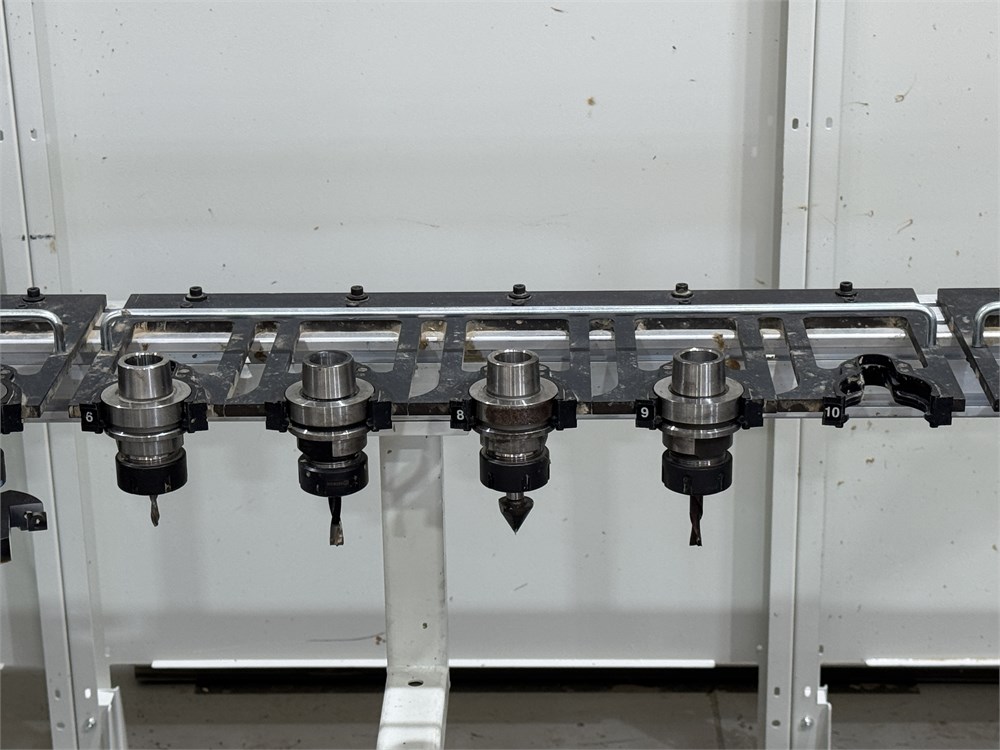

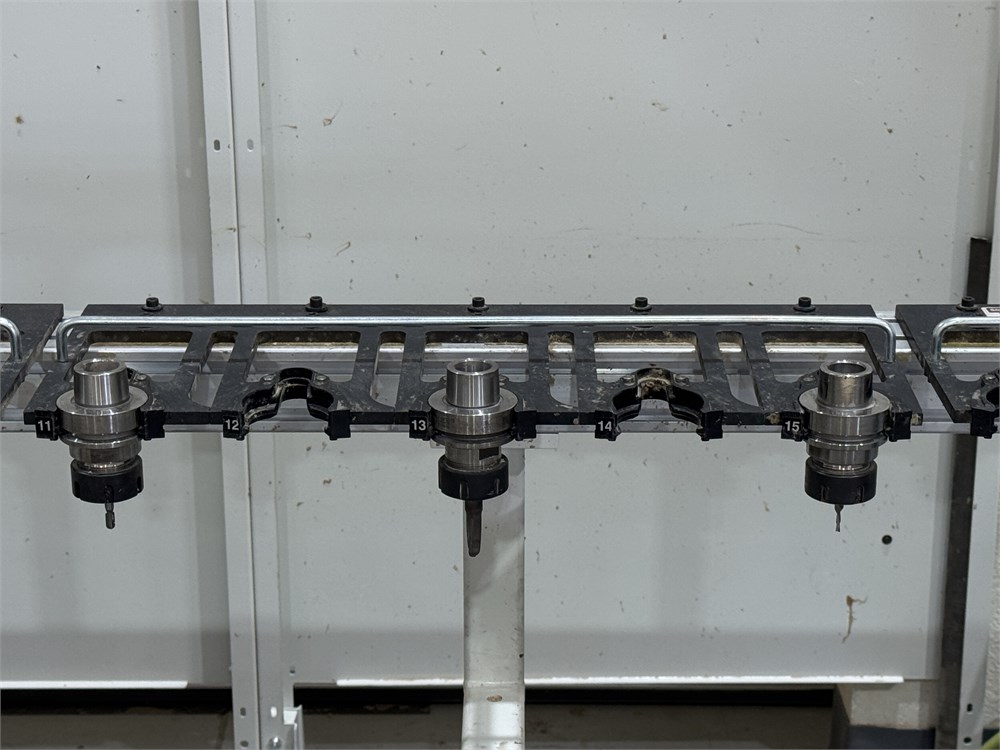

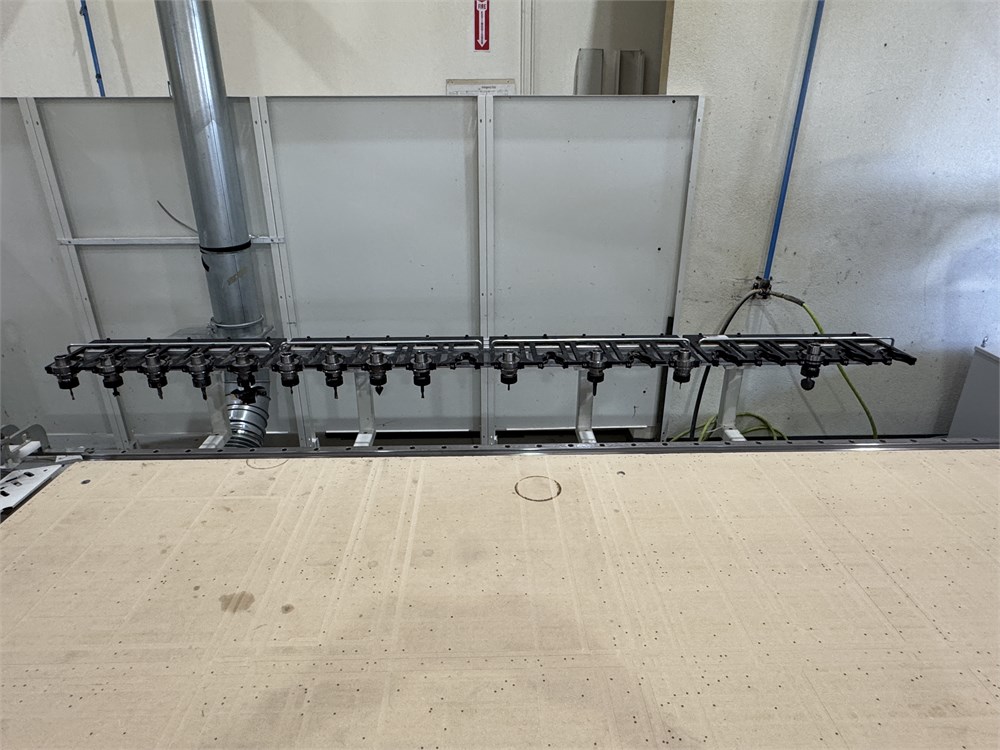

Twenty (20) position lateral tool changer mounted on rear of machine

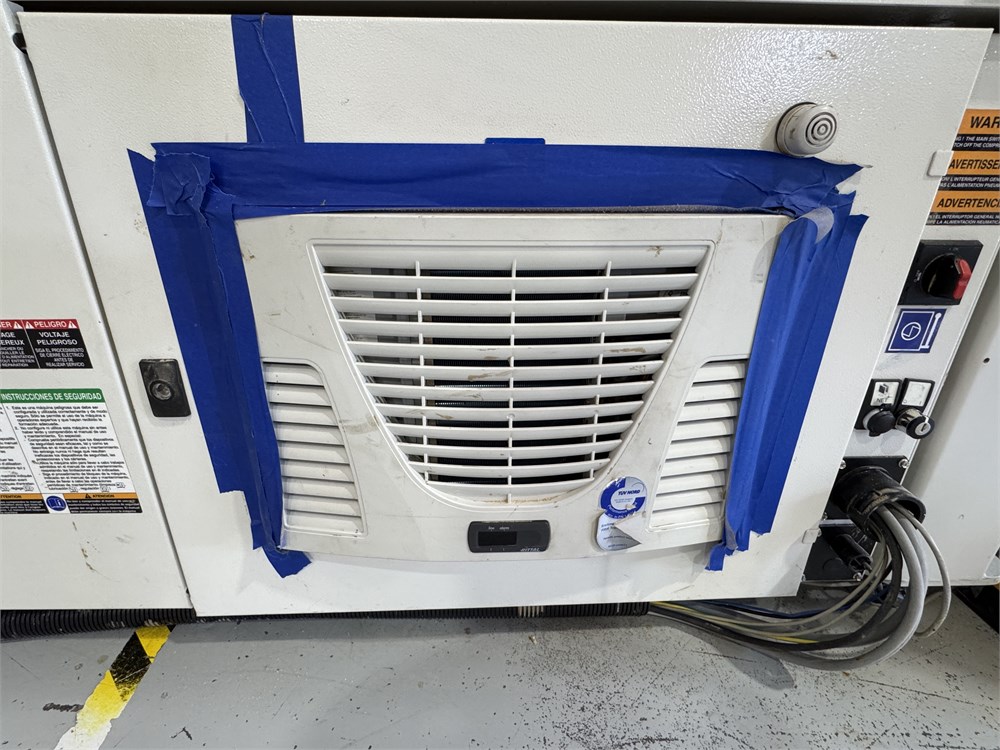

Air-conditioned electrical cabinet

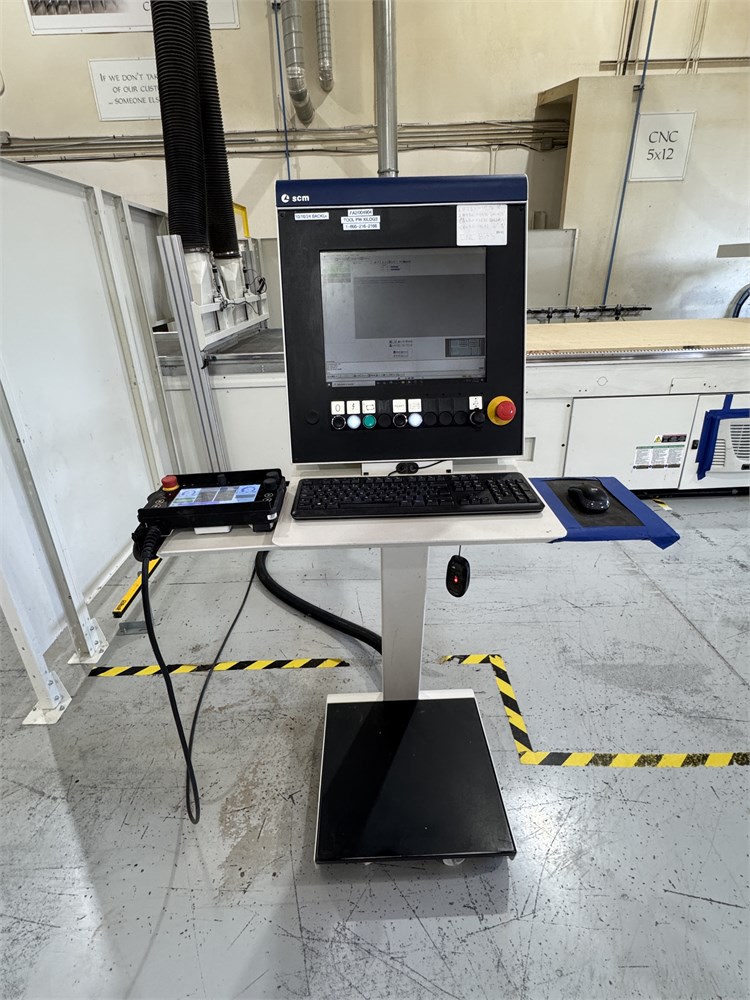

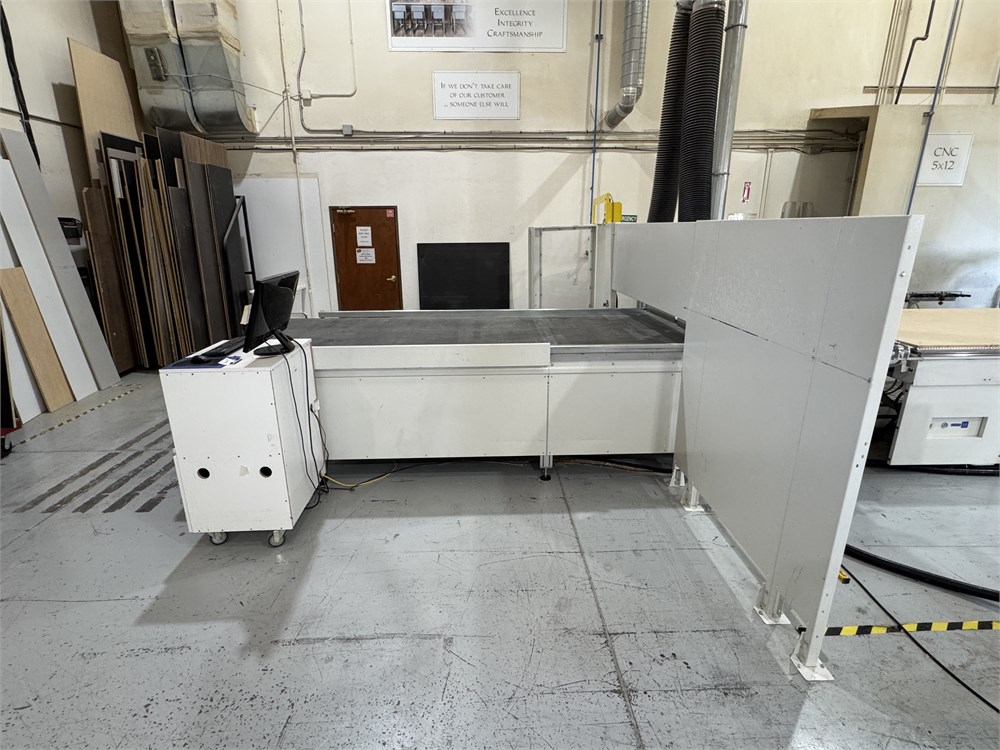

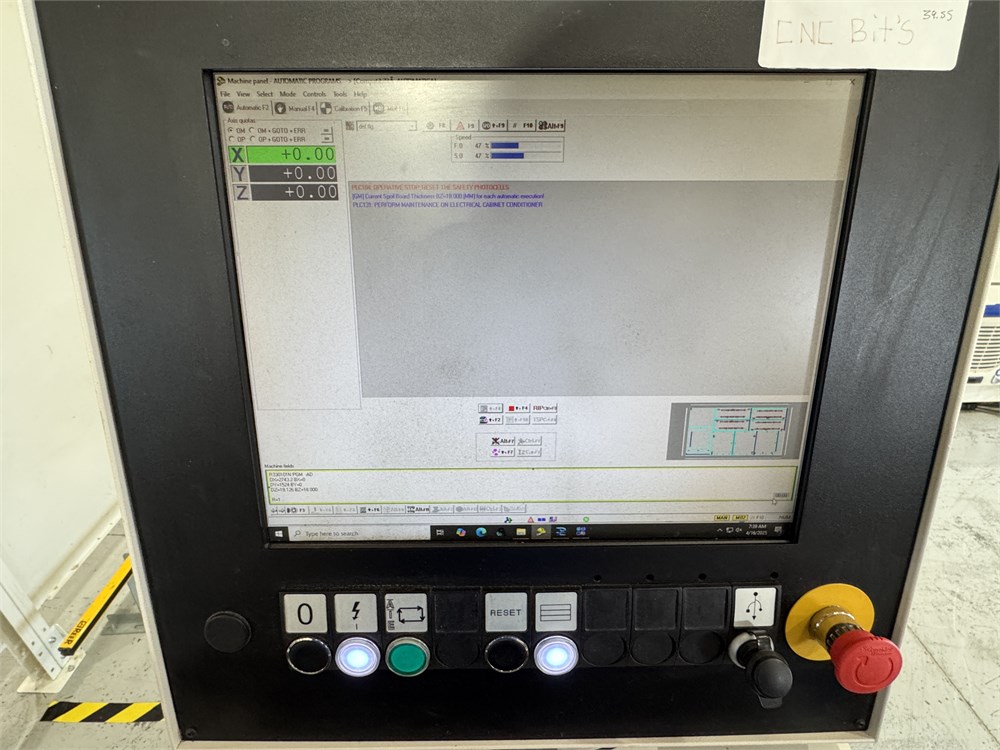

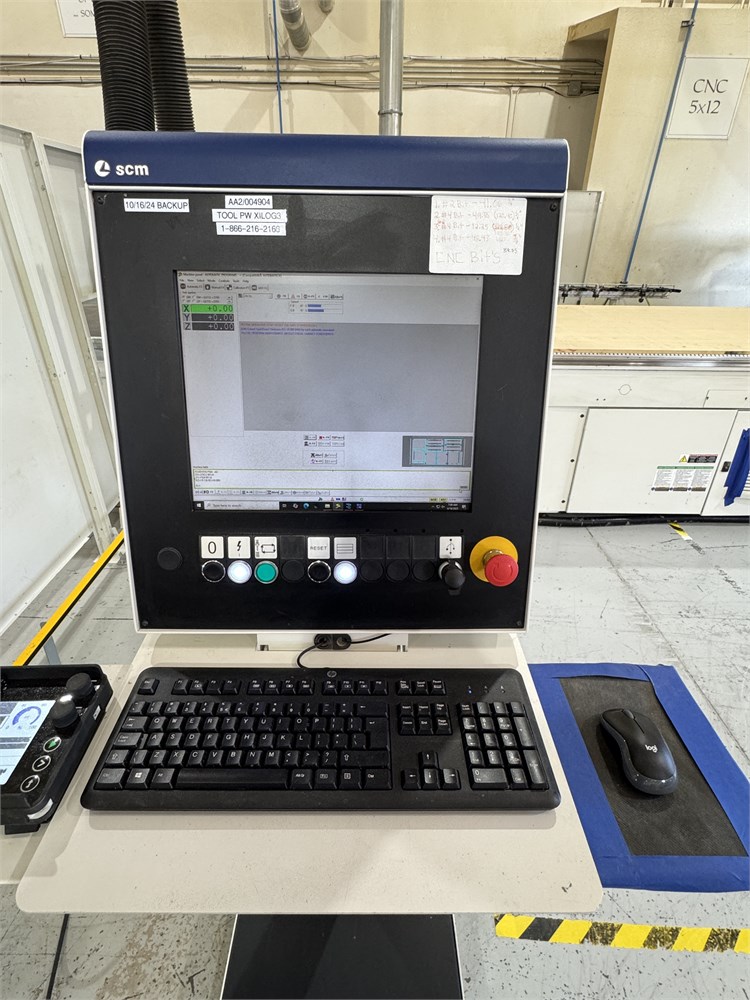

PC Front-End with: "XILOG Plus" + Windows "XP PRO" operating system;

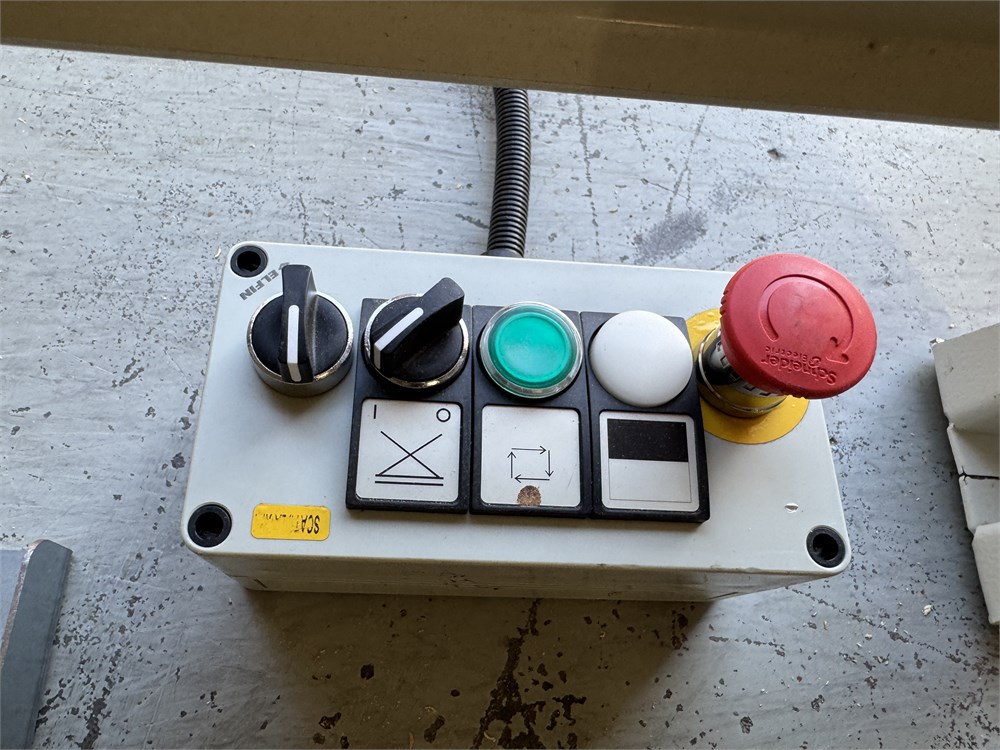

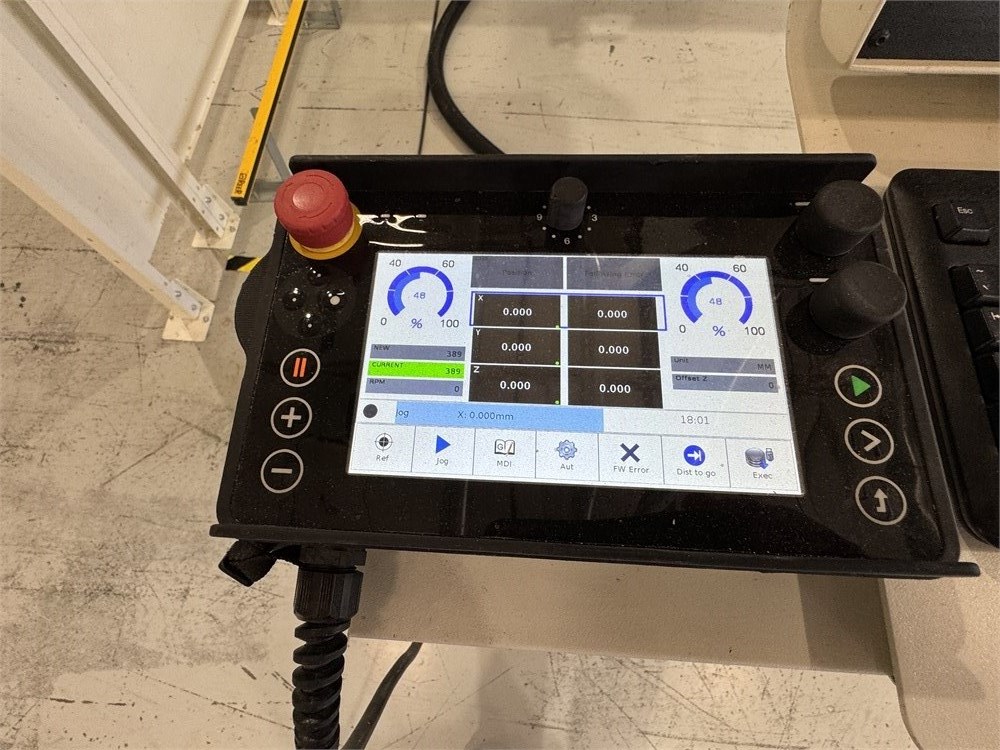

     Remote control pendant

     Standard keyboard and mouse

     USB Ports, serial ports RS-232 & RS-242 & Ethernet adaptor; programs can be transferred via disk or downloading by wire is possible; all            computer components are mounted on a mobile stand.

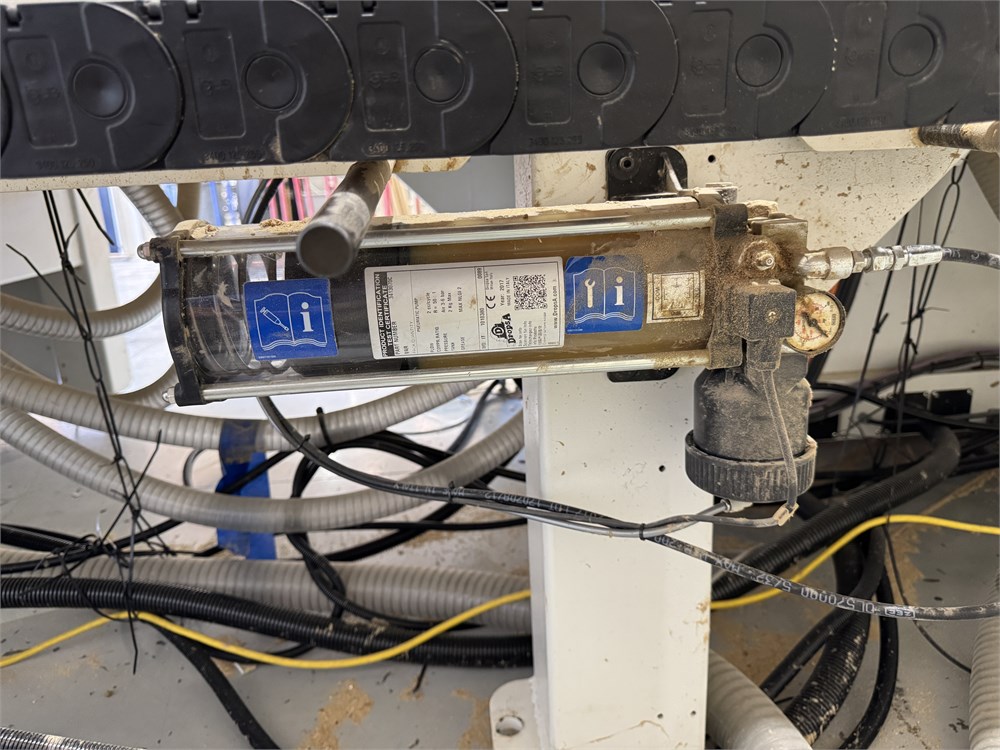

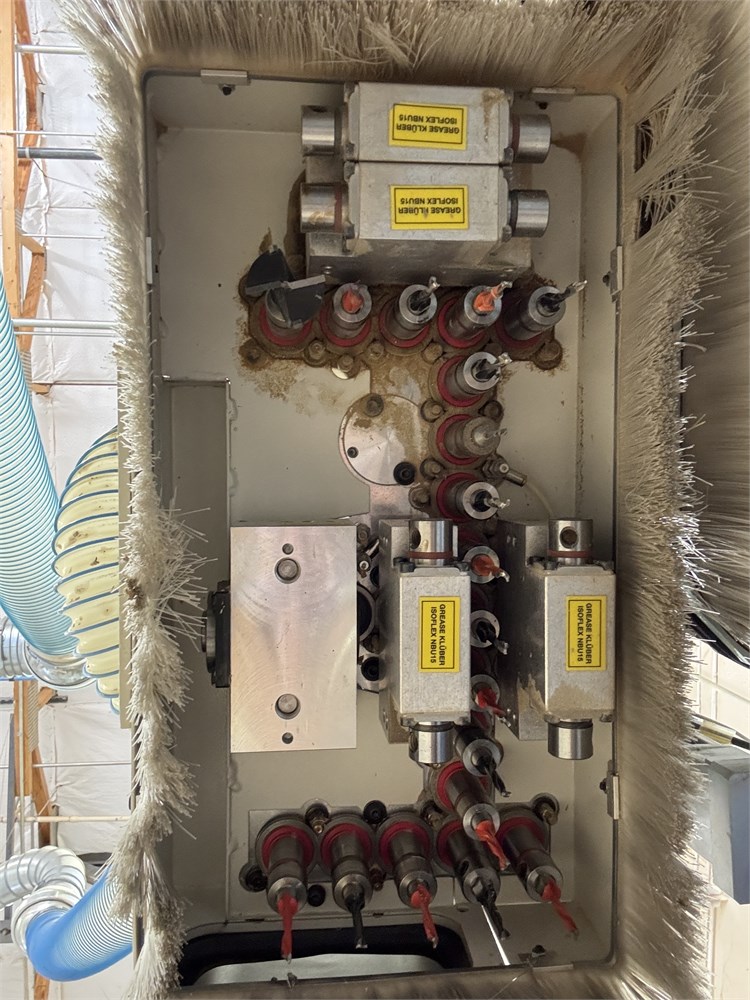

Centralized lubrication system

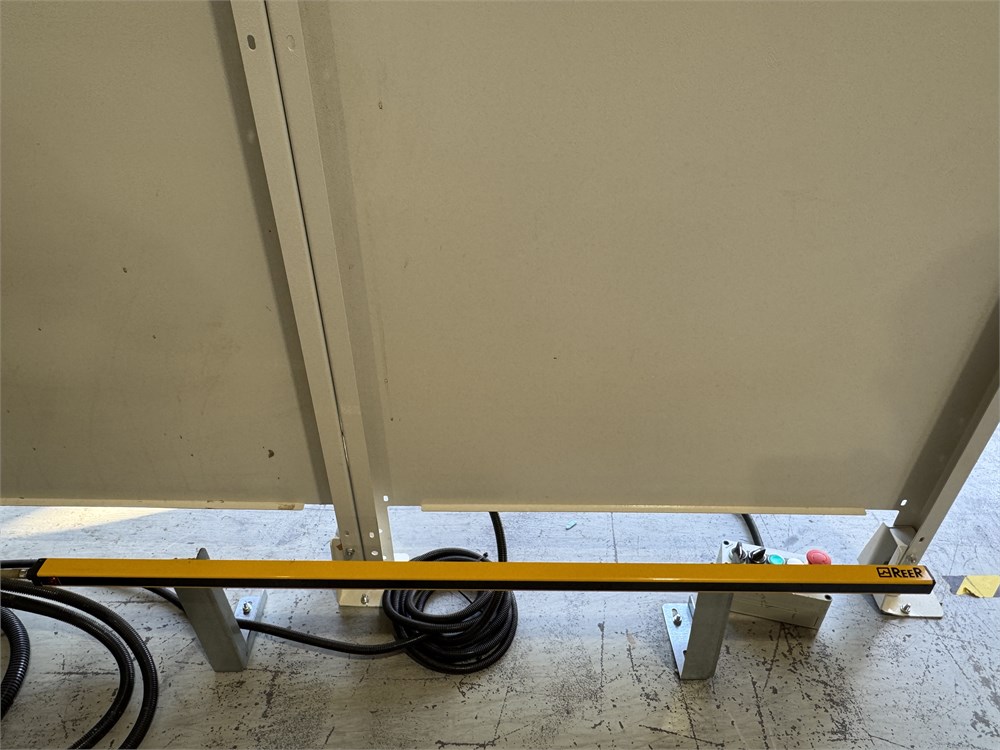

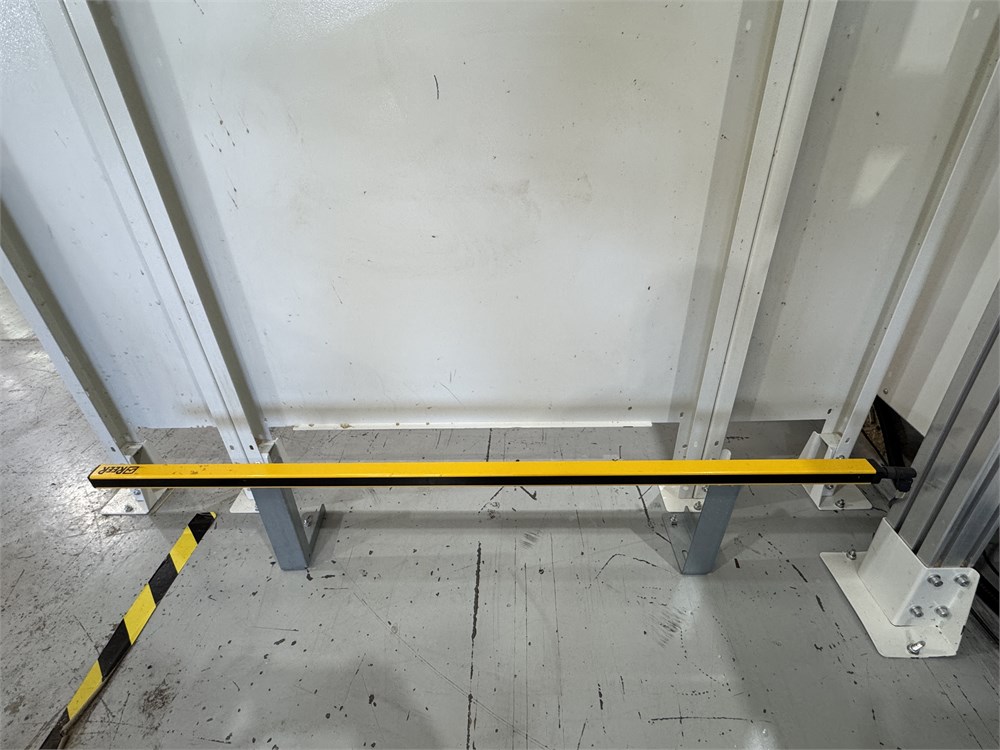

Front safety photo eyes

Safety fencing with interlocked access door

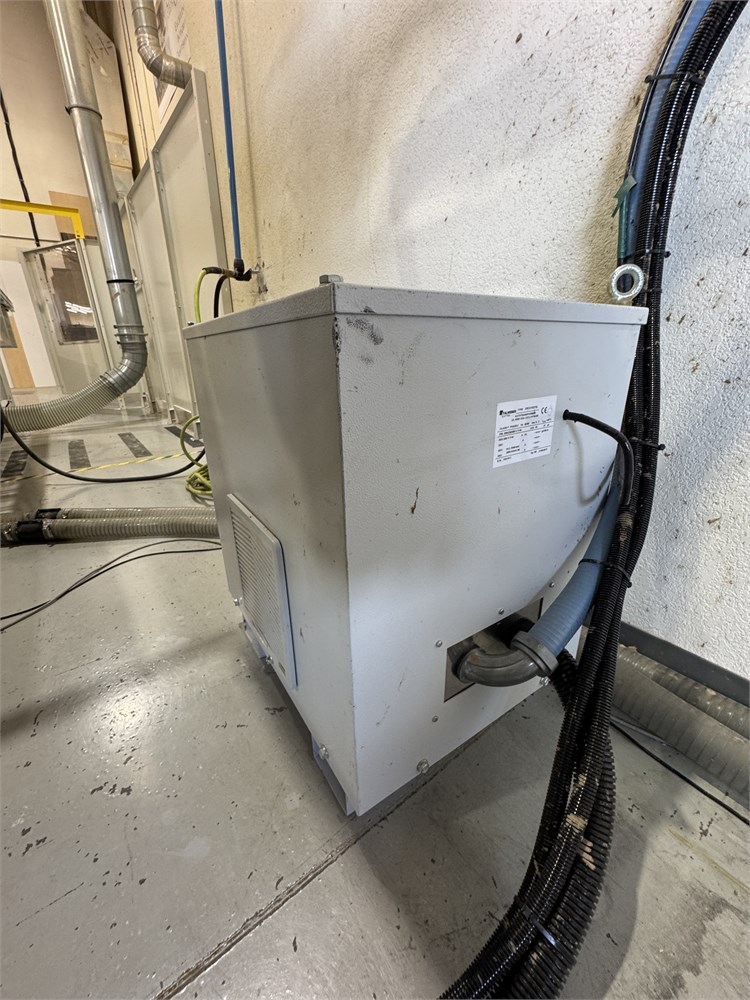

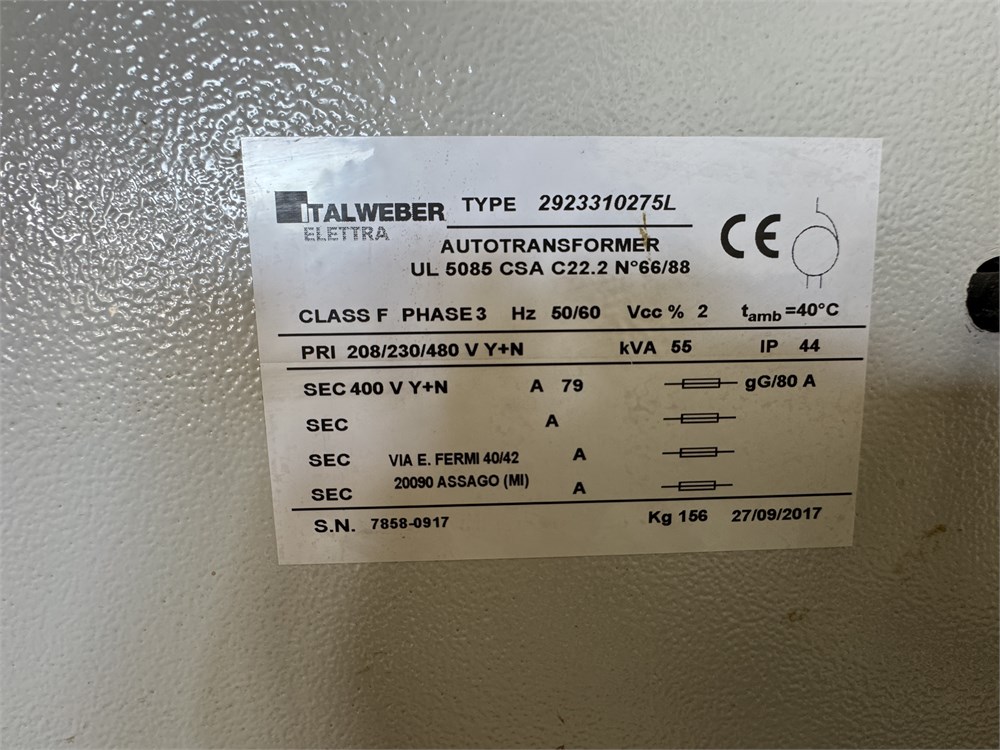

External electrical transformer

Tool holders included but router and dill bits NOT included

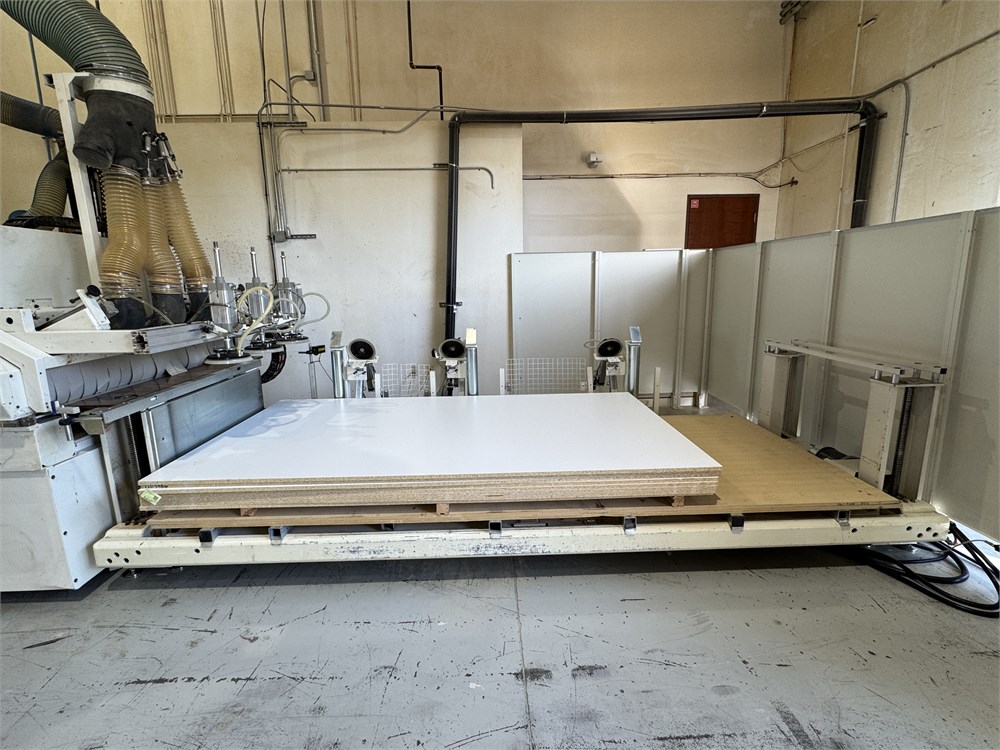

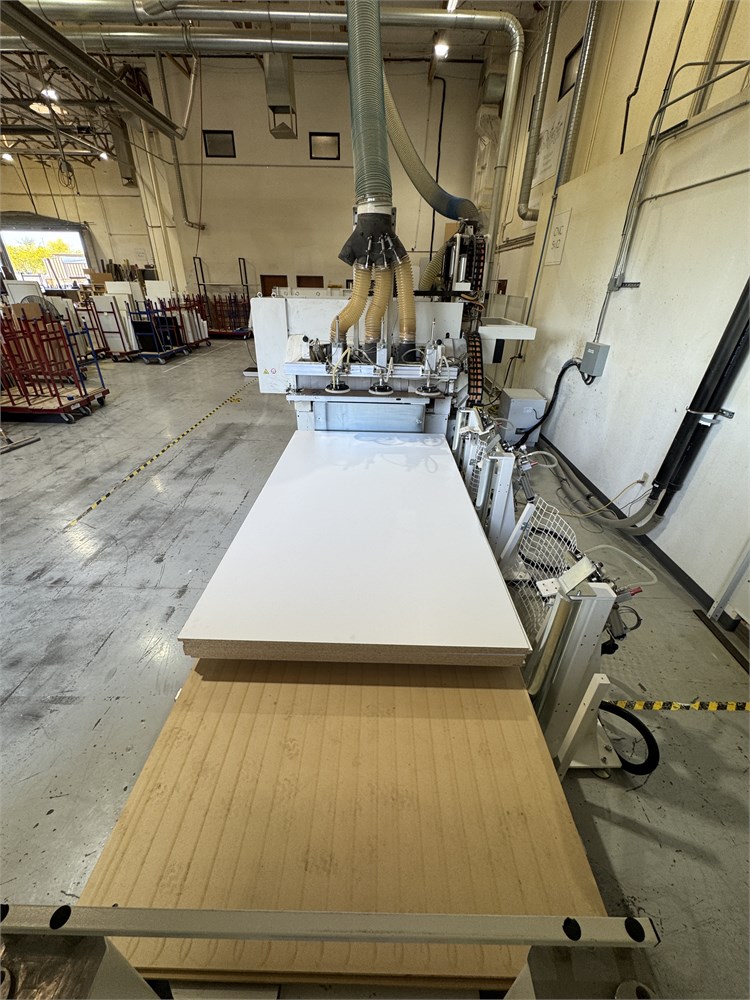

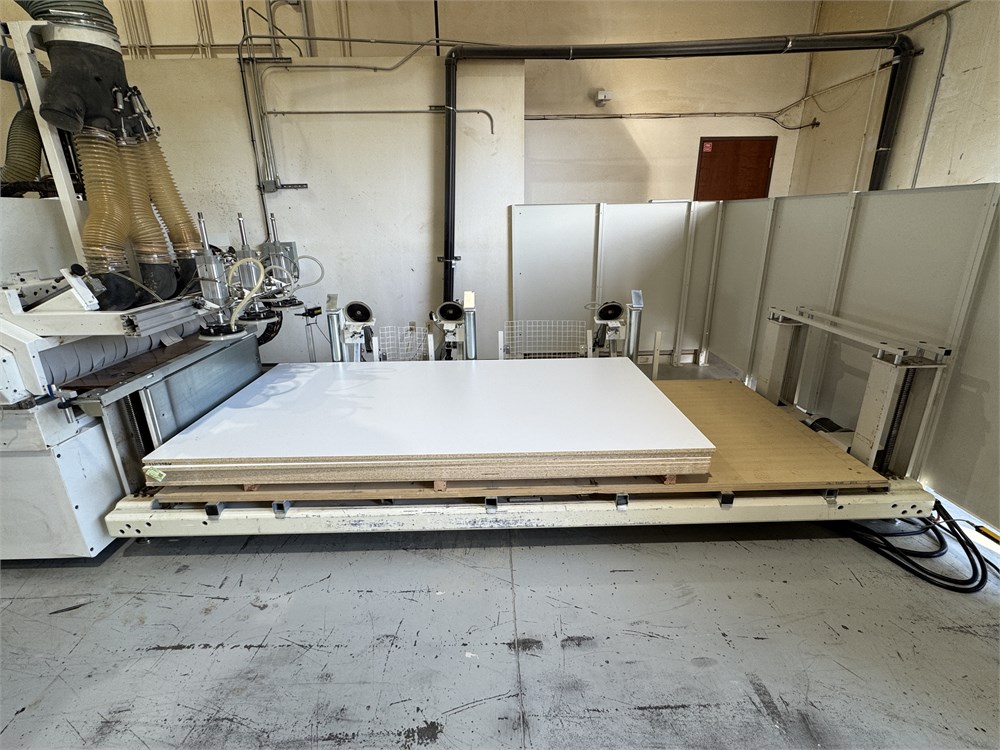

Automatic infeed

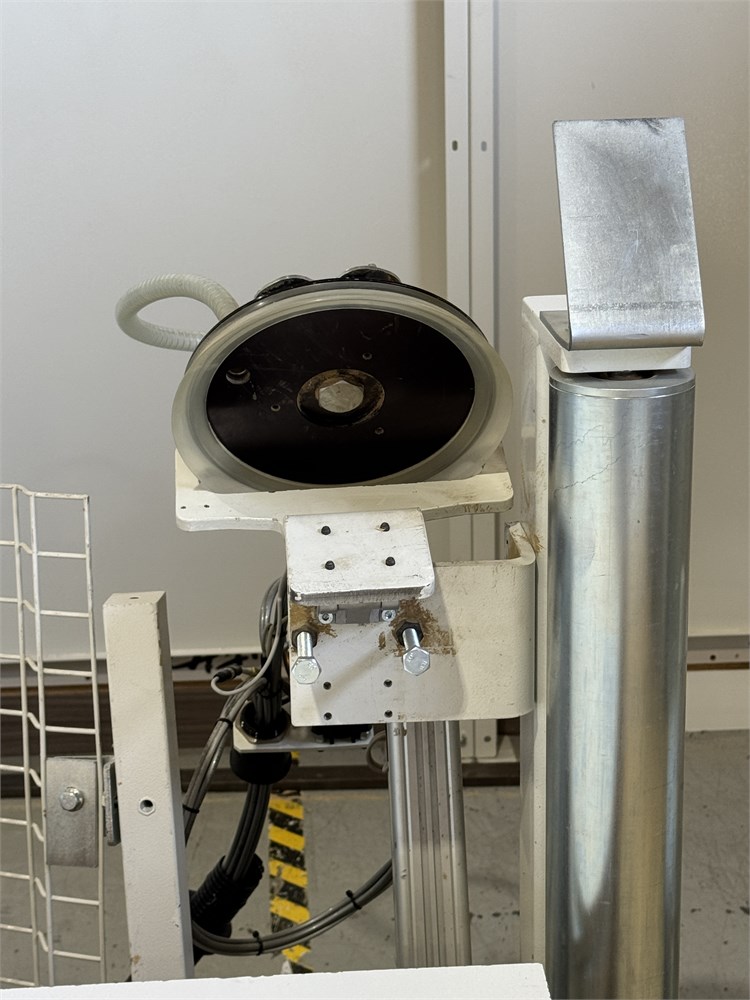

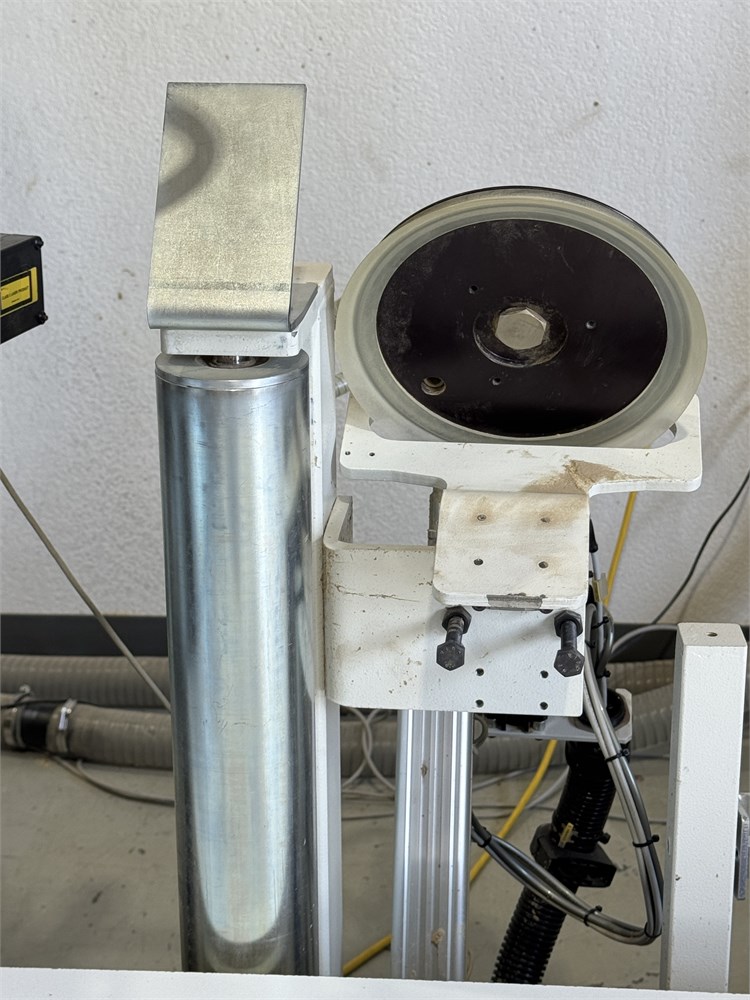

176" L x 80" W x 72" H overall dimensions, Scissor lift, Photo eye at infeed onto machine.  Three (3) side mounted vacuum cups and rollers, control box for manual or automatic operation.

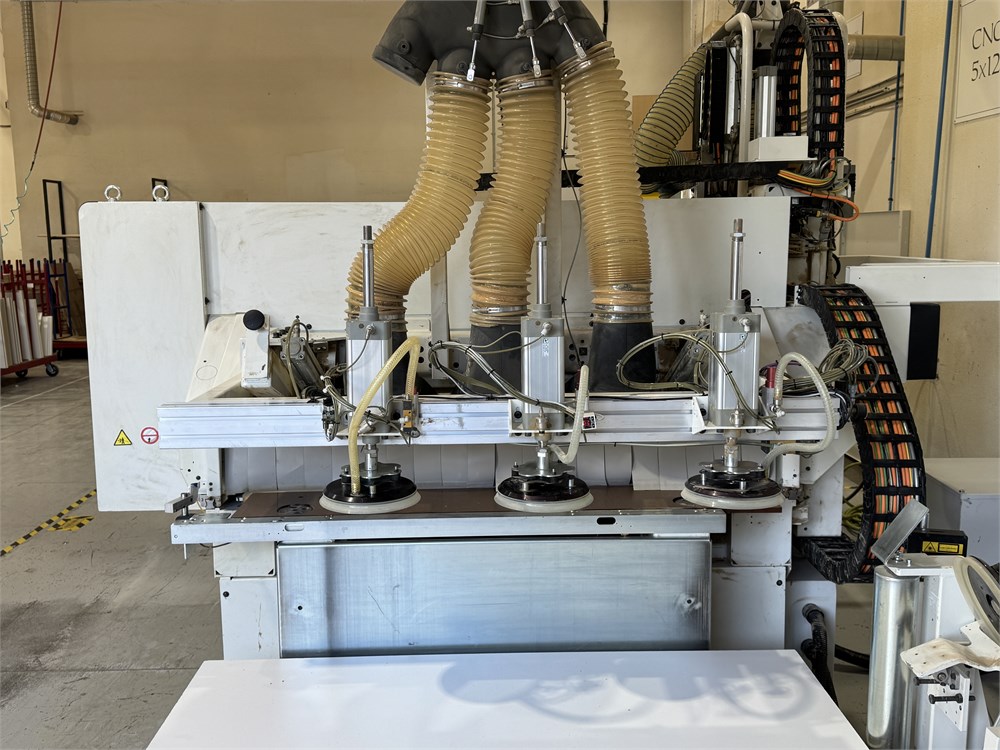

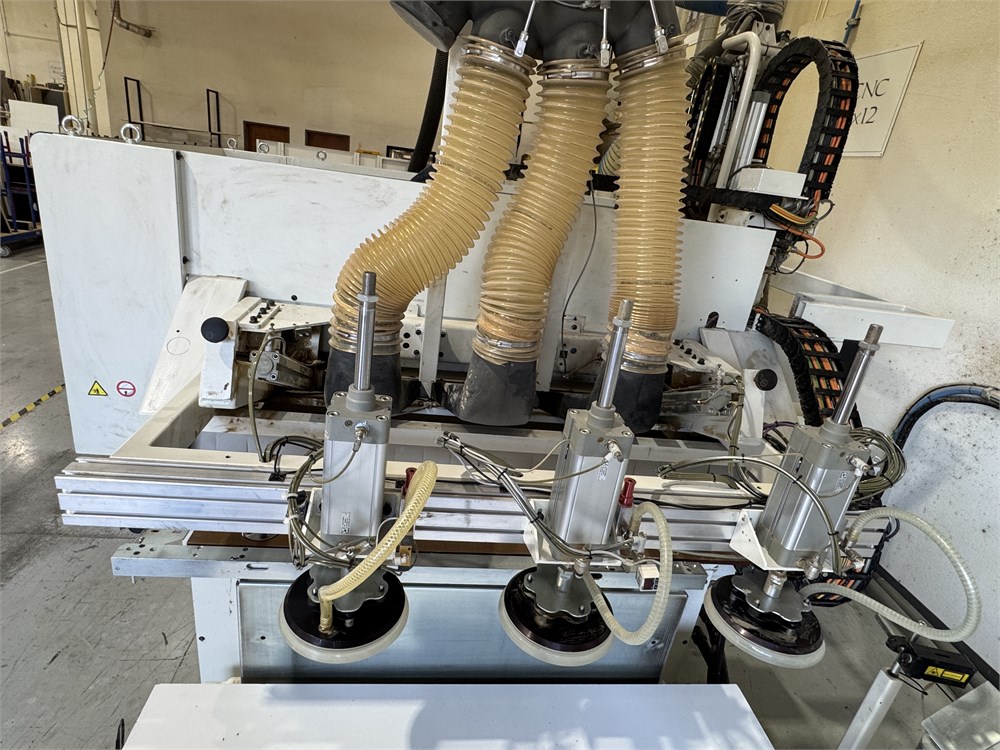

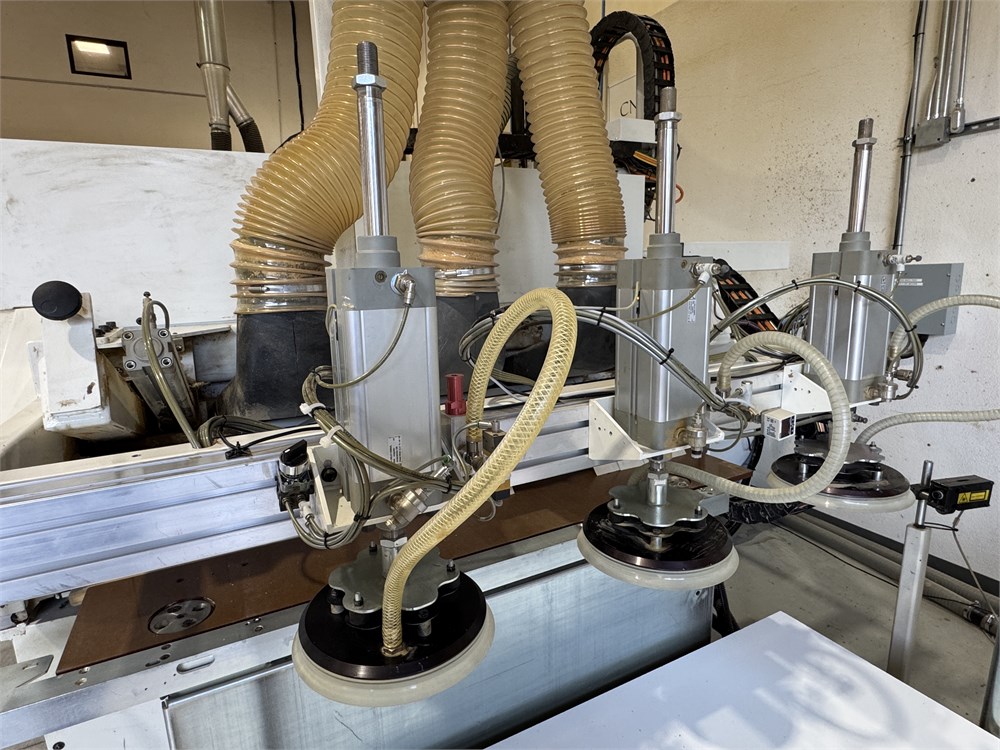

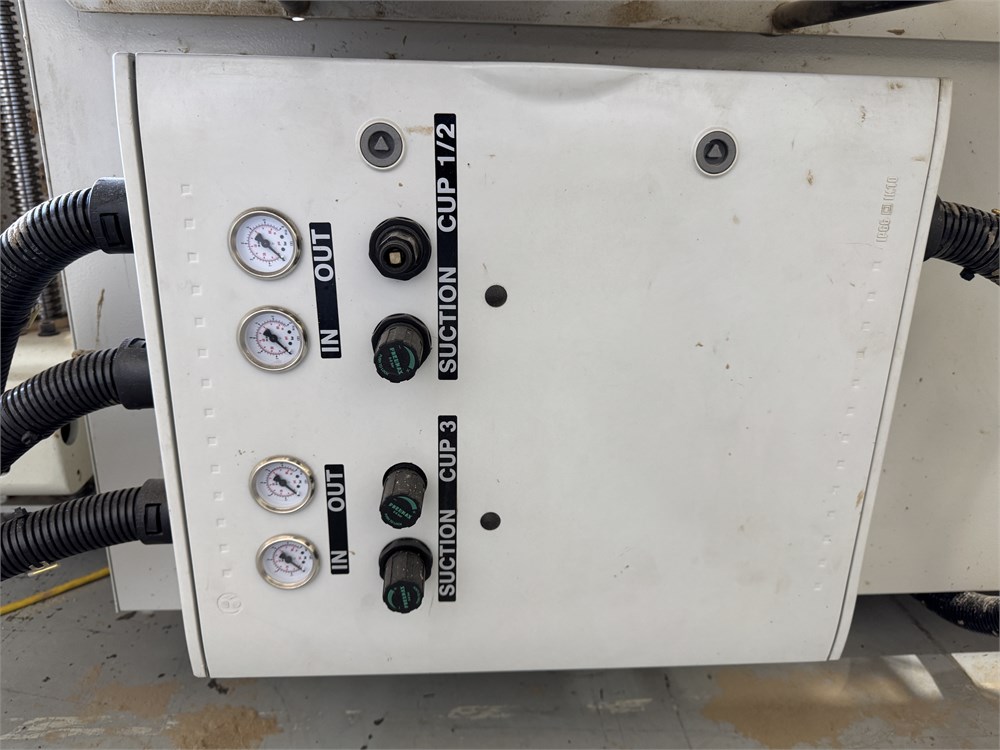

Loading device with three (3) vacuum cups for loading panels onto machine, automatic dust blast gates to clean table in advance of next panel

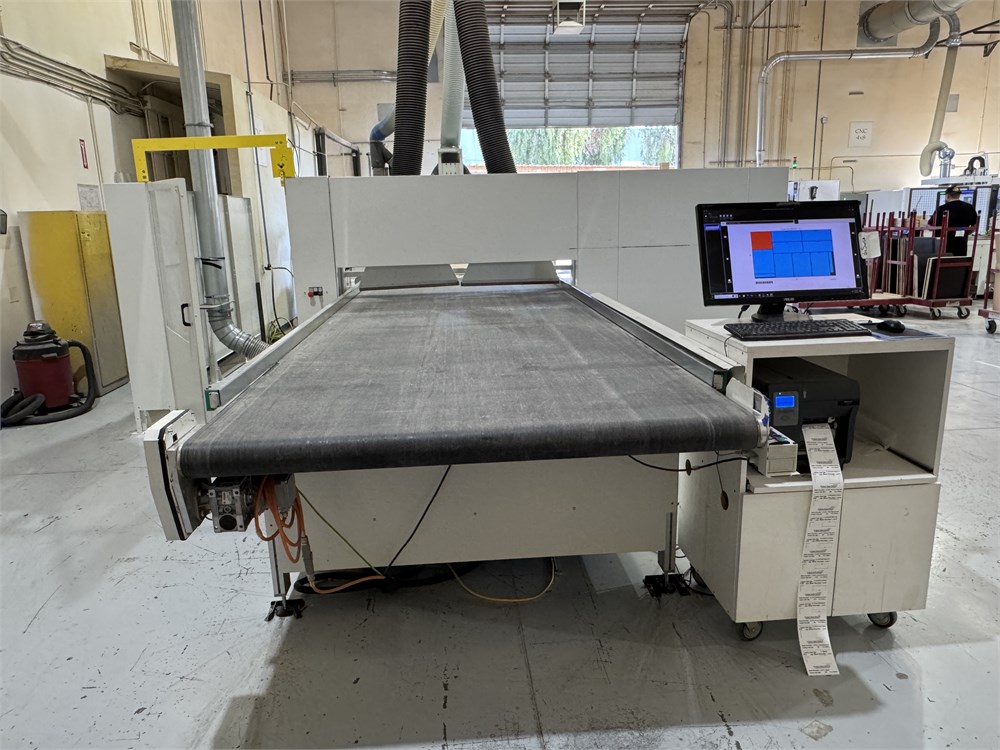

Automatic outfeed:

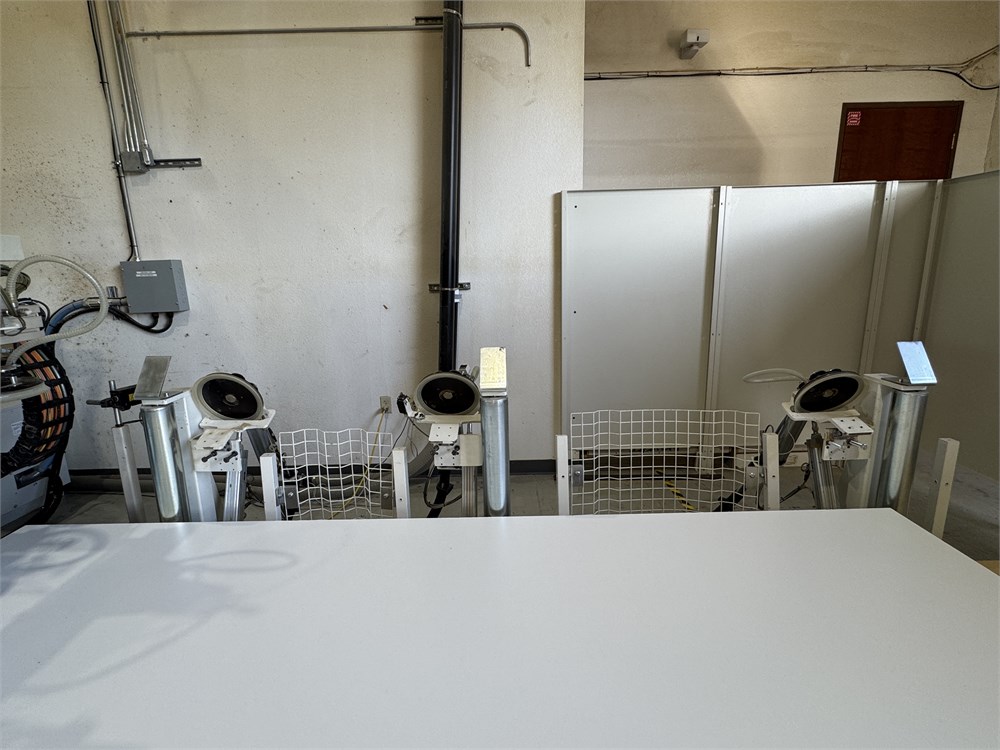

Pusher/rake device on machine to push cut parts onto outfeed conveyor

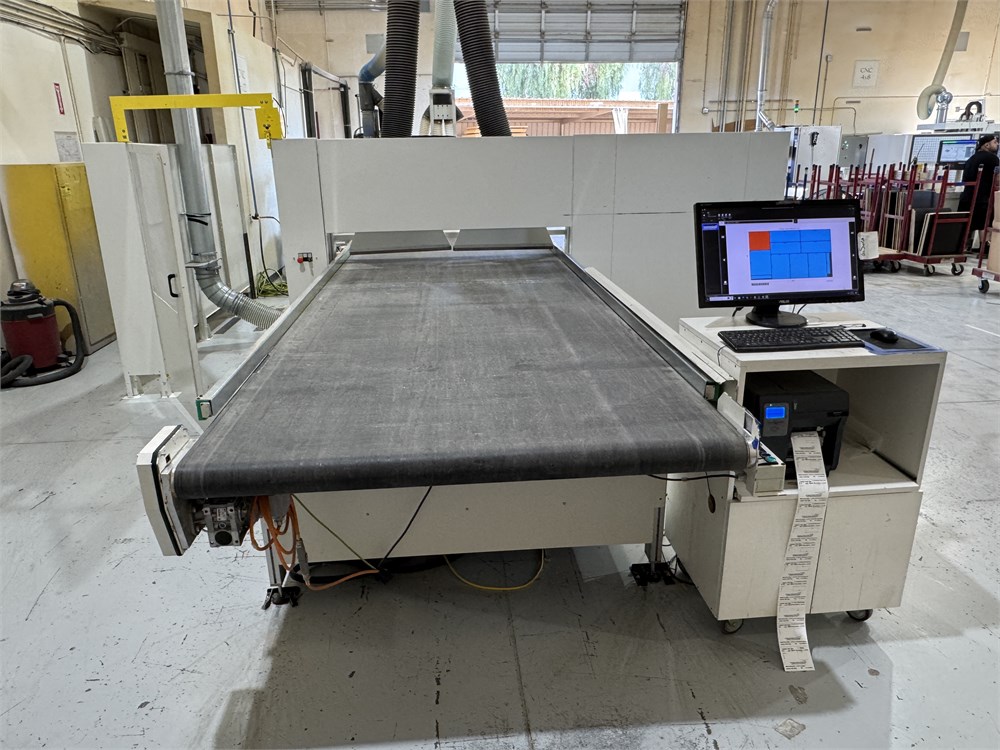

192" L x 65" W x 40" H overall dimensions, 62" belt width, photo eye at end of belt, side fences, control box for manual or automatic operation.

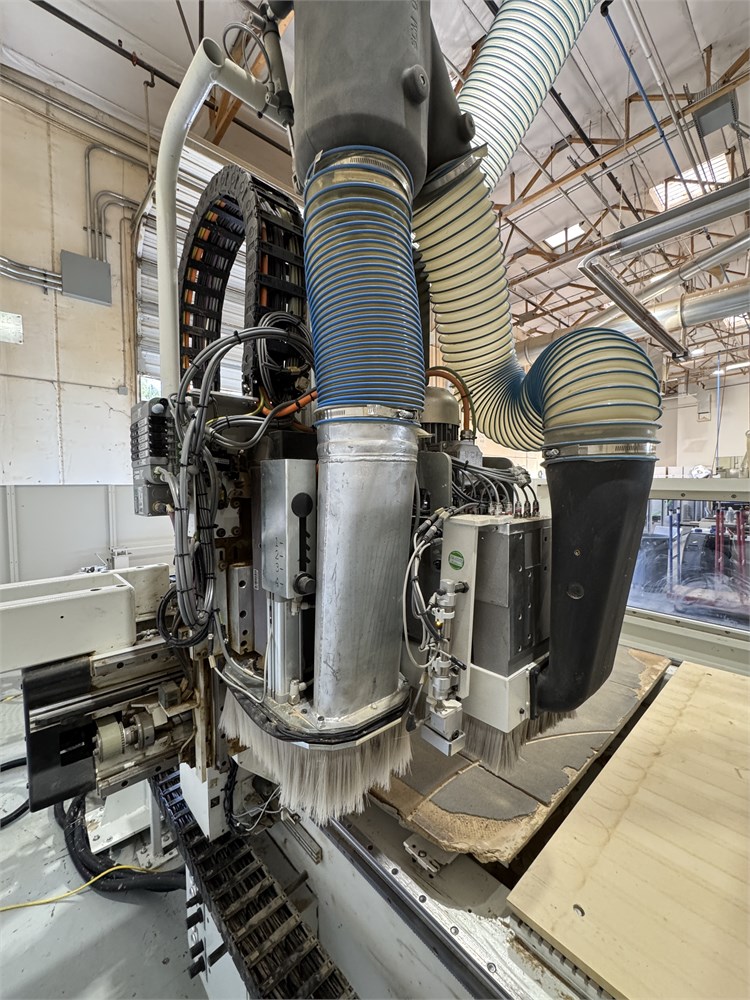

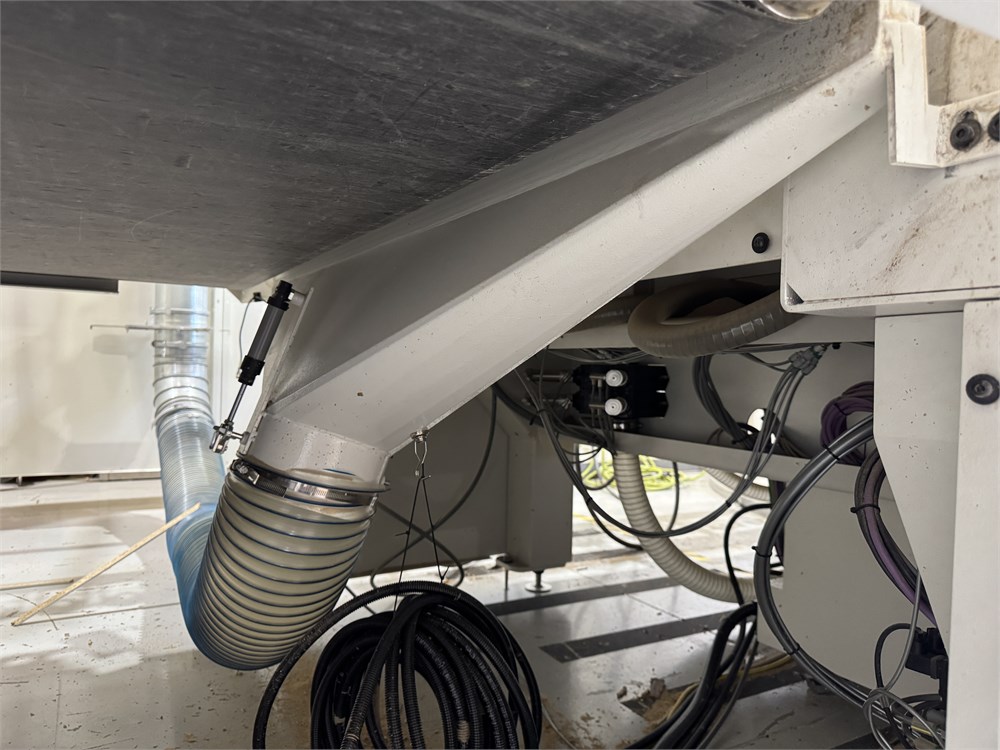

Bottom-mounted dust plenum

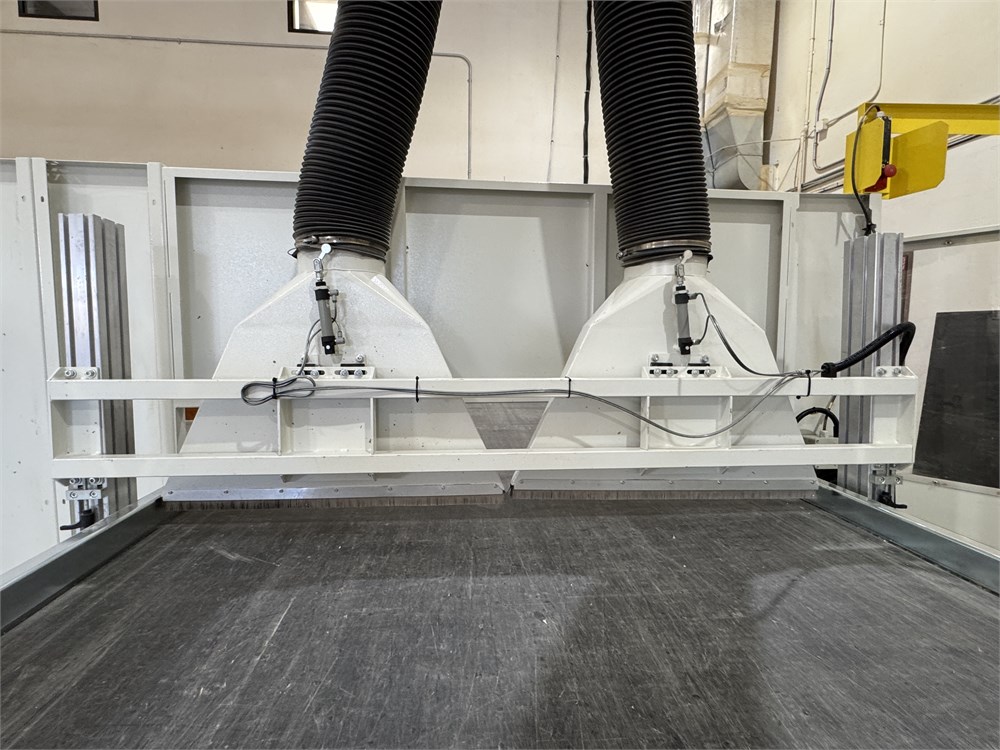

Overhead dust collection

Vacuum pumps NOT included, offered in lot 002

Computer with label printer on outfeed NOT included
