Laguna "Smartshop III SS3-510" CNC Router - Flat Table
Active
Complete Shop Closure - Berryville, VA
3 Cattleman's Ln, Berryville, VA 22611
- Current Price : $1,000.00 USD ( ) No Reserve
- 1 Bid(s)
- High Bidder: C****1
Oakhurst Custom Cabinets and Millwork- Berryville, VA ( Active #71466160 )
Complete Woodworking Shop Closure of manufacturing company located in Berryville, Virginia. Auction includes 2019 Unique 250GT-2, Lots of Late Model Laguna Tools Industrial Equipment and much, much more.
-
Pick Up Location
3 Cattleman's Ln, Berryville, VA 22611
-
Make
Laguna "Smartshop III SS3-510" CNC Router - Flat Table
-
Model
"Smartshop III SS3-510"
-

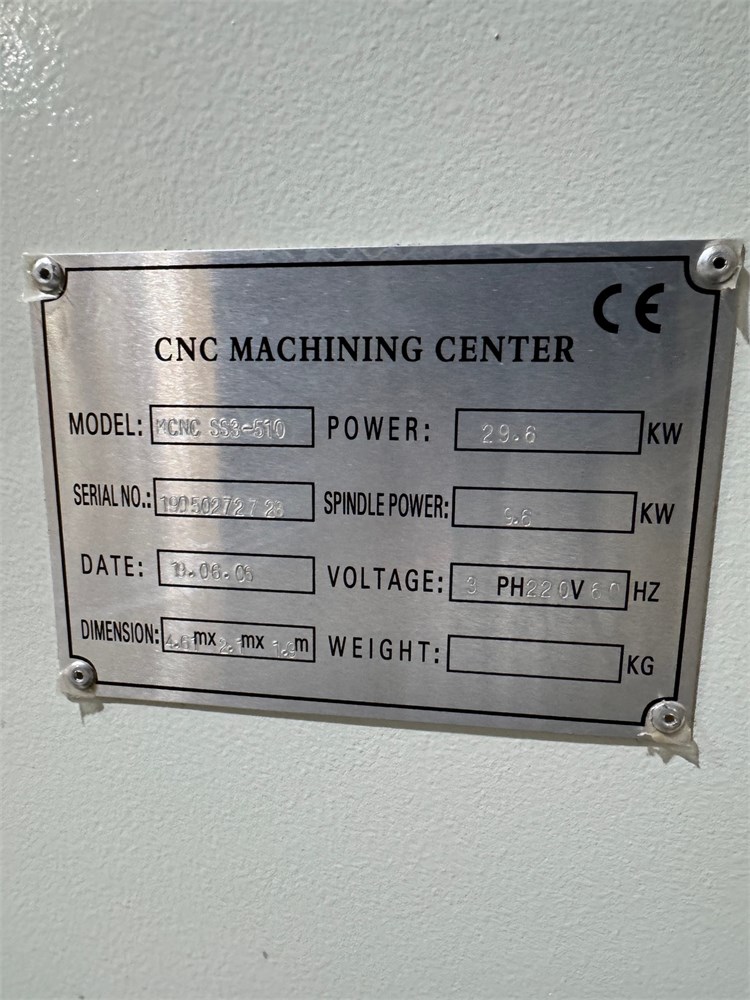

Serial Number
190502727
-
Year
2019
-
Phase
3 PHASE
-
Voltage
220 VOLT
-
Buyer Inspection Period
-
Load Out Period
TBD
-
Estimated Dimensions
-
Estimated Weight
-
Seller Comment
-
Load Fee
-
Lot Notes
-
page views
110

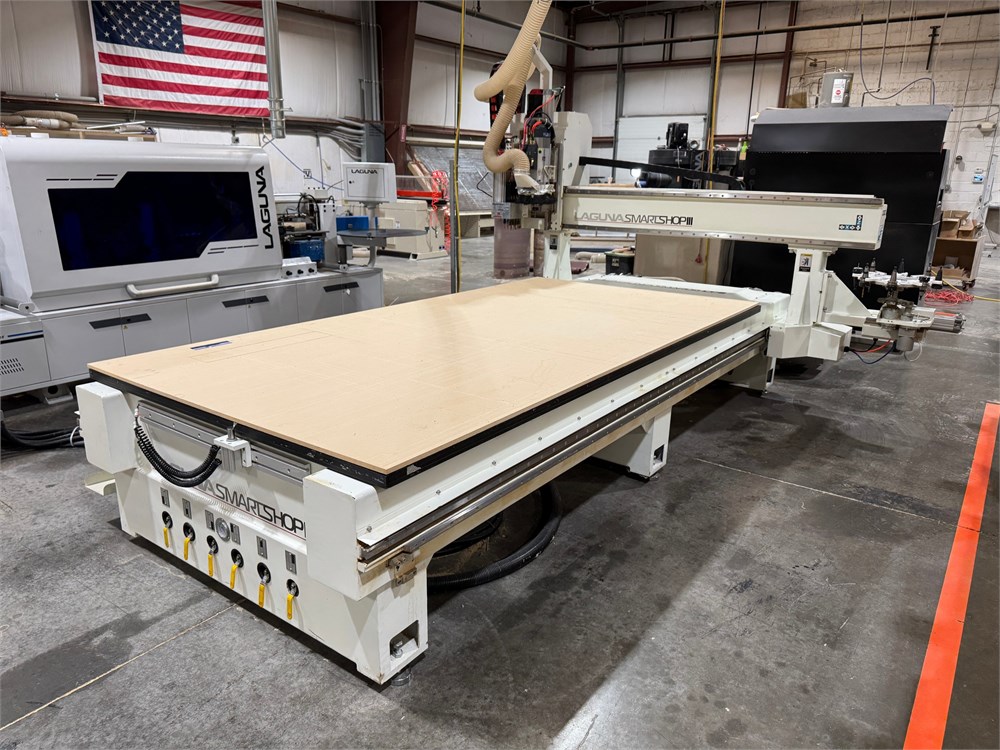

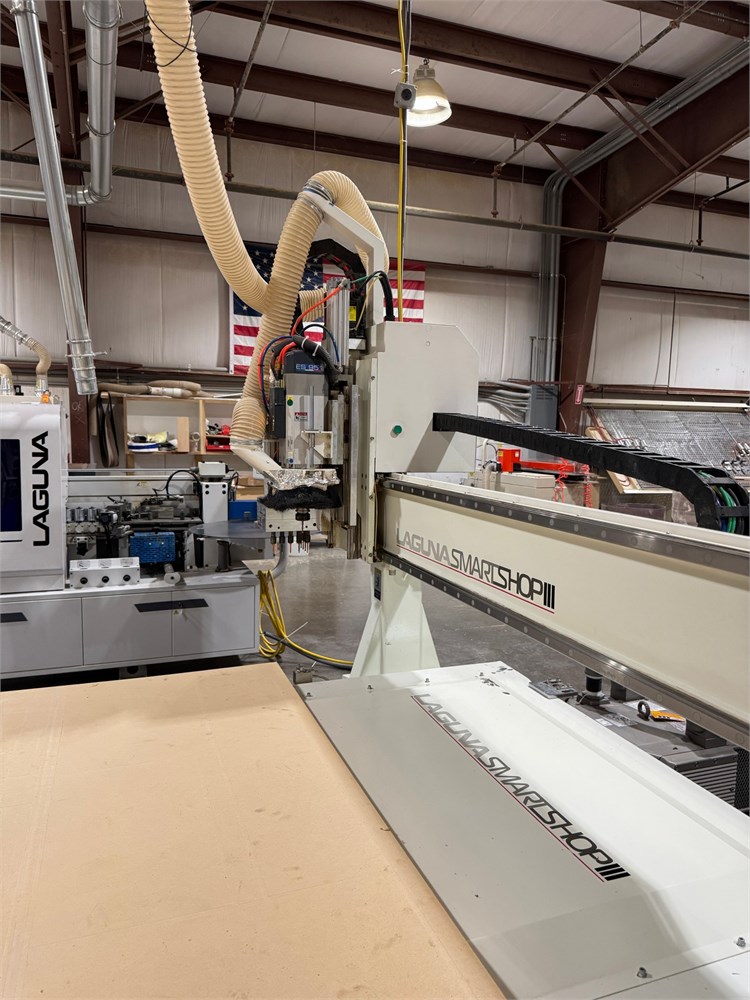

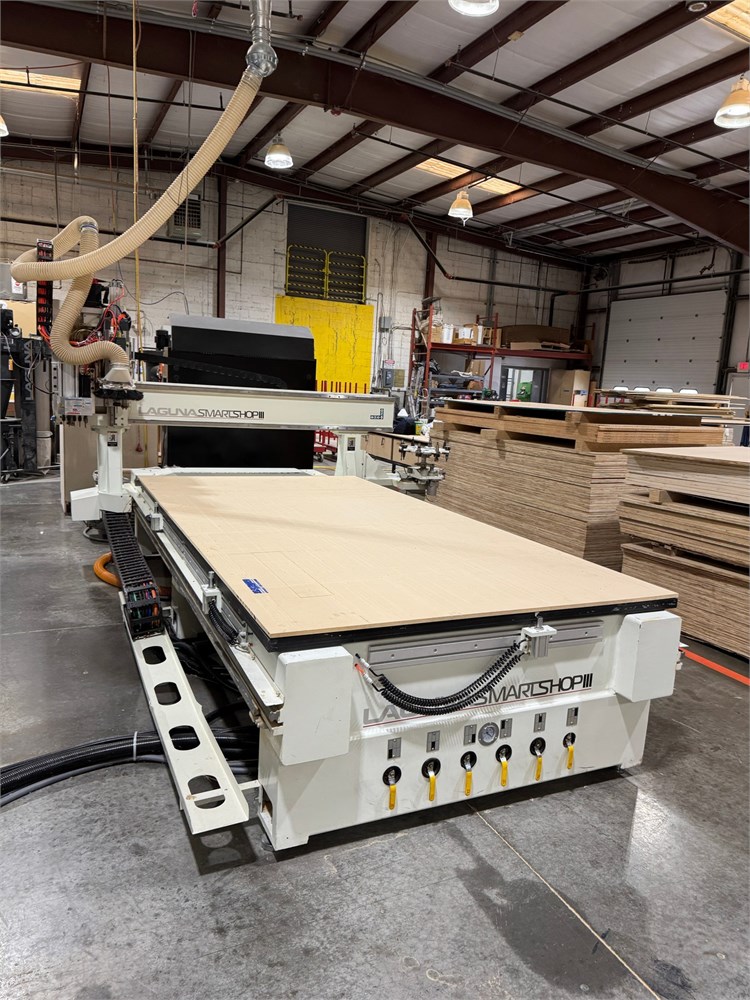

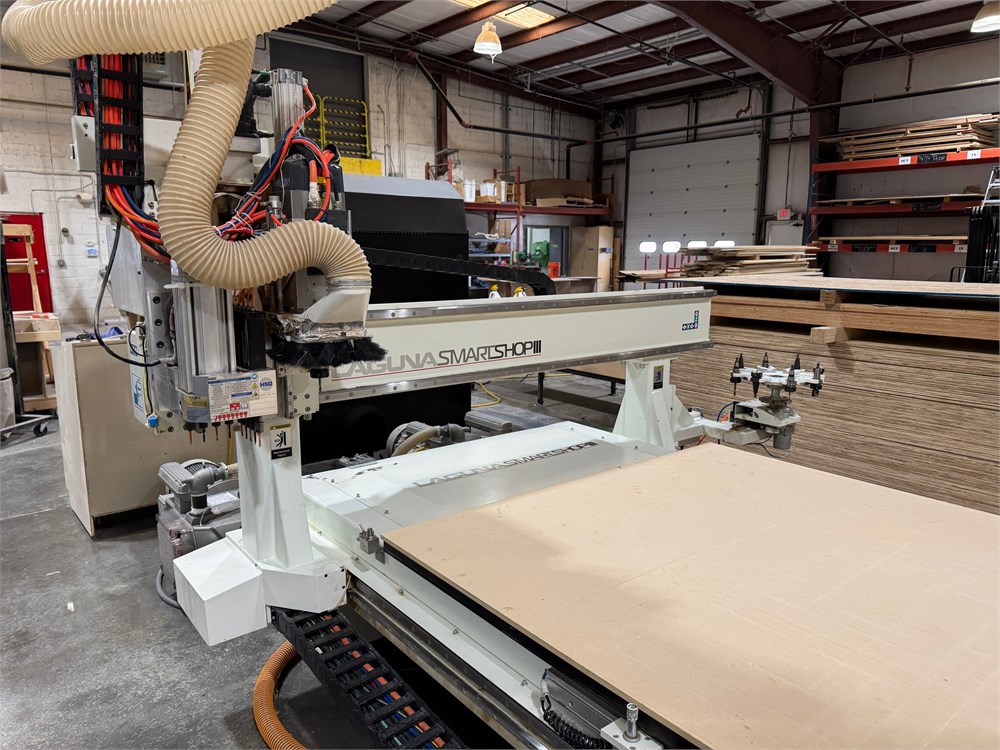

Laguna "Smartshop III SS3-510" CNC Router - Flat Table
The pinnacle of speed and accuracy, the SmartShop® 3 Excel delivers the ultimate cutting power and flexibility. Designed for those customers needing maximum daily output and continuous operation, the Excel delivers performance and accuracy that no other machine can rival.
Utilizing industry-leading FANUC® controls, 1500-watt FANUC® servos combined with a heavy all-welded steel frame promotes faster feed rates, deeper cuts, better edge quality, and higher performance.
Features
- 12HP HSD Spindle
- FANUC® OiF Controls Systems
- 1,500W FANUC® Servo Drive Motors

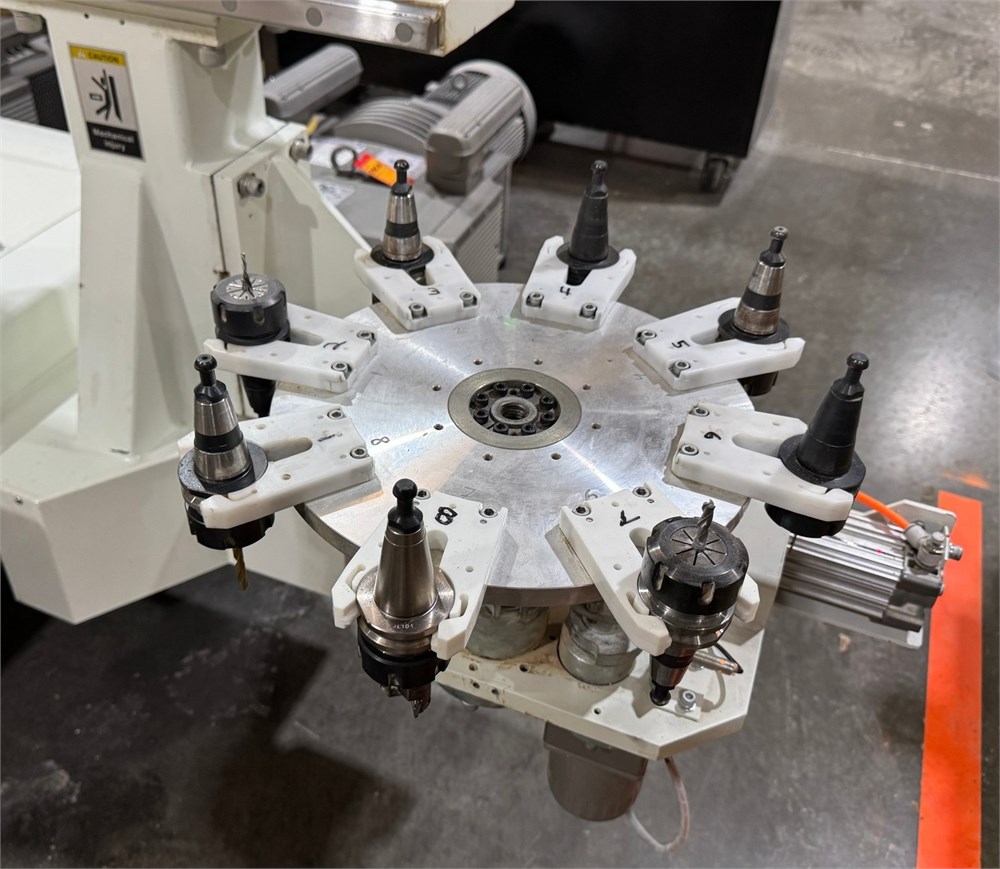

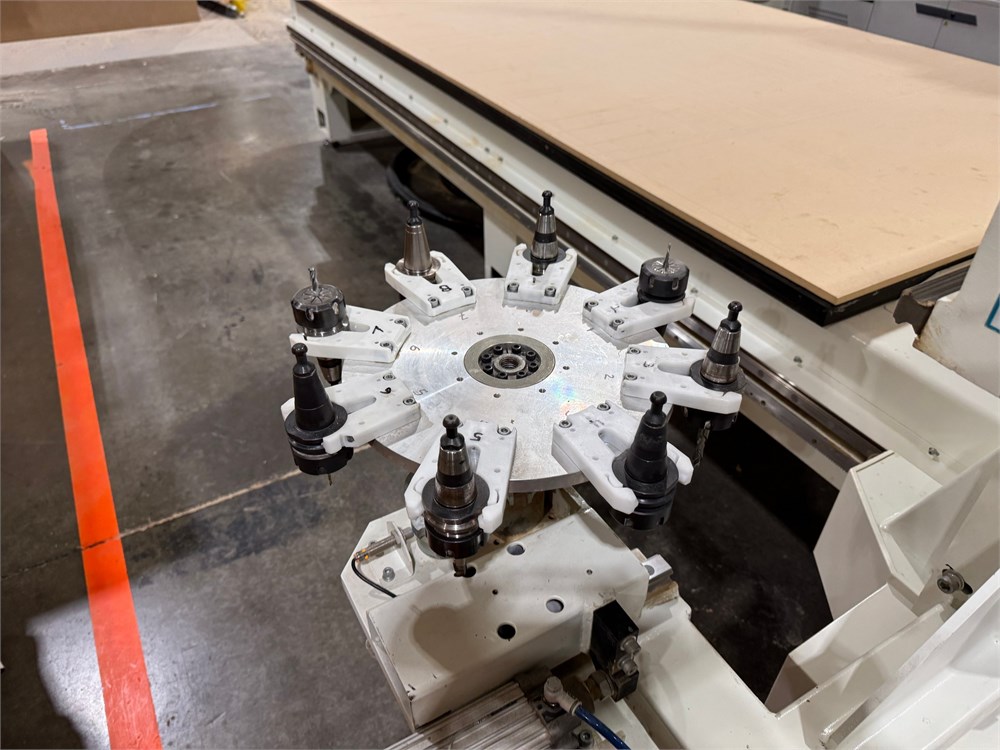

- 12 Position Servo Rotary Auto-Tool Changing System
- 12in Gantry Clearance
- 14in Z-Travel
- Up To 3,000 IPM Rapid Speed
Specifications
- Motor: 220V, Three Phase
- Footprint: 110” W x 158” L
- Working Area: 61” x 121”
- Dust Port Diameter: 4”
- Precision Helical Rack & Pinon. Drive System for X and Y Axes: 30mm Heavy Duty Linear Bearing, All Axes

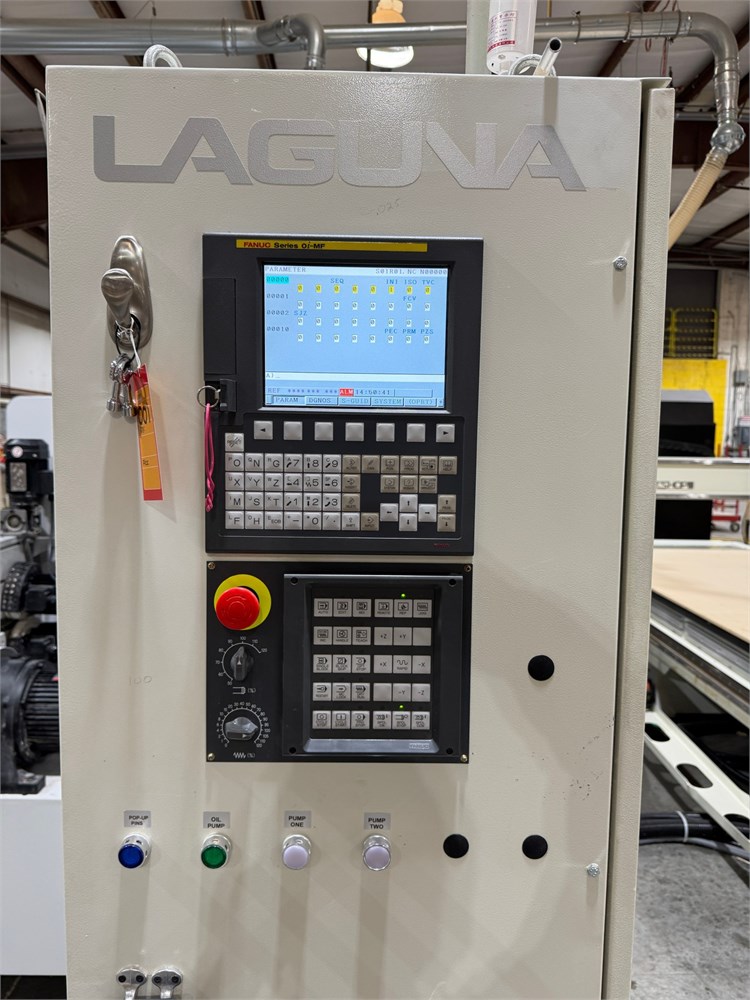

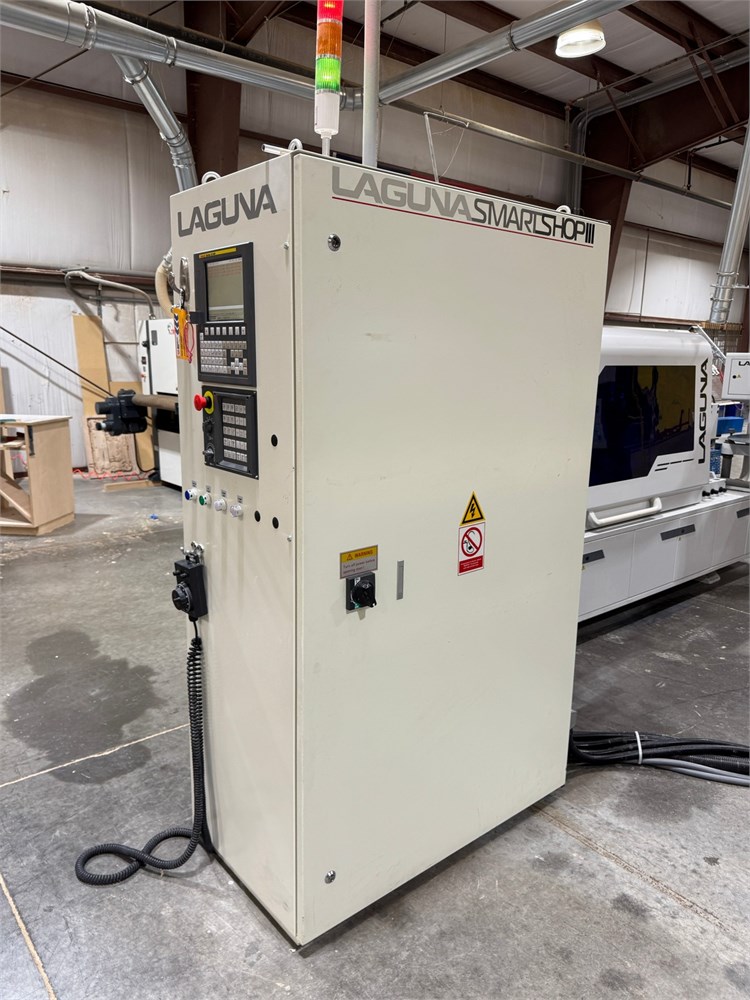

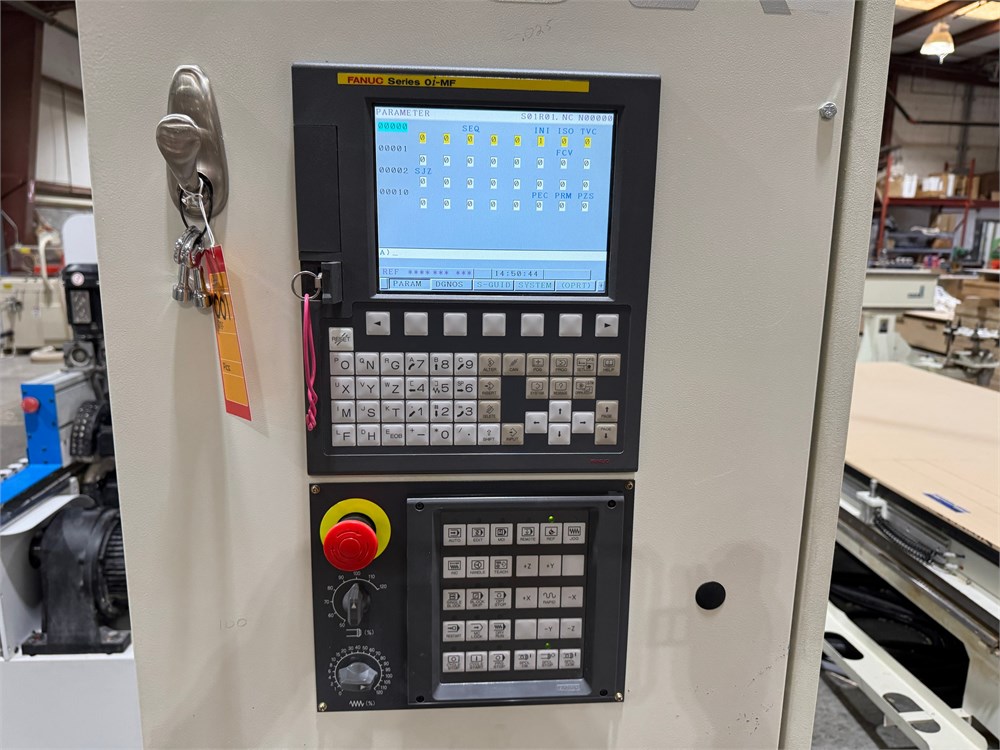

- CONTROLLER: Fanuc with Data Server
- Solid State Home Switches: Yes
- Heavy Duty Weldment Tubular Steel Frame: 5500 lbs
- Centralized Lubrication System for All Axes: Yes

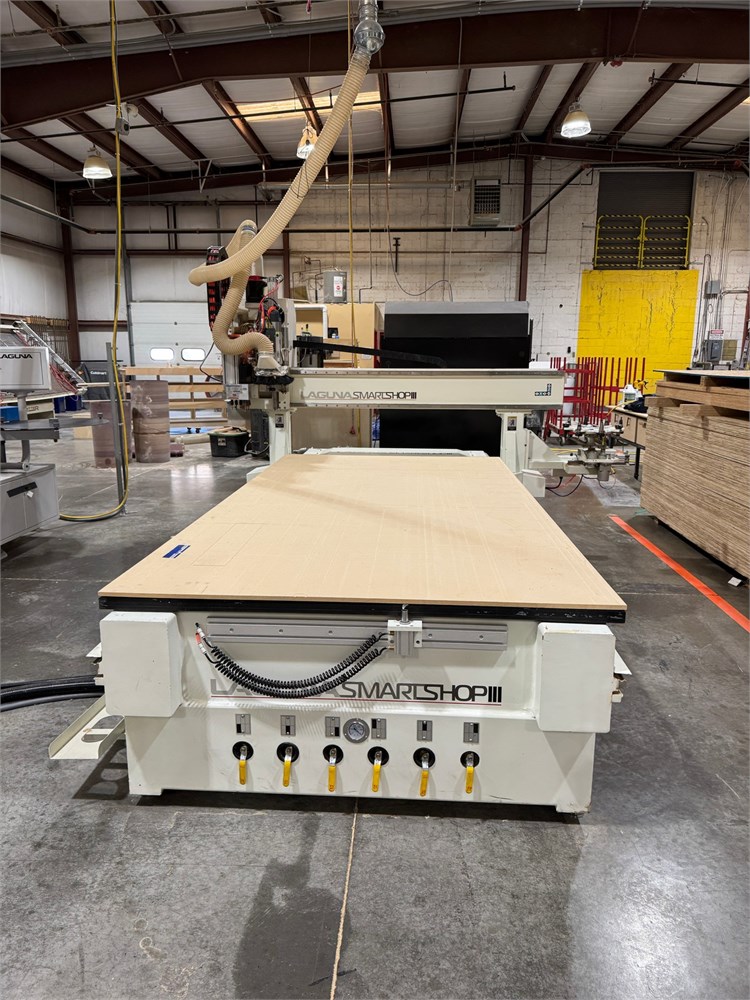

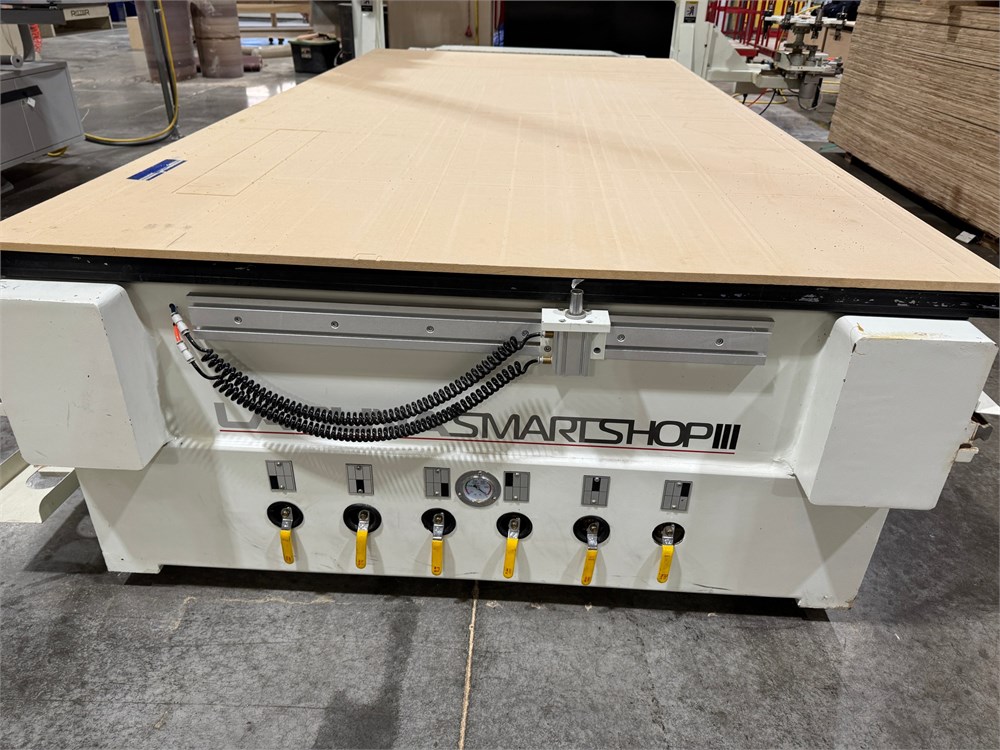

- Vacuum Table: 6 Zones

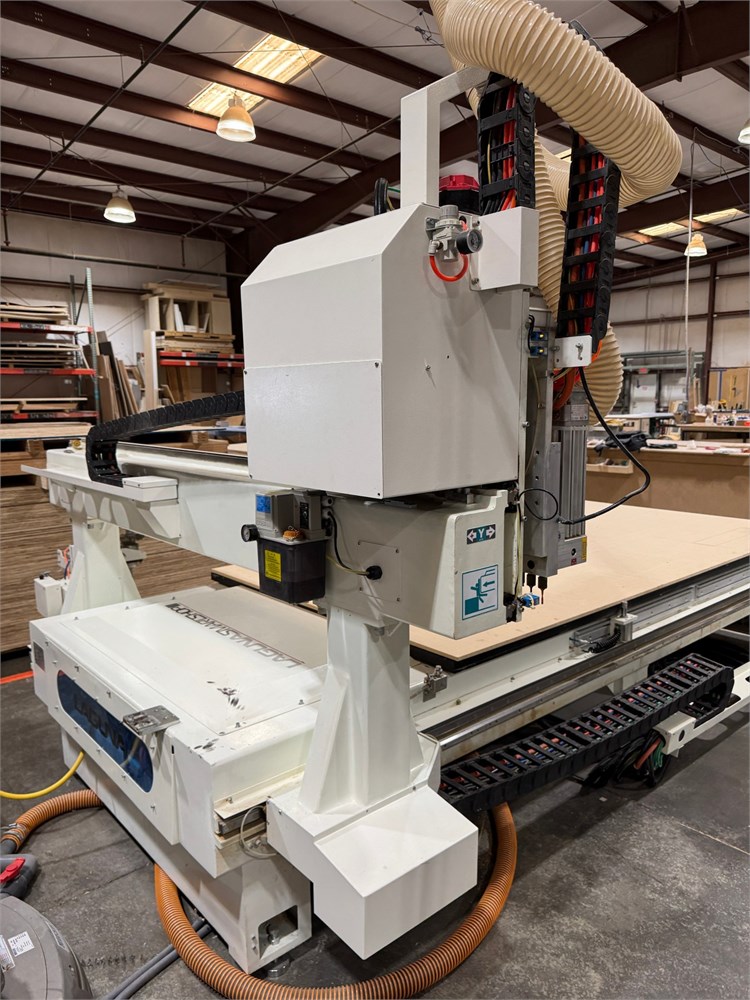

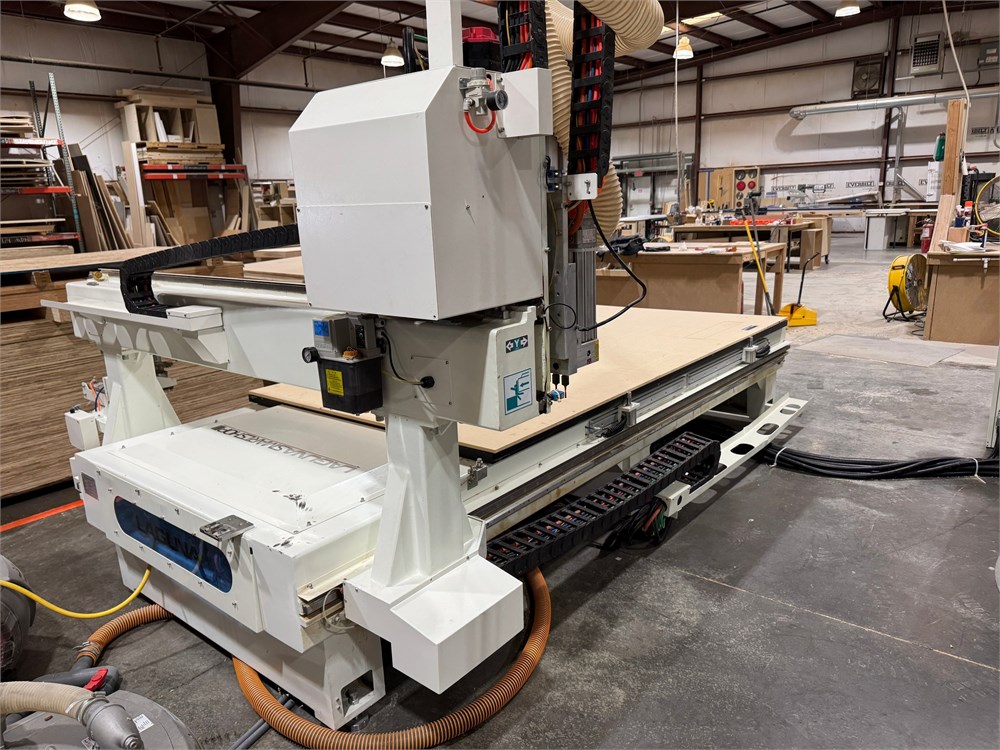

- Gantry
- FEA-Engineered Heavy Wall
- All-Steel Bridge
- Vertical Columns
- Table Support Base
- 12in Gantry Clearance
- 12in of Z-Travel
- FANUC® Servos
- Up To 3,000 IPM Rapid Travel
- Spindle Options & Details

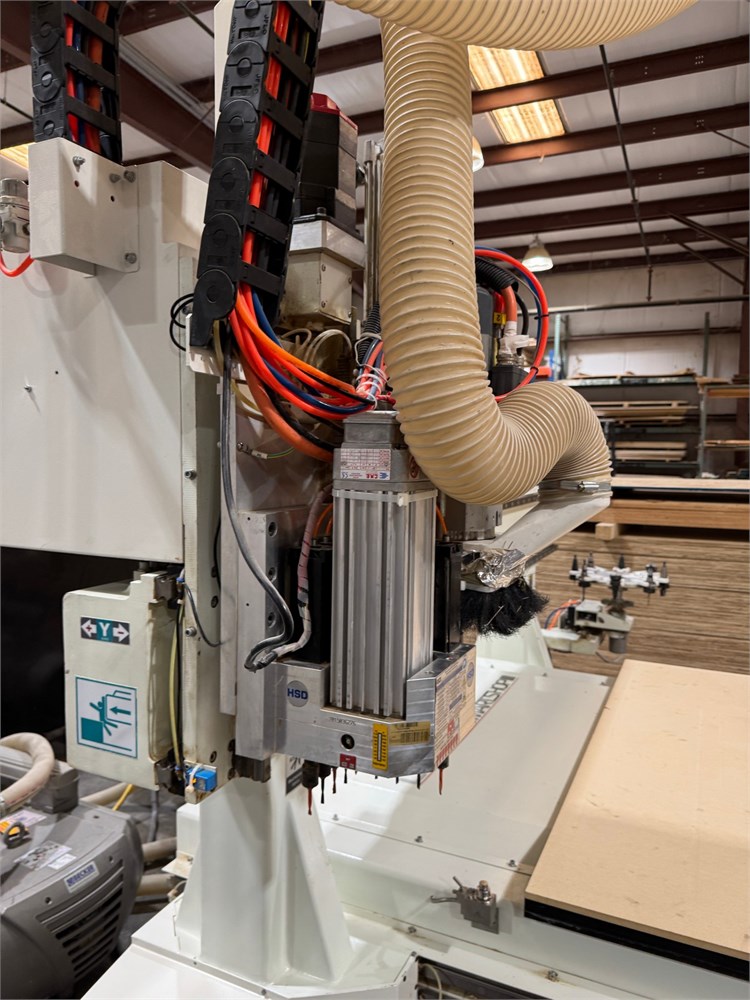

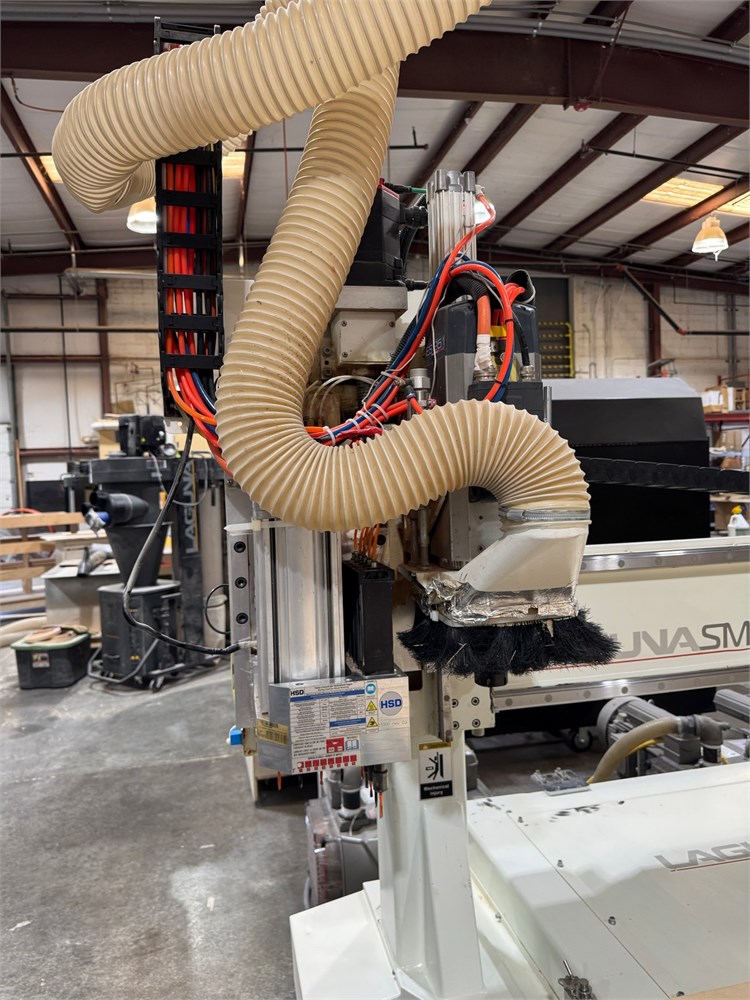

- 12HP HSD Italian-Made Air-Cooled Spindle
- HSD Boring Block Optional
- Full 3D Capacity With Helical Interpolation
- 1,600 in/min Cutting Speed
***Vacuum Pumps Not included, Listed in Lots 002 and 003
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
