Emmegi "Precision TS2" Double Head Cut off Saw
Preview
Late Model Emmegi Auction - Parker, CO
Parker, CO
Starts In remaining
Emmegi Phantomatic T3 Star and Emmegi Precision T2 Auction - Parker, CO ( Preview #71263718 )
A leading manufacturer of stile and rail MDF doors and innovative and space-saving shower door systems in the greater Denver, CO area is auctioning late model Emmegi Phantomatic T3 Star 4- Axis CNC and Emmegi Precision T2 Double Head Cut off Saw no longer required for continuing operations. This is a rare opertunity, these machines new sell for a combined price of $250,000! Please call me directly with any questions.
-
Pick Up Location
18505 Longs Way Parker, CO 80134
-
Make
Emmegi
-
Model
Precision TS2
-

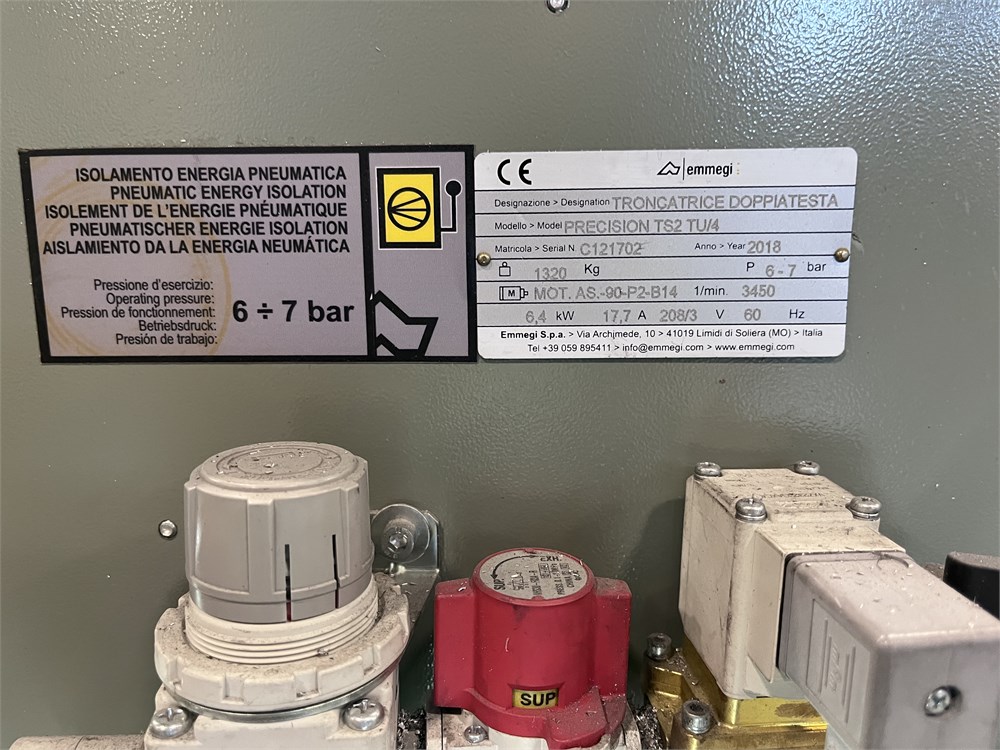

Serial Number
C121702
-
Year
2018
-
Phase
3 PHASE
-
Voltage
480 VOLT
-
Buyer Inspection Period
April 11th - April 29th, 2025 By appointment only
-
Load Out Period
April 29th - May 6th, 2025 By appointment only
-
Estimated Dimensions
192" L x 60" W x 68" H
-
Estimated Weight
5,000 Pounds
-
Seller Comment
TBD
-
Load Fee
-
Lot Notes
-
page views
85

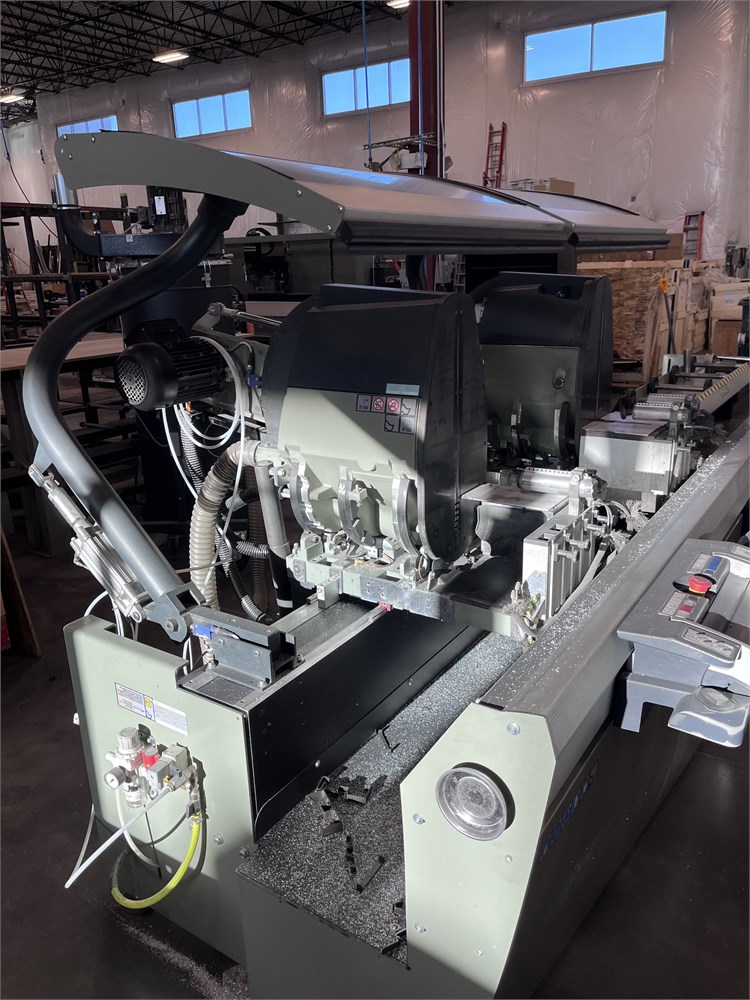

Emmegi "Precision TS2" Double Head Cut off Saw
SEE VIDEO

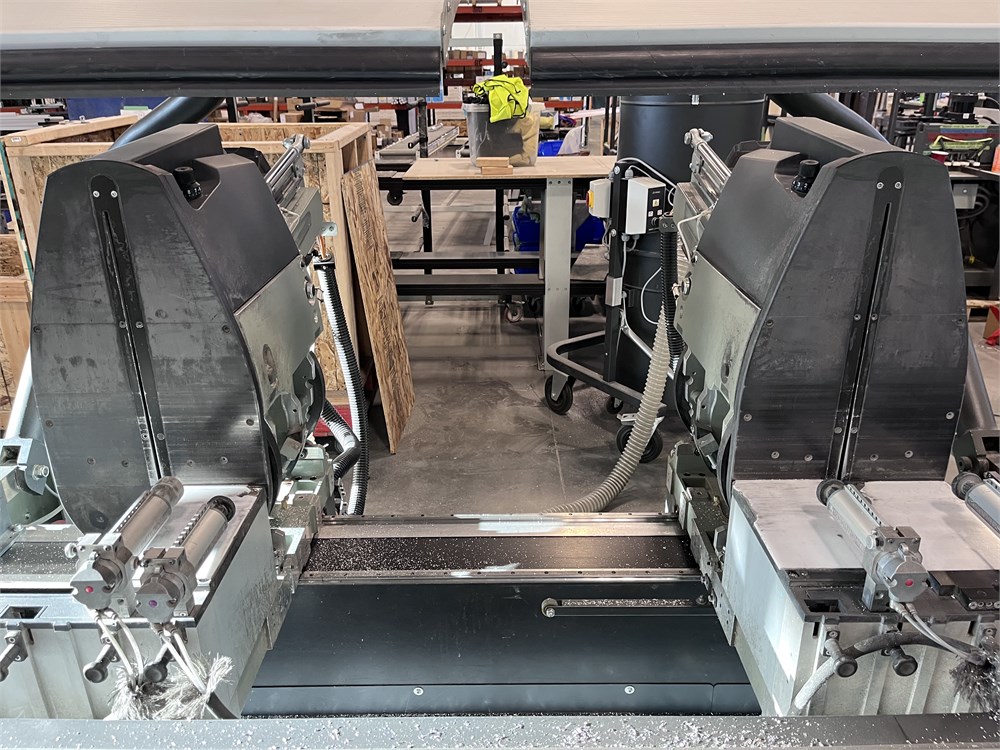

Twin-head cutting-off machine with 3 axis controlled by automatic movement of the mobile head and electronic management of all 45° (internal) to 15°(external) angles, with a precision, within each degree, of 280 positions. Advancement is driven by apair of hydro-pneumatic cylinders.The innovative virtual rotation axis of the cutting units, subject of one of the patents that accompany this machine, as well as conferring absolute rigidity to the system, allows to manage positioning and profile blocking with great accuracy. These features allow to obtain a greater cutting precision thanany other machine in its category and the name PRECISION is defined as the main feature. All axis movements take place on guides and slides on ball bearings. The automatic protections of the heads, the design of the push button control panels, front access to the electric and pneumatic panel, make it an advanced model also from a safety and ergonomic spoint of view.
Machine Features
X axis electronic control
Standard X axis positioning speed 25 m/min
Mobile head position detection via direct measuring system with absolute magnetic band
Mobile head inclination detection via direct measuring system with absolute magnetic band
Intermediate angles electronic control
Maximum internal inclination: 45°
Maximum external inclination: 15°
Hydropneumatic blade advancement
Blade diameter: 550mm
Blade motor power 2.2KW (3 HP)
Electronic measurer of profile depth

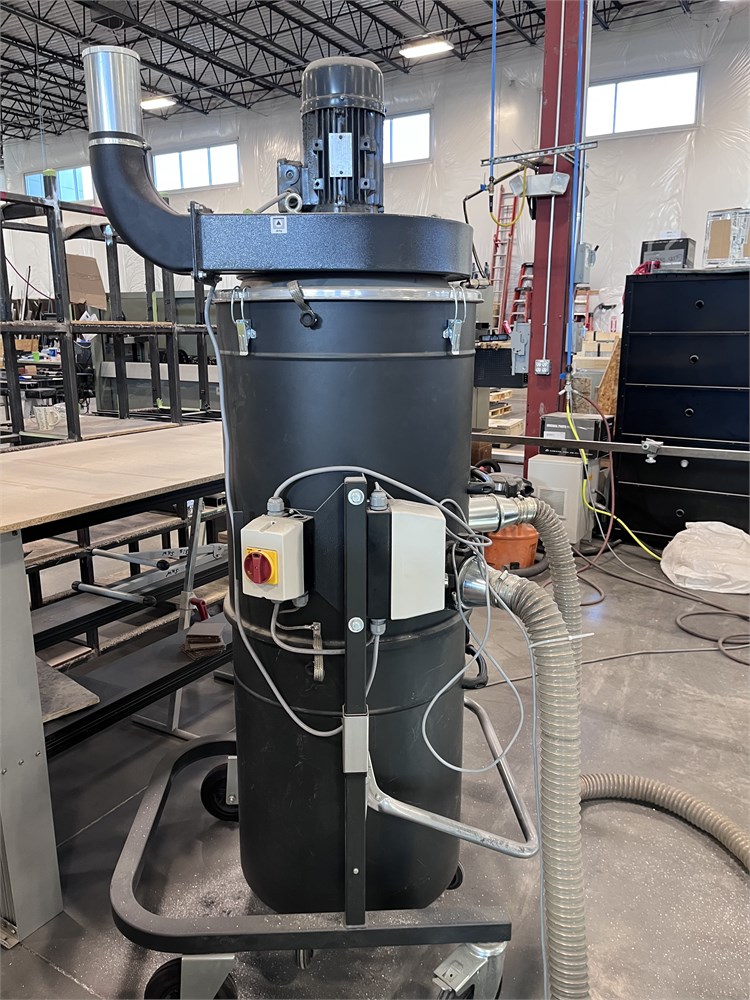

Emmegi "Swarf MG4" Dust Collection Unit included ($6,000 Value)
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
