Emmegi "Phantomatic T3 Star" 4-Axis CNC
Preview
Late Model Emmegi Auction - Parker, CO
Parker, CO
Starts In remaining
Emmegi Phantomatic T3 Star and Emmegi Precision T2 Auction - Parker, CO ( Preview #71263718 )
A leading manufacturer of stile and rail MDF doors and innovative and space-saving shower door systems in the greater Denver, CO area is auctioning late model Emmegi Phantomatic T3 Star 4- Axis CNC and Emmegi Precision T2 Double Head Cut off Saw no longer required for continuing operations. This is a rare opertunity, these machines new sell for a combined price of $250,000! Please call me directly with any questions.
-
Pick Up Location
18505 Longs Way Parker, CO 80134
-
Make
Emmegi
-
Model
Phantomatic T3 Star
-
Serial Number
-
Year
2018
-
Phase
3 PHASE
-
Voltage
460 VOLT
-
Buyer Inspection Period
April 11th - April 29th, 2025 By appointment only
-
Load Out Period
April 29th - May 6th, 2025 By appointment only
-
Estimated Dimensions
220" L x 84" W x 72" H
-
Estimated Weight
8,000 Pounds
-
Seller Comment
TBD
-
Load Fee
-
Lot Notes
-
page views
101
Emmegi "Phantomatic T3 Star" 4-Axis CNC
SEE VIDEO

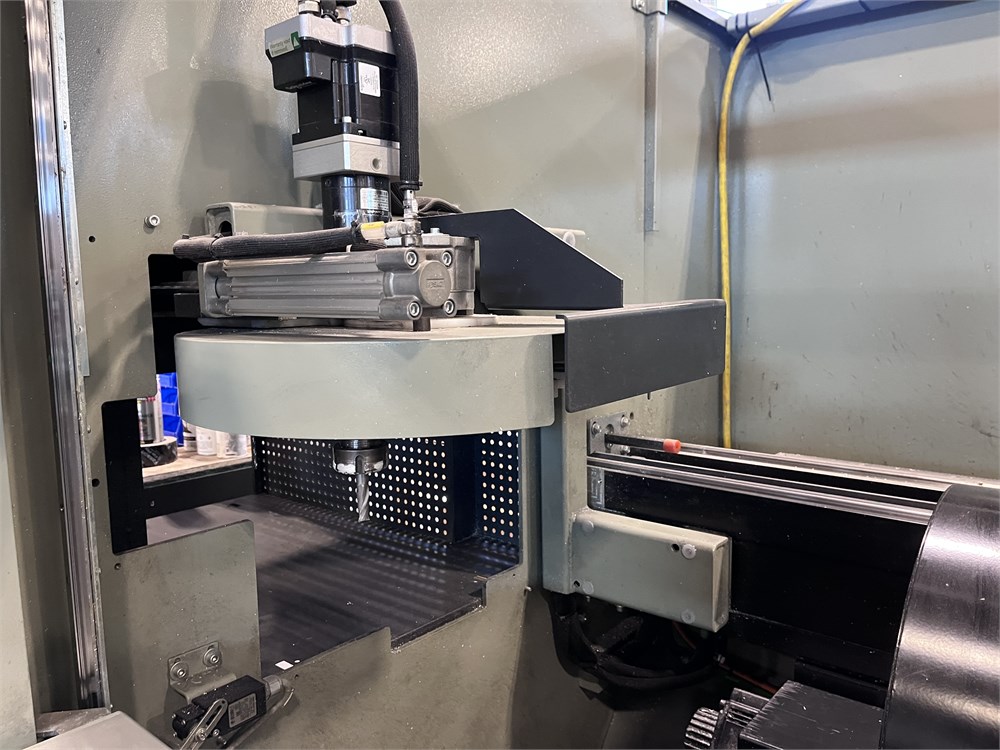

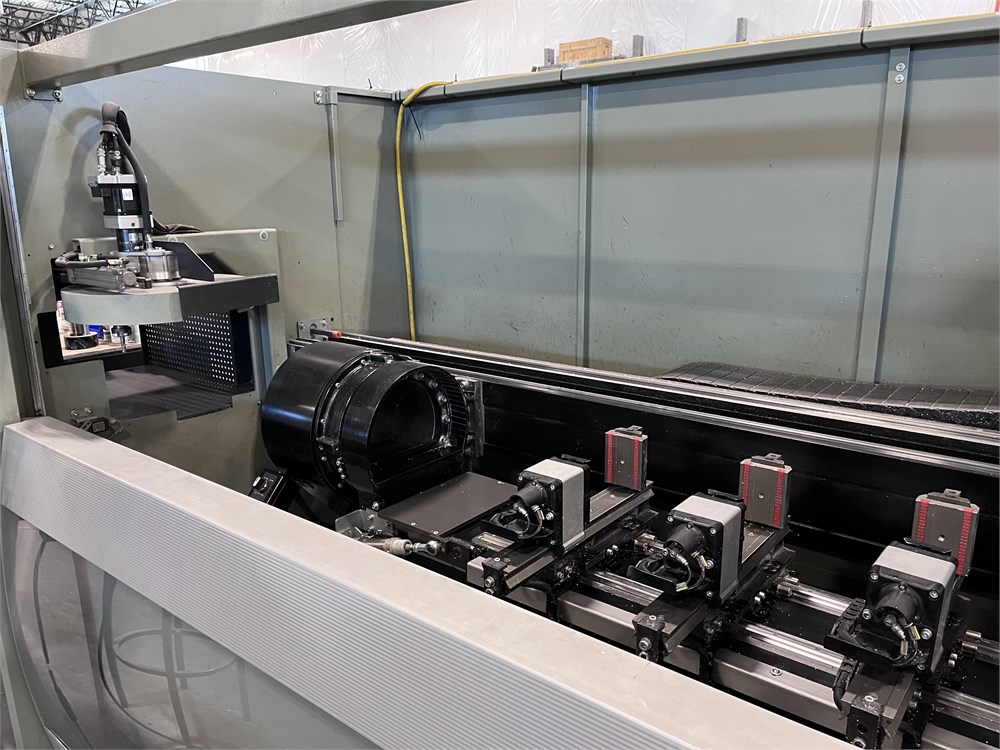

Emmegi’s "Phantomatic T3 Star" is a CNC machining centre with (4) controlled axes, designed for machining bars or parts made of aluminium, PVC, light alloys or steel wall thicknesses up to 3mm. The machine comes standard with a (4) position tool magazine including a provision for accepting up to (2)angle machining heads and (1) side milling cutter in order to be able to machine on all (5) faces of the workpiece. Thanks to the high-speed (N/C) rotary bed design it is possible to work at any angle from 0° to180°and on both ends of the work piece using the anglemachining heads and the table positioned at 0°degrees. The new T3 Star model also features a longer bed length and advanced features in the accessdoor design, operator interface and quick-change tool magazine
Machine Specifications
Axis travel X4300 mm (169 in.) or 14’ft
Y- Axis (cross) :270 mm (10.6 in)
Z-Axis (vertical) :300 mm (11.8 in)
A-Axis (rotation) :0° - + 180°
Positioning Speed
X Axis (m/min) 56 (36.7 in/sec)
Y Axis (m/min) :22 > (14.4 in/sec)
Z Axis (m/min) :22 > (14.4 in/sec)
Axis Acceleration
X Axis (m/sec)4,6 > (181 in/sec)
Y Axis (m/sec)1,8>(70.9 in/sec)
Z Axis (m/sec)1,8 > (70.9 in/sec)

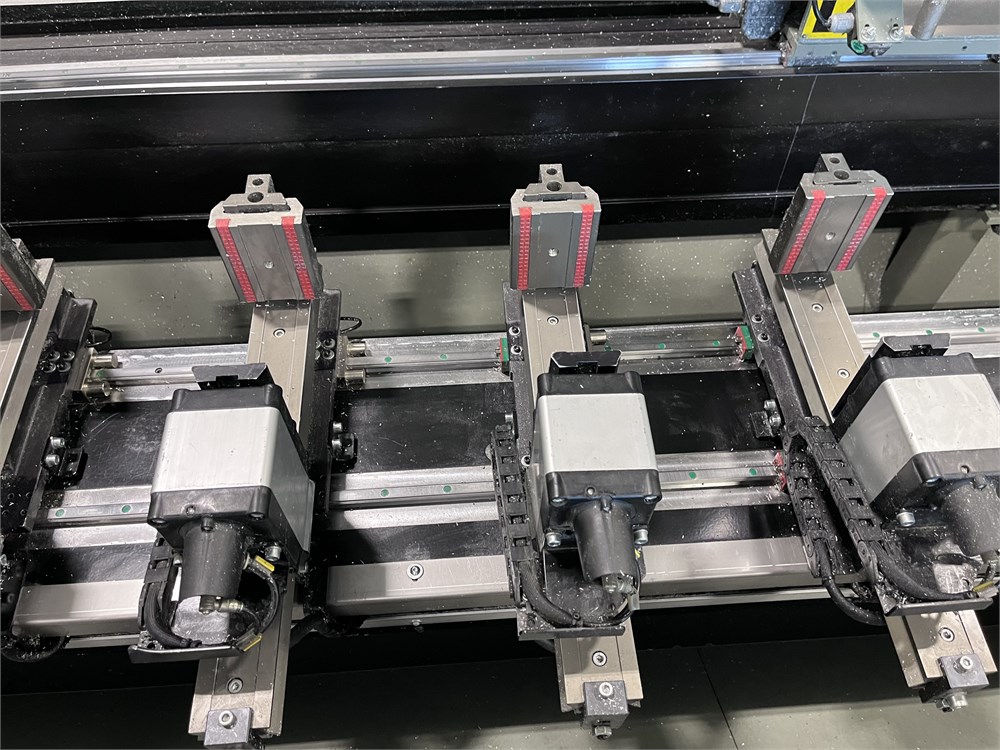

Maximum number of clamps Four (4)
Automatic vice positioning along X-axis

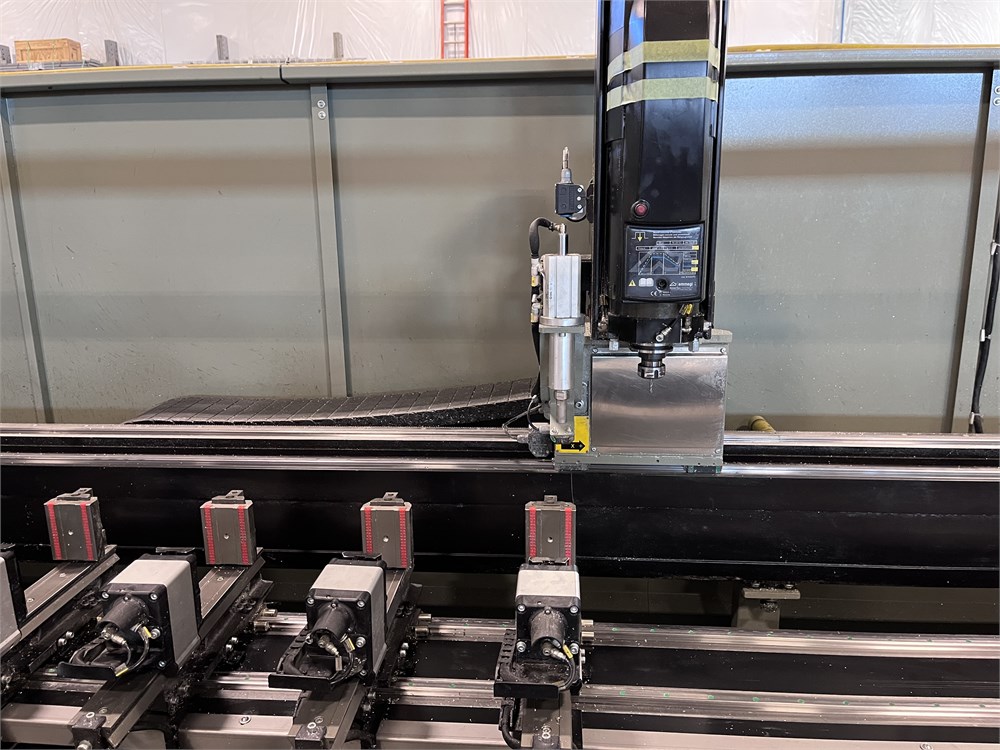

Clamp Positioning:The clamp positioning location along the X-Axis is automatically calculated by the programming software and physically placed using the mechanical positioning device mounted to the main spindle.This feature assures the correct clamp placement toallow the spindle access to all programmed machined features without the possibility of clamp collision.
Once the parts are completed, the clampswill automatically re-position themselves for the next part that is to be run. Clamp positions are alwaysdirectly displayed on the monitor for the operators viewing
Power Rating 5.5 (KW) (7.4HP)
Max. Speed 18,000 RPM
Tool Holder HSK-63F
Automatic tool holder clamp engagement
Air Cooled Spindle (with electrically-driven fan)
Tool Magazine
Maximum Number of tools in tool magazine Eight (8)
Number of angle machining heads loadable in magazine Two (2)
Maximum blade diameter loadable in magazine 180mm (7.0”in)
Trough-hole w/Length Compensation M8
Single-Piece Mode up to 4M (13.1’ft) Length
Multi-Piece Mode Up to 2 separate pieces each 60” in Length
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
