SCM "CPC Action P" Case Clamp (2019)
Active
Late Model Machine Auction - San Jose, CA
San Jose, CA
- Current Price : $5,600.00 USD ( ) No Reserve
- 5 Bid(s)
- High Bidder: O****3
Omal CNC Drill Dowel and CPC Case Clamp Auction - San Jose, CA ( Active #71245760 )
Late Model Machines up for auction for continuing operations of high end cabinet shop in San Jose, California. Auction items include 2019 Omal HBD-1300OF CNC Drill and Dowel Insertion machine, 2019 CPC Action P Case Clamp, and 2019 Jolly Colla Glue Shooter. All machines have only been used for a small number of jobs.
-
Pick Up Location
431 Perrymont Avenue, San Jose CA 95125
-
Make
SCM Group
-
Model
CPC Auction P Case Clamp
-

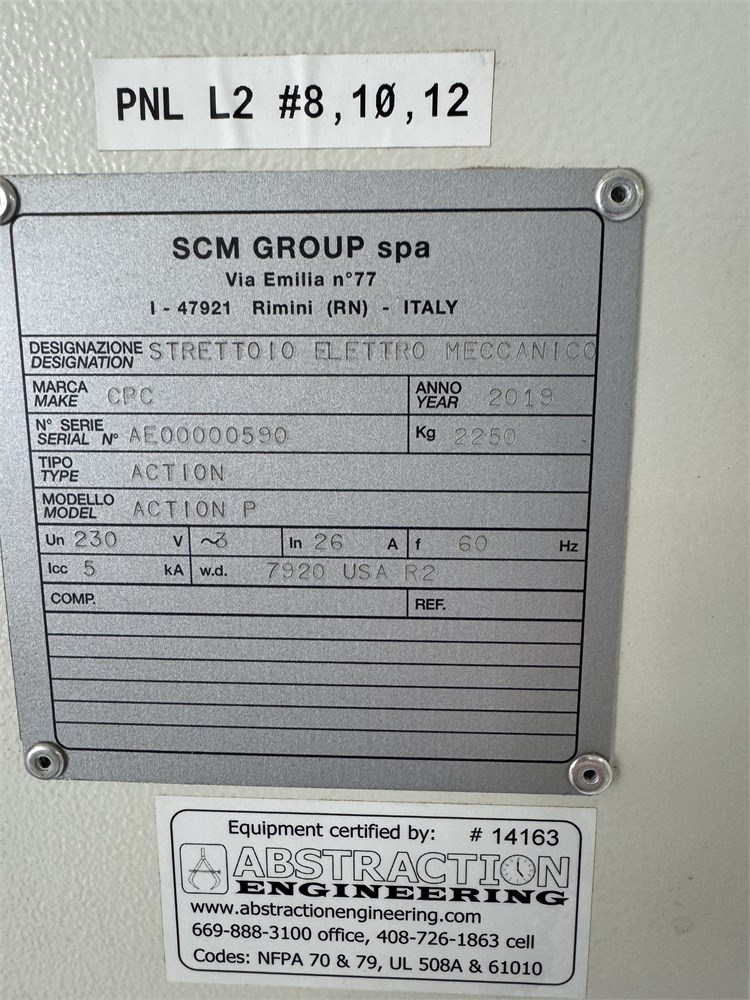

Serial Number
AE00000590
-
Year
2019
-
Phase
3 PHASE
-
Voltage
230 VOLT
-
Buyer Inspection Period
By appointment only, contact Kirk Gass, [email protected], 925-250-8248
-
Load Out Period
April 28th thru May 2nd, 2025
-
Estimated Dimensions
156" L x 53" W x 92" H
-
Estimated Weight
Approximately 5100 lbs.
-
Seller Comment
This Lot requires a Rigger
-
Load Fee
-
Lot Notes
-
page views
145

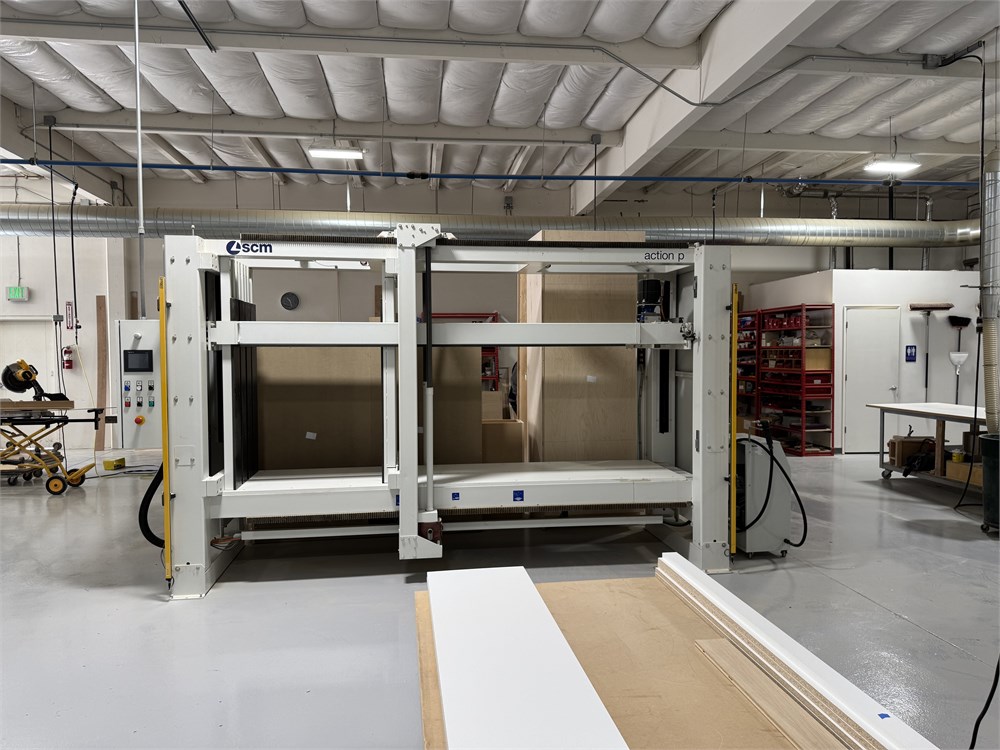

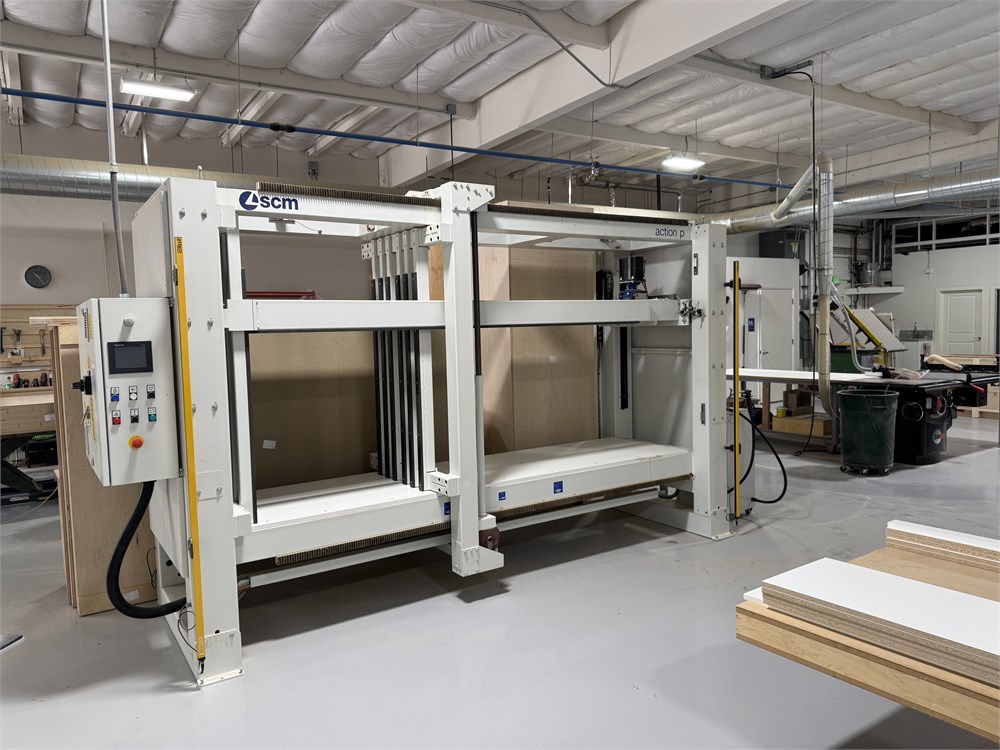

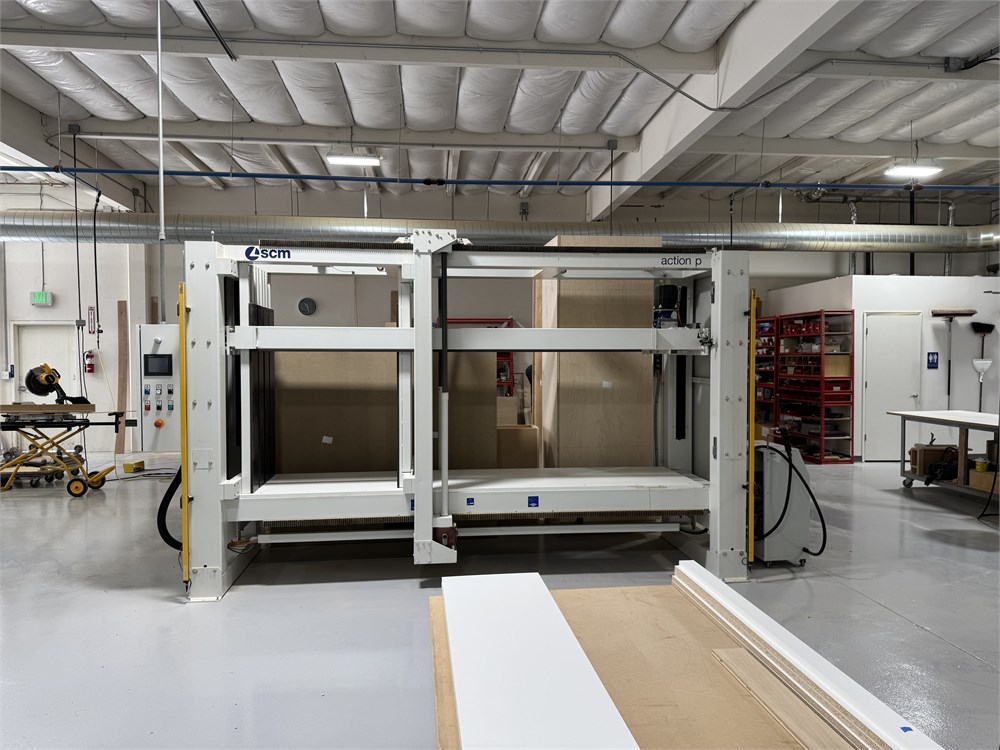

(2019) SCM "CPC Action P" Case Clamp
ACTION P2500 is a front loading electric clamp with reinforced framework of thick steel protected by epoxy priming and polyurethane two-component paint
- The clamp is capable of obtaining extremely strong operating pressures that guarantee closing of boxes with up to 5 dowels per shelf (each side) and multiple shelves.

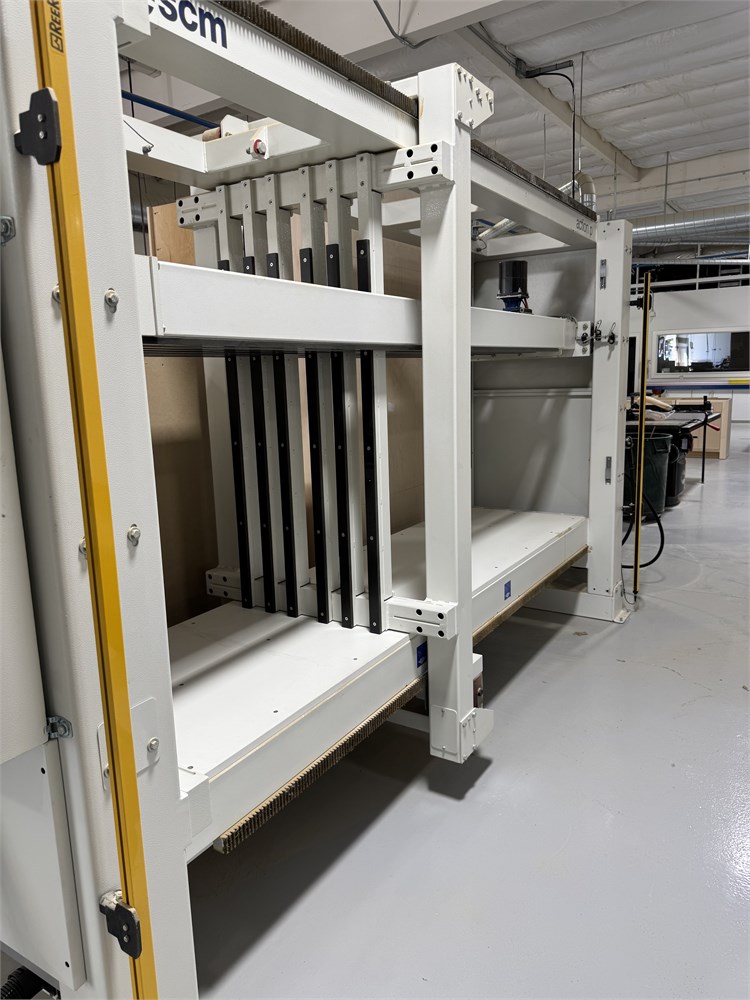

- (6) Interlocking horizontal bars with (7) Vertical bars for closing the clamp

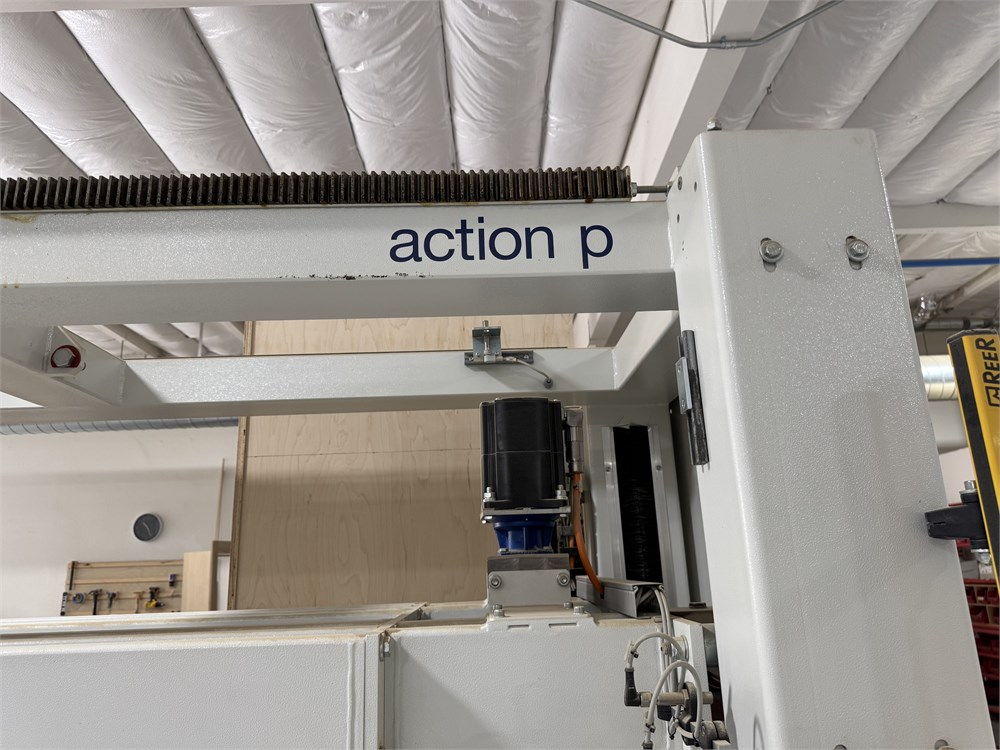

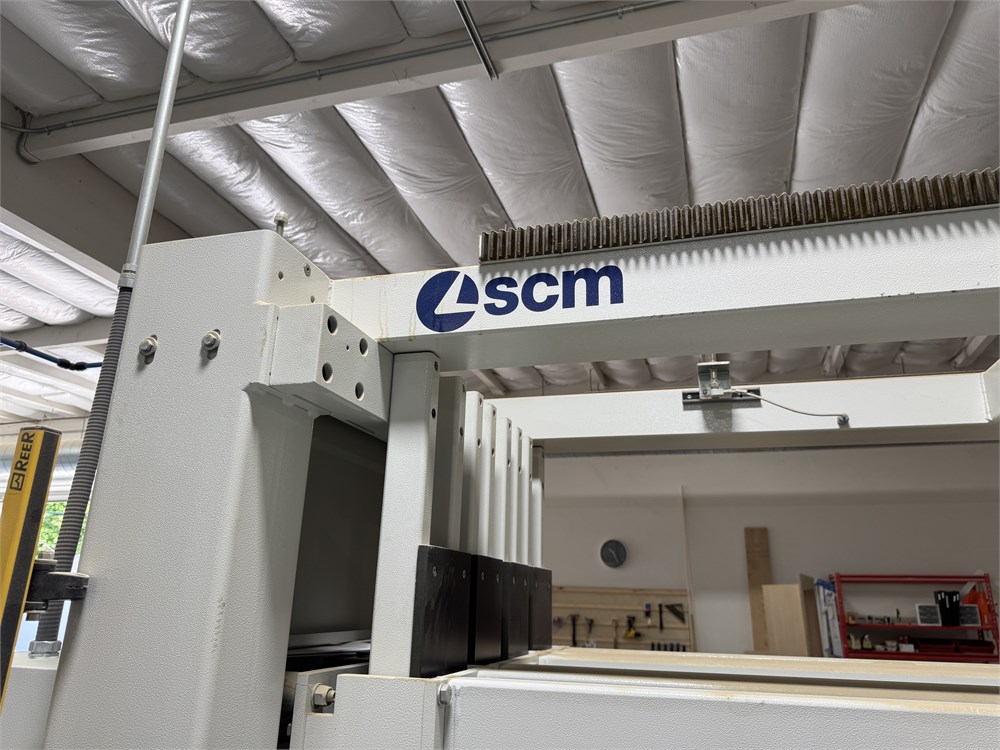

- Rack and pinion guides at all (4) corners of the top platen and side pressor keep the all sides square

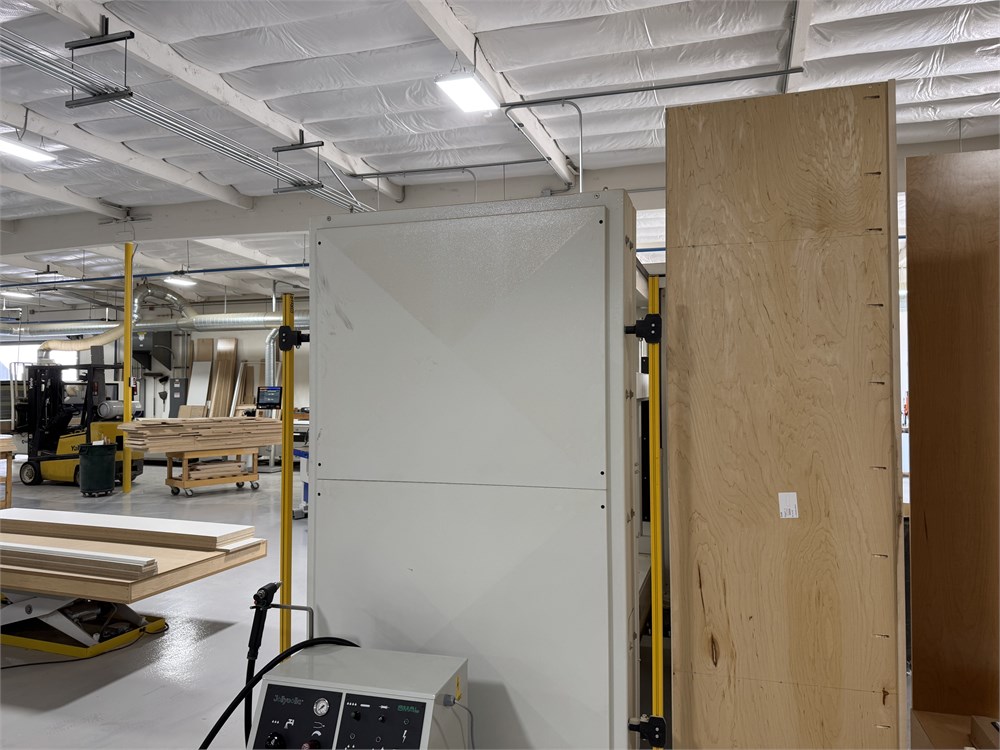

- Machine is supplied with front and rear photo cell barriers
- Sizes of box can be input for efficient cycle control when running repetitive box closings
- The vertical and horizontal pressure is adjustable according to the type of furniture to be assembled
- Production capacity of up to 200 cases per shift
- Possibility to sequence different furniture pieces without manual intervention
- Pressure supplied by infinitely adjustable brushless electro-motors

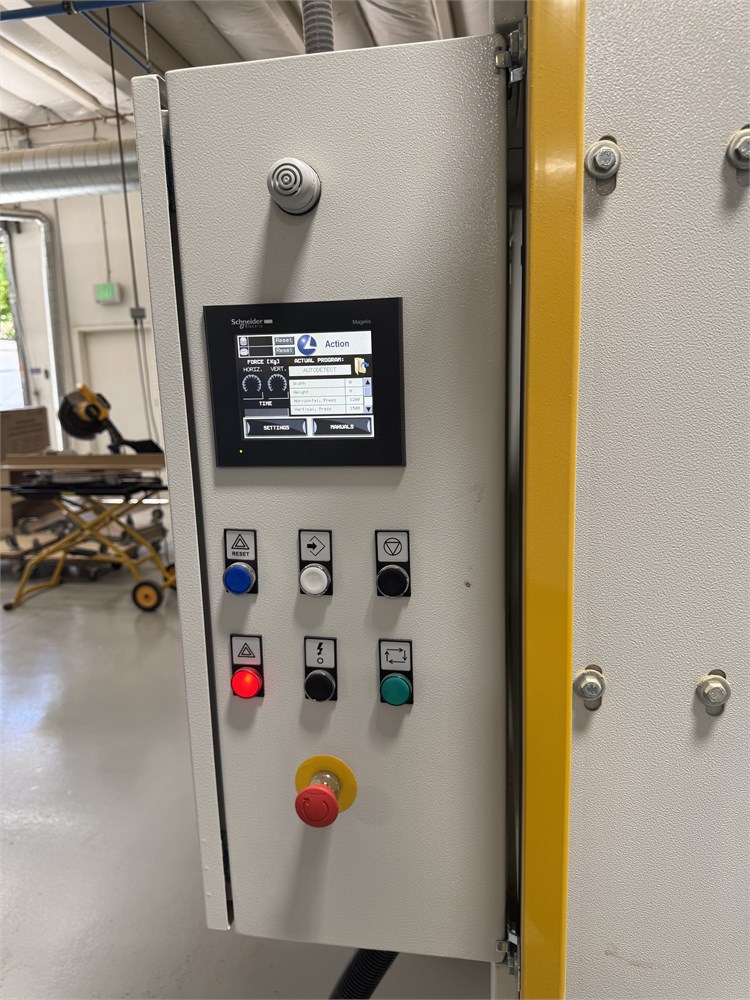

- Color touchscreen utilizes presets for different clamp pressures
- Maximum box width: 98.4" (7.8" minimum)
- Maximum box height: 49.2" (8.7" minimum)
- Maximum box depth: 31.5" (4" minimum)
- Total installed power: 6 kW
- Worktable height: 24"

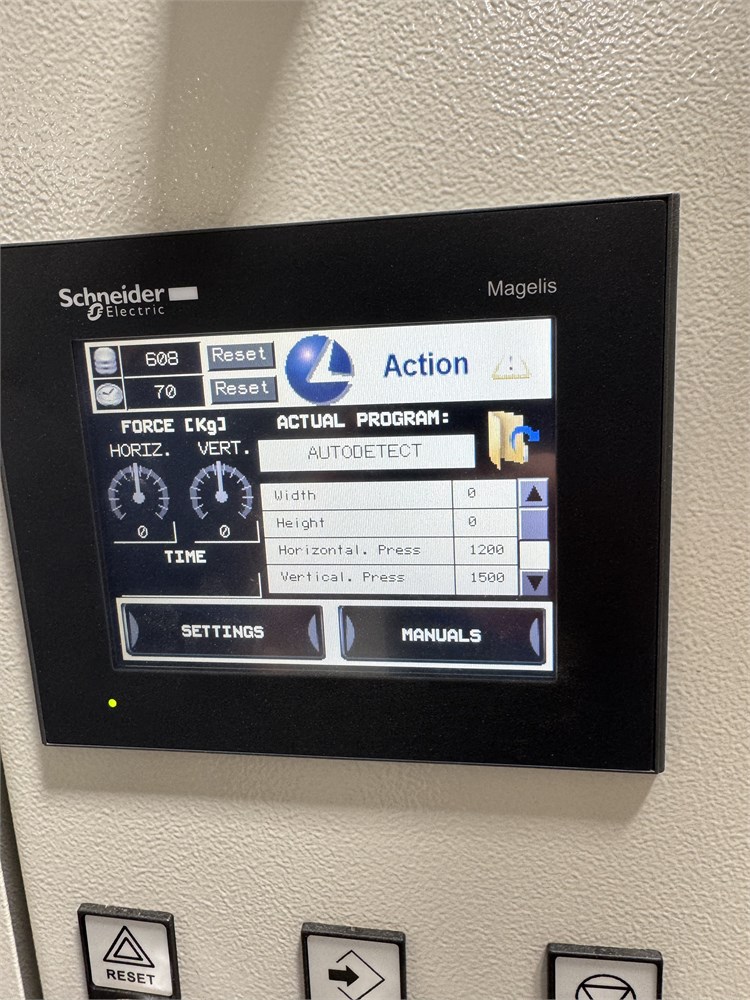

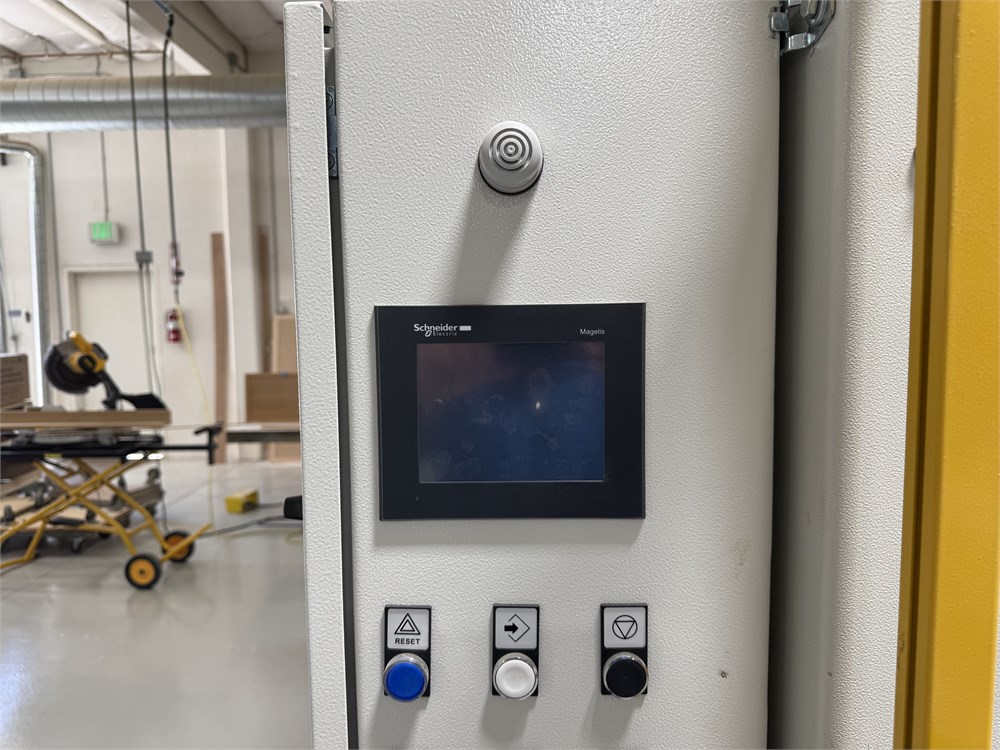

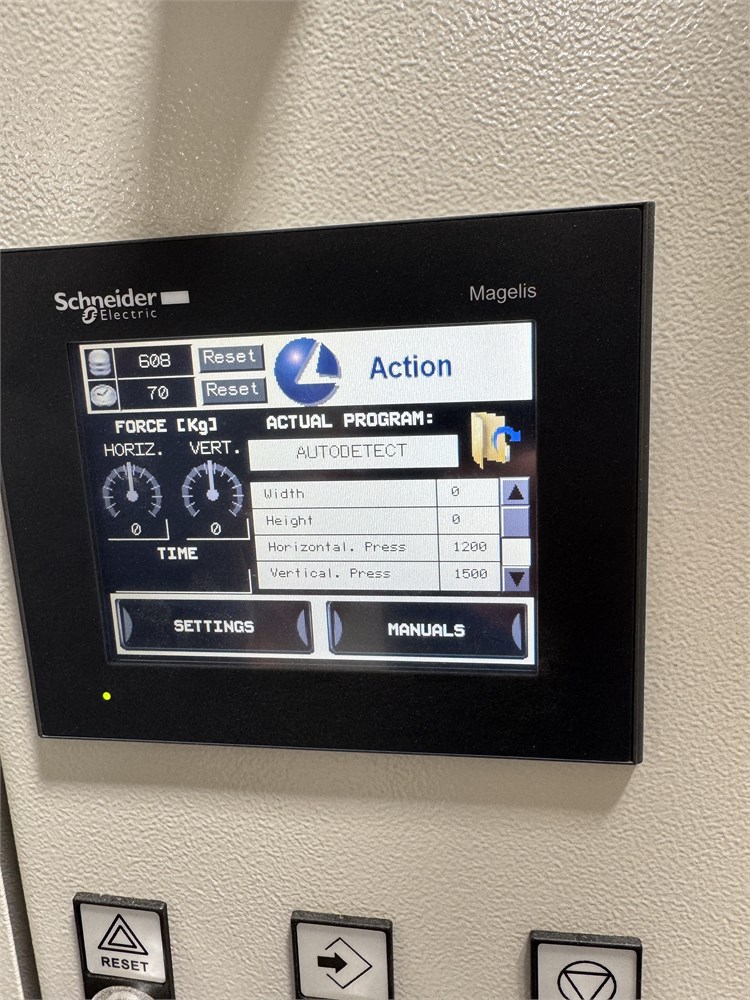

- 5.7" Touchscreen panel with software by CPC in order to program cycles
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
