Omal "HBD 1300 OF" CNC Drill and Dowel machine (2019)
Ended
Late Model Machine Auction - San Jose, CA
San Jose, CA
- Winning Bid : $15,800.00 USD Sold
- 44 Bid(s)
- High Bidder: n****e
Omal CNC Drill Dowel and CPC Case Clamp Auction - San Jose, CA ( Closed #71245760 )
Late Model Machines up for auction for continuing operations of high end cabinet shop in San Jose, California. Auction items include 2019 Omal HBD-1300OF CNC Drill and Dowel Insertion machine, 2019 CPC Action P Case Clamp, and 2019 Jolly Colla Glue Shooter. All machines have only been used for a small number of jobs.
-
Pick Up Location
431 Perrymont Avenue, San Jose CA 95125
-

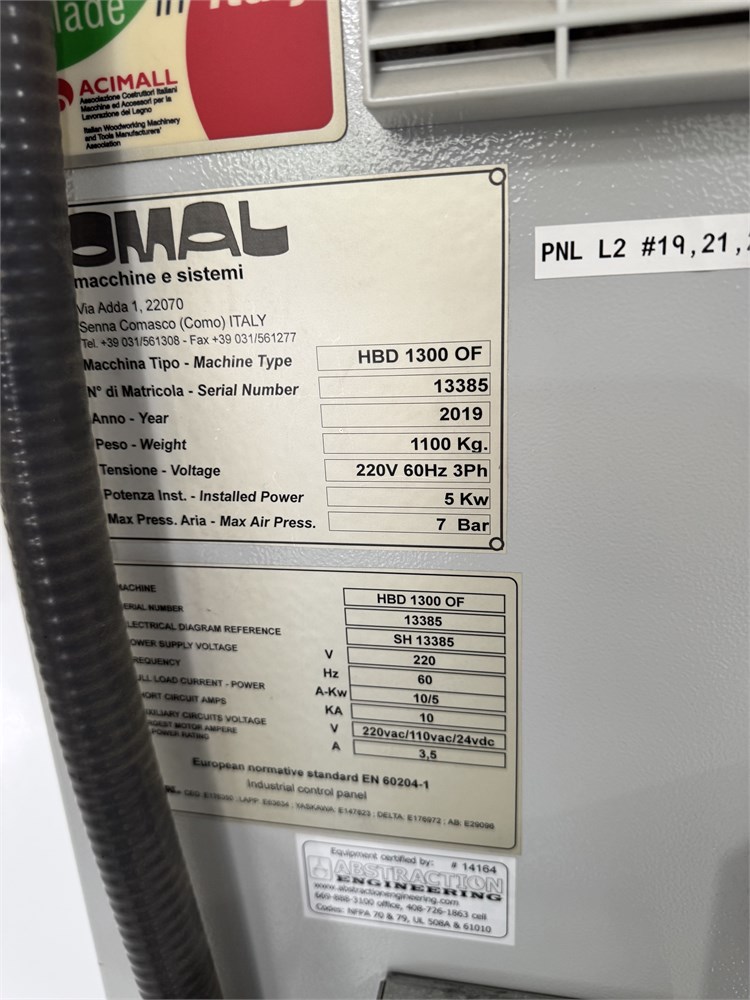

Make
SCM Group
-
Model
Omal HBD-1300 OF CNC Drill and Dowel machine
-

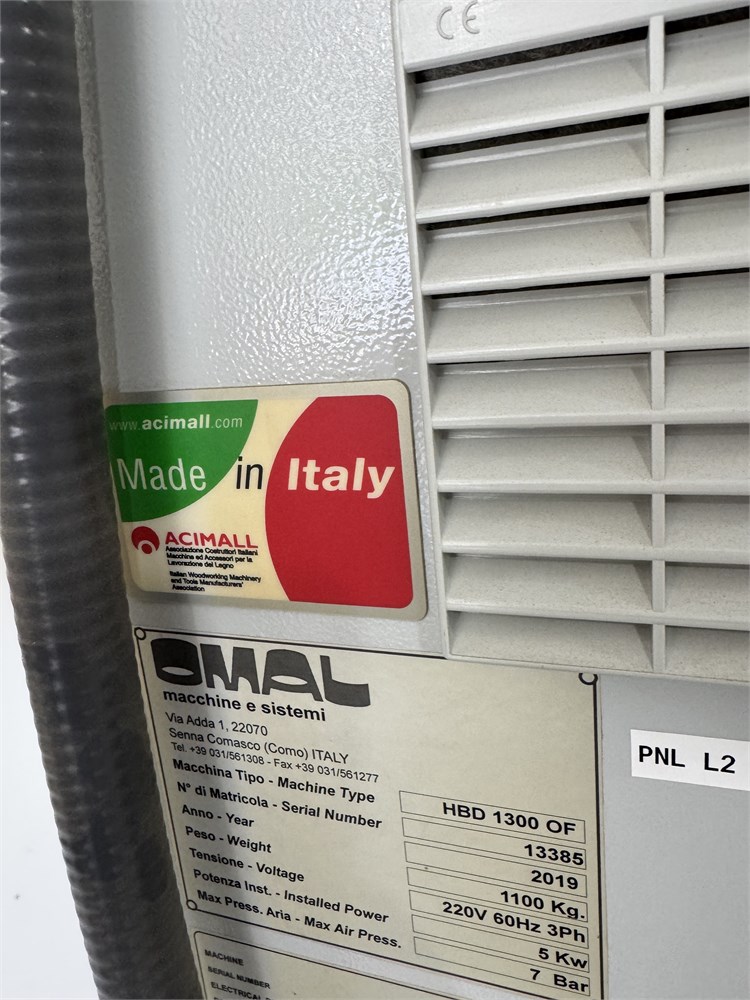

Serial Number
Omal 13385
-
Year
2019
-
Phase
3 PHASE
-
Voltage
230 VOLT
-
Buyer Inspection Period
By appointment only, contact Kirk Gass, [email protected], 925-250-8248
-
Load Out Period
April 28th thru May 2nd, 2025
-
Estimated Dimensions
108" L x 60" W x 80" H
-
Estimated Weight
Approximately 2500 lbs.
-
Seller Comment
-
Load Fee
500
-
Lot Notes
-
page views
658

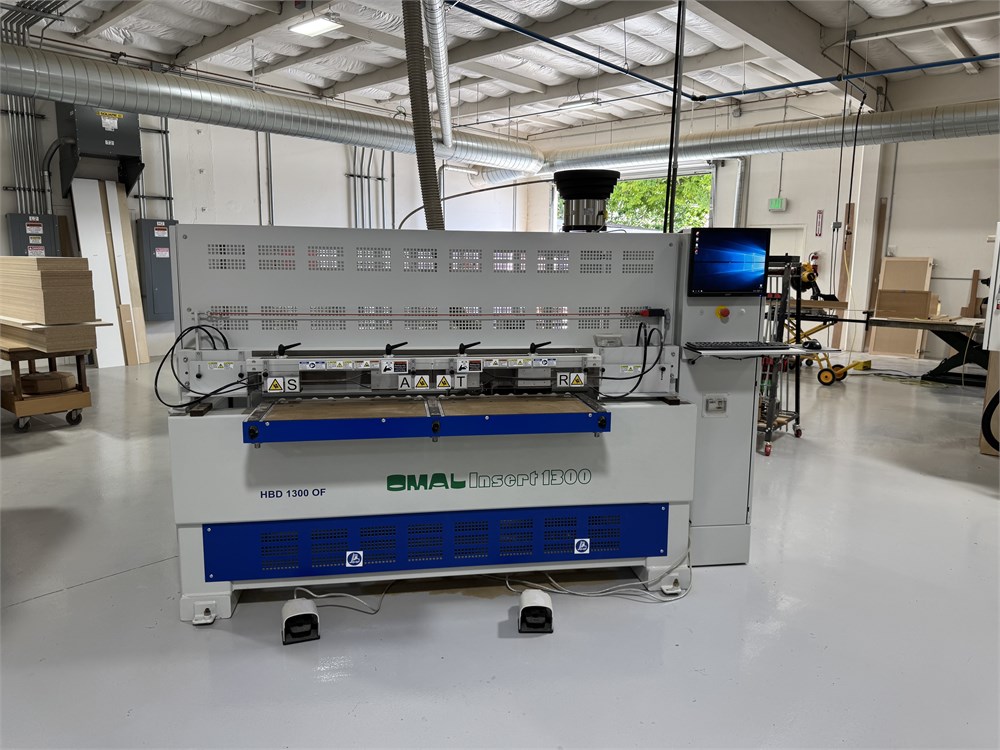

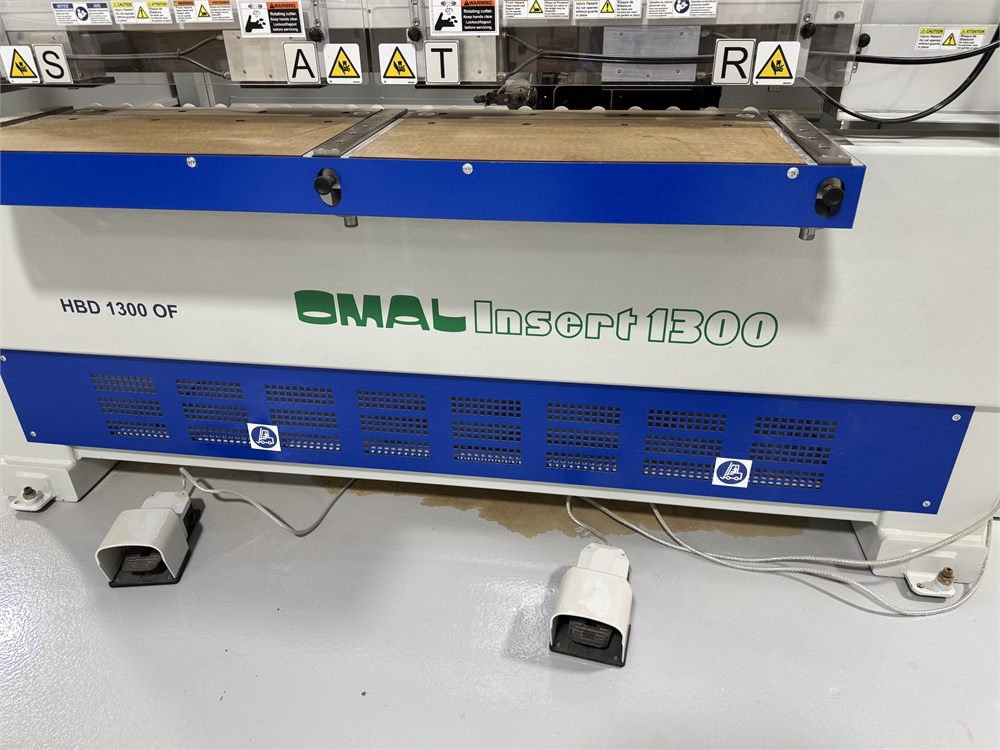

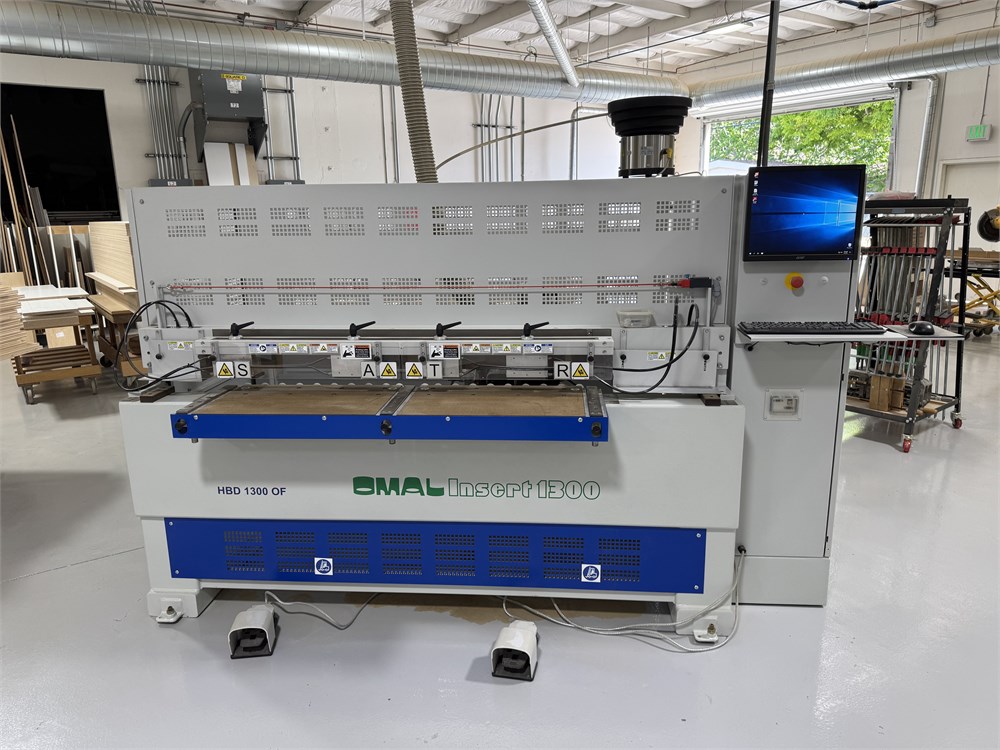

(2019) Omal "HBD 1300 OF" CNC Drill and Dowel machine
NC Controlled automatic step-by-step, boring, glue injection & dowel insertion into panel components, drawer parts, chair pieces, etc. at random spacing. with Laser measuring.
X-axis work area,1300 mm (51"). Y-axis, (depth) max. 40 mm (1.57"), Z-axis (thickness manual setting) max. 40 mm (1.57") - positioning speed 164 FPM (50 MPM).
Width LASER sensor to automatically measure width of panel and calculate number of dowels based on a template file. Template file can be modified from the list. (Laser tolerance subject to edge integrity, straight edge +/- 0.2mm)

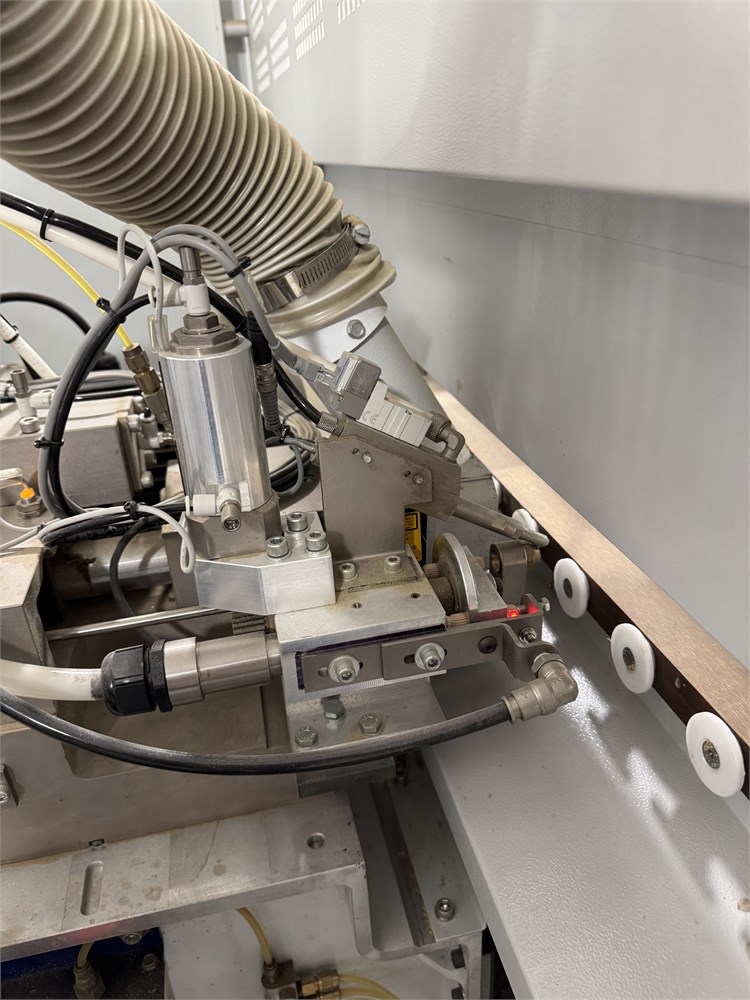

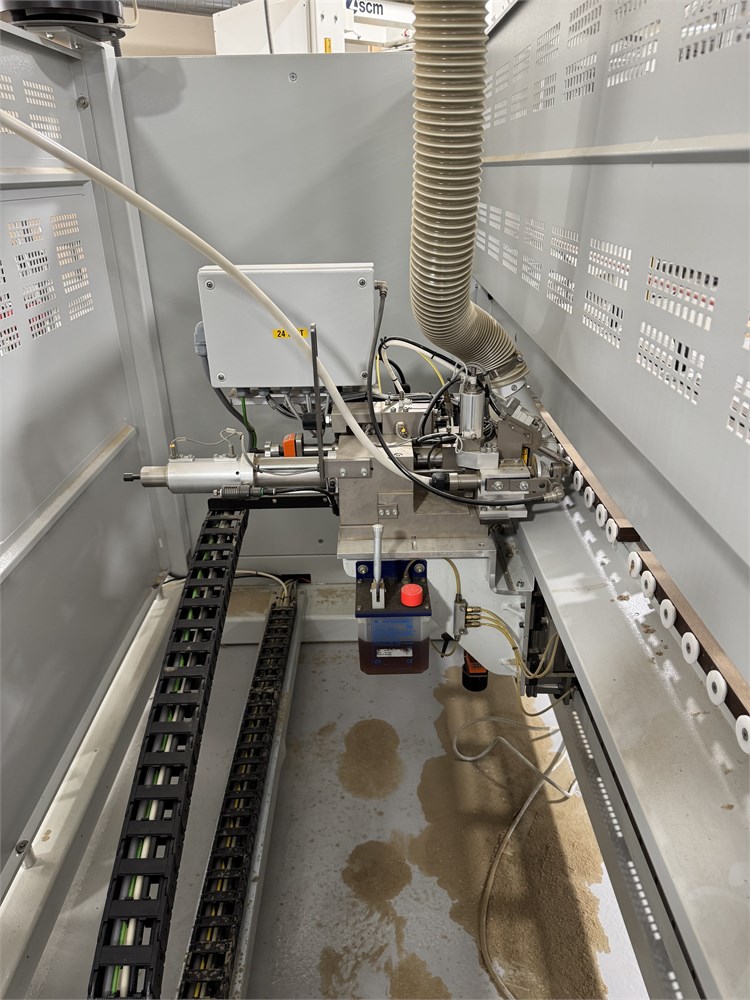

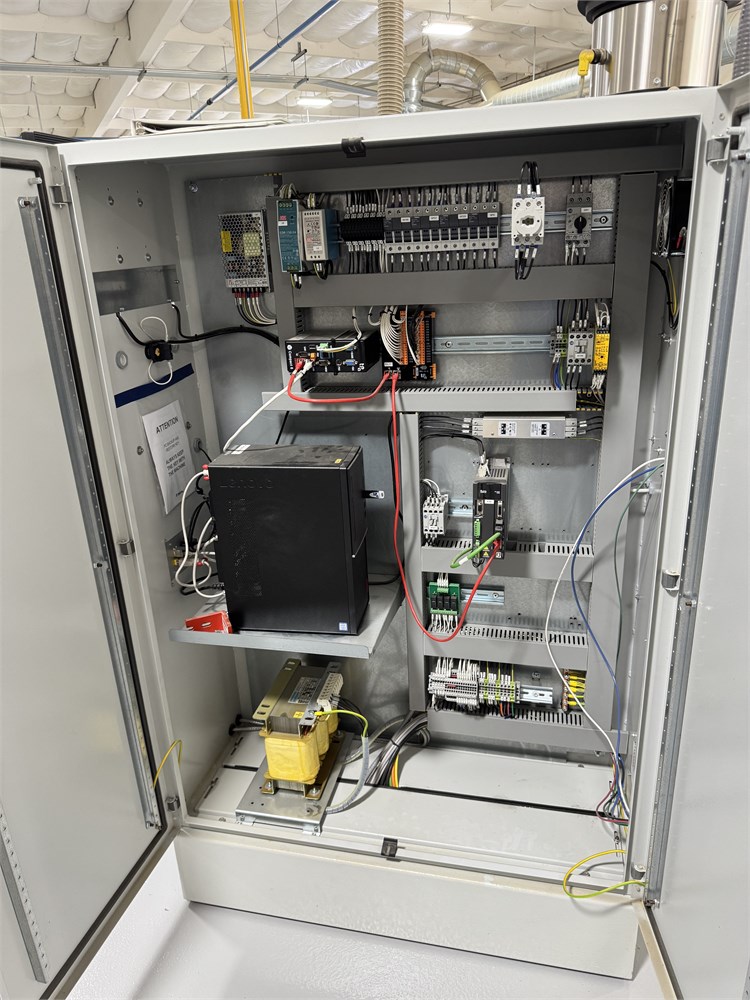

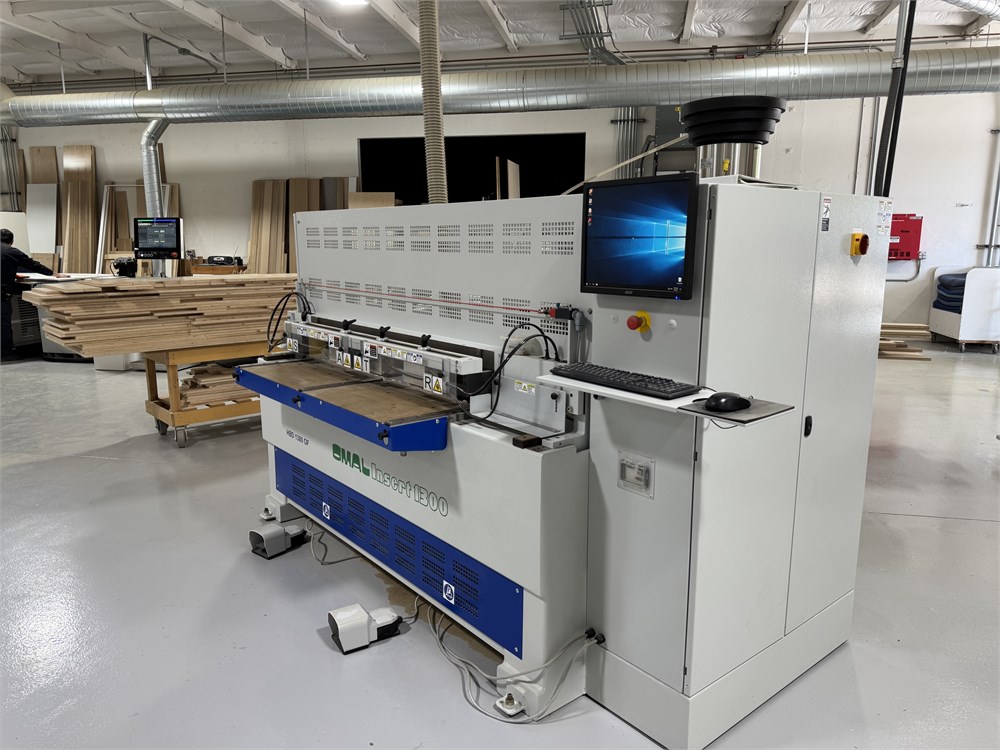

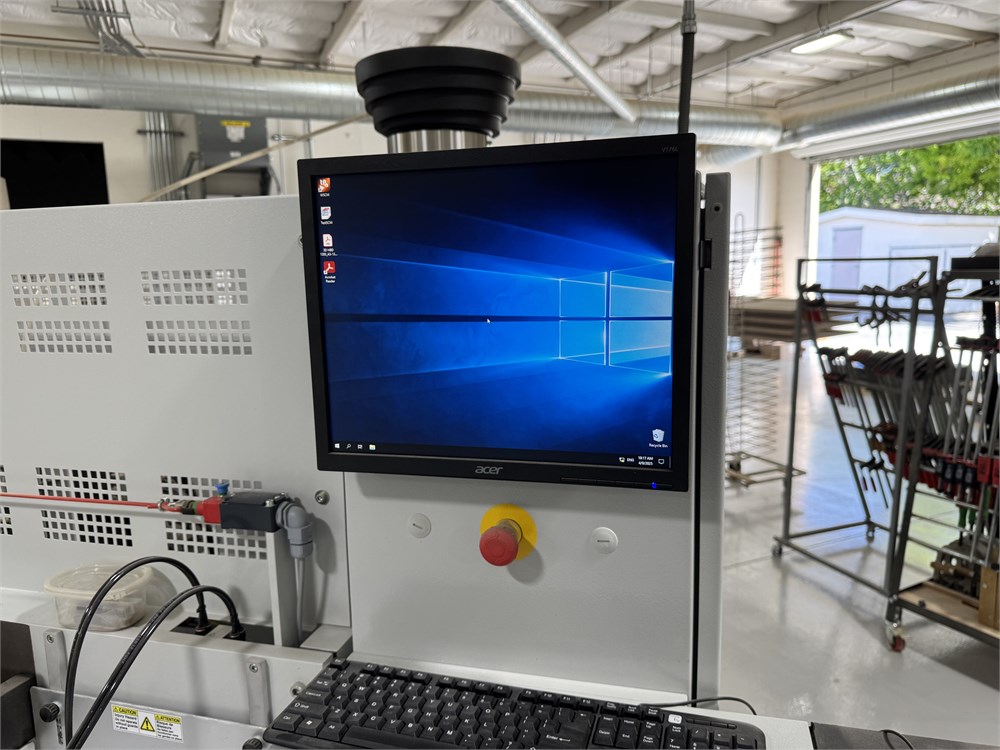

PC Controller with Windows operating system, flat screen color monitor, industrial keyboard, mouse, 40GIG hard drive; USB port; bar code scanner; (4) working zones, retractable center fence, useful for processing smaller parts like drawers, stretchers etc. One (1) 1-HP NC controlled horizontal drilling unit, gluing and (1) dowel insertion unit.

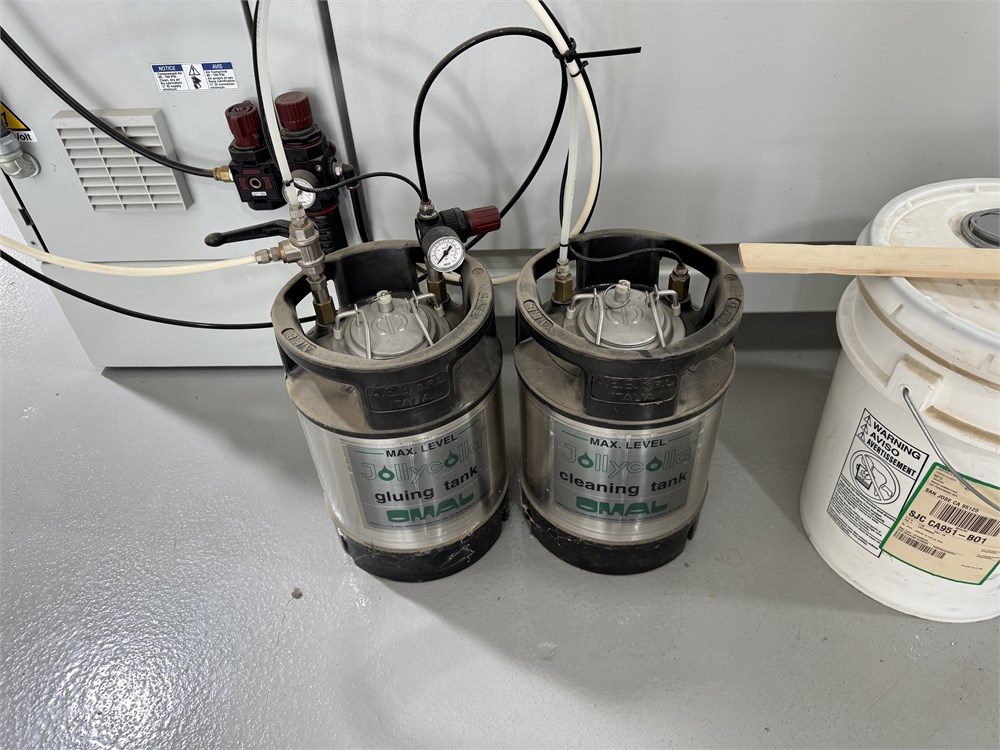

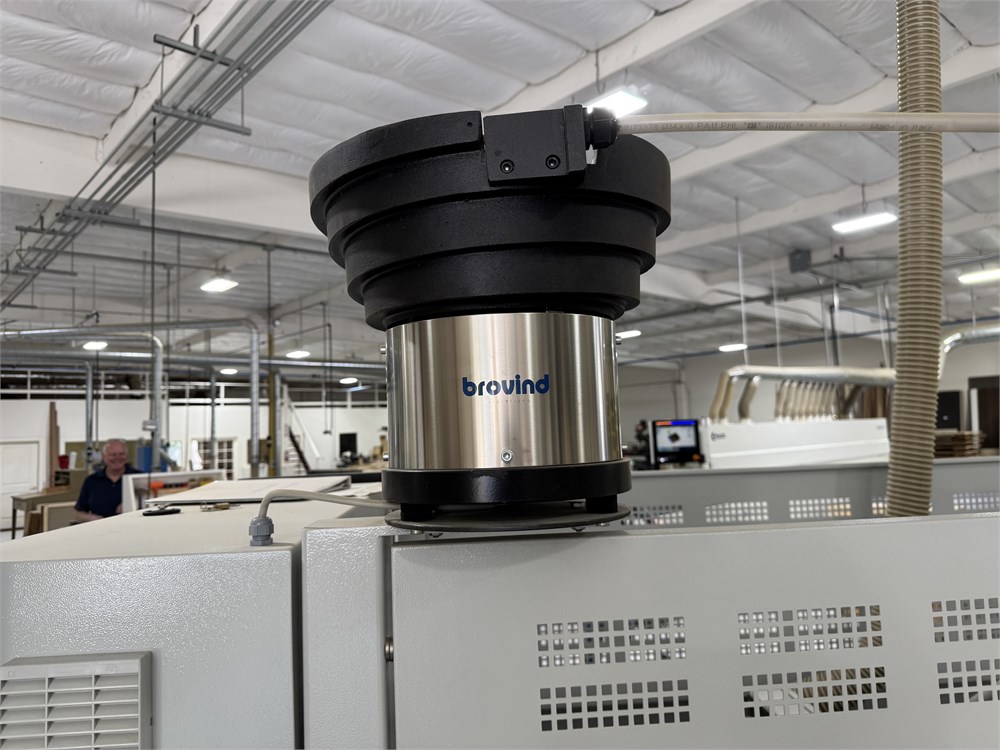

(1) 8-Liter cap. high pressure glue tank, (1) 8-liter cap. water tank (for cleaning), (1) Vibratory Dowel Hopper, (4) pneumatic hold-down clamps.
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
