Northtech "NT 820HC" 50HP+50HP Double Surface Planer (w/ Helical Cutter Heads) Ended

Woodworking Machinery Auction - Roulette, PA

Roulette, PA

  • Winning Bid : $24,350.00 USD Sold Reserve Price Met
  • 39 Bid(s)
  • High Bidder: C****L
Documents
No documents available
Bidding Info
This auction uses Proxy Bidding.
Bids placed within the final 5 minutes will extend the auction closing time by 5 minutes.

Woodworking Machinery Auction - Roulette, PA ( Closed #71071535 )

Lumber company in Pennsylvania is auctioning several machines no longer required for continuing operations. Northtech top/bottom planer, Castaly double end tenoner and Leadermac moulder are all available.

  • Pick Up Location

    200 Main St. Roulette, PA 16746

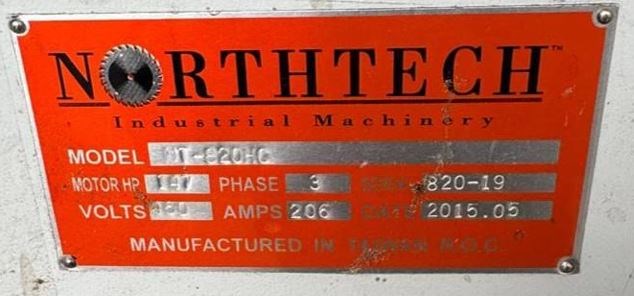

  • Make

    Northtech

  • Model

    NT 820HC

  • Serial Number

    820-19

  • Year

    2015

  • Phase

    3 PHASE

  • Voltage

    460 VOLT

  • Buyer Inspection Period

    By appointment only, contact Jack Ragan, [email protected], 503-806-4611

  • Load Out Period

    April 23 - April 30, 2025 (by appointment)

  • Estimated Dimensions

    124” L x 81” W x 77” H

  • Estimated Weight

    15,000 Pounds

  • Seller Comment

    Seller will disconnect and load onto buyer's flatbed truck/trailer for non-negotiable loading fee. Palletizing, crating or other services may be available at an additional cost.

  • Load Fee

    1000

  • Lot Notes

  • page views

    517

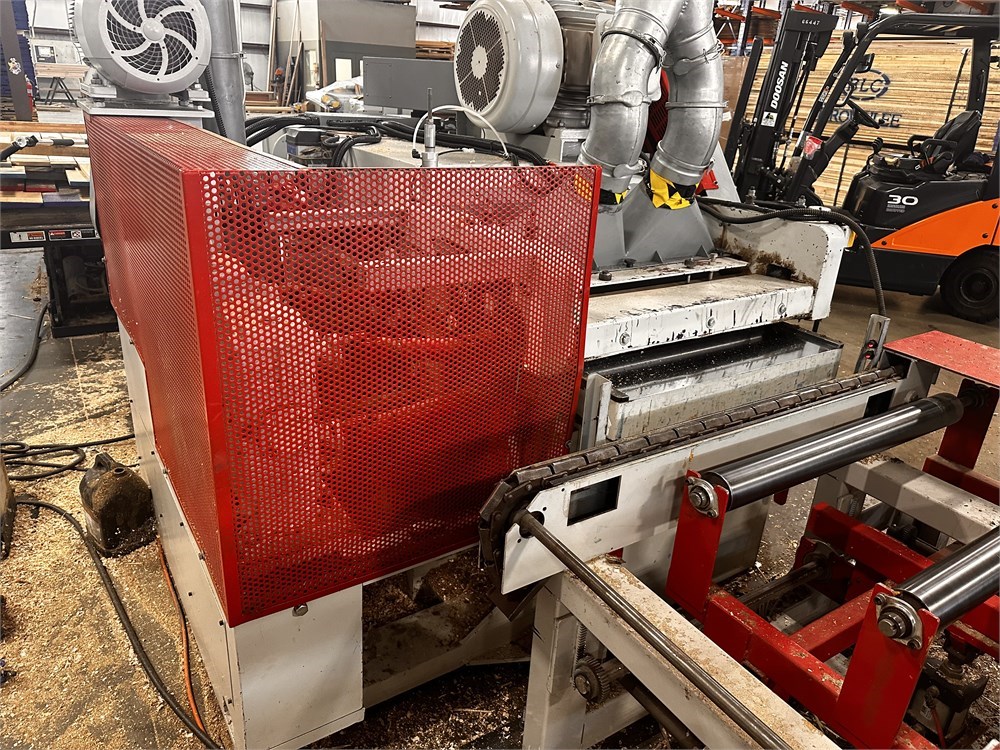

Northtech "NT 820HC" 50HP+50HP Double Surface Planer (w/ Helical Cutter Heads)

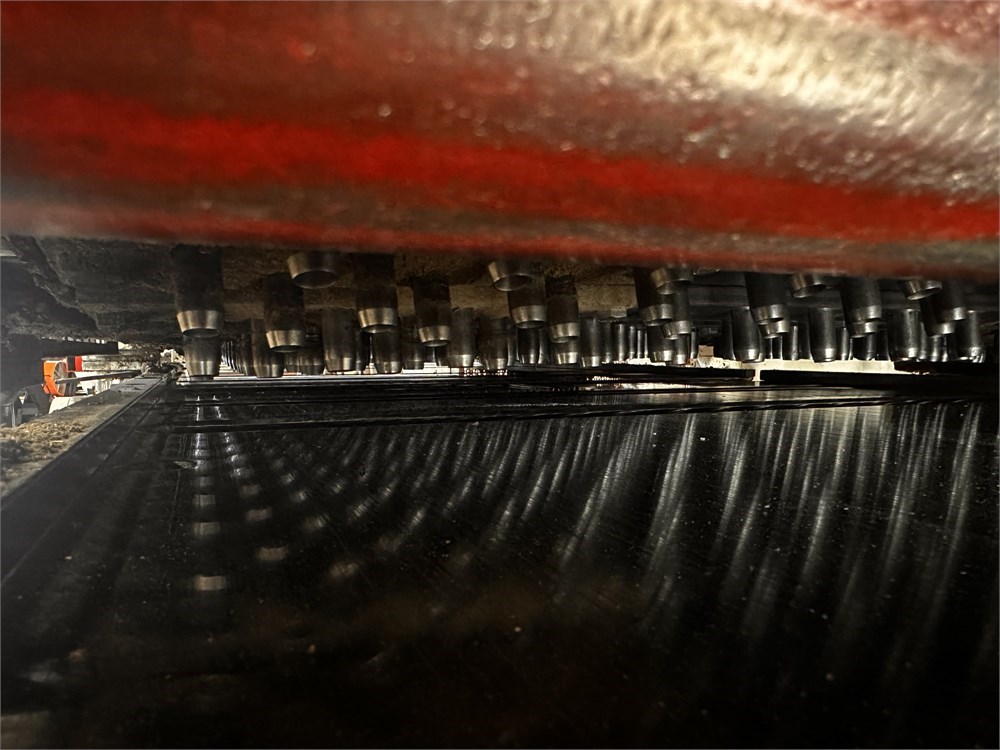

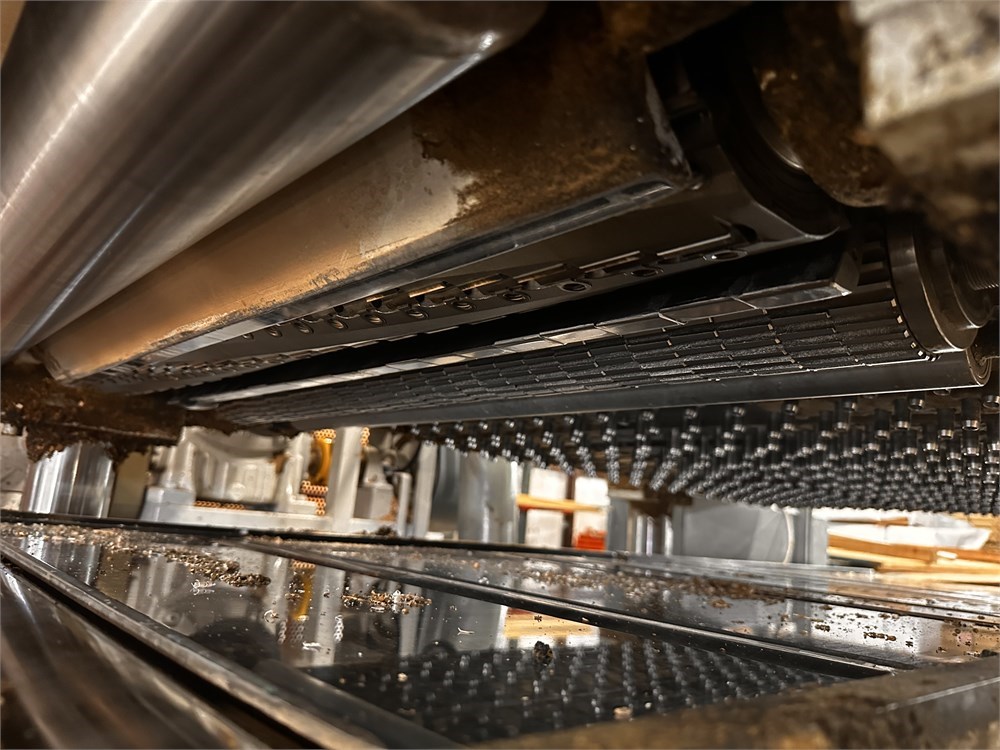

Cutter Heads:

  • 50 HP Top, 50 HP Bottom
  • Dual (8) Row Helical Cutterhead with double-sided 30 x 12 x 2.5mm inserts
  • 5000 RPM solid steel cutterheads with Class 7 NSK bearings

Feed System:

  • 10HP + 15HP inverter feed motor
  • Elevation motor: 2HP

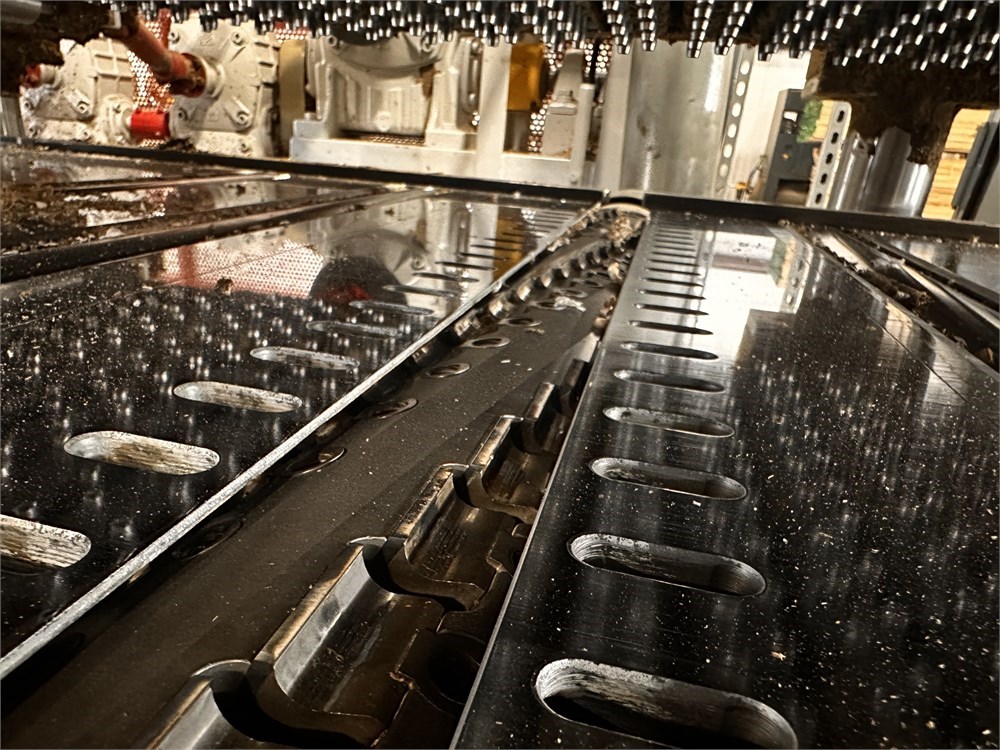

  • Carpet feeding spike system with 1500 spikes
  • Feed speed 30-80 FPM

Features:

  • Pass-Line = 34”
  • Min. Length = 12” 1st Hold Down to Kickback
  • Min. Width = 2″
  • Max. Width = 32-3/8”
  • Min. Thickness = .42”
  • Max. Thickness = 8”
  • Cutter Head RPM = 4500 Rpm
  • Tooling = 30 x 12 x 2.5 mm
  • Head Type = Dynamically Balanced Helical Head
  • Cutter Head Dim = 6” x 32-3/4”
  • Cut Head Matl. = Alloy Steel
  • Rows of Cutters = 8 Rows
  • No. of Inserts = 188 Inserts
  • Insert Size = 30 x 12 x 2.5 mm
  • No. of Heads = 2

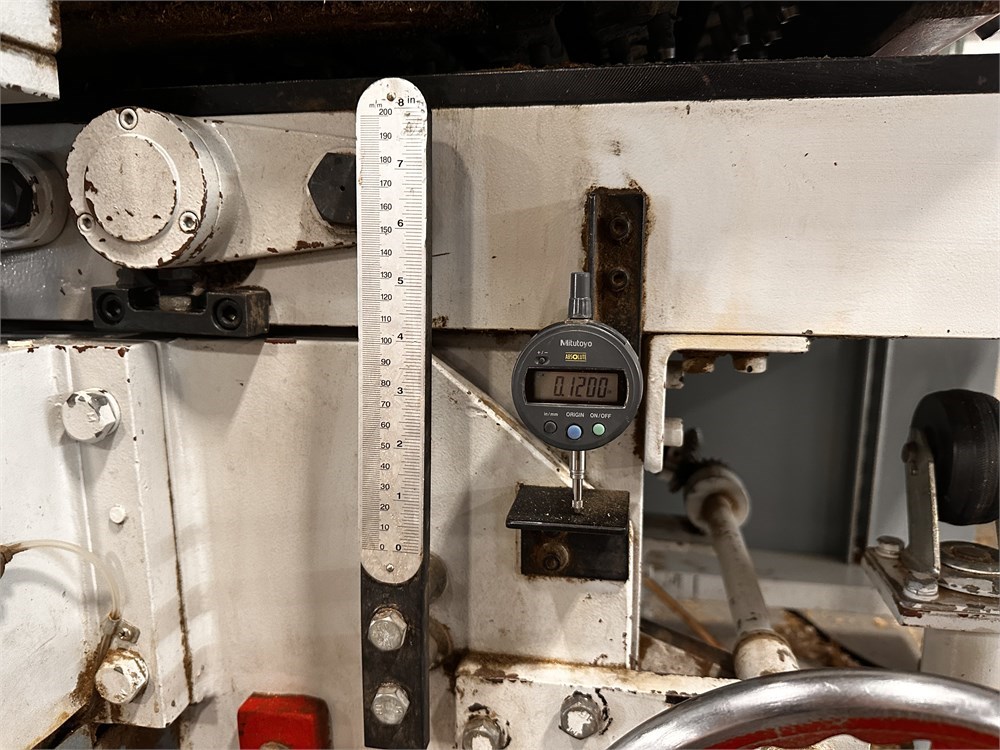

  • Digital Display = Elevation and Feed Speed
  • Powered Rollers = 3 Bottom 3 Top Powered Rollers
  • Idle Rollers = (4) Bed Rolls (1) Top
  • Hold Down Style = Chip Breakers/ Pressure Plate
  • No. of Spikes = 1500 Spikes
  • FLR Included = Filter, Lubricator, Regulator
  • Recommended CFM = 3/8” Supply Line @ 90 Psi
  • Rear E Stop = Push Button
  • Guarding = Full Cabinet Enclosure
  • Oiler = (1) Auto (1) Manual Oiler
  • Low Oil Warning = Low Oil Shut-off
  • Frame Const. = Cast/Steel Construction
  • Chrome Bed = .004” Chrome Plated Bed
  • Slip Clutch = Clutch on Drive
  • Decible Rating = 75 dB

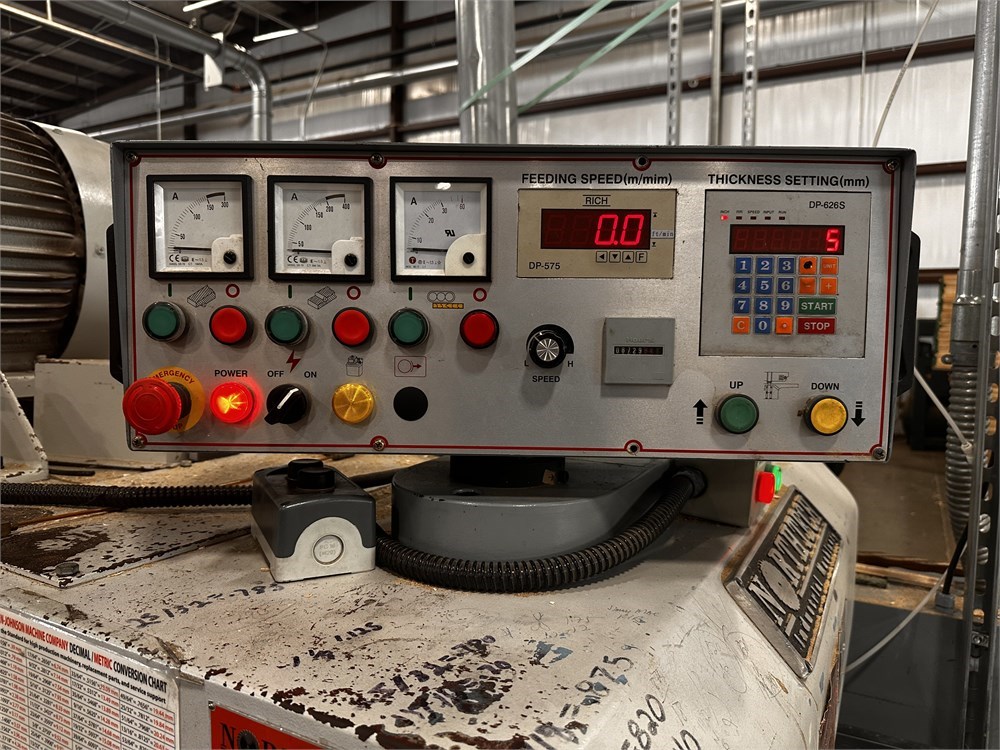

  • Control panel with PLC and load meters

Photos are from previous auction in November 2023.  Current owner never installed the machine and it is in storage and ready for loading.

The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.

The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
