Koch "Sprint PTP" CNC Drill and Dowel Machine
Active
Complete Woodworking Shop Auction - Newfane, NY
Newfane, NY
- Starting Bid : $500.00 USD ( ) No Reserve
- 0 Bid(s)
Complete Woodworking Shop Auction - Newfane and Middleport, NY ( Active #70327131 )
Custom woodworking business in the Buffalo, NY area has ceased operations and is auctioning all assets. Martin sliding table saw, Striebig vertical panel saw, Timesavers sander, Koch CNC bore/dowel machine, JLT clamp, Blum hardware boring machine, hand tools, supplies and Bobcat loader! Please contact me for more information.
-
Pick Up Location
2712 West Ave. Newfane, NY 14108
-
Make
Koch
-
Model
SPRINT-PTP
-
Serial Number
A 0202/6752
-
Year
2002
-
Phase
3 PHASE
-
Voltage
208
-
Buyer Inspection Period
By appointment only, contact Jack Ragan, [email protected], 503-806-4611
-
Load Out Period
April 25 - April 30, 2025 (by appointment)
-
Estimated Dimensions
84" L x 62" W x 68" H (machine), 25" L x 25" W x 72" H (control cabinet)
-
Estimated Weight
5,000 Pounds
-
Seller Comment
Seller will disconnect and load onto buyer's flatbed truck/trailer for non-negotiable loading fee. Palletizing, crating or other services may be available at an additional cost.
-
Load Fee
250.00
-
Lot Notes
-
page views
539
Koch "Sprint PTP" CNC Drill and Dowel Machine
CNC Bore Glue & Dowel Inserter with automatic step-by-step, boring, glue injection & dowel insertion into panel components, drawer parts, chair pieces at random spacing.
Work Capacity: 20 mm - 1,245 mm (0.75" - 49") panel length, 100 - 1,200 mm (4" - 47.2") panel width, 12 mm - 60 mm (1/2" - 2-3/8") max. material thickness, max. drilling height, 35-mm (1-3/8"), max. boring depth 28 mm (1-1/8"), standard for 8 mm dia. and 30 mm long dowels.
Positioning speed of all working units at 160 MPM (97 FPM), boring & insertion capacity up to (60) dowels/Min.
(2) Independent work zones; (1) side can be processing while the other is being unloaded & loaded.

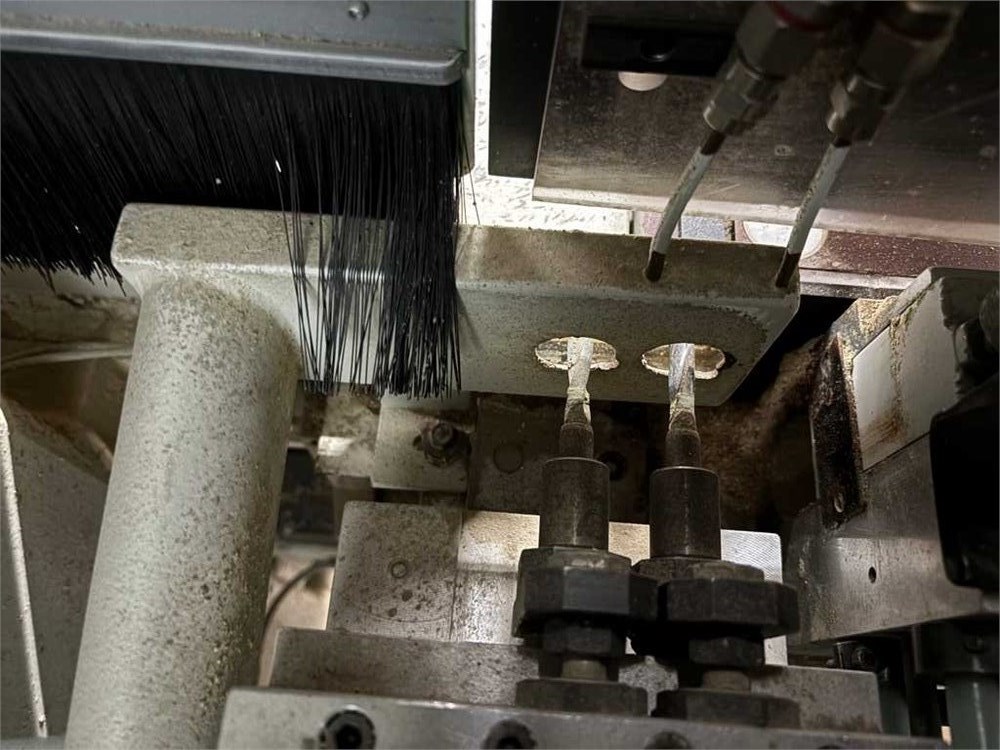

(1) Horizontal Boring Unit (2 drills), 6,000 RPM & powered by 1 HP motor.
(1) Dowel Insertion Unit with high pressure glue pump, patented "KOCH ELC" Electronic Glue Detection System special patented glue injection unit & dowel inserter head.
(4) Adjustable dual-action clamping cylinders (vertical/horizontal) for horizontal or vertical drilling of work-pieces.
(2) Fixed fences (RH & LH side) with (1) @ sensor confirming work-piece in place.
Stand-alone control cabinet with standard PC and barcode scanner

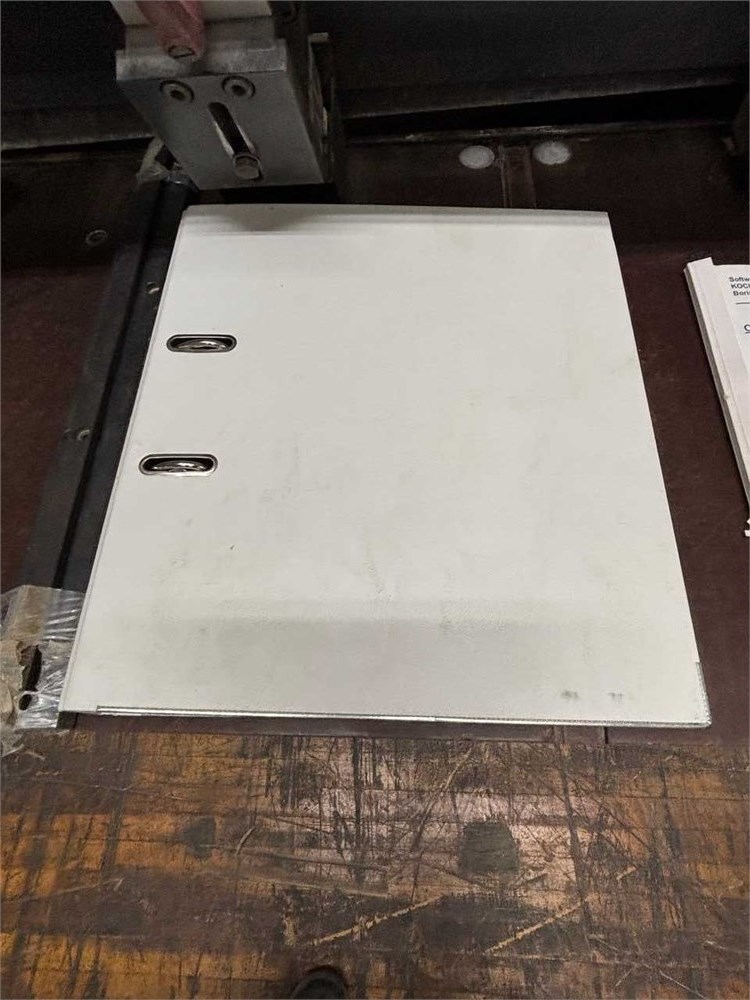

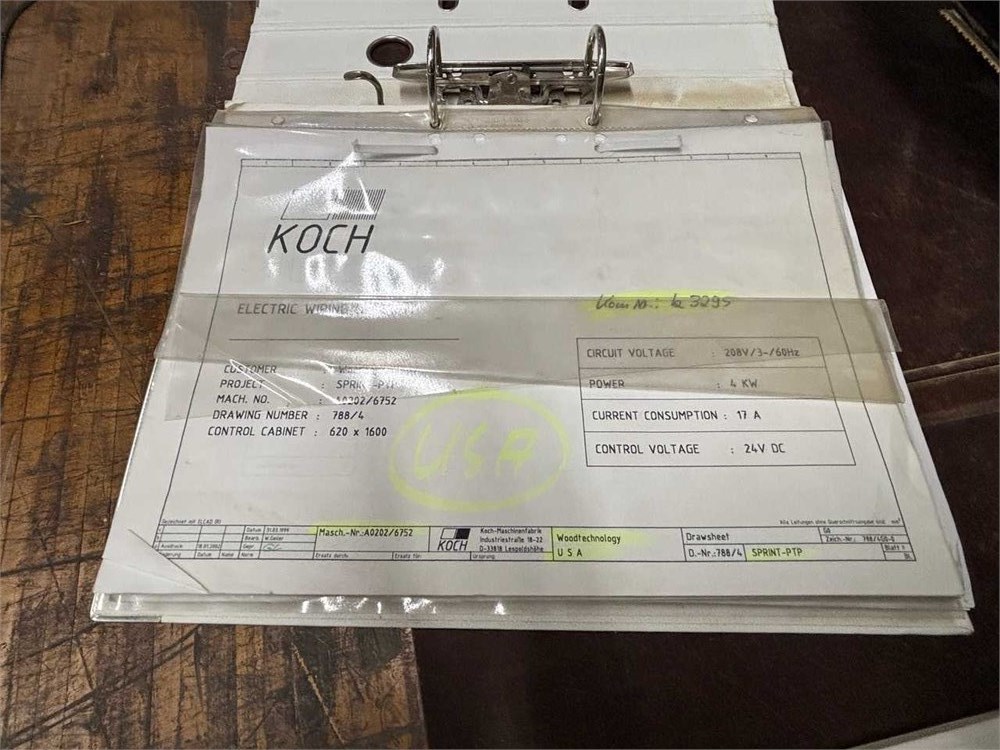

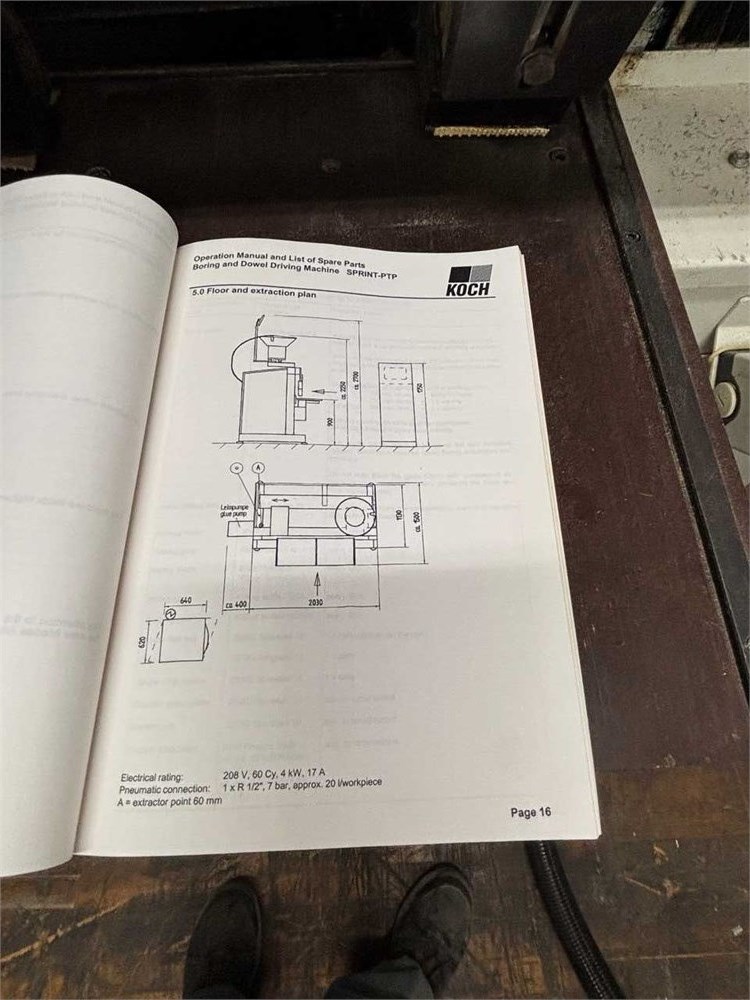

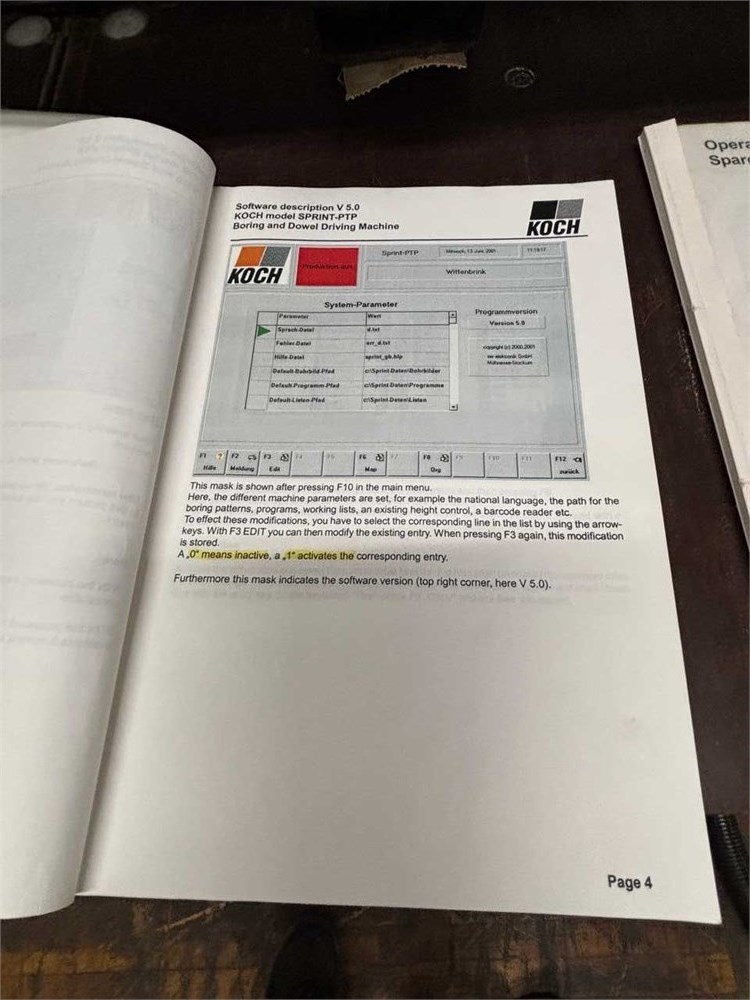

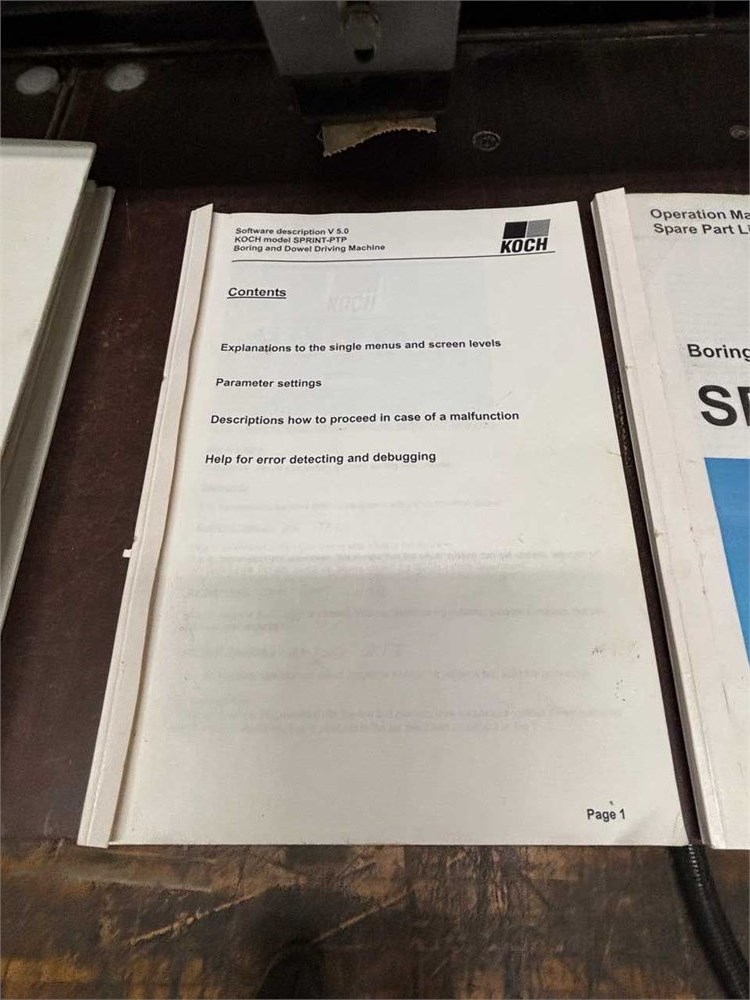

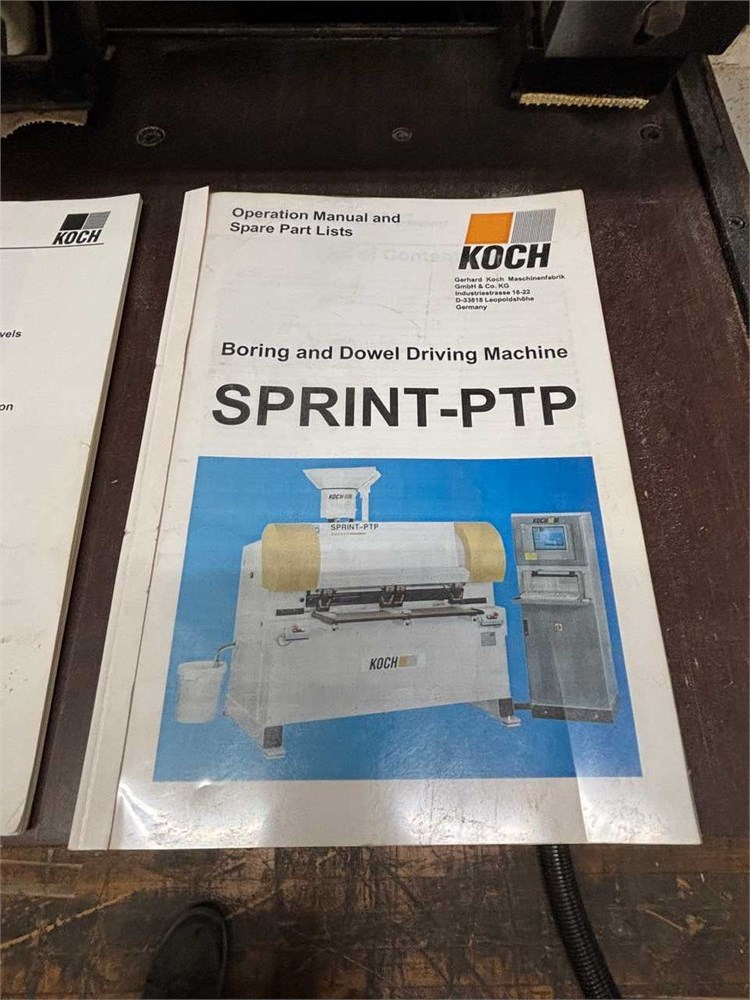

Manuals
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
