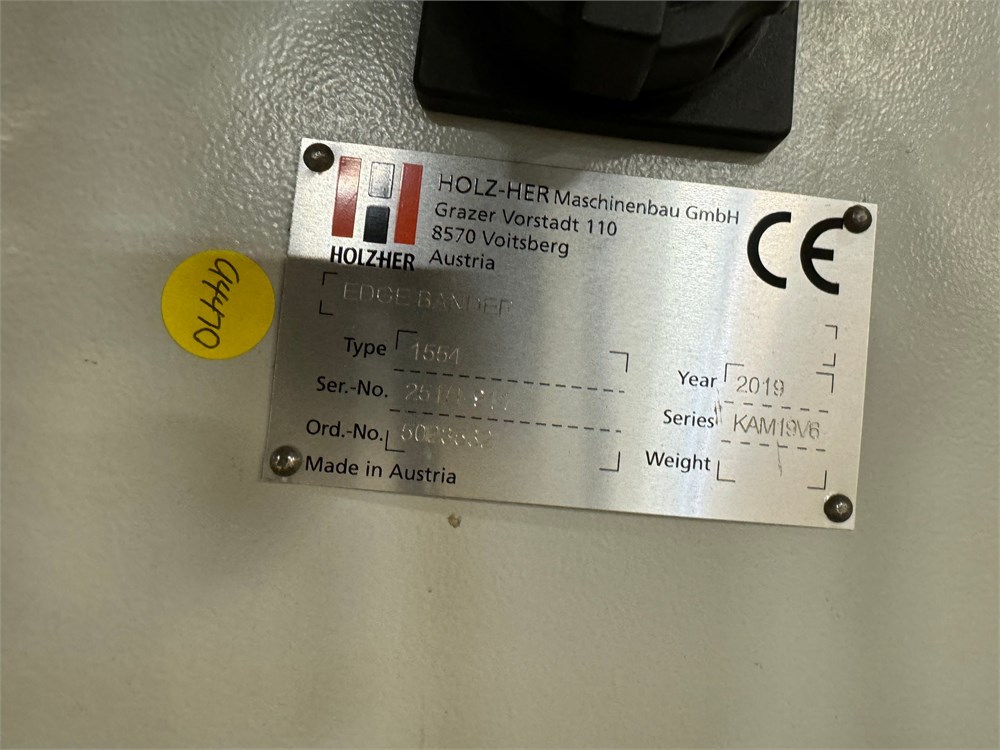

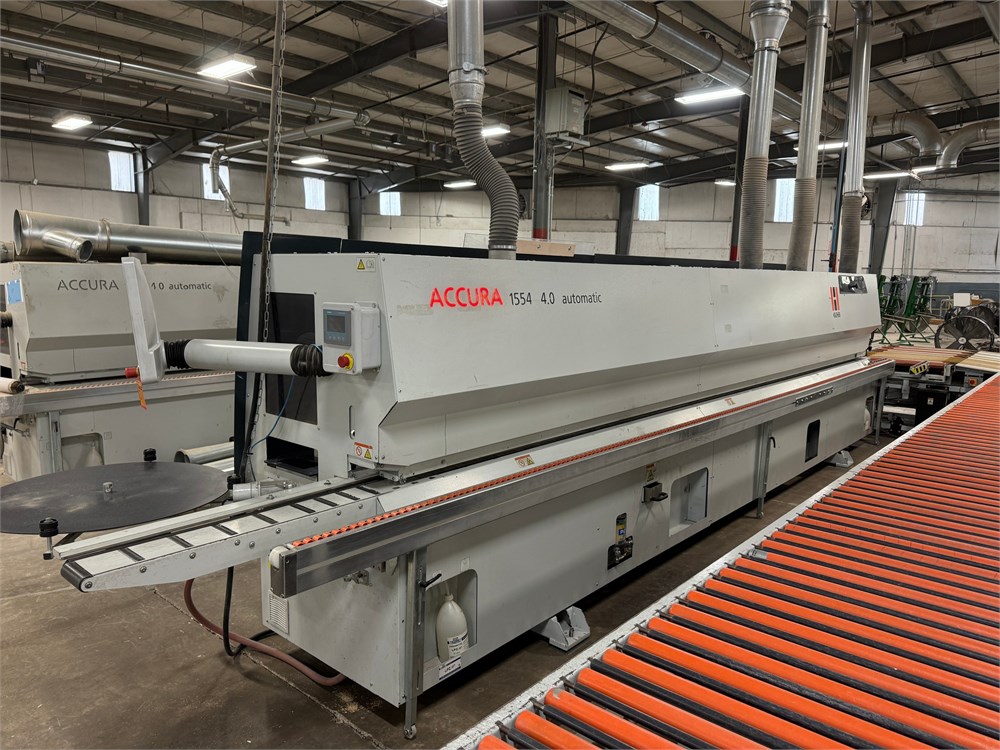

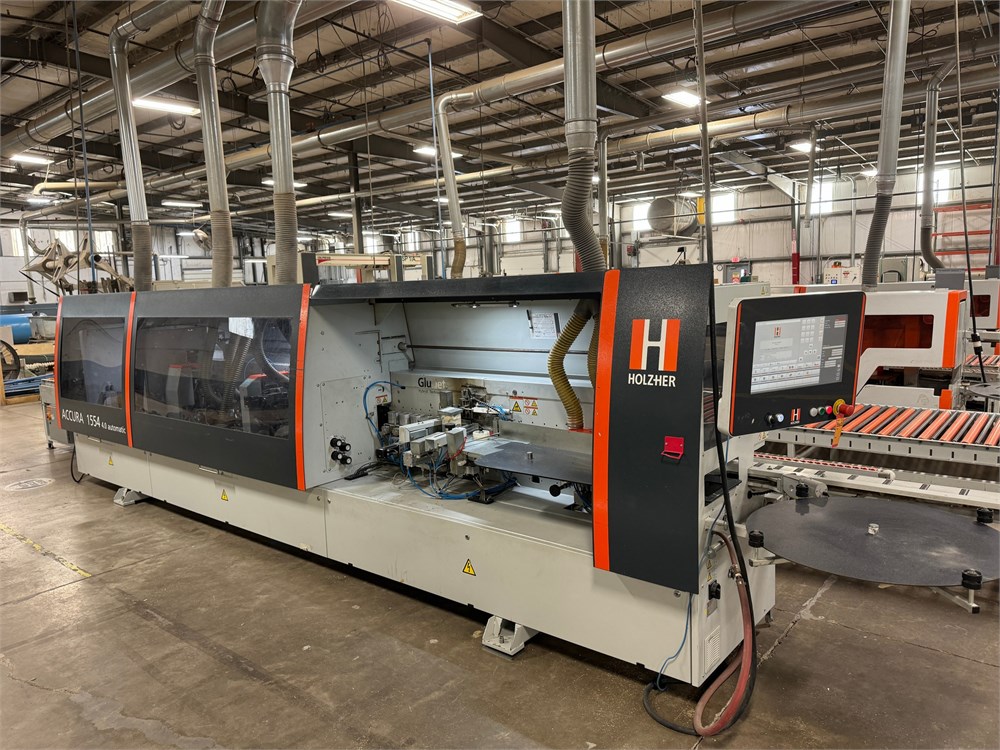

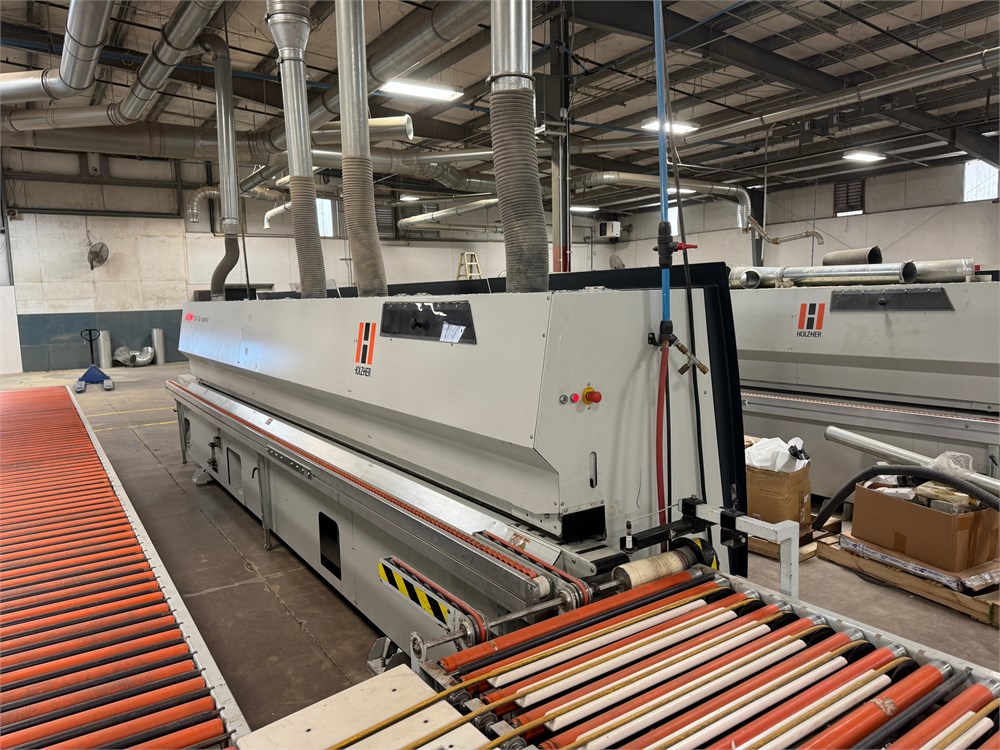

Holz-Her "Accura 1554 4.0 Auto" Automatic Edgebander

Edge thickness min./max. 0.4 - 3 mm (0.02 - 0.12") for coiled material, 8 mm (0.315") max for strips.

Panel thickness 8 - 60 mm (0.315" - 2.36"); workpiece width min. 60 mm (2.36"); workpiece length min. 140 mm (5.5"); Feed speed 10 - 20 MPM (33 - 66 FPM).

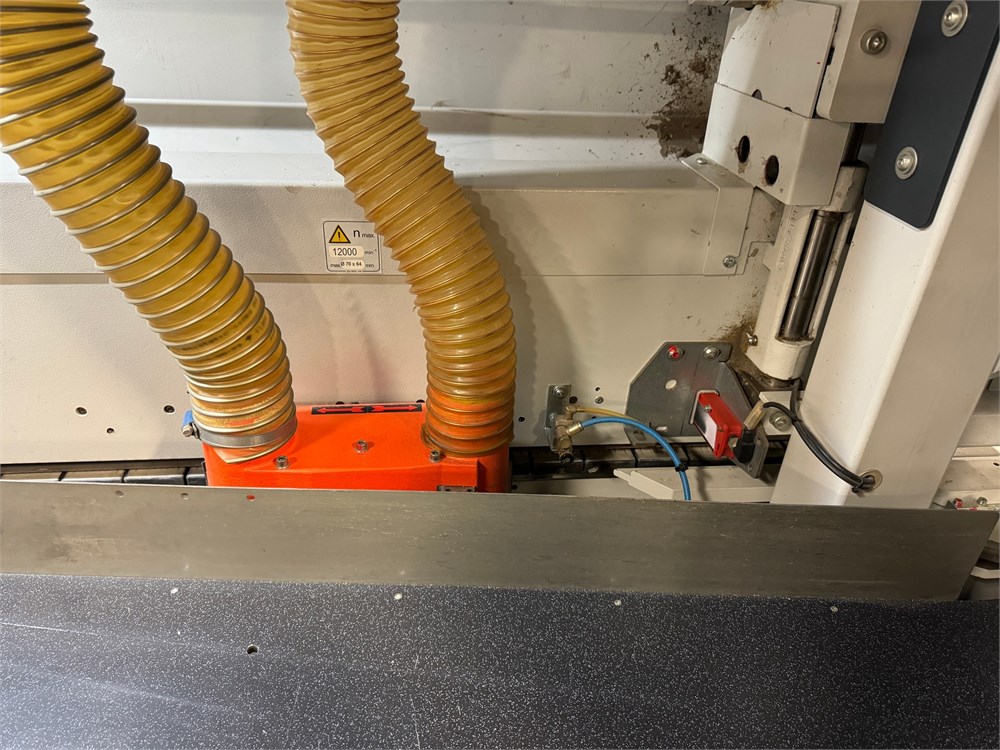

 Pre-Milling Station "1802": 2x 1.2 KW (1.6 HP) - 12,000 RPM motors.

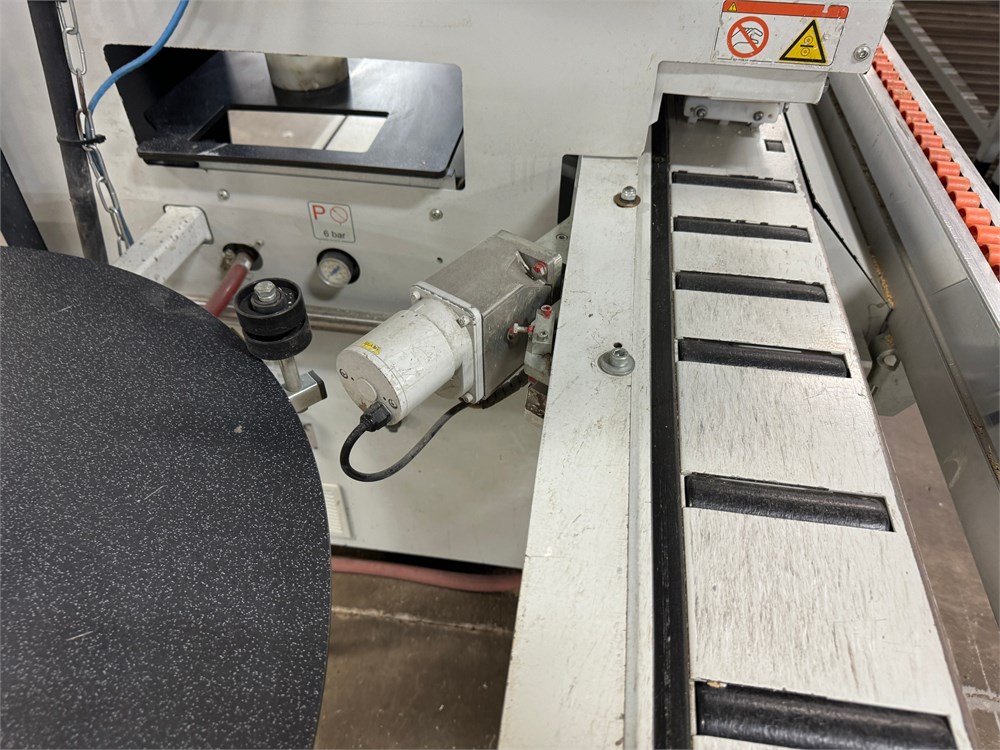

Edge Magazine "1901": for coil and strip processing, utilizing motion detector to ensure accurate, trouble-free positioning of edge material; exclusive "Tractor-Belt feed System", edge guide equipped with automatic guillotine lock-out for safety, 3° approach angle allows easy feeding of solid wood edges.

Pressure Section: (1) large driven (synchronized with feed-speed)roller and (3) cantered idle rollers, servo adjustment.

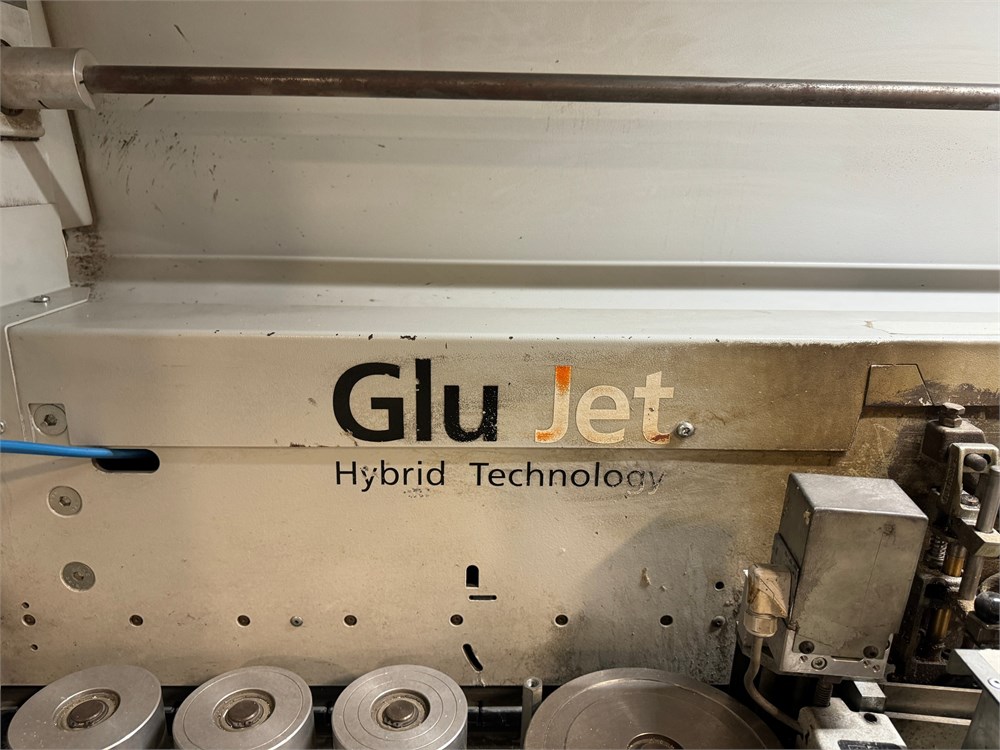

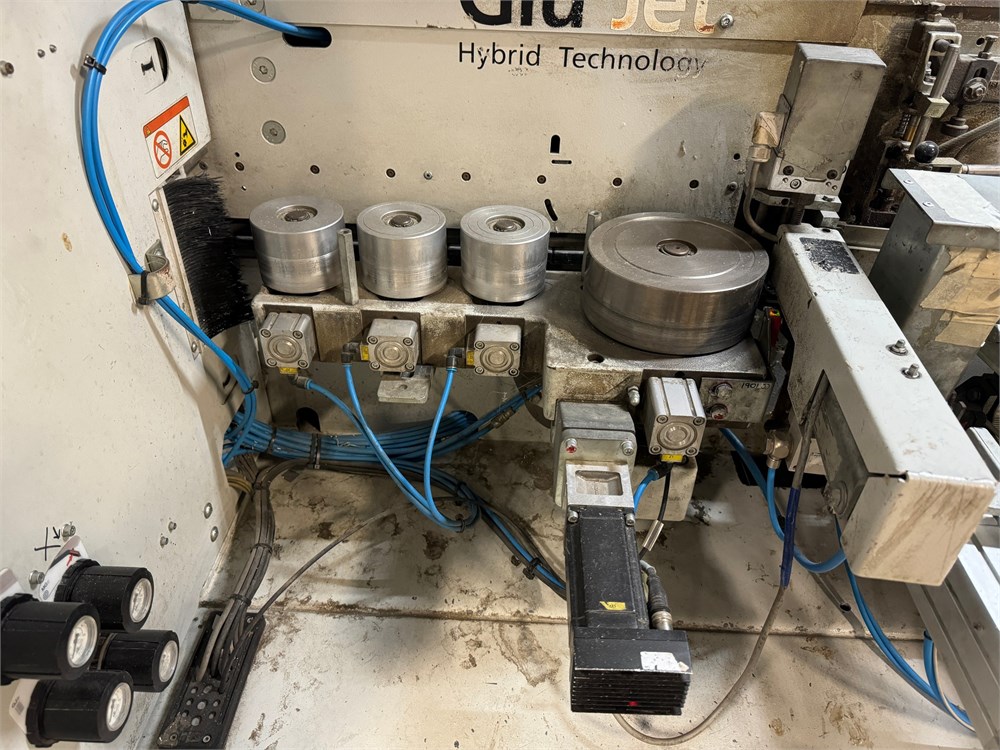

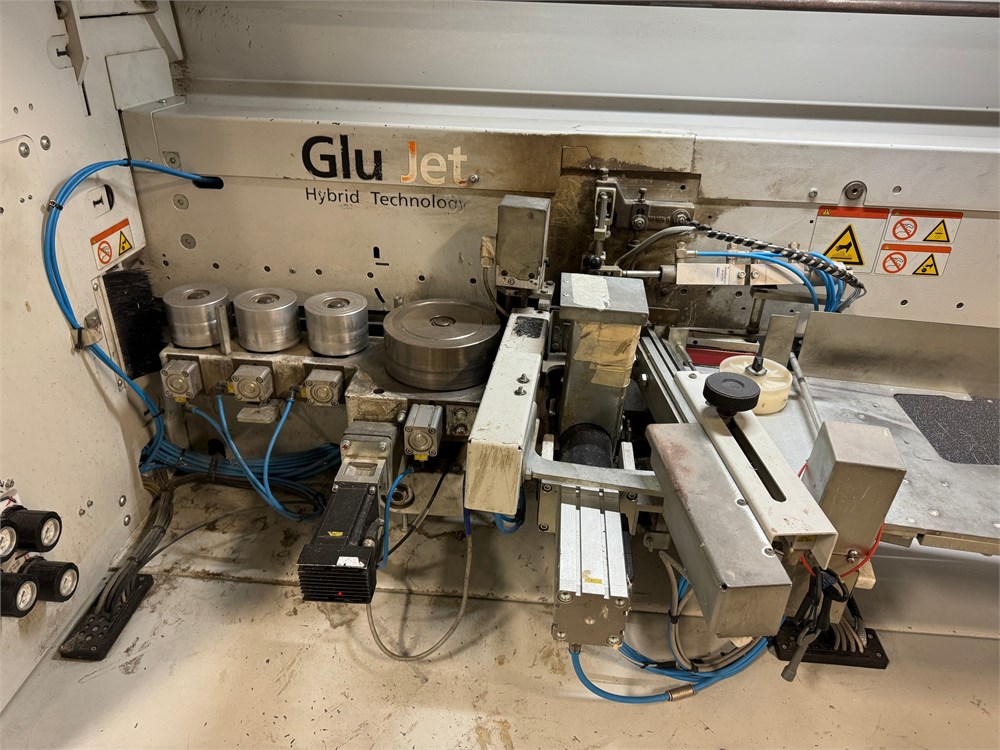

GLUING SYSTEM "GJ 301" (Glue Jet)... Processes "EVA" or "PUR" Glue in Cartridge.

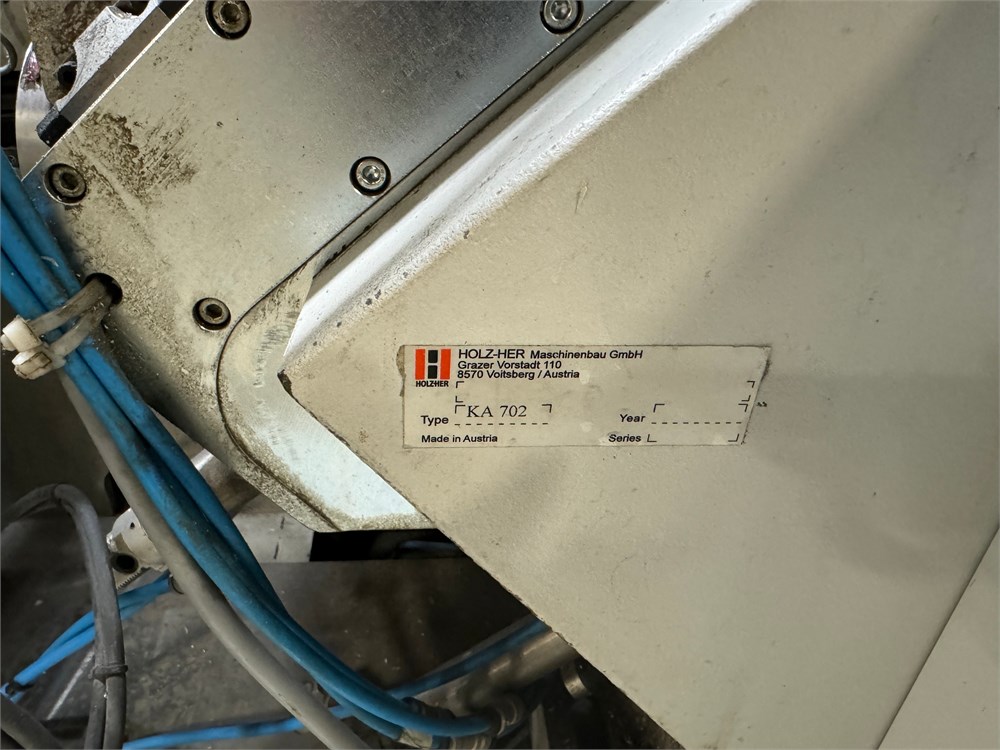

End Trimming Unit "KA 702": Front & rear 2 x 0.45 KW (0.6 HP) - 9,000 RPM motor each, uni-point swivel-axis for no re-indexing when changing from flush to bevel end trim (0° - 10° bevel),"PCS" programmable pneumatic change-over from flush to bevel.

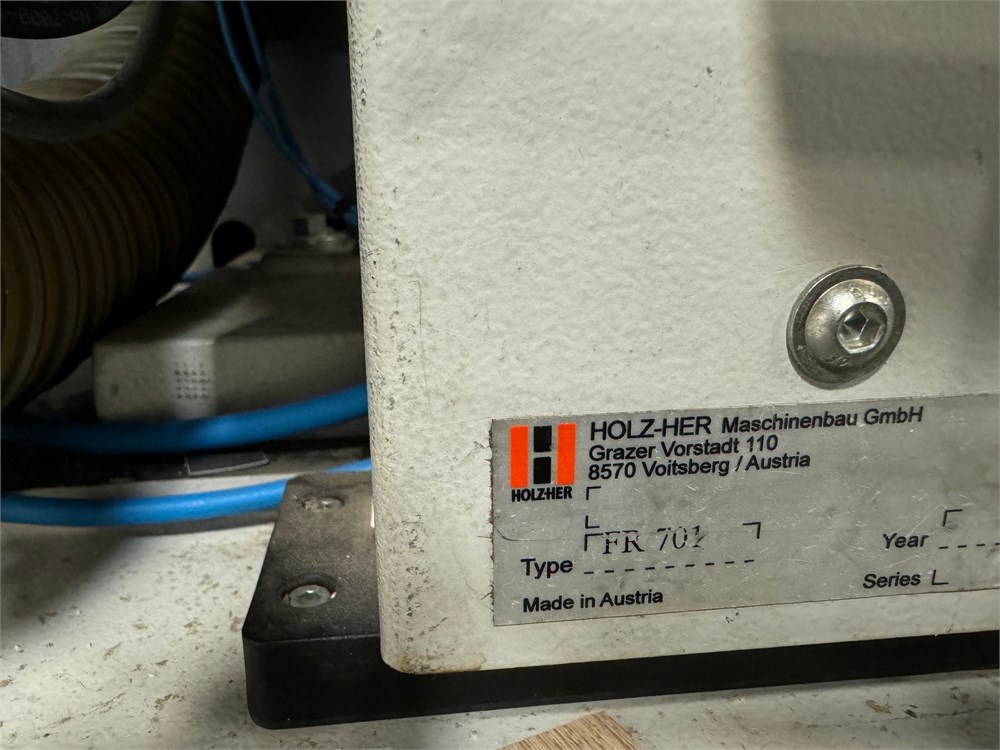

Flush/Bevel/Radius Combination Trimming Unit "FR 701": Flush 6 mm, radius 3 mm trimming, servo controlled, 2 @ servo motors (1) for horizontal copy wheel & (1) for tool spindle position) programmable top & bottom unit 2 x 0.65 KW (0.88 HP) - 12,000 RPM each motor.

Uni-Point design with no second adjustment, pneumatic, programmable tilt action for changing the degree of bevel, digital counters for vertical copy wheel position and pneumatic air cylinder for in/out pre-positioning of trimming motor.

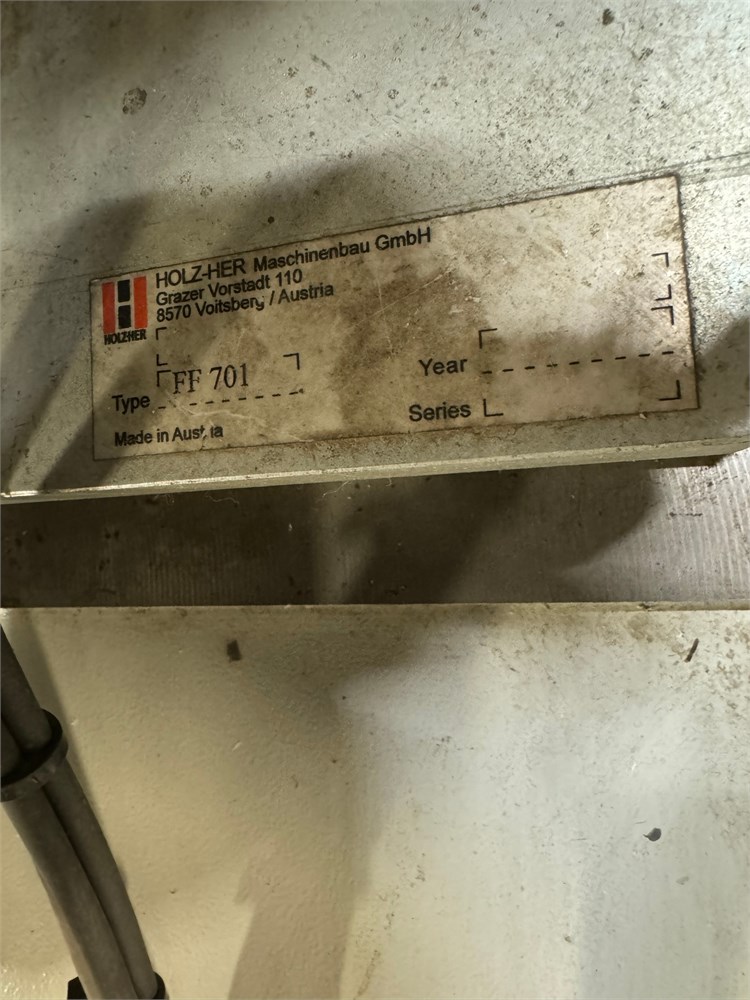

Corner Rounding Unit "FF 701": (2) Motors 0.22 KW (0.30 HP) - 9000 RPM for up to 3 mm edge thickness and work-piece thickness min./max. 12 -60 mm (0.473 - 2.362"), max. feed speed 10 MPM (33 FMP).

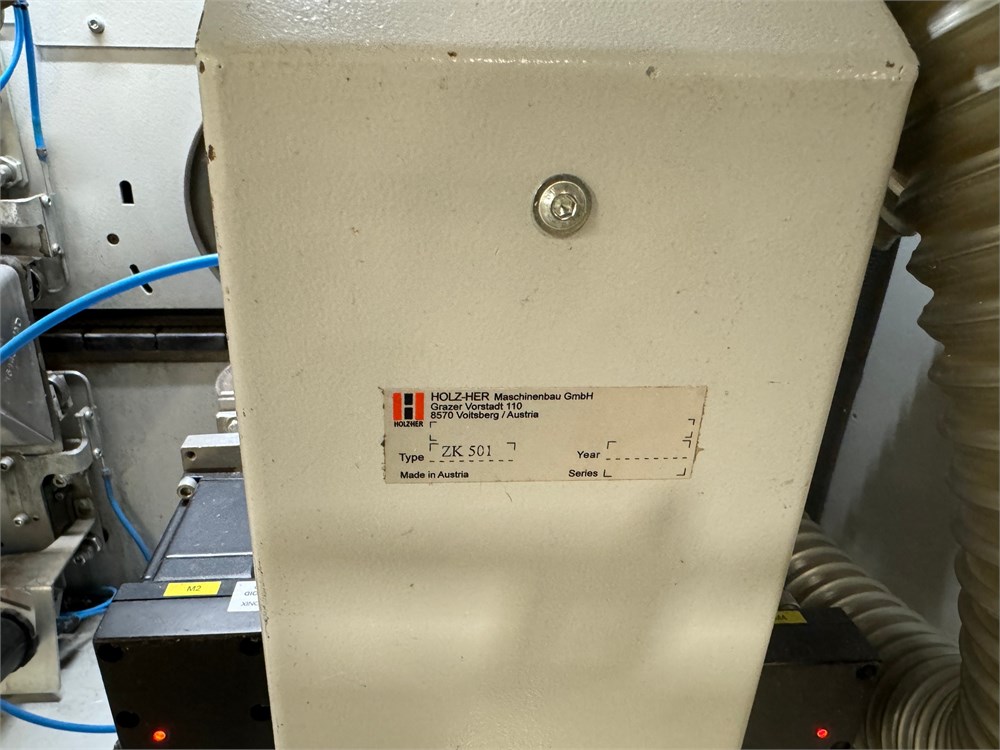

Profile Scraping Unit "ZK 501": Top/Bottom, servo motor controlled/programmable knife position, vertical copy wheel adjustment with quick setting spindle.

For PVC edges, reversible insert carbide knives, equipped with air-jet blowers and chip collector box.

Glue Scraping Unit " FK": Flat surface, top/bottom, ball bearing guided and pneumatic controlled. Reversible - replaceable knife inserts and blow-off nozzles.

Buffing Station: Top & bottom, 2 x 0.09 KW (0.25 HP)buffing motors with 150 mm ( 6.0") cloth buffing wheel diameter.

Adjusts in any direction (vertical tilt is 0° - 5°, horizontal swivel is 0° - 20°); 1,440 RPM wheel rotation.

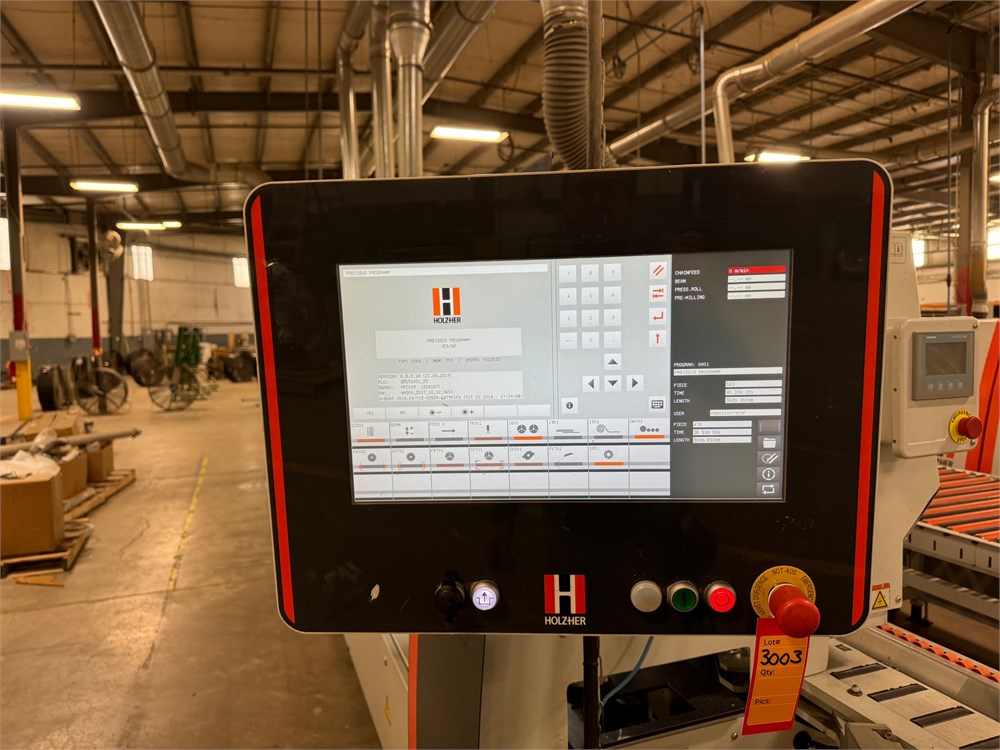

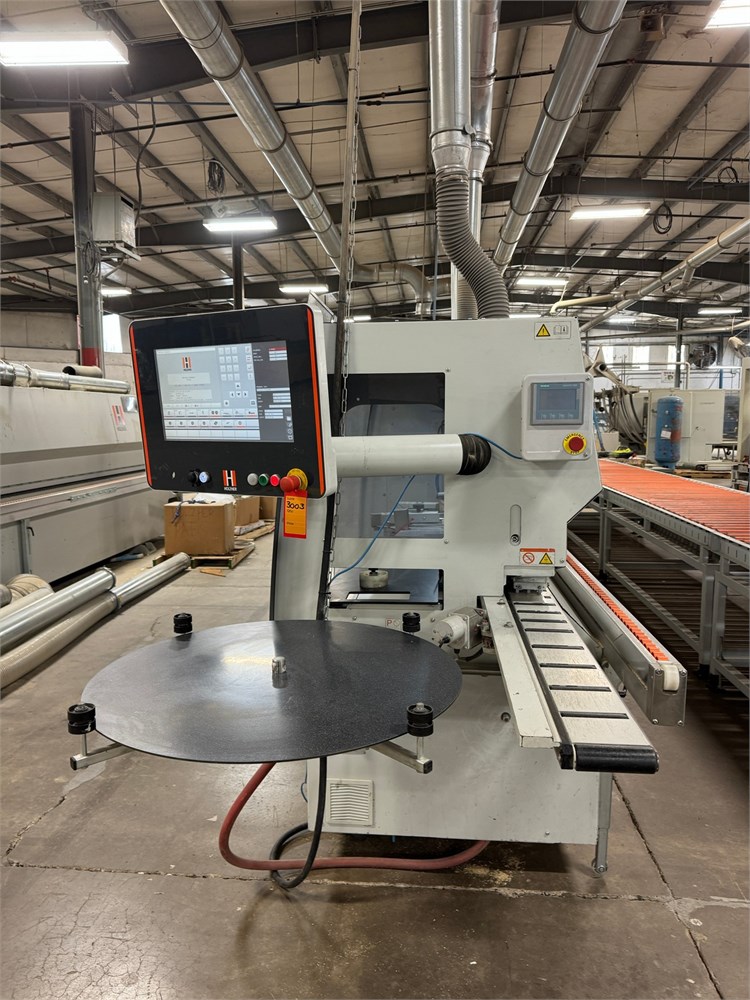

"EDGE CONTROL TOUCH" offers self-explanatory, graphic pictograms for simple user guidance. 18.5" TouchScreen, with Brilliant graphic display of machining processes. Simple operation & ndash; rotating and swiveling control panel at eye height.
