SCM Group "Omal "HBD 1300 OF" CNC Drill and Dowel machine Preview

Complete Woodworking Factory Auction - Chehalis, WA

Chehalis, WA

0 Watching
Add to Watchlist

Minimum Bid:

$2,500.00 USD

Number of Bids:

0

Current Bid:

$2,500.00 USD ( ) No Reserve
Your Maximum Bid Is $0.00 USD
$USD
Quick Bid $2,500.00 USD
Or
Or
0 Watching
Add to Watchlist
Current Price : $2,500.00 USD ( ) No Reserve

Starts In remaining

Documents
No documents available
Bidding Info
This auction uses Proxy Bidding.
Bids placed within the final 5 minutes will extend the auction closing time by 5 minutes.
Additional Fees
Additional Fees will be applied to the final price:
15.00% Buyer's Premium
0.00% Sales Tax

Complete Woodworking Factory Auction - Chehalis, WA ( Preview #71681127 )

After 50 years in business Aristocratic cabinets has ceased operations and is auctioning all assets. Aristocratic is well-known for high end cabinetry, panels and millwork featuring exotic woods. World-class machinery was used for their production. Two Biesse CNC routers, Selco beam saw, Holz-Her edgebander, Doucet return conveyors, Omal CNC bore/dowel machine, Weinig moulder, finishing machinery, hand tools, supplies, lumber, veneer, panels, forklift, delivery truck and much more.

VIEW EVENT
Image 1

Description & Information
Image 2

Bid History
Image 3

Value Added Services
Image 4

Terms & Conditions

  • Pick Up Location

    151 Sturdevent Rd. Chehalis, WA 98532

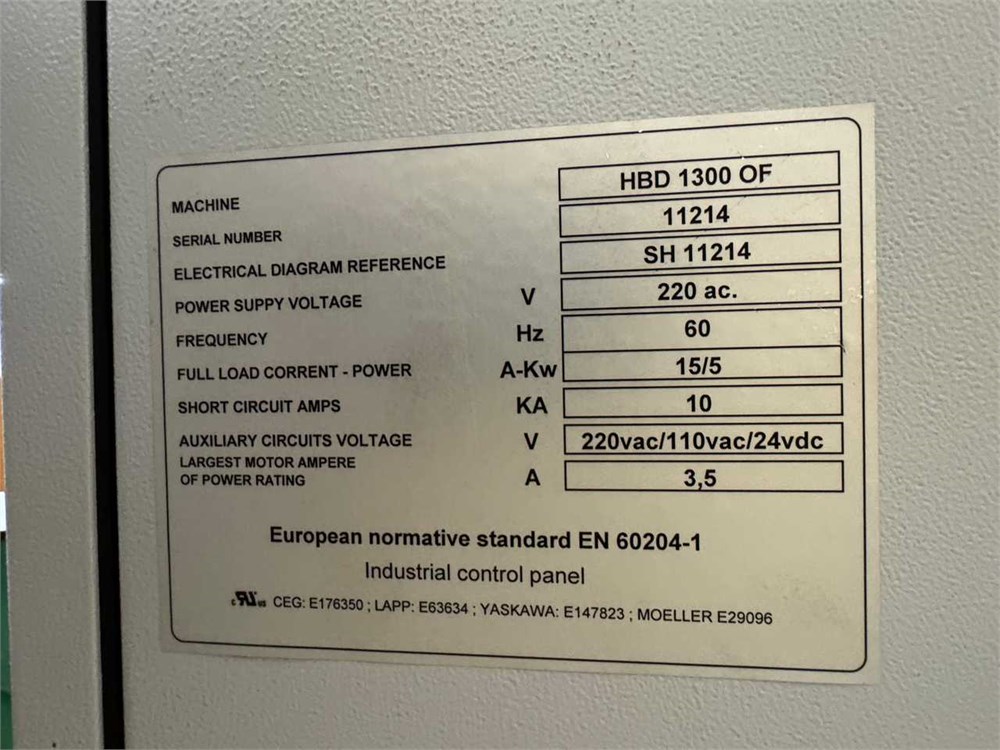

  • Make

    SCM Group Omal

  • Model

    HBD 1300 OF

  • Serial Number

    11214

  • Year

  • Phase

    3 PHASE

  • Voltage

    230 VOLT

  • Buyer Inspection Period

    May 19, 2025 (9 am - 3 pm), other times by appointment

  • Load Out Period

    May 27 - June 6, 2025 (by appointment)

  • Estimated Dimensions

    108" L x 60" W x 80" H

  • Estimated Weight

    Approximately 2500 lbs.

  • Seller Comment

  • Load Fee

    395

  • Lot Notes

  • page views

    20

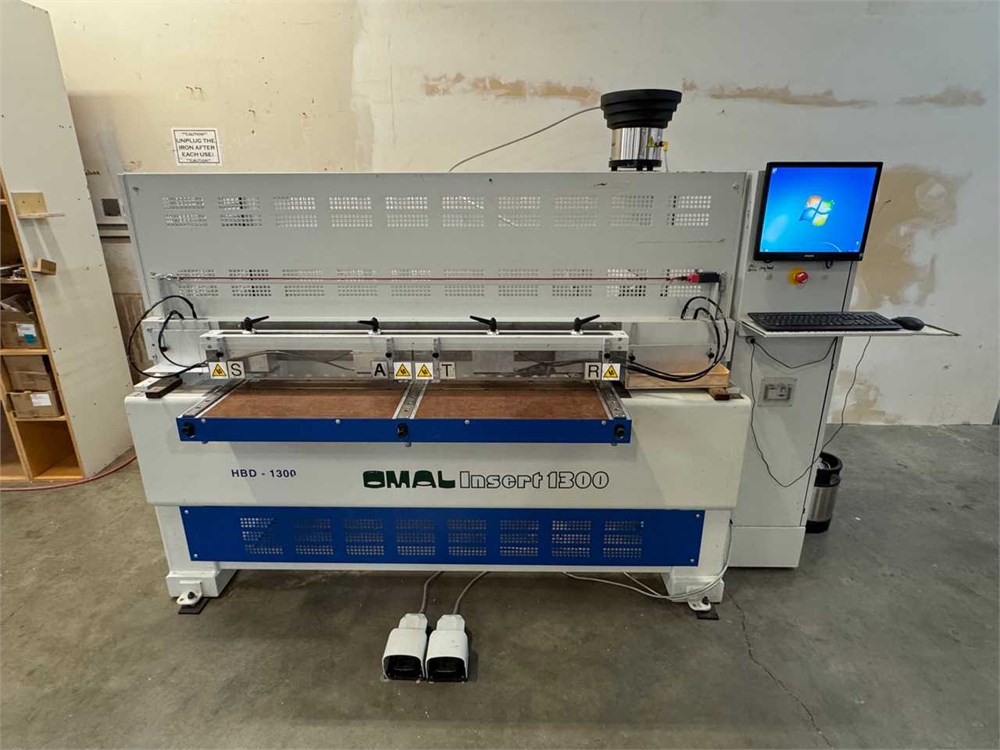

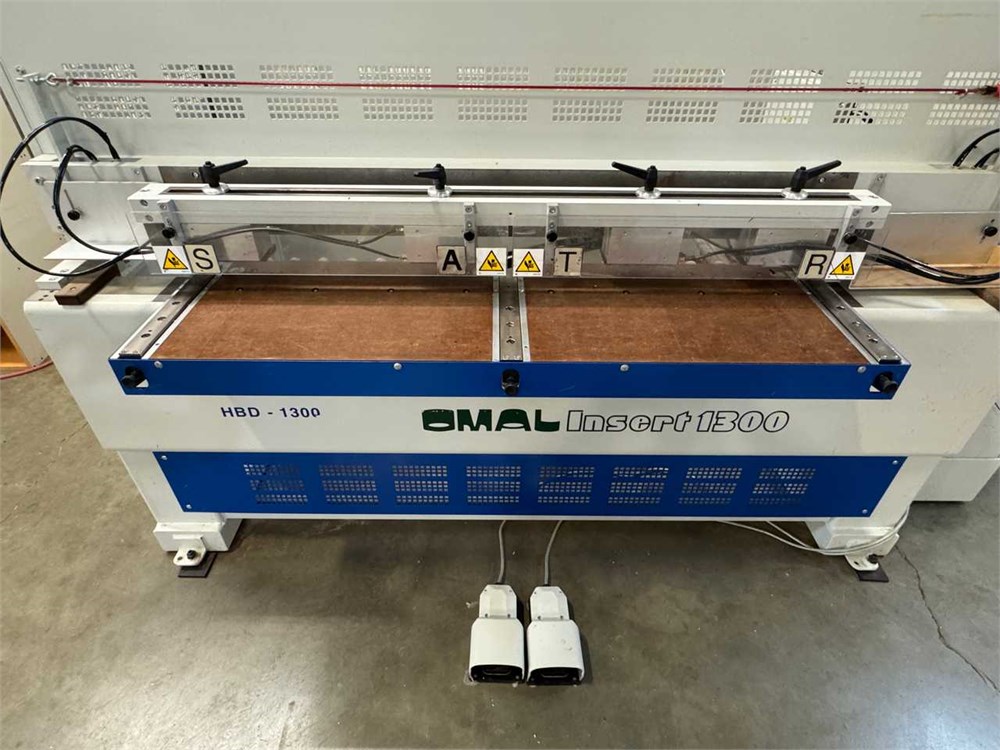

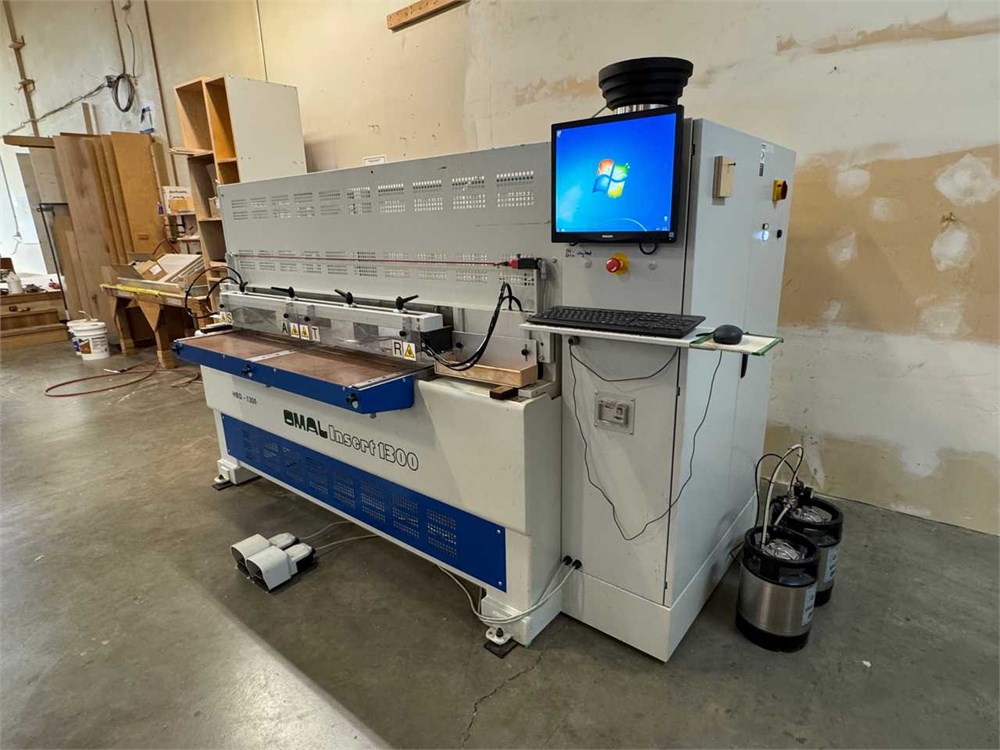

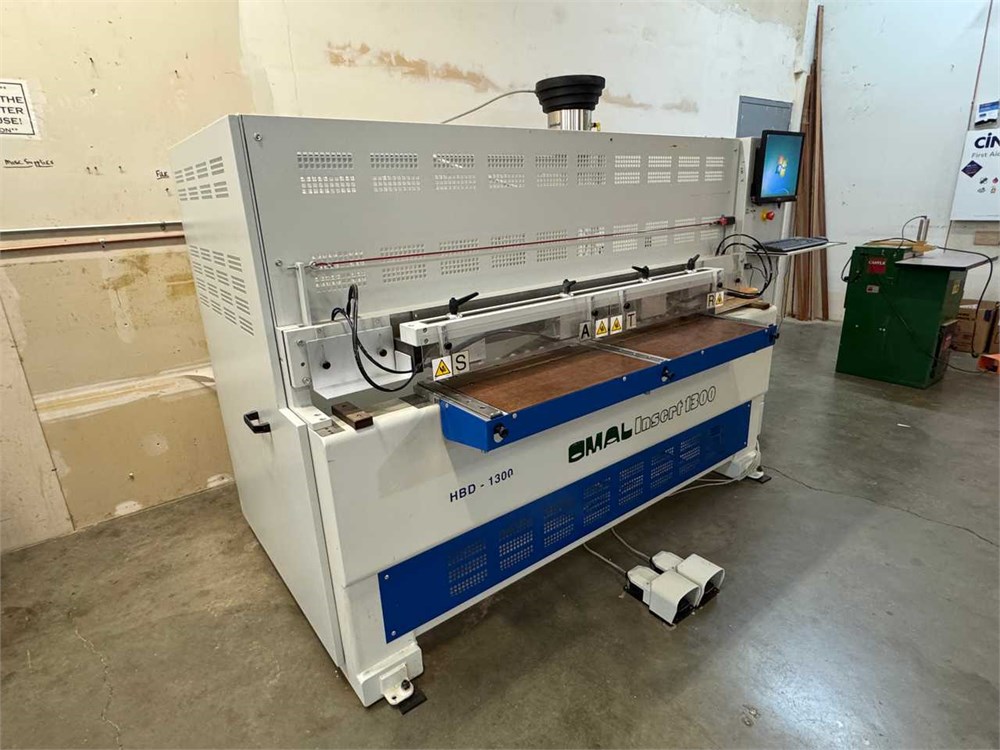

Omal "HBD 1300 OF" CNC Drill and Dowel machine

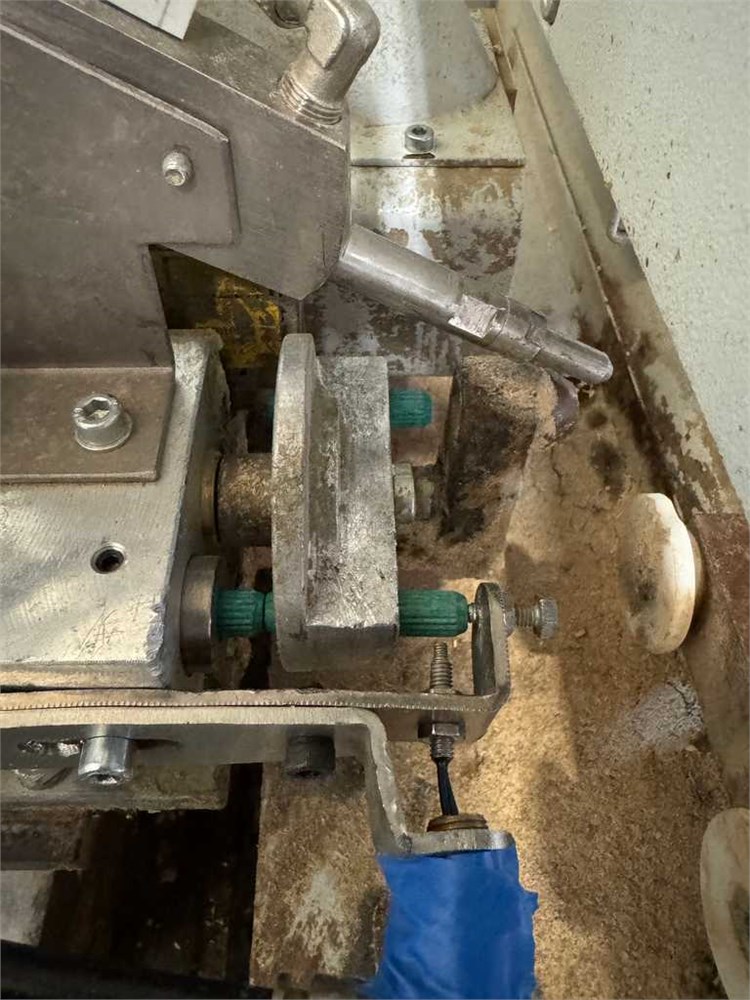

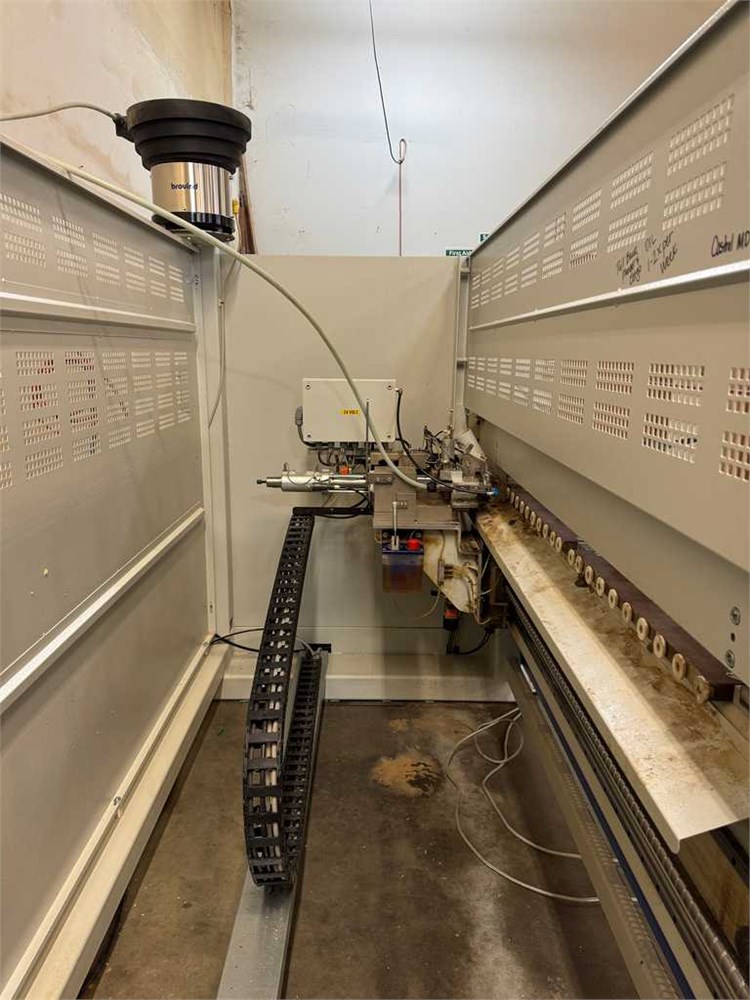

NC Controlled automatic step-by-step, boring, glue injection & dowel insertion into panel components, drawer parts, chair pieces, etc. at random spacing. with Laser measuring.

X-axis work area,1300 mm (51").  Y-axis, (depth) max. 40 mm (1.57"),  Z-axis (thickness manual setting) max. 40 mm (1.57") - positioning speed 164 FPM (50 MPM).

Width LASER sensor to automatically measure width of panel and calculate number of dowels based on a template file.  Template file can be modified from the list. (Laser tolerance subject to edge integrity, straight edge +/- 0.2mm)

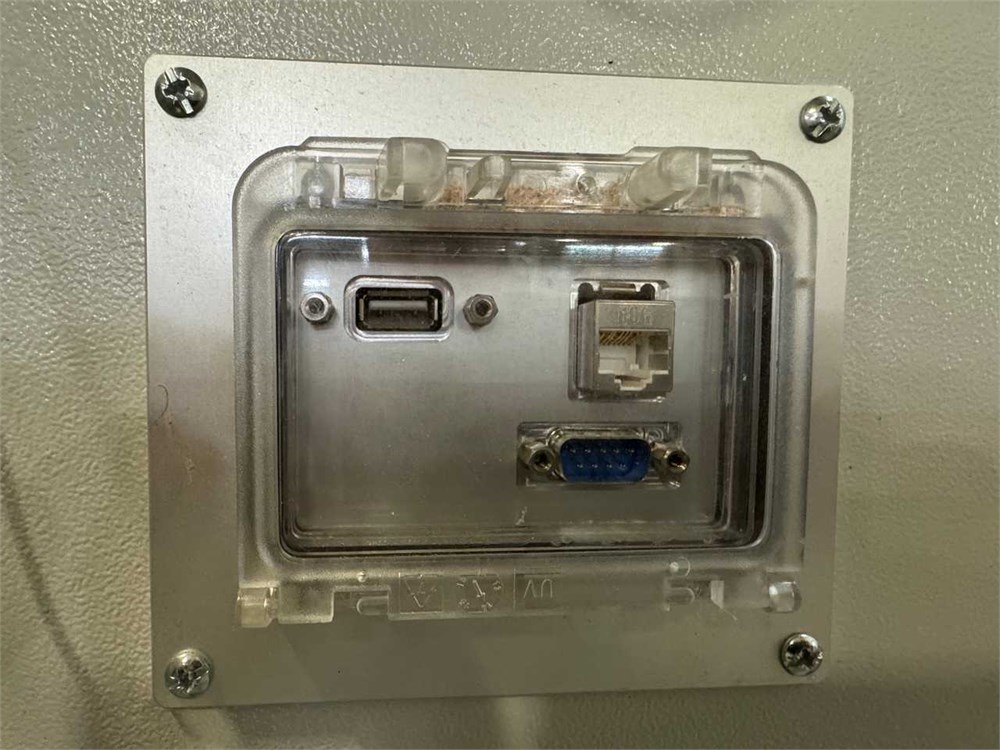

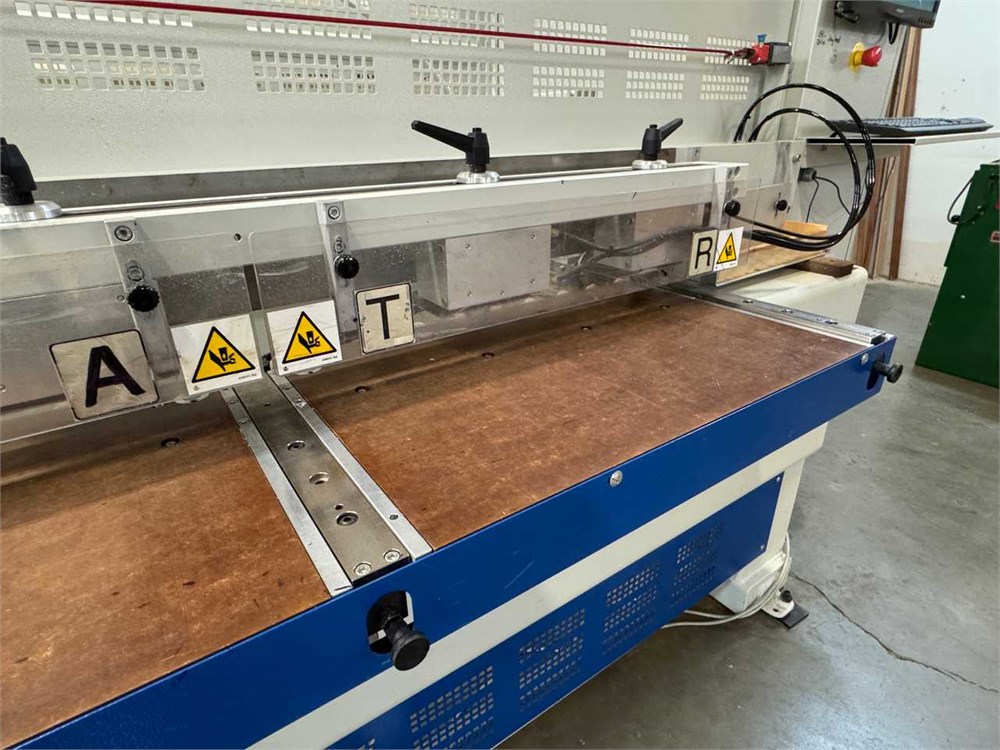

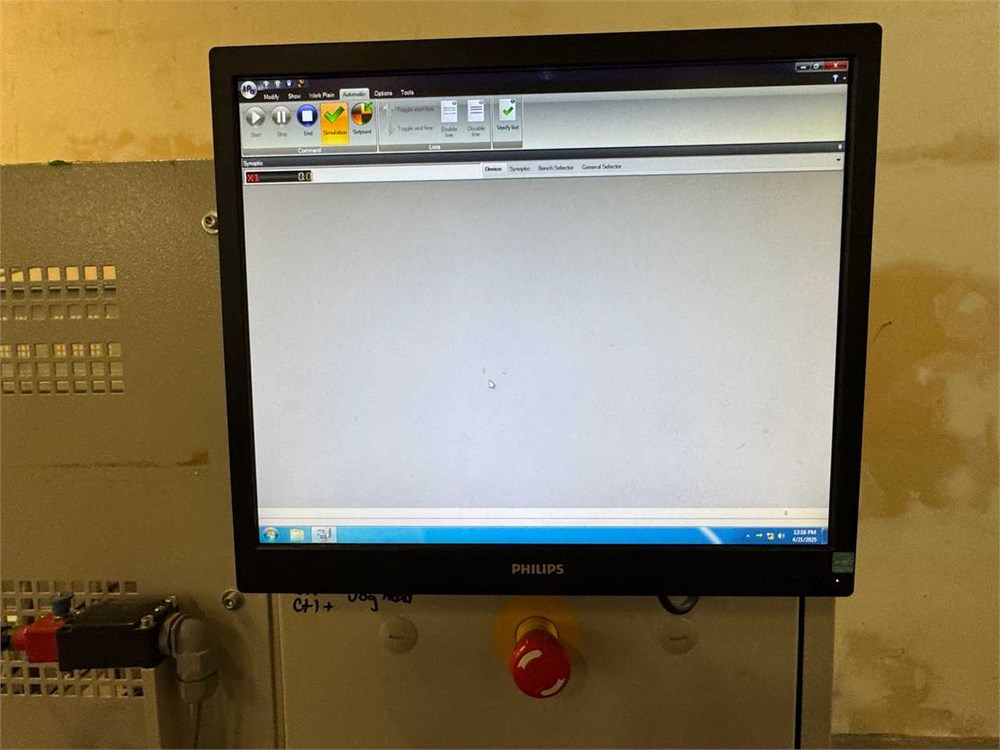

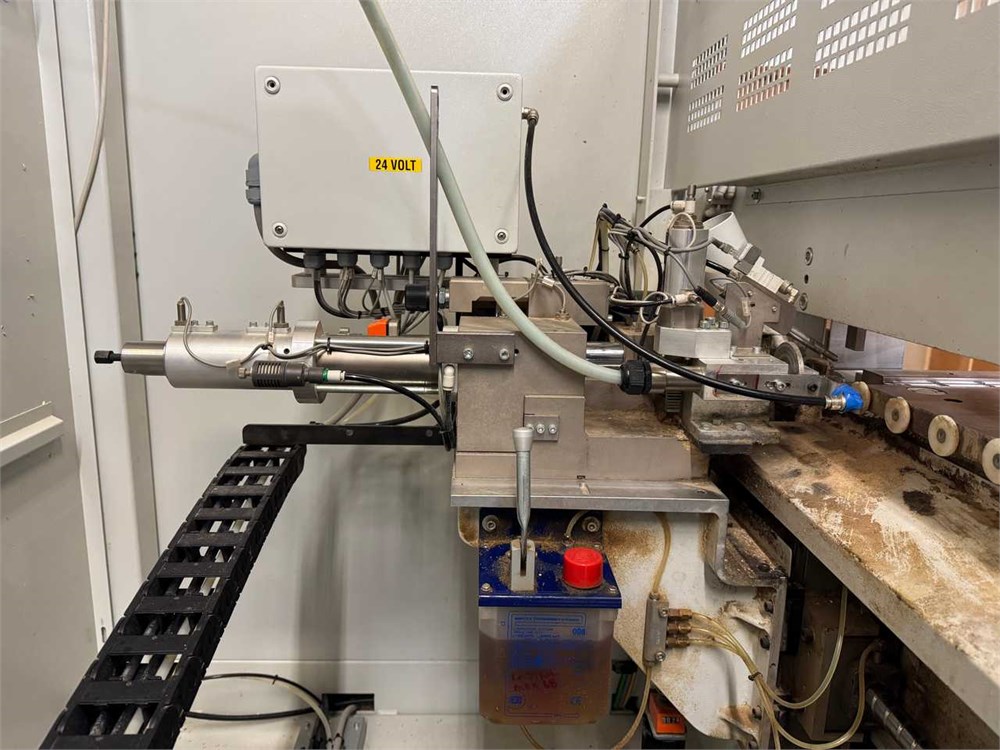

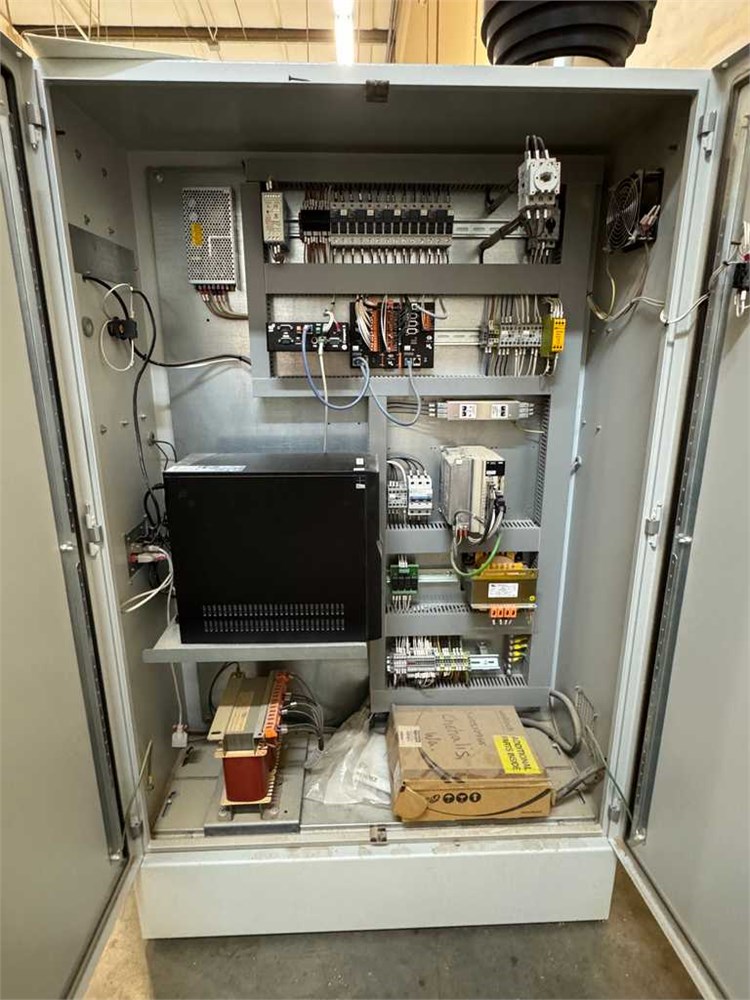

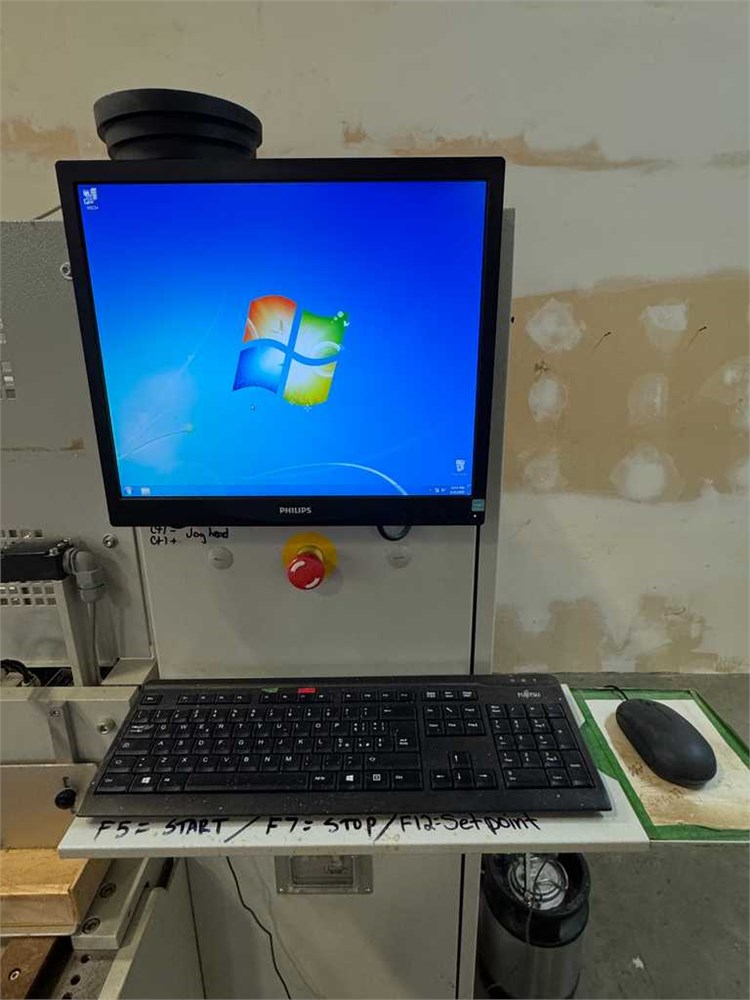

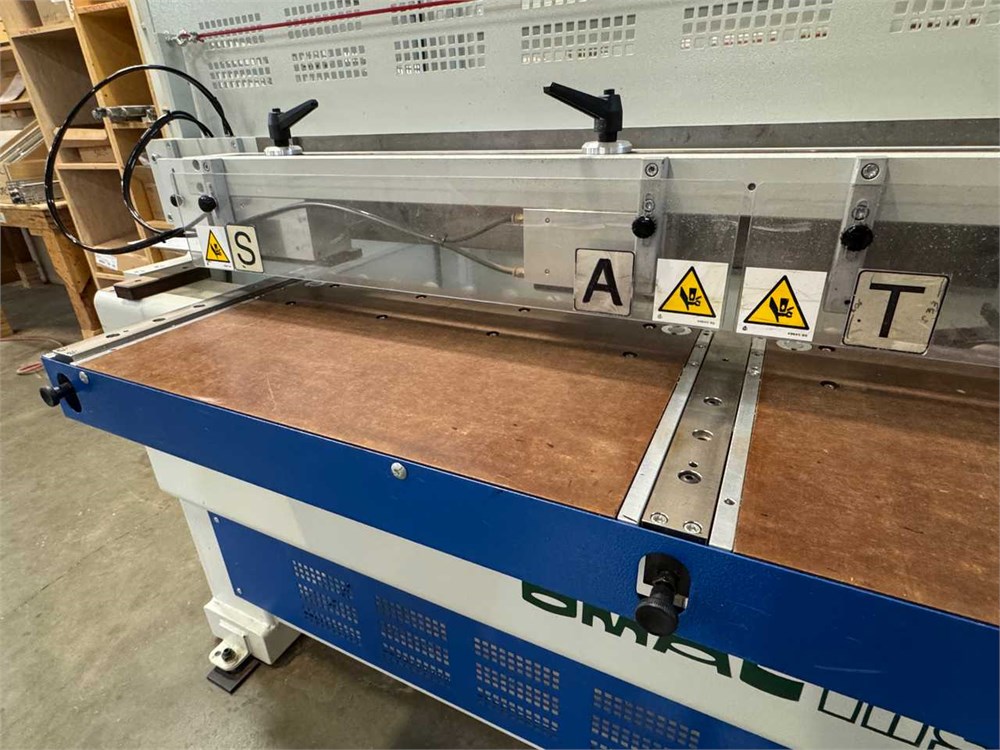

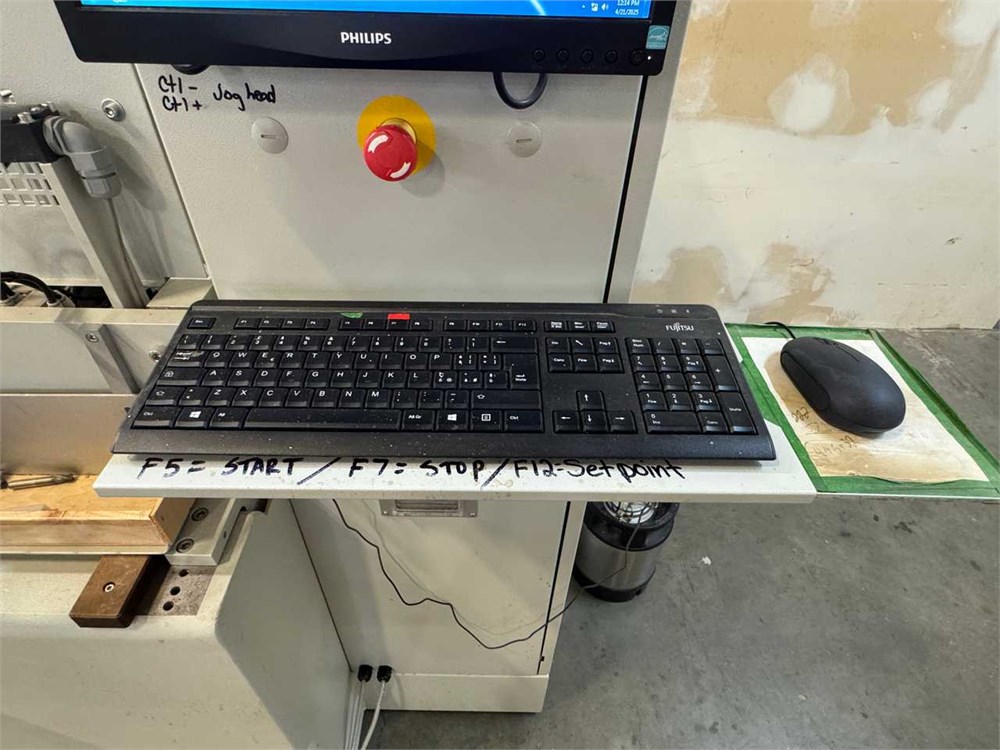

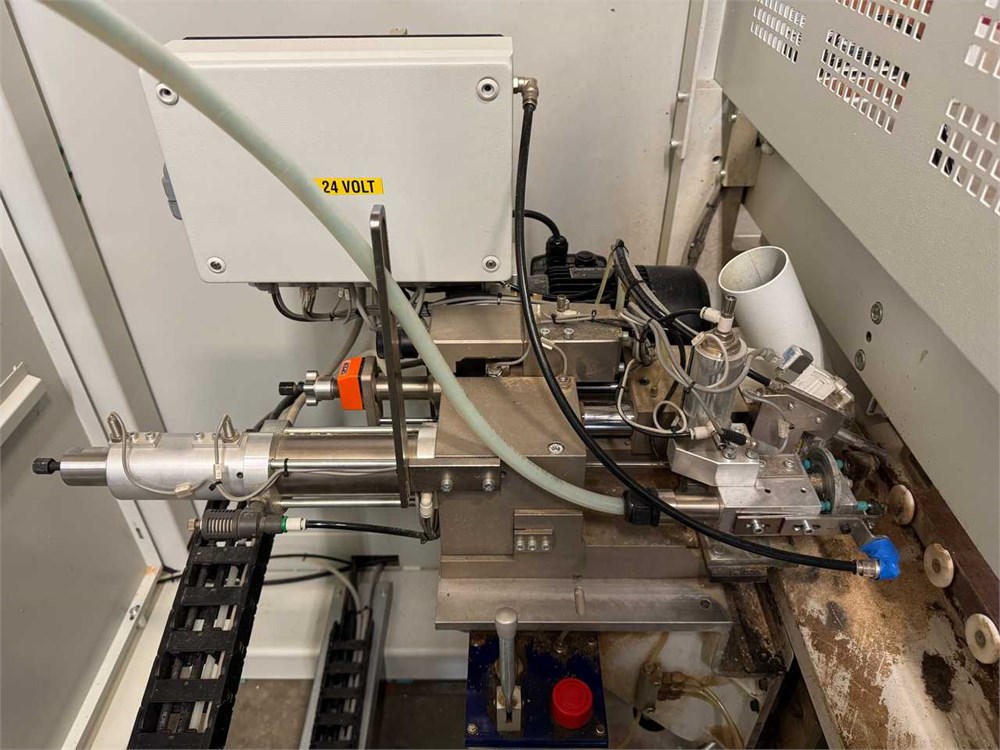

PC Controller with Windows operating system, flat screen color monitor, industrial keyboard, mouse, 40GIG hard drive; USB port; bar code scanner; (4) working zones, retractable center fence, useful for processing smaller parts like drawers, stretchers etc. One (1) 1-HP NC controlled horizontal drilling unit, gluing and (1) dowel insertion unit.

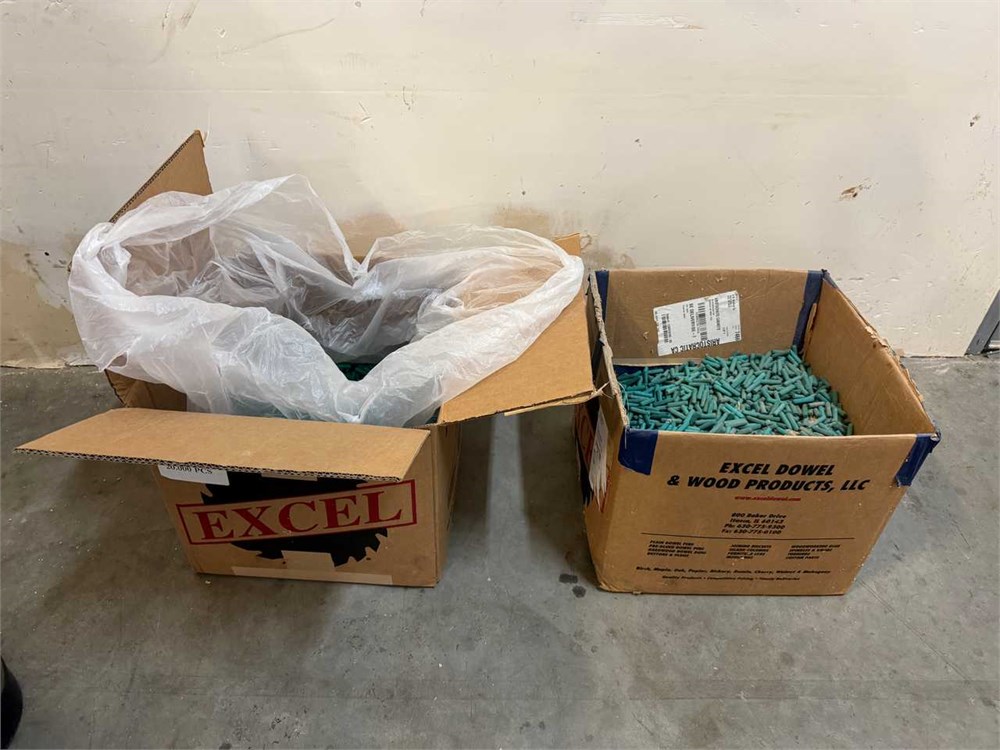

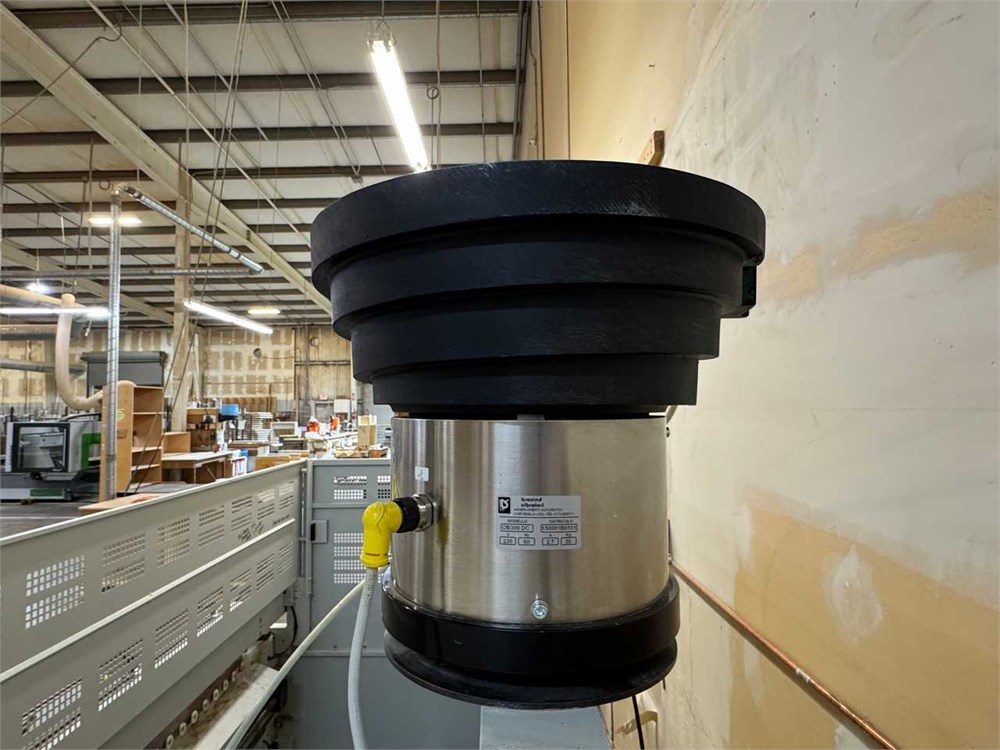

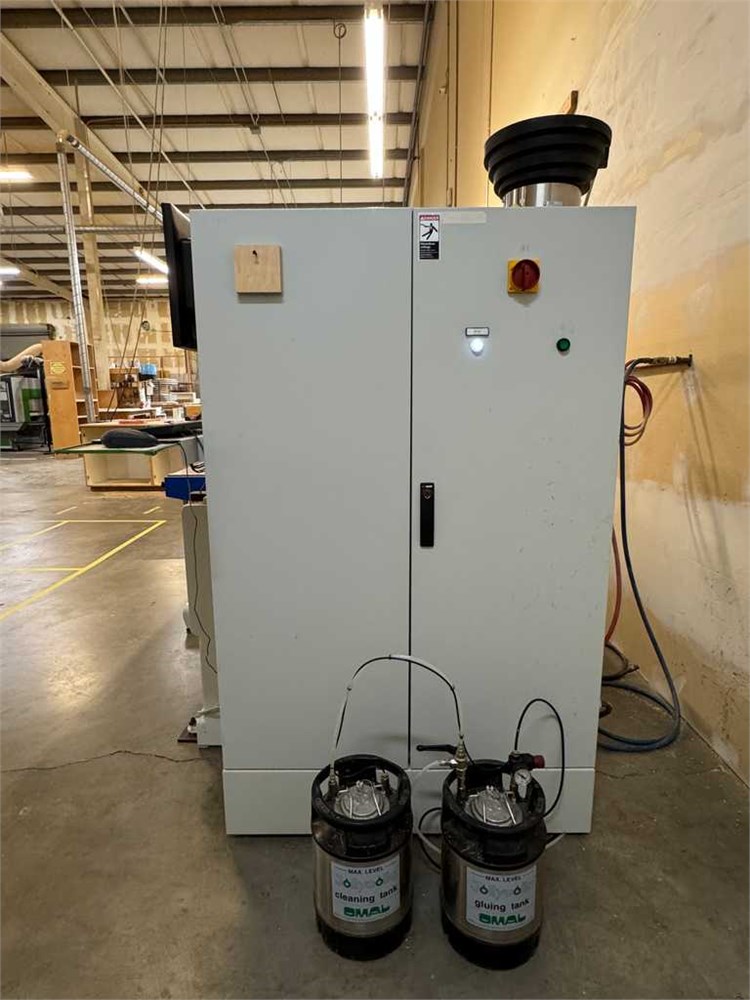

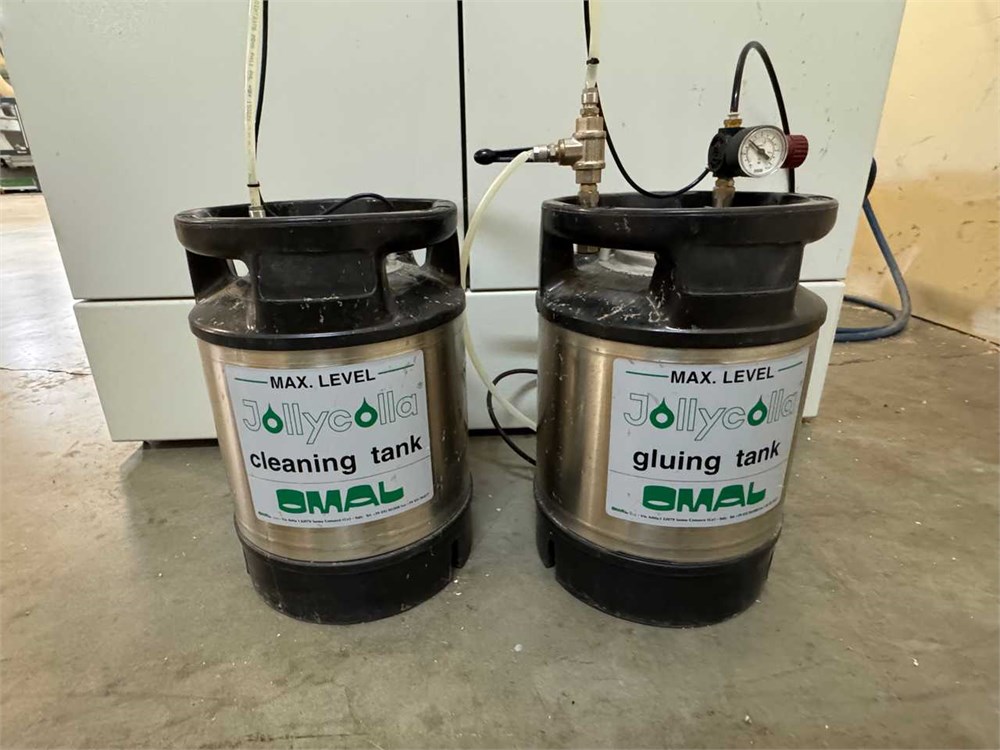

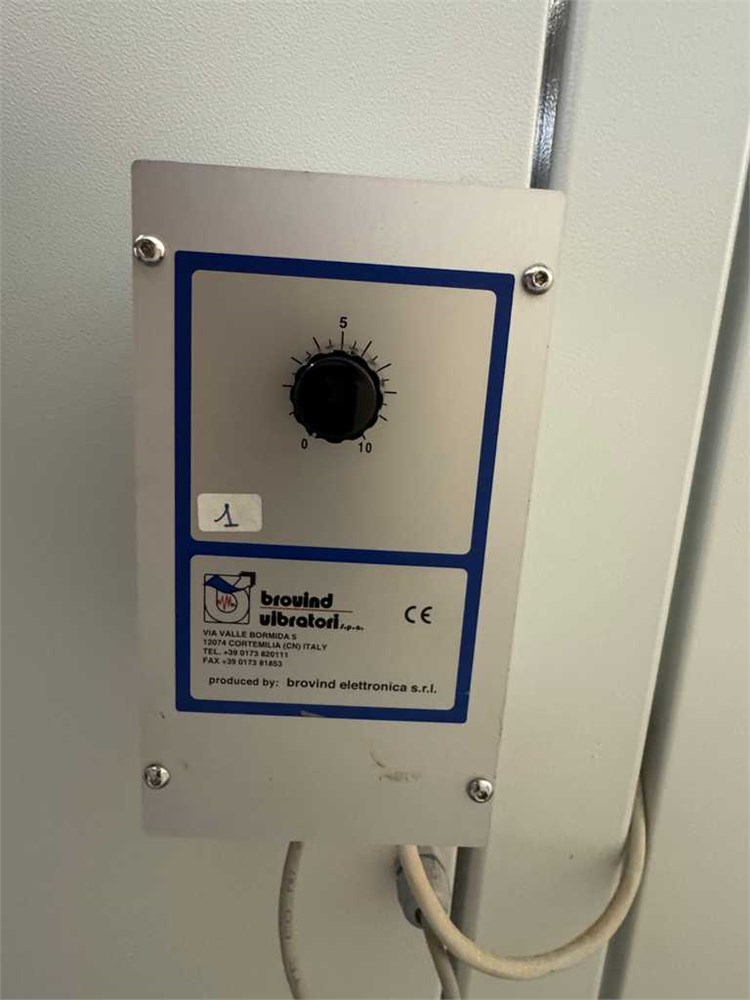

(1) 8-Liter cap. high pressure glue tank, (1) 8-liter cap. water tank (for cleaning), (1) Vibratory Dowel Hopper, (4) pneumatic hold-down clamps.

The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.

The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
